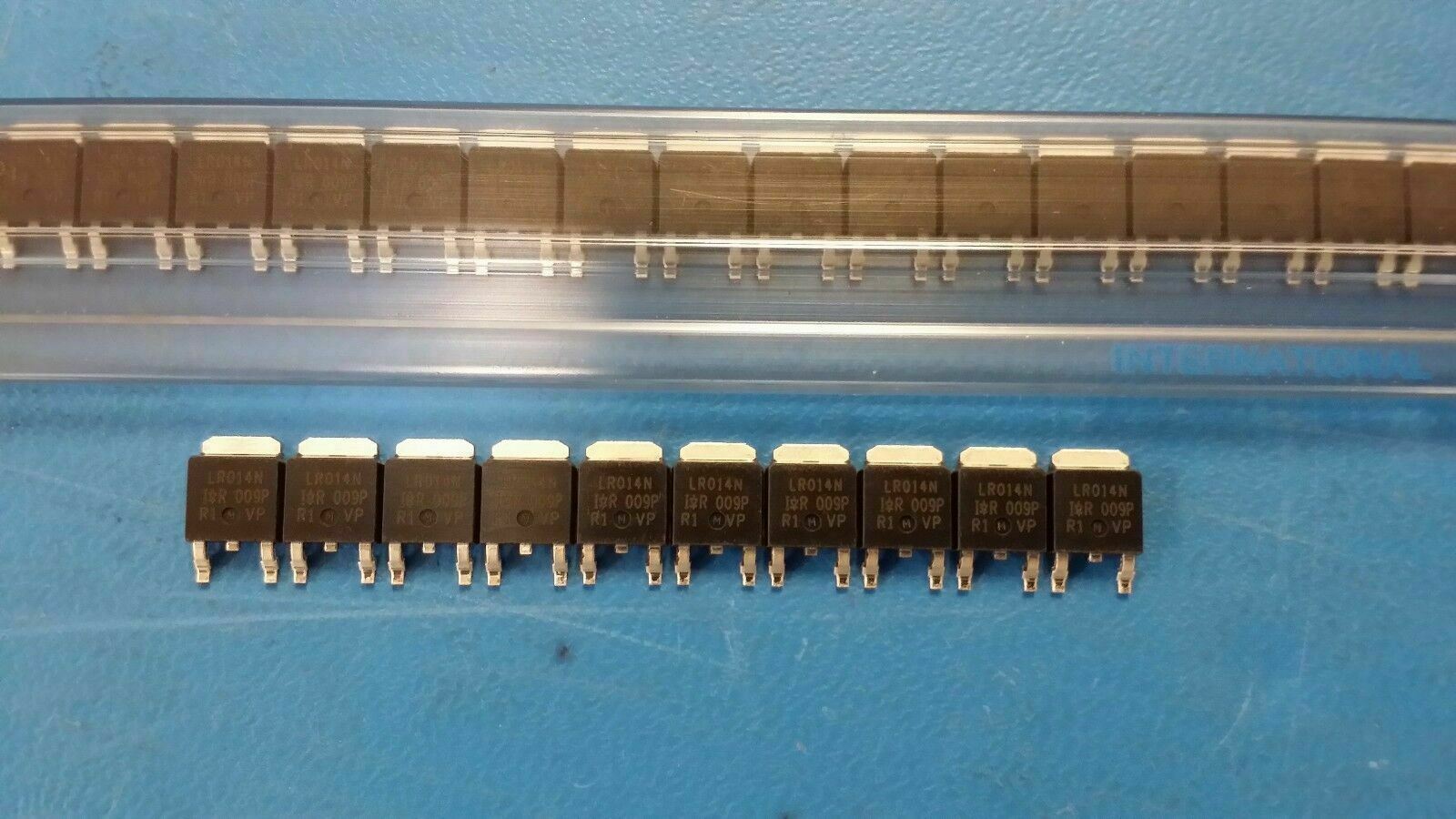

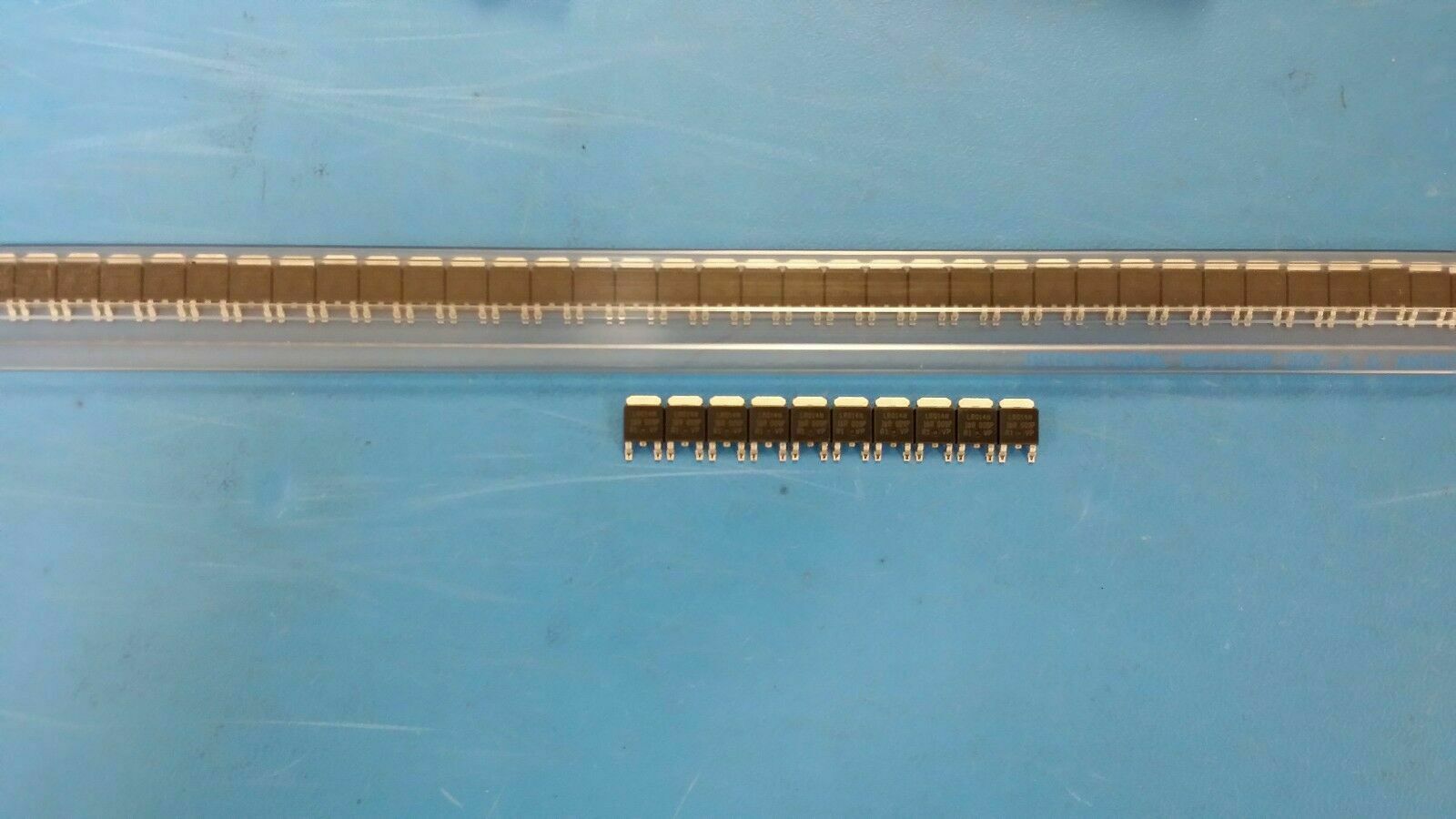

(5 PCS) IRLR014N Transistor MOSFET N-CH 55V 10A 3-Pin(2 Tab) DPAK TO-252-3 ROHS
Tax included.
THIS LISTING IS FOR (5PCS) OF IRLR014NPBF BY INTERNATIONAL RECTIFIER
SPECIFICATIONS
| Mfr Package Description | LEAD FREE, PLASTIC, DPAK-3 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Avalanche Energy Rating (Eas) | 35 mJ |
| Case Connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Drain Current-Max (Abs) (ID) | 10 A |
| Drain Current-Max (ID) | 10 A |
| Drain-source On Resistance-Max | 0.1400 ohm |
| DS Breakdown Voltage-Min | 55 V |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-252AA |
| JESD-30 Code | R-PSSO-G2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 175 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 28 W |
| Pulsed Drain Current-Max (IDM) | 40 A |
| Qualification Status | Not Qualified |
| Sub Category | FET General Purpose Power |
| Surface Mount | YES |
| Terminal Finish | MATTE TIN OVER NICKEL |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Additional Feature | AVALANCHE RATED, LOGIC LEVEL COMPATIBLE |
