(5 PCS) IRFZ44RPBF VISHAY MOSFET N-CH 60V 50A TO220AB ROHS
Tax included.

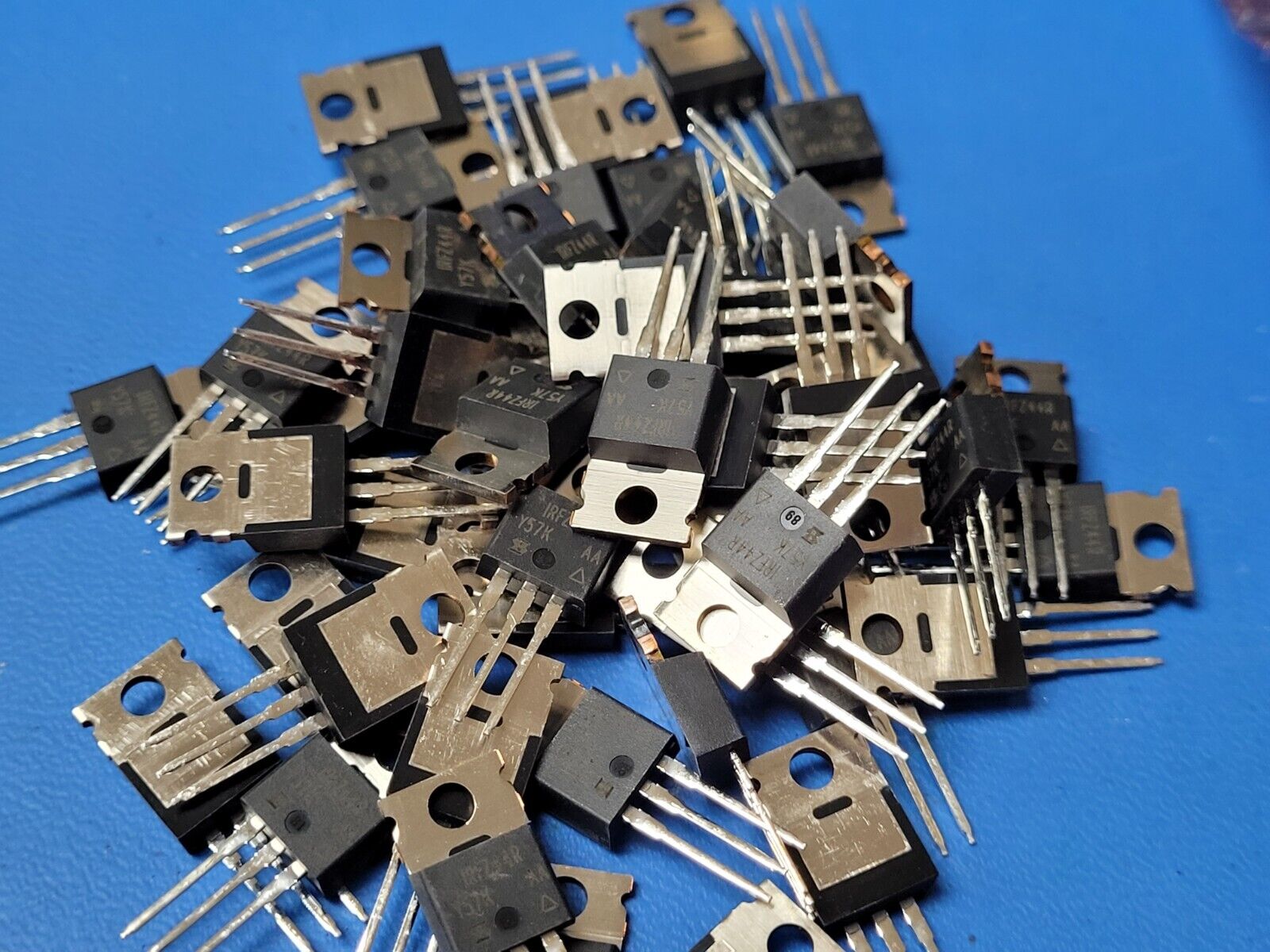

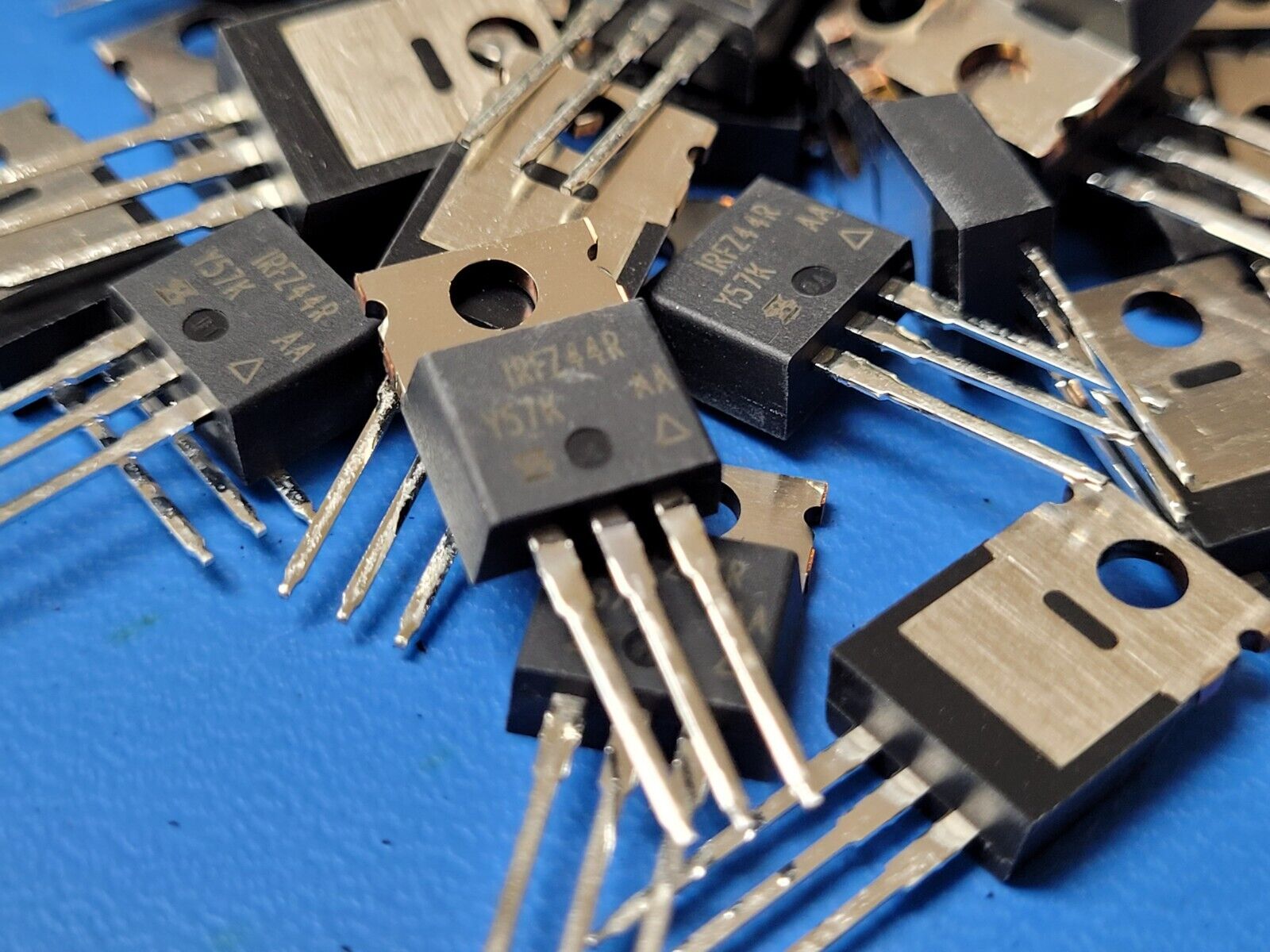

THIS IS FOR (5 PCS) OF IRFZ44RPBF BY VISHAY
MOSFET N-CH 60V 50A TO220AB ROHS
Manufacturer: Vishay
Product Category: MOSFET
RoHS: YES
REACH - SVHC:
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 60 V
Id - Continuous Drain Current: 50 A
Rds On - Drain-Source Resistance: 28 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 4 V
Qg - Gate Charge: 67 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 150 W
Channel Mode: Enhancement
Series: IRFZ
Brand: Vishay Semiconductors
Configuration: Single
Fall Time: 92 ns
Height: 15.49 mm
Length: 10.41 mm
Product Type: MOSFET
Rise Time: 110 ns
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 45 ns
Typical Turn-On Delay Time: 14 ns
Width: 4.7 mm
