(5 PCS) IRFR4105 Trans MOSFET N-CH Si 55V 27A 3-Pin(2+Tab) DPAK
Tax included.

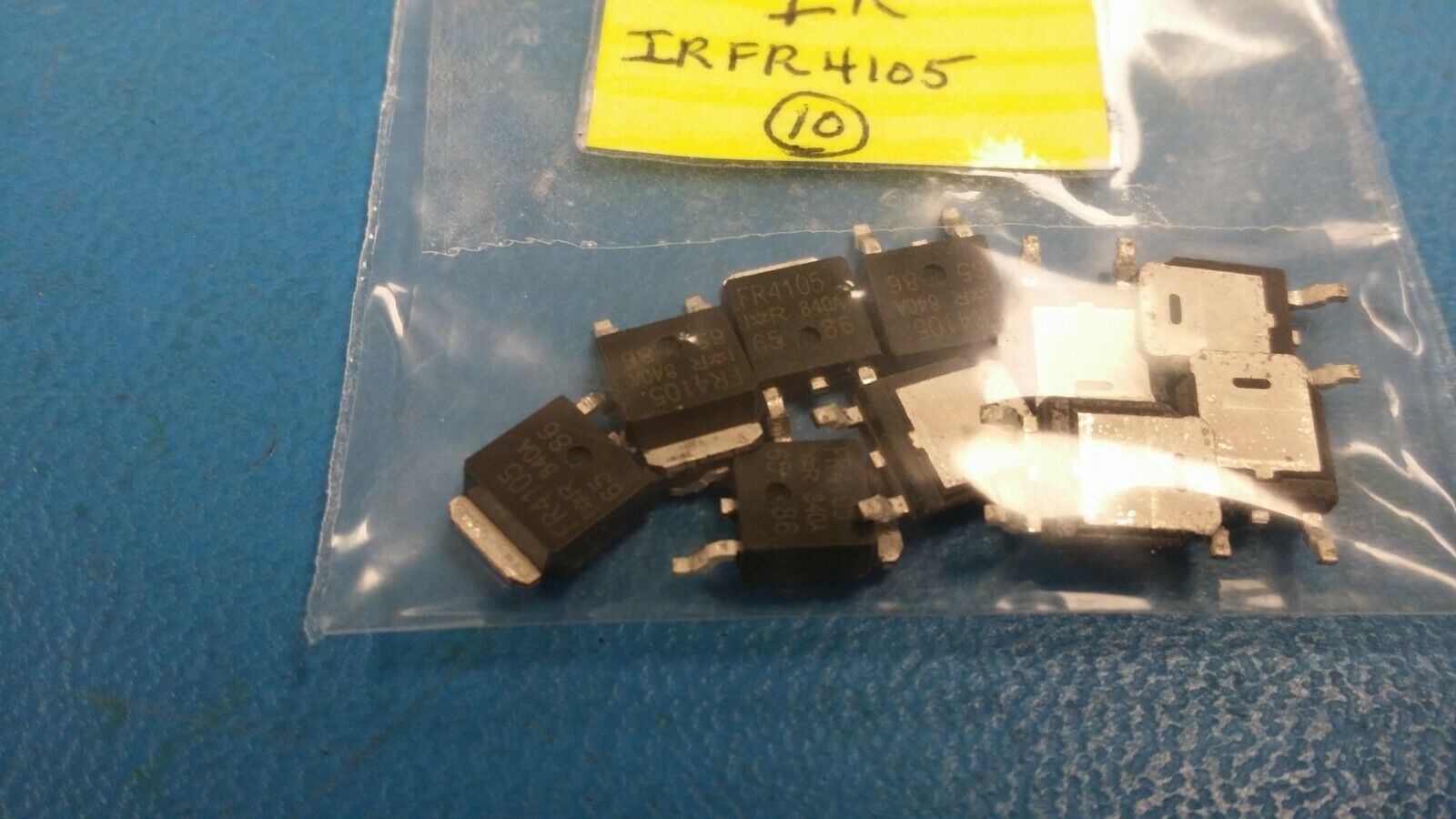

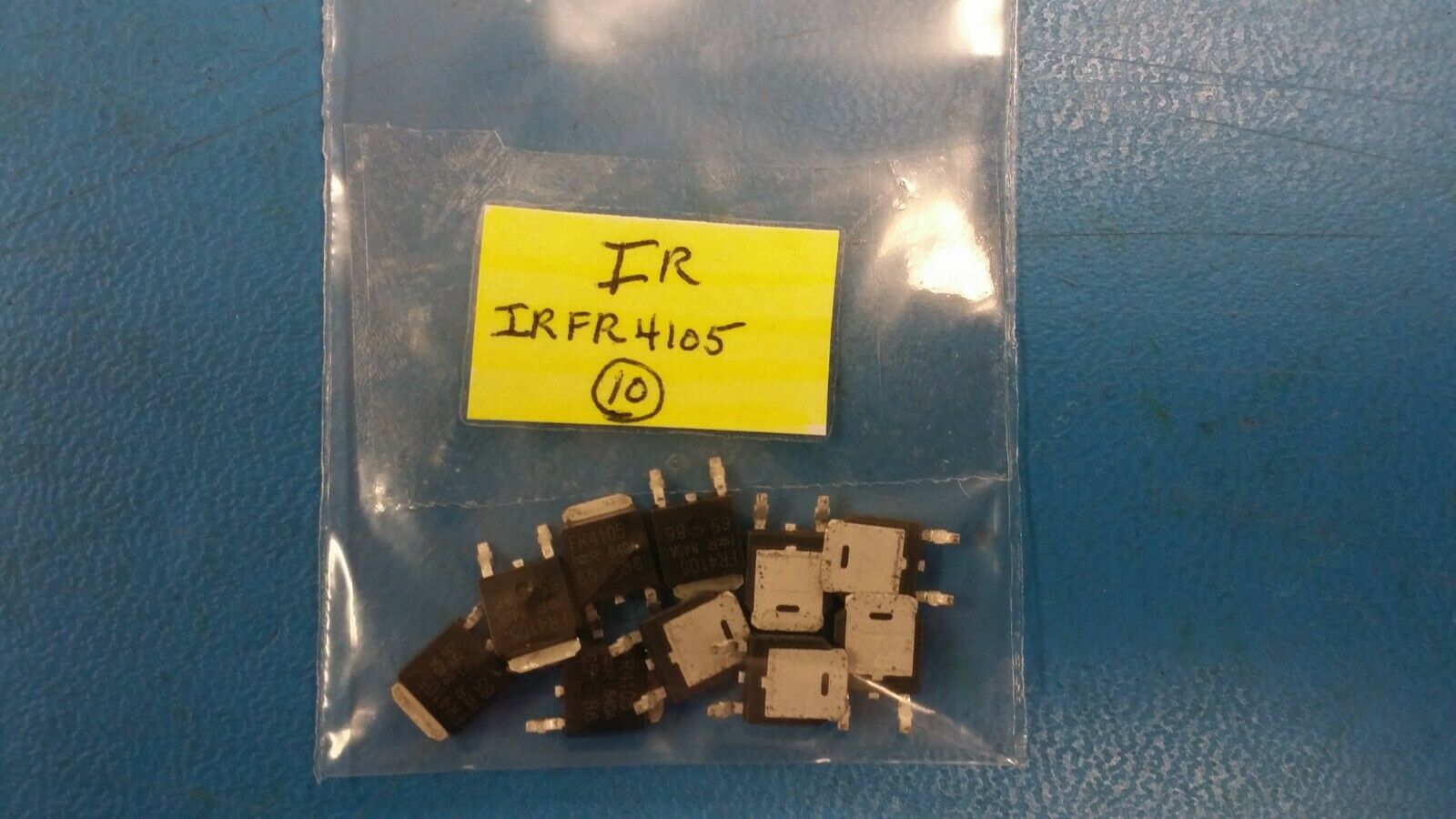

THIS LISTING IS FOR (5 PCS) OF IRFR4105 BY IR
Trans MOSFET N-CH Si 55V 27A 3-Pin(2+Tab) DPAK
Mfr International Rectifier
Series HEXFET®
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C 27A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 45mOhm @ 16A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Vgs (Max) ±20V
FET Feature -
Power Dissipation (Max) 68W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package D-Pak
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Drain to Source Voltage (Vdss) 55 V
Gate Charge (Qg) (Max) @ Vgs 34 nC @ 10 V
