(5 PCS) IRFIB6N60APBF VISHAY MOSFET N-CH 600V 5.5A TO220-3 ROHS
(5 PCS) IRFIB6N60APBF VISHAY MOSFET N-CH 600V 5.5A TO220-3 ROHS

(5 PCS) IRFIB6N60APBF VISHAY MOSFET N-CH 600V 5.5A TO220-3 ROHS

Tax included.
Only 35 left!

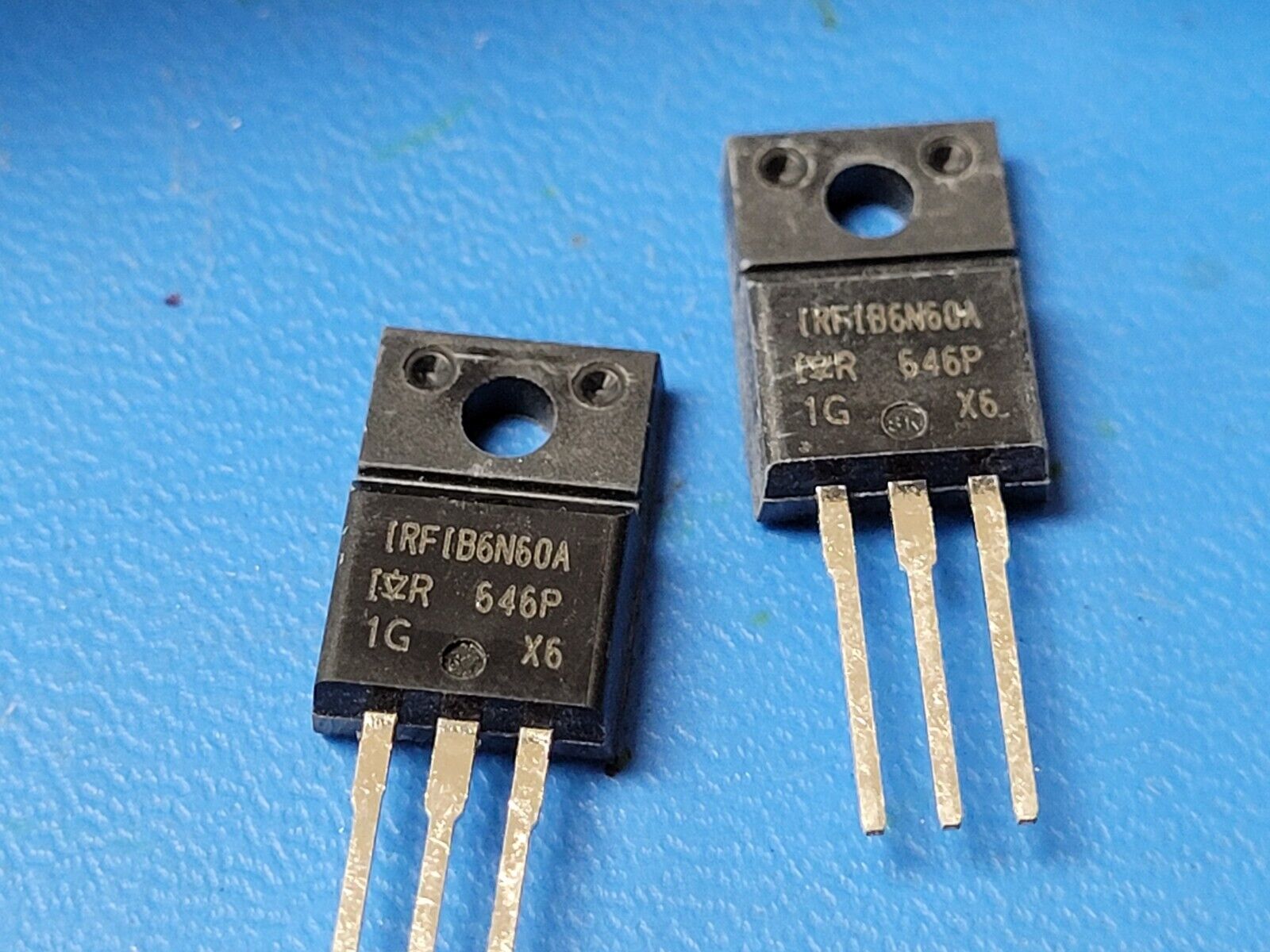

THIS IS (5 PCS) IRFIB6N60APBF VISHAY
MOSFET N-CH 600V 5.5A TO220-3 ROHS

Manufacturer: Vishay
Product Category: MOSFET
RoHS: YES
REACH - SVHC:
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 600 V
Id - Continuous Drain Current: 5.5 A
Rds On - Drain-Source Resistance: 750 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 2 V
Qg - Gate Charge: 49 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 60 W
Channel Mode: Enhancement
Series: IRFIB
Brand: Vishay Semiconductors
Configuration: Single
Height: 15.49 mm
Length: 10.41 mm
Product Type: MOSFET
Subcategory: MOSFETs
Width: 4.7 mm
Unit Weight: 0.068784 oz
