(5 PCS) IHLP2525CZER1R5M01 VISHAY FIXED IND 1.5UH 9A 15 MOHM SMD ROHS

$6.95
Unit price per

Tax included.

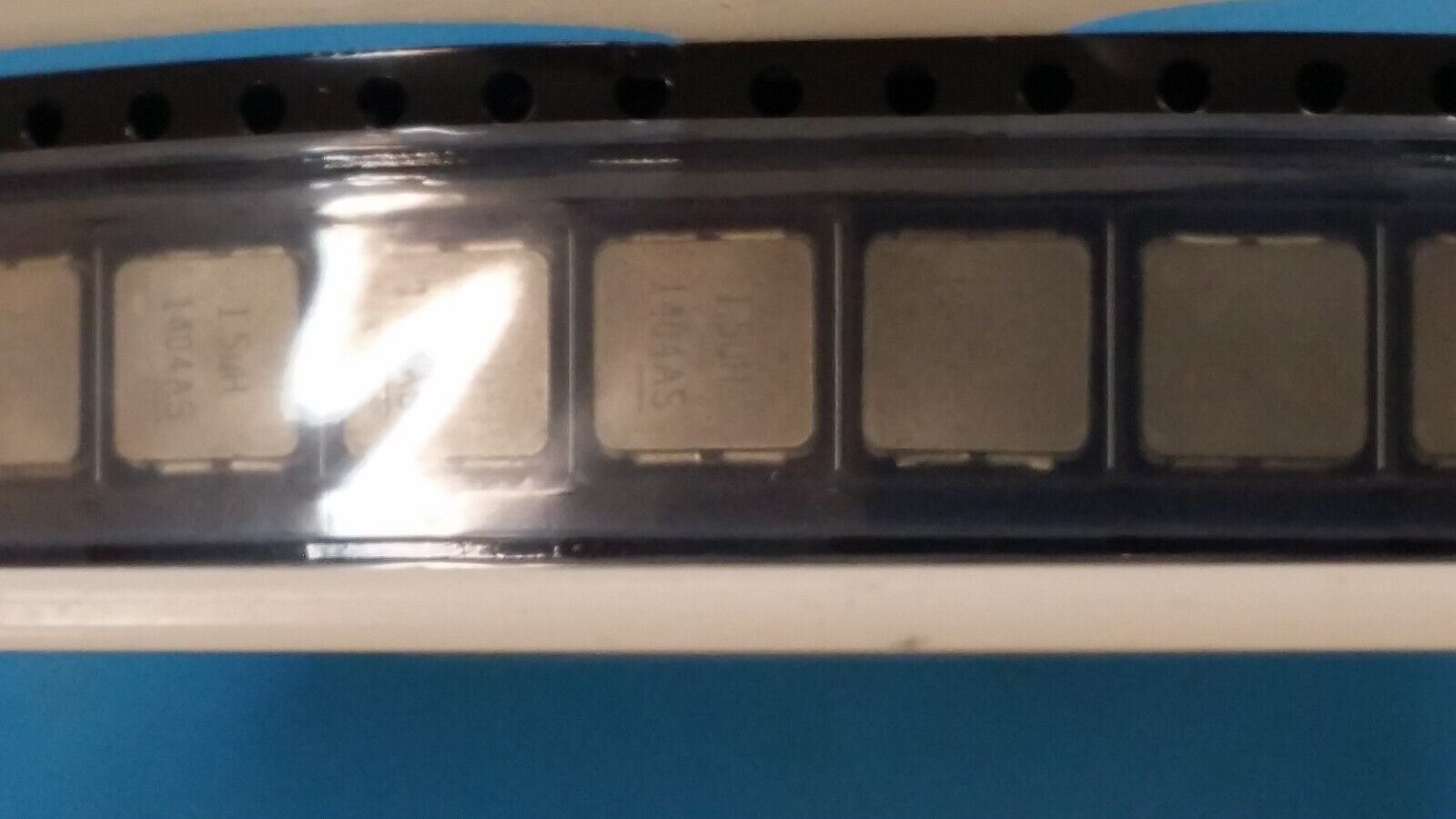

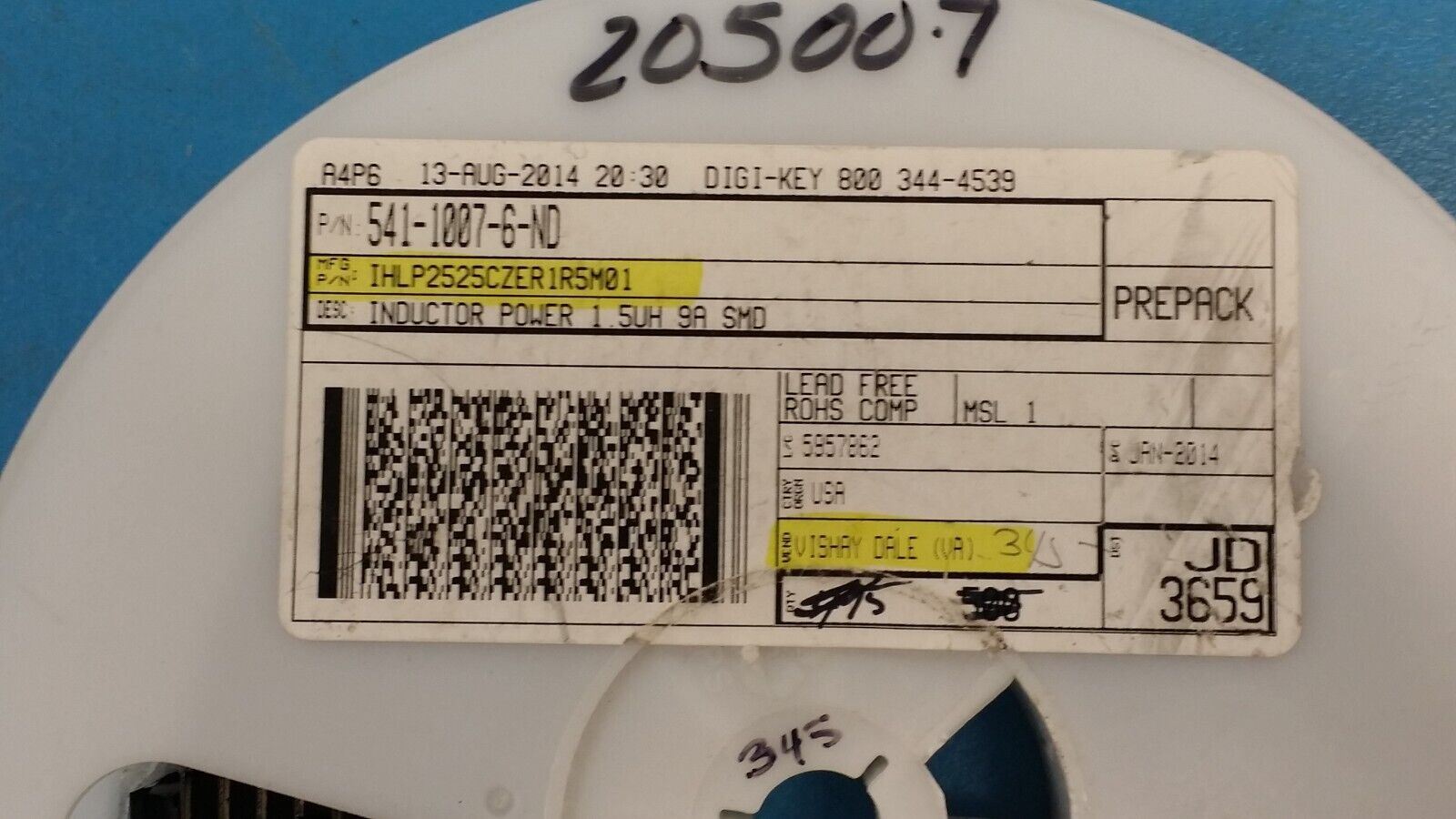

THIS IS FOR (5 PCS) OF IHLP2525CZER1R5M01 BY VISHAY

FIXED IND 1.5UH 9A 15 MOHM SMD ROHS

Manufacturer: Vishay

Product Category: Fixed Inductors

RoHS: YES

Product: Power Inductors

Type: Wirewound

Termination Style: SMD/SMT

Package / Case: 2525 (6363 metric)

Shielding: Shielded

Inductance: 1.5 uH

Tolerance: 20 %

Maximum DC Current: 9 A

Maximum DC Resistance: 15 mOhms

Saturation Current: 18 A

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 125 C

Q Minimum: -

Self Resonant Frequency: 40 MHz

Termination: Standard

Mounting Style: PCB Mount

Length: 6.47 mm

Width: 6.47 mm

Height: 3 mm

Diameter: -

Core Material: Composite

Series: IHLP2525

Packaging: Reel

Packaging: Cut Tape

Application: Commercial

Brand: Vishay / Dale

Case Code - in: 2525

Case Code - mm: 6363

Product Type: Fixed Inductors

Subcategory: Inductors, Chokes & Coils

Test Frequency: 100 kHz

Tradename: IHLP

Part # Aliases: MAGM28-G

Unit Weight: 0.025004 oz
