(5 PCS) IDT74FST3257Q IDT QUAD 2:1 MUX/DEMUX BUS SWITCH SSOP-16
Tax included.

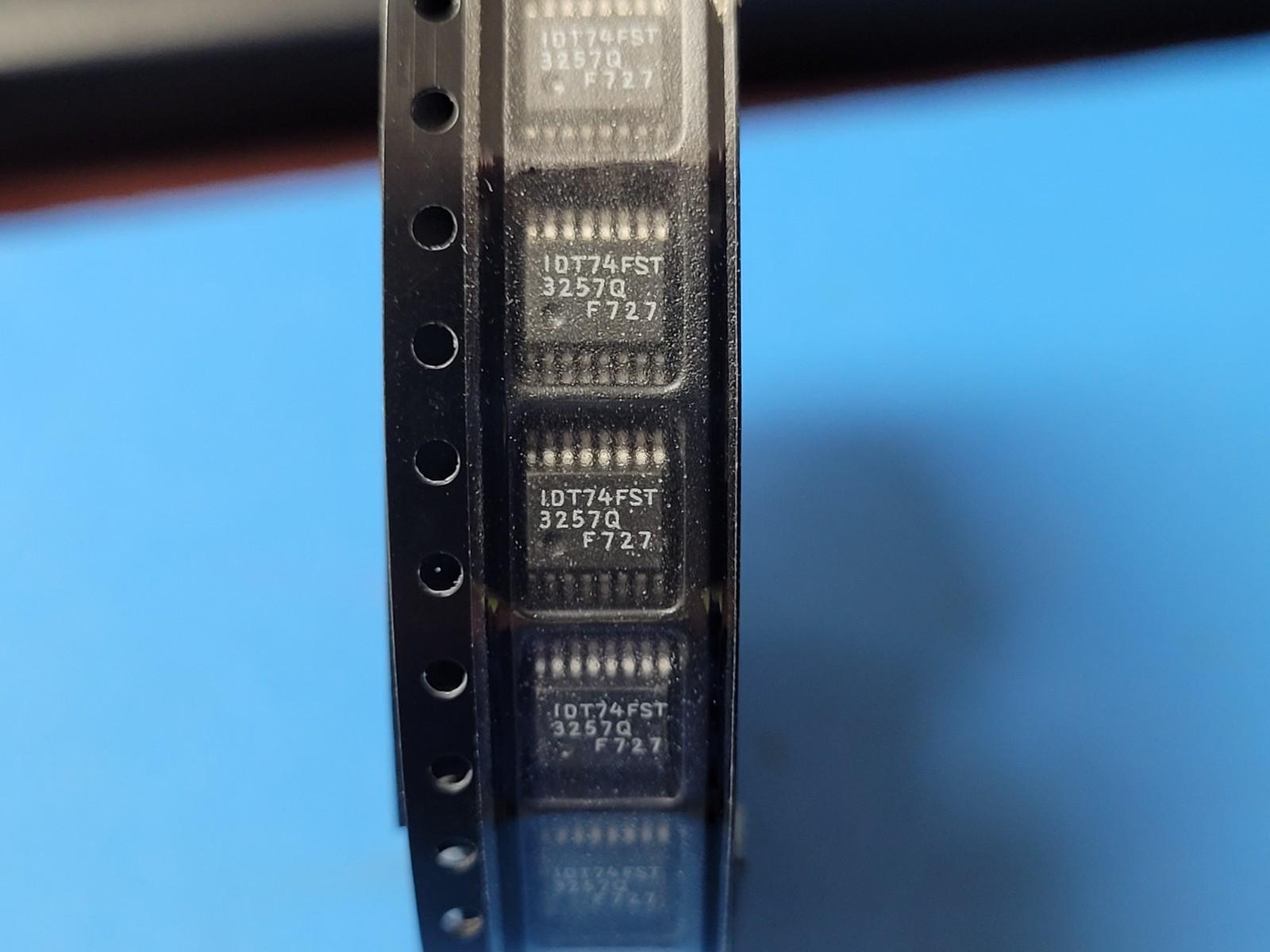

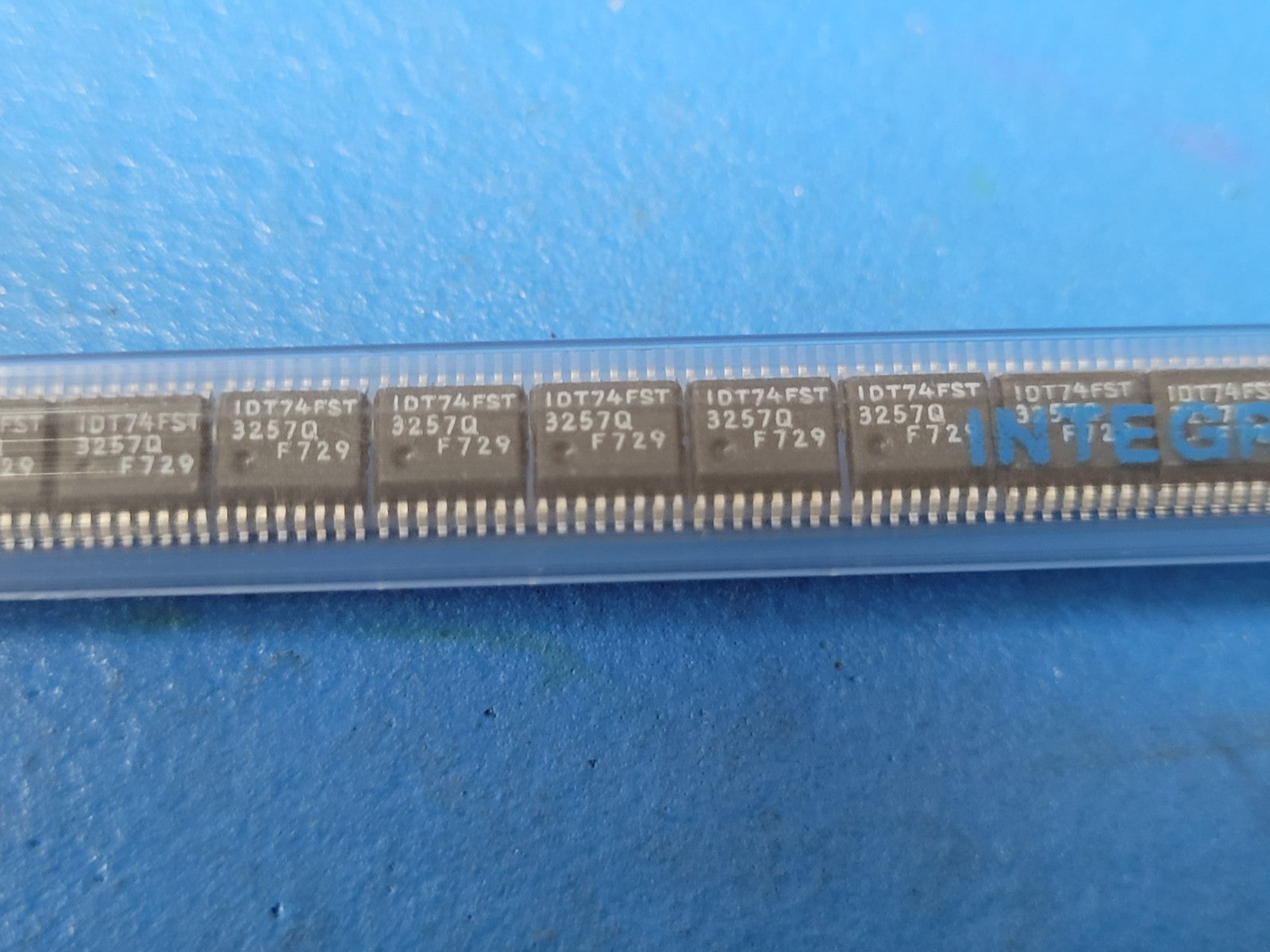

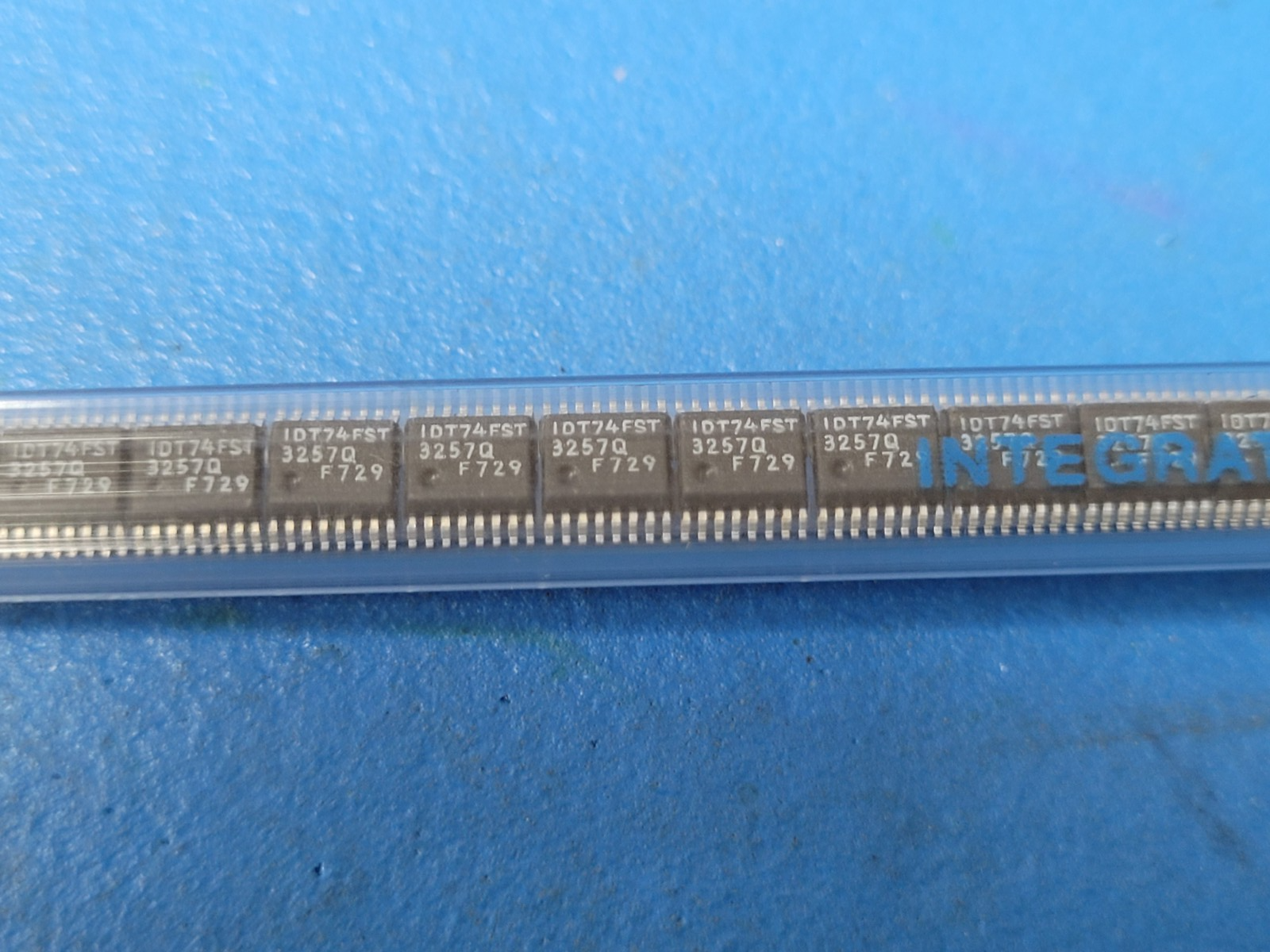

THIS IS FOR (5 PCS) OF IDT74FST3257Q BY IDT
QUAD 2:1 MUX/DEMUX BUS SWITCH SSOP-16
Part #: IDT74FST3257Q
Obsolete
Part Category: Bus Driver/Transceivers
Manufacturer: INTEGRATED DEVICE TECHNOLOGY INC
Description: Bus Exchanger, CBT/FST/QS/5C/B Series, 4-Func, 2-Bit, True Output, CMOS, PDSO16
Status Discontinued
Control Type ENABLE LOW
Direction UNIDIRECTIONAL
Family CBT/FST/QS/5C/B
JESD-30 Code R-PDSO-G16
J-STD-609 Code e0
Length (mm) 4.9300
Load Capacitance (pF) 50.0000
Logic IC Type BUS EXCHANGER
Moisture Sensitivity Level 1
Number of Bits 2
Number of Functions 4
Number of Inputs 2
Number of Outputs 1
Number of Ports 3
Number of Terminals 16
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Packing Method TUBE
Peak Reflow Temperature (Cel) 240
Supply Current-Max (mA) 2.40000000
Propagation Delay-Max@Nom-Sup (ns) 5.200000000000000000
Propagation Delay (ns) 5.2000
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.7300
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.635
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 3.9400
