(5 PCS) HGTP7N60C3D FSC, HARRIS, Trans IGBT Chip N-CH 600V 14A 3-Pin TO-220AB
Tax included.

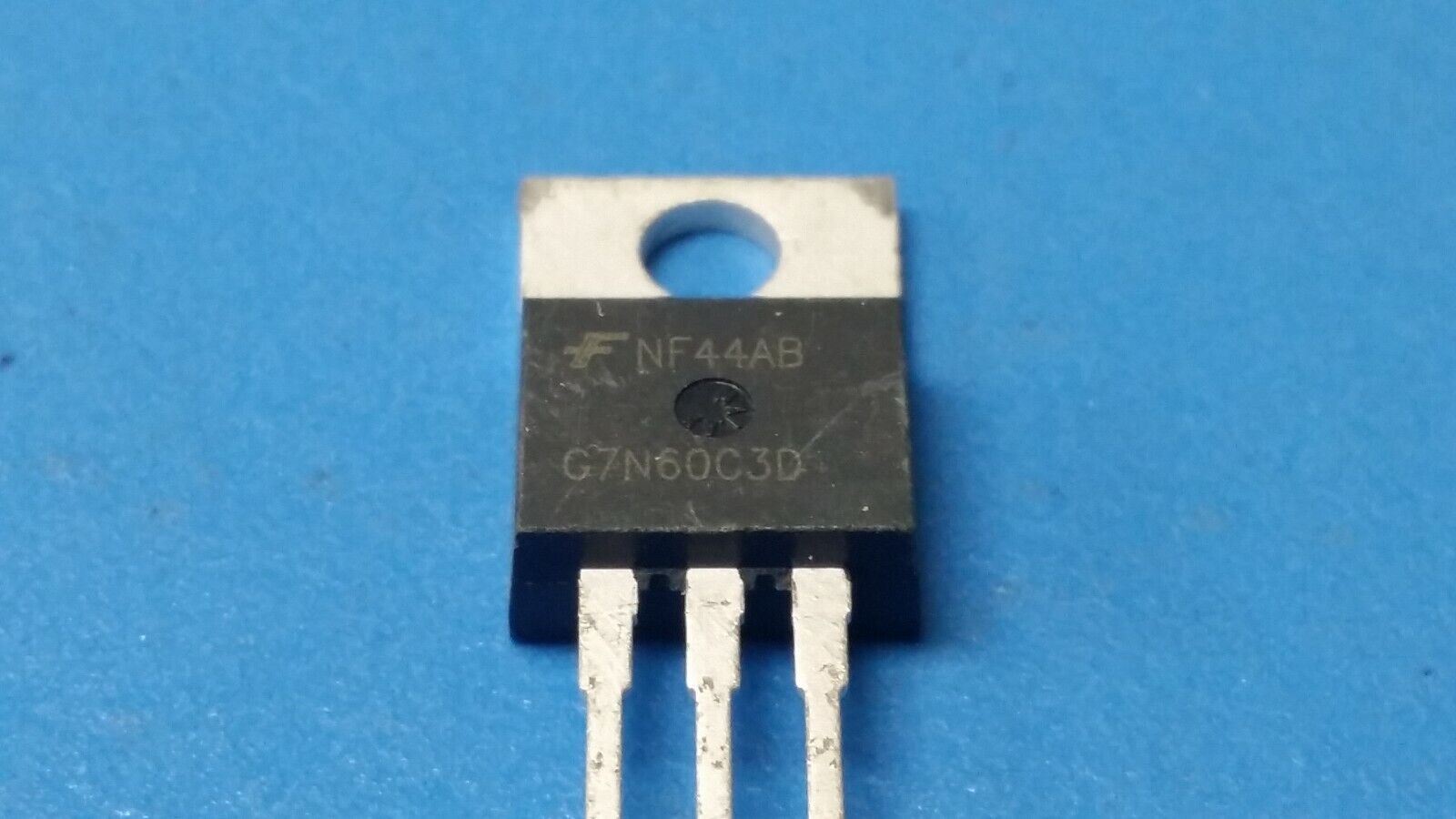

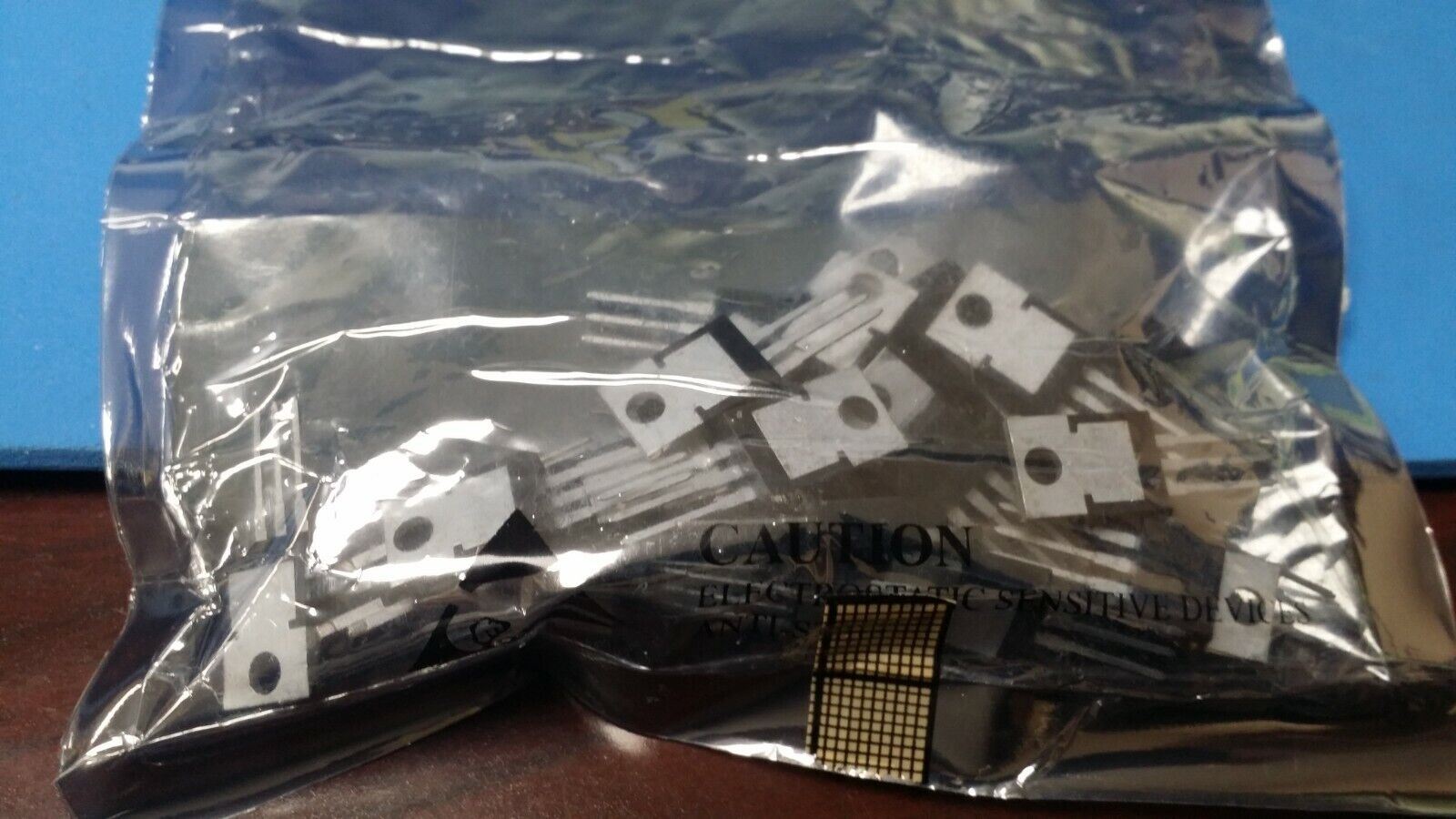

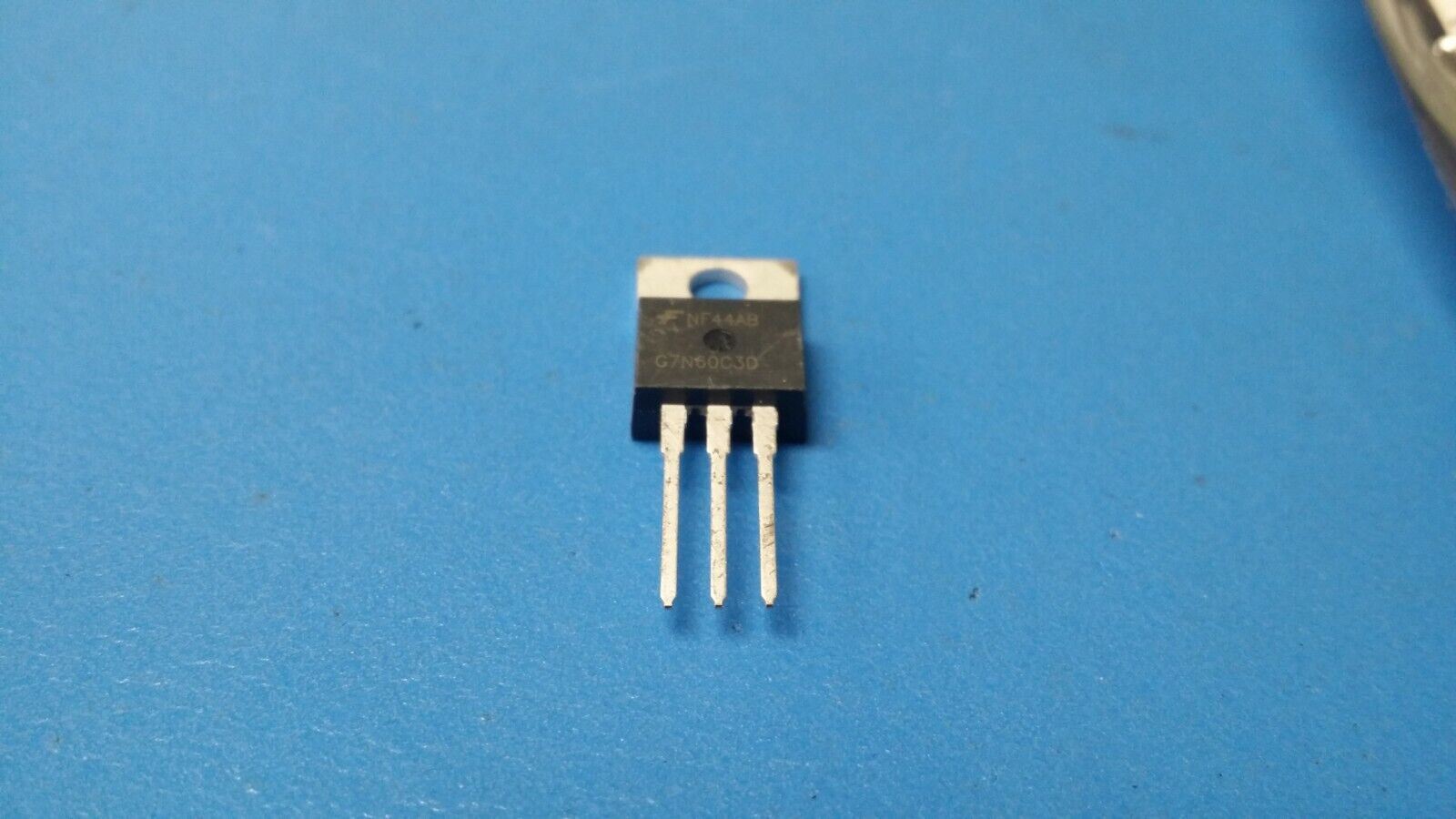

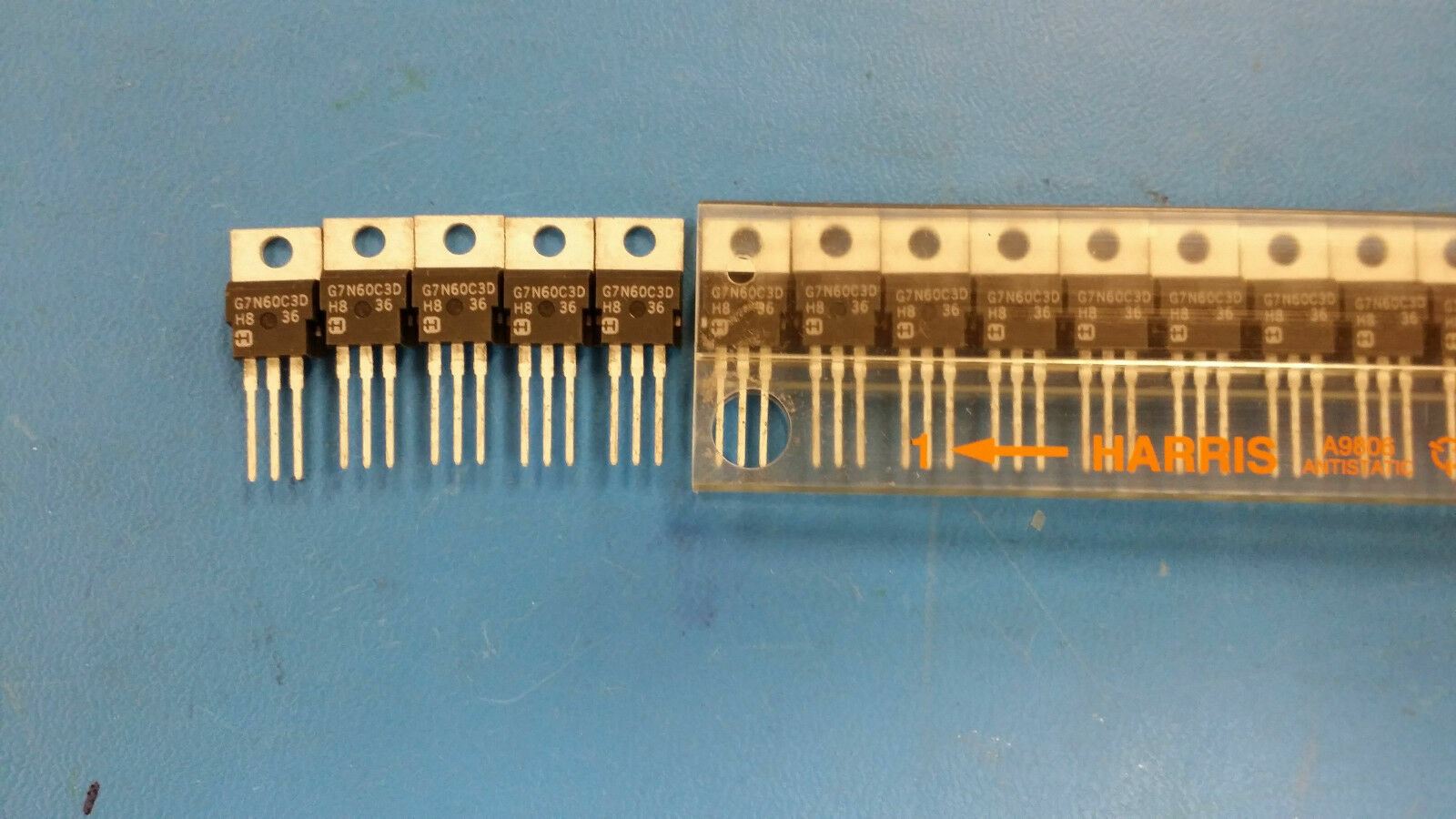

THIS LISTING IS FOR (5 PCS) OF HGTP7N60C3D BY FSC AND HARRIS SEMICONDUCTOR
SINGLE IGBT, 600V, 14A; DC Collector Current:14A; Collector Emitter Saturation Voltage Vce(on):1.6V; Power Dissipation Pd:60W; Collector Emitter Voltage V(br)ceo:600V; No. of Pins:3; Operating Temperature Max:150�C; MSL:-
SINGLE IGBT, 600V, 14A; DC Collector Current:14A; Collector Emitter Saturation Voltage Vce(on):1.6V; Power Dissipation Pd:60W; Collector Emitter Voltage V(br)ceo:600V; No. of Pins:3; Operating Temperature Max:150�C; MSL:-
HGTP7N60C3D Part Details & Parametric
| Maximum Power Dissipation (mW) | 60000 |
| Packaging | Rail |
| Typical Collector Emitter Saturation Voltage (V) | 1.6 |
| Maximum Continuous Collector Current (A) | 14 |
| Maximum Collector Emitter Voltage (V) | 600 |
| Maximum Gate Emitter Voltage (V) | ±20 |
| Channel Type | N |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Mounting | Through Hole |
| Package Height (mm) | 9.4(Max) |
| Package Length (mm) | 10.67(Max) |
| Package Width (mm) | 4.83(Max) |
| PCB | 3 |
| Tab | Tab |
| Standard Package Name | TO-220 |
| Supplier Package | TO-220AB |
| Pin Count | 3 |
| Lead Shape | Through Hole |
| Taxonomy | Diodes, Transistors and Thyristors » IGBT Transistors |
