(5 PCS) HGT1S12N60A4DS9A FSC Trans IGBT Chip N-CH 600V 54A 3-Pin(2+Tab) TO-263
(5 PCS) HGT1S12N60A4DS9A FSC Trans IGBT Chip N-CH 600V 54A 3-Pin(2+Tab) TO-263
(5 PCS) HGT1S12N60A4DS9A FSC Trans IGBT Chip N-CH 600V 54A 3-Pin(2+Tab) TO-263

(5 PCS) HGT1S12N60A4DS9A FSC Trans IGBT Chip N-CH 600V 54A 3-Pin(2+Tab) TO-263

Tax included.
Only 48 left!

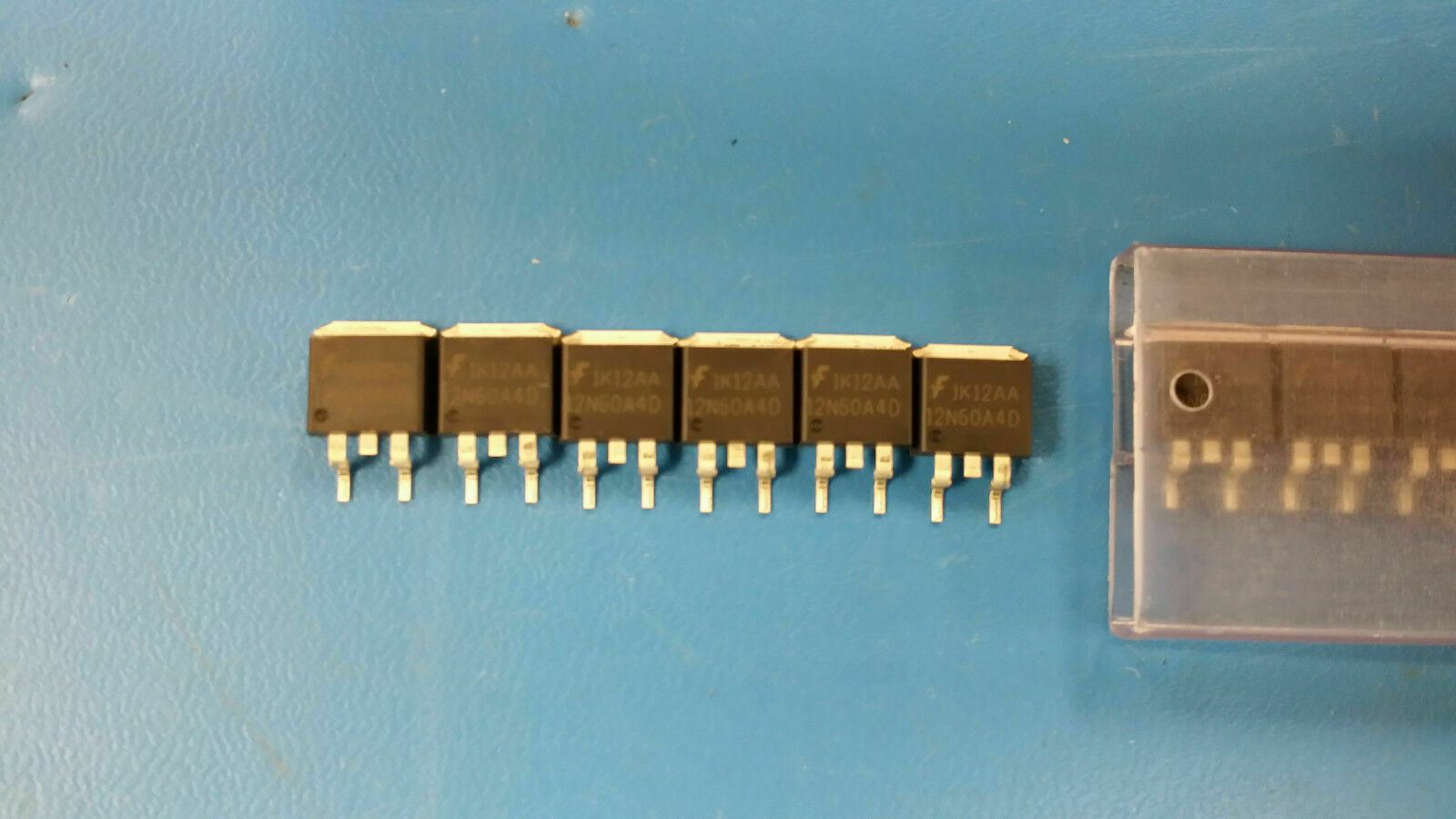

THIS LISTING IS FOR (5 PCS) OF HGT1S12N60A4DS9A BY FSC
Trans IGBT Chip N-CH 600V 54A 3-Pin(2+Tab) TO-263

Manufacturer: Fairchild Semiconductor
Product Category: IGBT Transistors
RoHS: RoHS Compliant
Configuration: Single
Collector- Emitter Voltage VCEO Max: 1200 V
Collector-Emitter Saturation Voltage: 2.7 V
Maximum Gate Emitter Voltage: +/- 20 V
Continuous Collector Current at 25 C: 35 A
Gate-Emitter Leakage Current: +/- 250 nA
Maximum Operating Temperature: + 150 C
Package / Case: TO-263AB-3
Packaging: Reel
Brand: Fairchild Semiconductor
Continuous Collector Current Ic Max: 54 A
Minimum Operating Temperature: - 55 C
Mounting Style: SMD/SMT
Pd - Power Dissipation: 298 W
Series: HGT1S12N60
