(5 PCS) HAT1043M-EL Power Field-Effect Transistor, 4.4A, 20V, P-Channel MOSFET
Tax included.

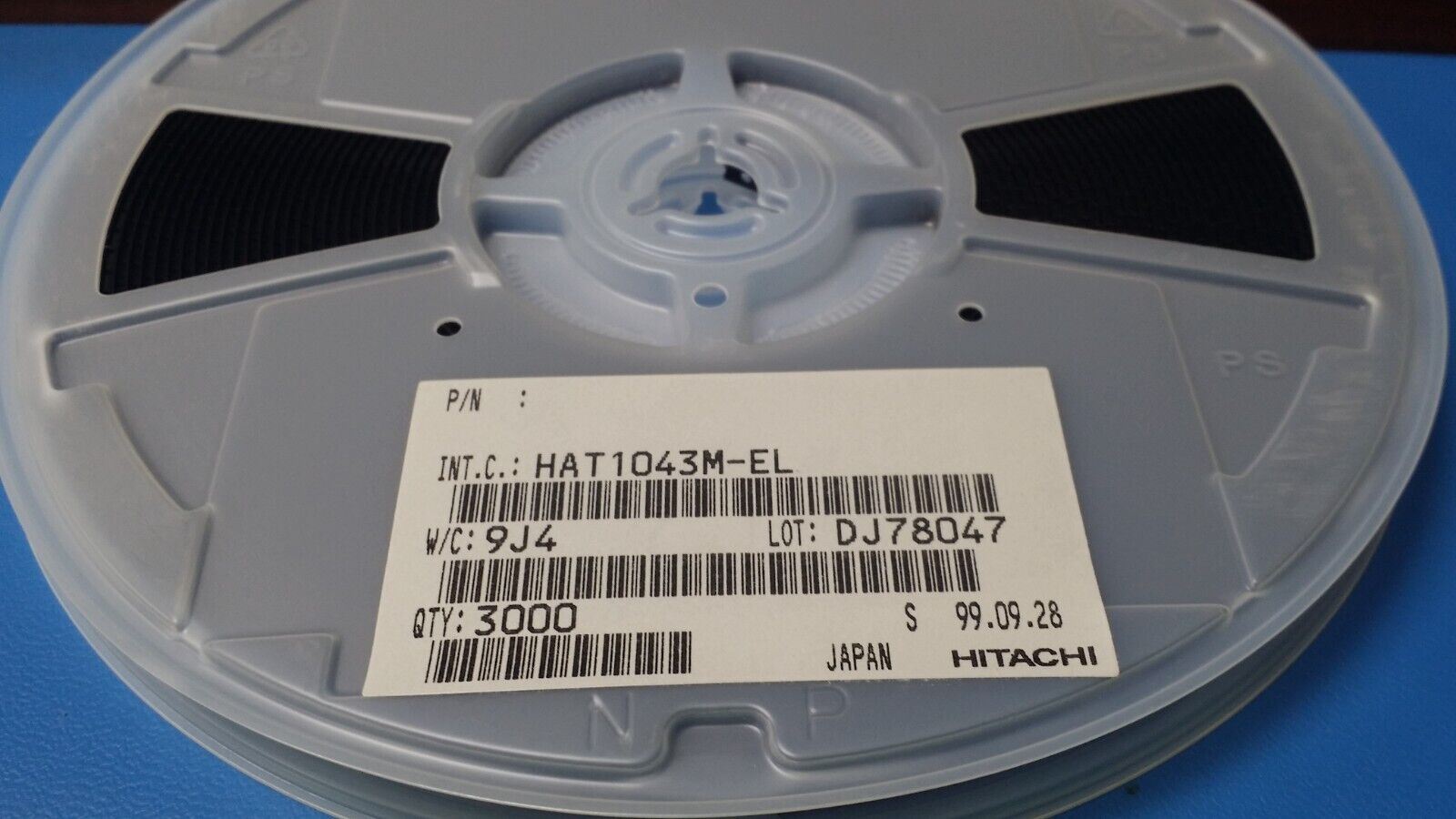

THIS IS FOR (5 PCS) OF HAT1043M-EL BY HITACHI
Power Field-Effect Transistor, 4.4A, 20V, P-Channel MOSFET
Part #: HAT1043M
Part Category: Transistors
Manufacturer: Hitachi, Ltd.
Description: Power Field-Effect Transistor, 4.4A I(D), 20V, 0.11ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET
Mfr Package Description TSOP-6
Status Transferred
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 4.4 A
Drain Current-Max (ID) 4.4 A
Drain-source On Resistance-Max 0.11 ohm
DS Breakdown Voltage-Min 20.0 V
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PDSO-G6
Number of Elements 1.0
Number of Terminals 6
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type P-CHANNEL
Power Dissipation-Max (Abs) 1.05 W
Pulsed Drain Current-Max (IDM) 17.6 A
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Transistor Application SWITCHING
Transistor Element Material SILICON
