(5 PCS) G5V-2-DC12 OMRON RELAY GEN PURPOSE DPDT 2A 12VDC ROHS
Tax included.

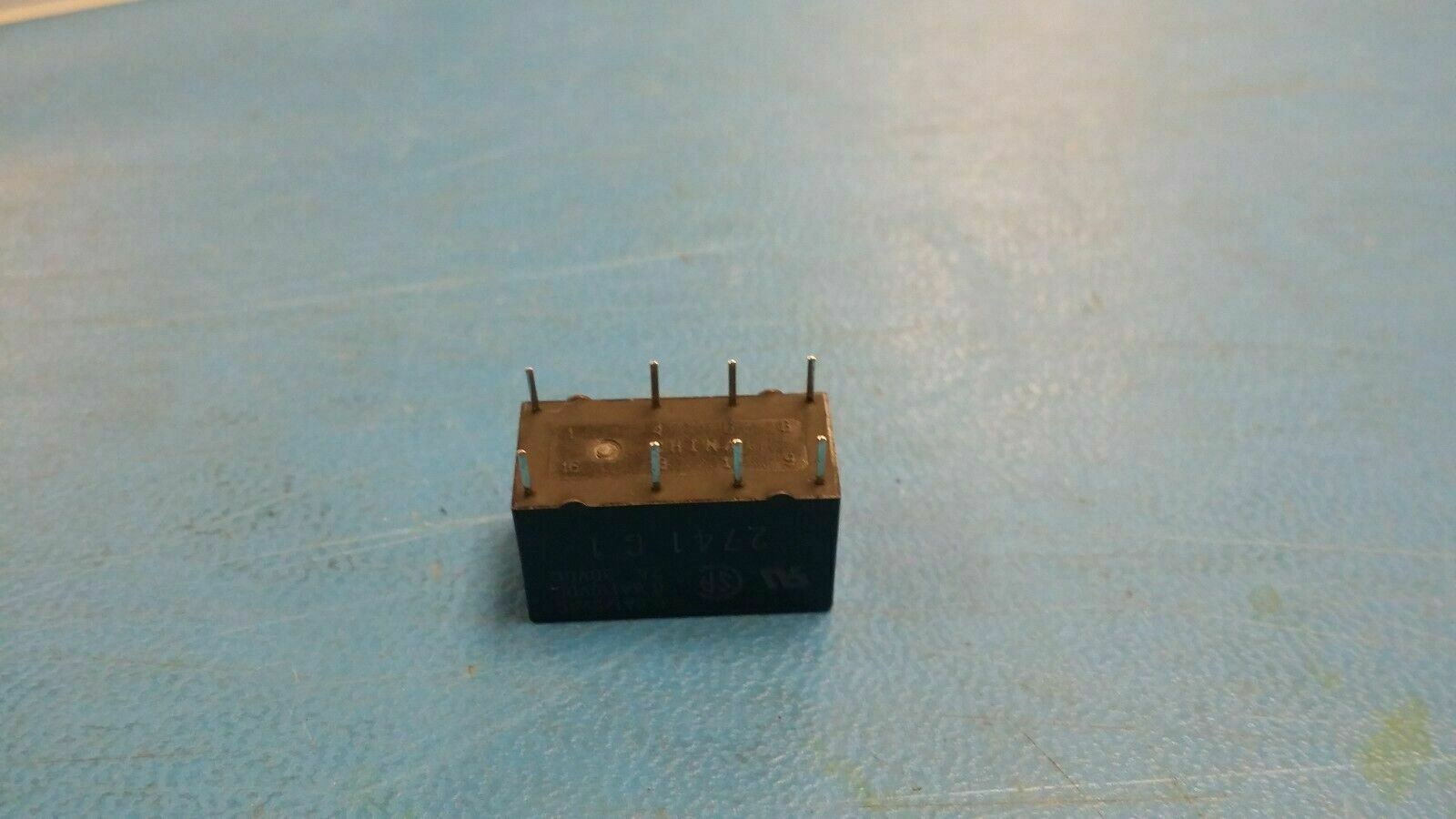

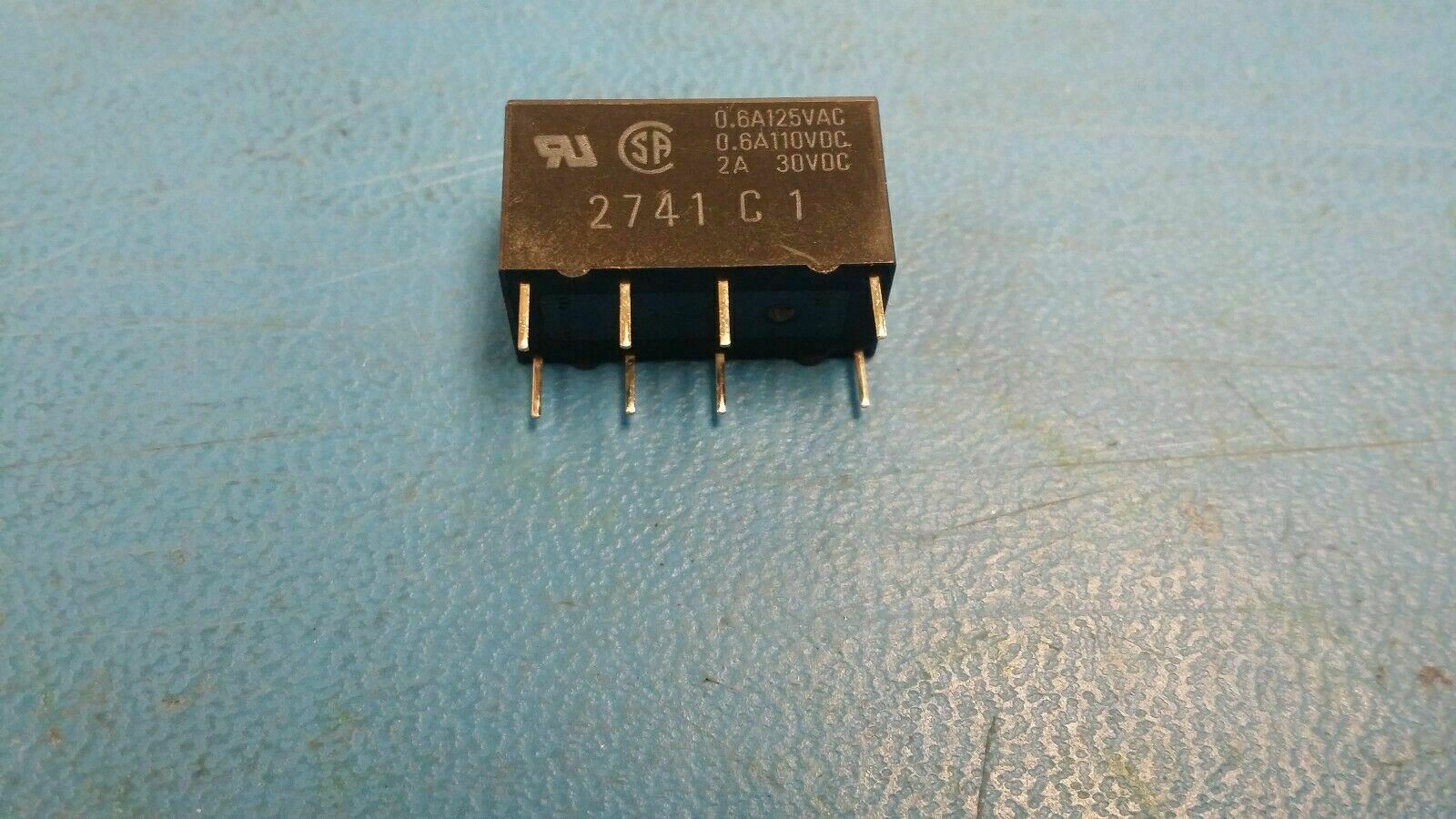

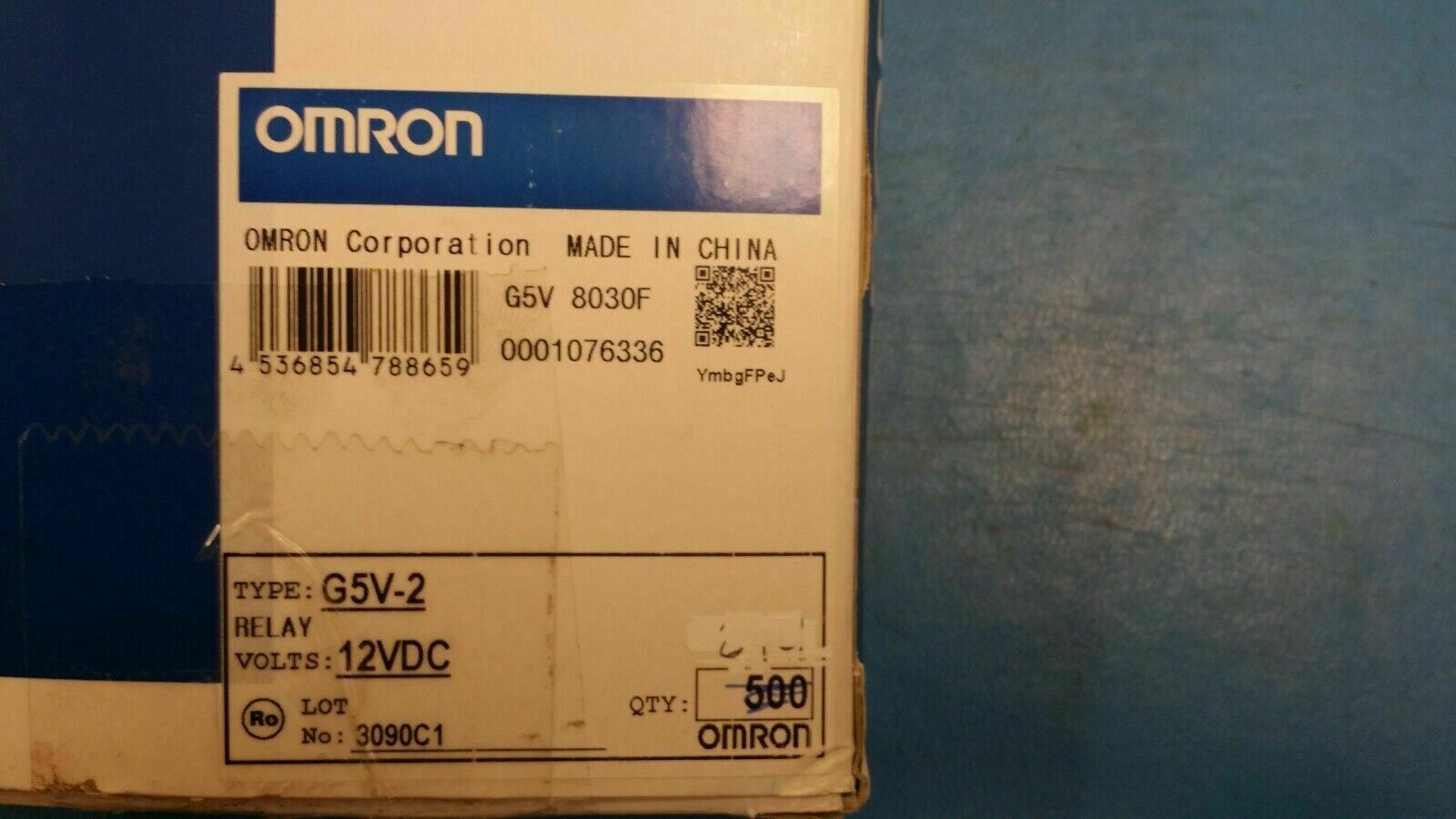

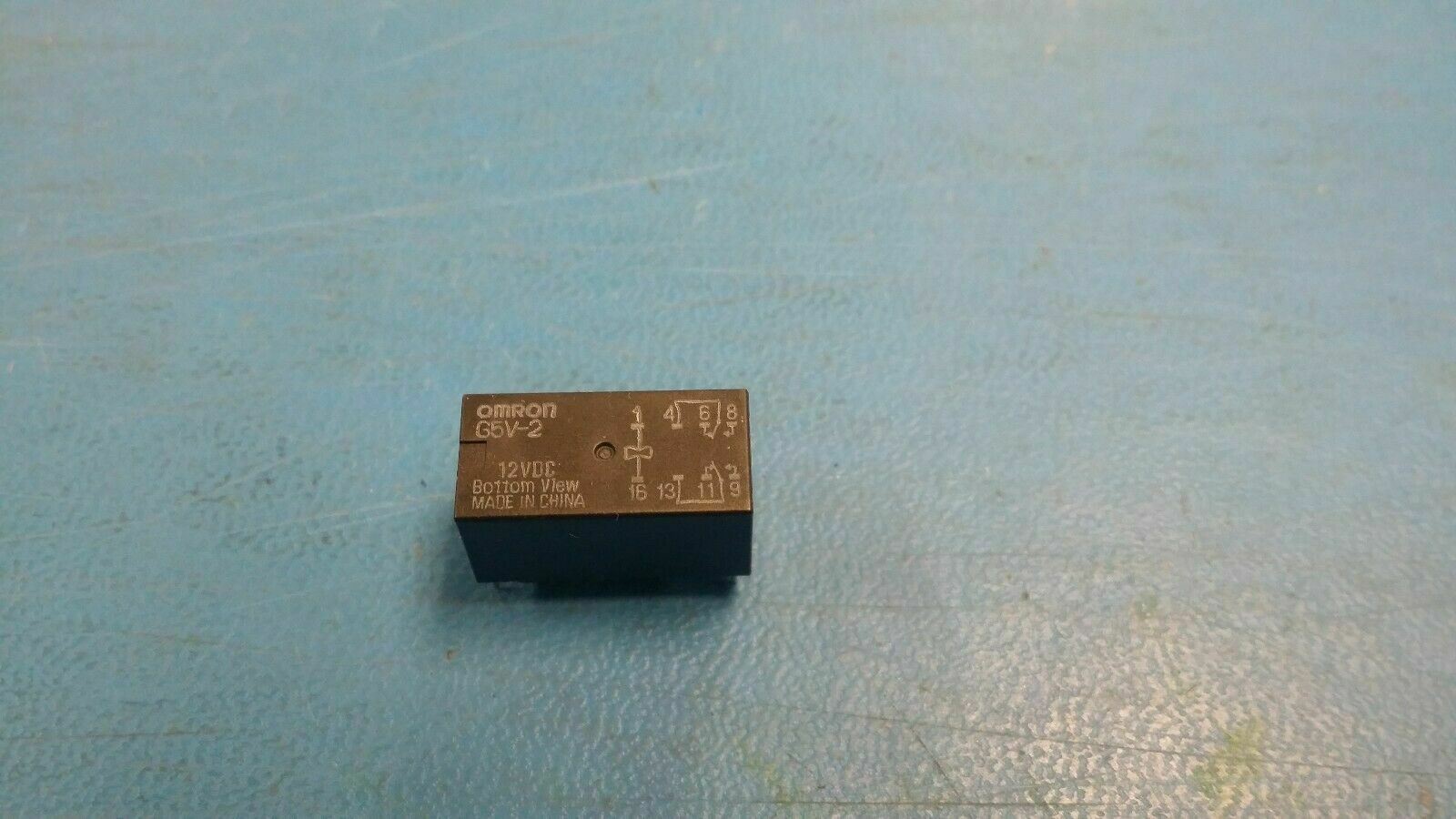

THIS LISTING IS FOR (5 PCS) OF G5V-2-DC12 BY OMRON
RELAY GEN PURPOSE DPDT 2A 12VDC ROHS
| Manufacturer | Omron Electronics Inc-EMC Div | |
|---|---|---|
| Series | G5V-2 | |
| Packaging | Tube | |
| Part Status | Active | |
| Mounting Type | Through Hole | |
| Coil Voltage | 12VDC | |
| Contact Form | DPDT (2 Form C) | |
| Contact Rating (Current) | 2A | |
| Switching Voltage | 125VAC, 125VDC - Max |
|
| Coil Current | 41.7mA | |
| Coil Type | Non Latching | |
| Features | - | |
| Termination Style | PC Pin | |
| Seal Rating | Sealed - Fully | |
| Coil Insulation | - | |
| Must Operate Voltage | 9 VDC | |
| Must Release Voltage | 0.6 VDC | |
| Operate Time | 7ms | |
| Release Time | 3ms | |
| Operating Temperature | -25°C ~ 65°C | |
| Contact Material | Silver (Ag), Gold (Au) | |
| Relay Type | General Purpose | |
| Coil Resistance | 288 Ohms |
