(5 PCS) FQP11N50CF FSC MOSFET N-CH 500V 11A TO-220
Tax included.

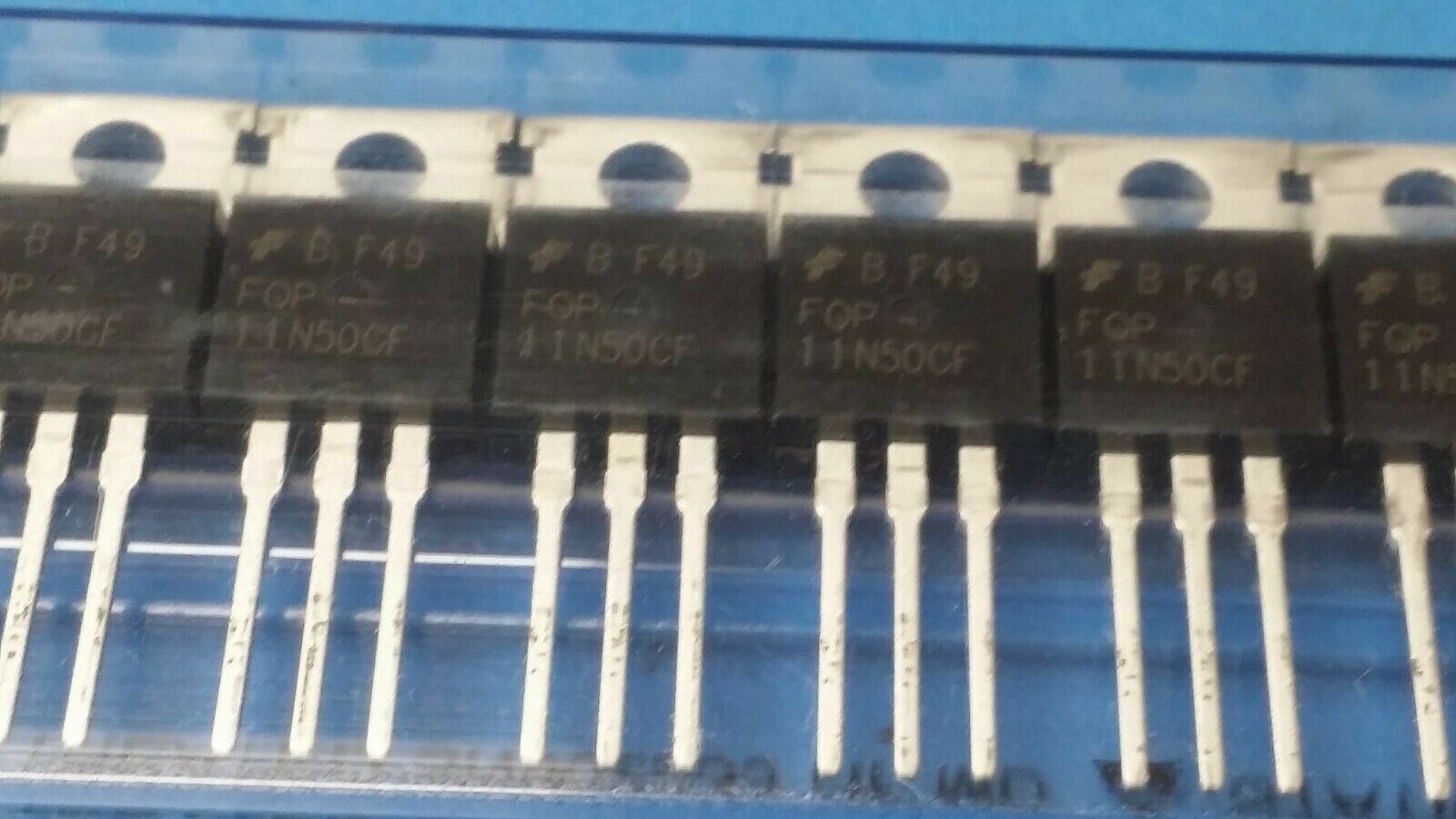

THIS IS FOR (5 PCS) OF FQP11N50CF BY FSC
MOSFET N-CH 500V 11A TO-220
Manufacturer: onsemi
Product Category: MOSFET
RoHS: N
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 500 V
Id - Continuous Drain Current: 11 A
Rds On - Drain-Source Resistance: 550 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 195 W
Channel Mode: Enhancement
Packaging: Tube
Brand: onsemi / Fairchild
Configuration: Single
Fall Time: 75 ns
Forward Transconductance - Min: 15 S
Height: 16.3 mm
Length: 10.67 mm
Product Type: MOSFET
Rise Time: 70 ns
50
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 120 ns
Typical Turn-On Delay Time: 24 ns
Width: 4.7 mm
Part # Aliases: FQP11N50CF_NL
Unit Weight: 0.068784 oz
