(5 PCS) FQP11N40 FSC MOSFET N-CH 400V 11.4A TO220-3
(5 PCS) FQP11N40 FSC MOSFET N-CH 400V 11.4A TO220-3

(5 PCS) FQP11N40 FSC MOSFET N-CH 400V 11.4A TO220-3

Tax included.
Only 6 left!

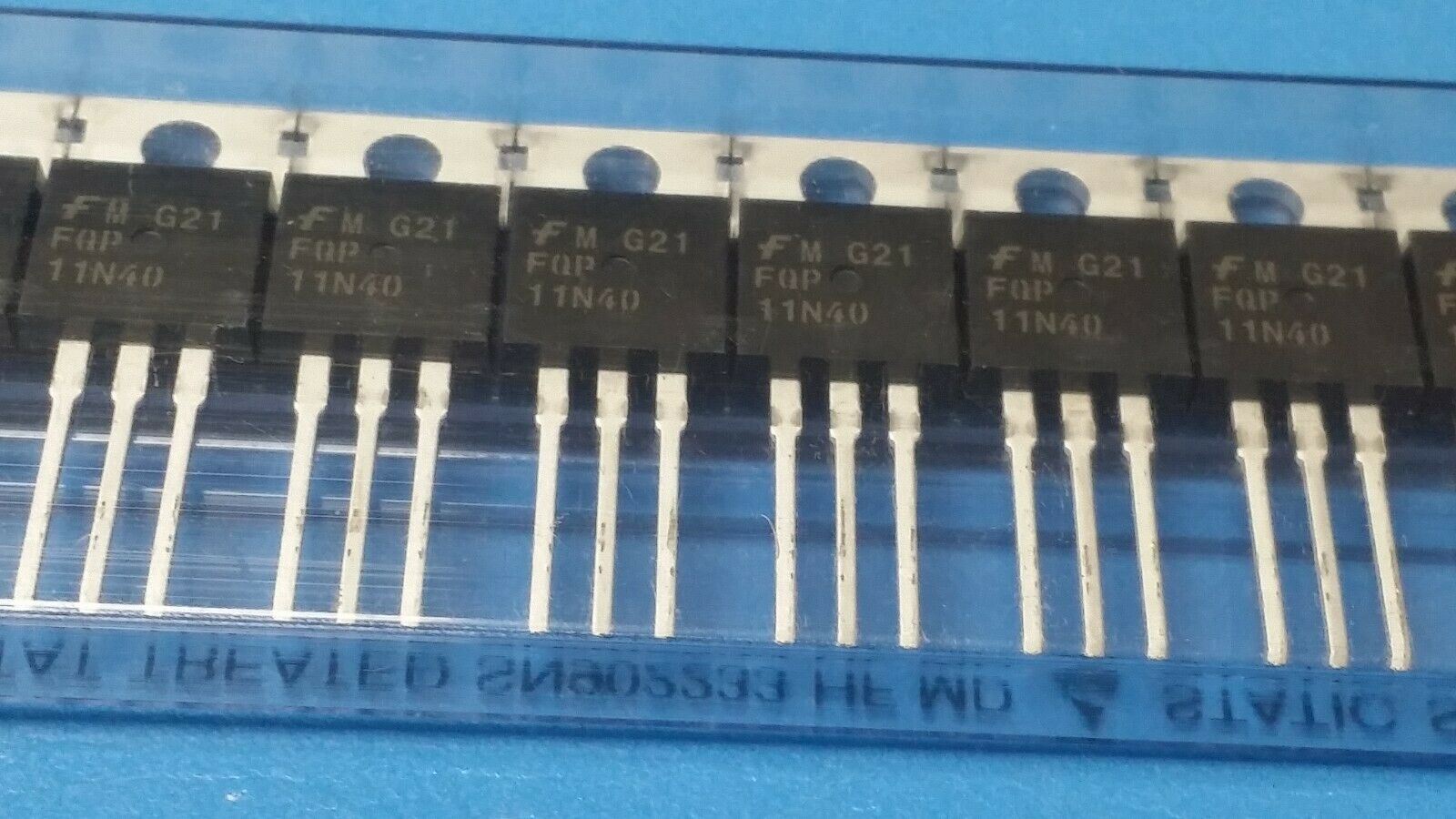

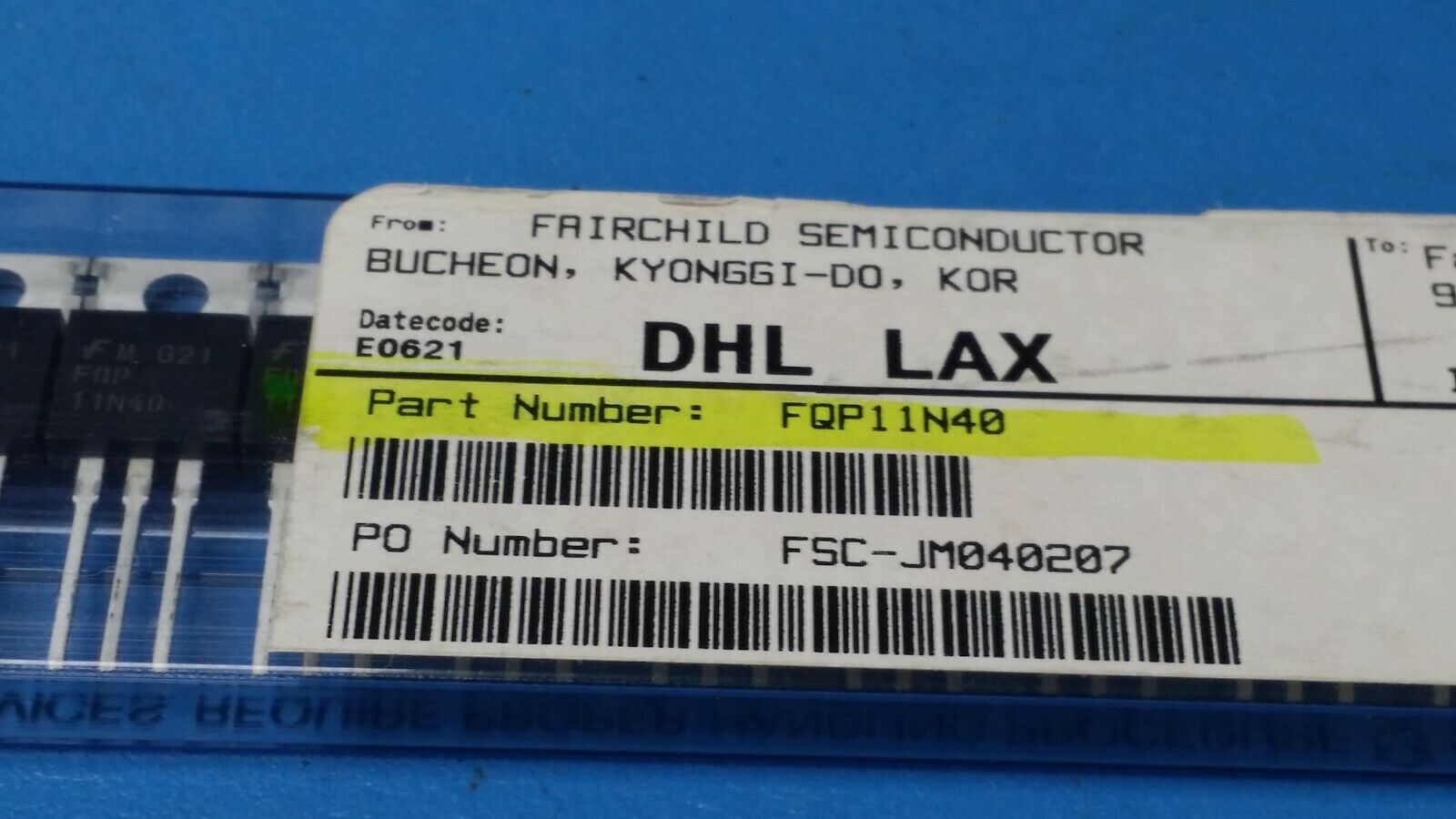

THIS IS FOR (5 PCS) OF FQP11N40 BY FSC
MOSFET N-CH 400V 11.4A TO220-3

Manufacturer: onsemi
Product Category: MOSFET
RoHS: N
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 400 V
Id - Continuous Drain Current: 11.4 A
Rds On - Drain-Source Resistance: 480 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 147 W
Channel Mode: Enhancement
Packaging: Tube
Brand: onsemi / Fairchild
Configuration: Single
Fall Time: 60 ns
Forward Transconductance - Min: 7.6 S
Height: 16.3 mm
Length: 10.67 mm
Product Type: MOSFET
Rise Time: 100 ns
1000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 60 ns
Typical Turn-On Delay Time: 30 ns
Width: 4.7 mm
Part # Aliases: FQP11N40_NL
Unit Weight: 0.068784 oz
