(5 PCS) EPM570F100C5N ALTERA FLASH PLD, PBGA100
Tax included.

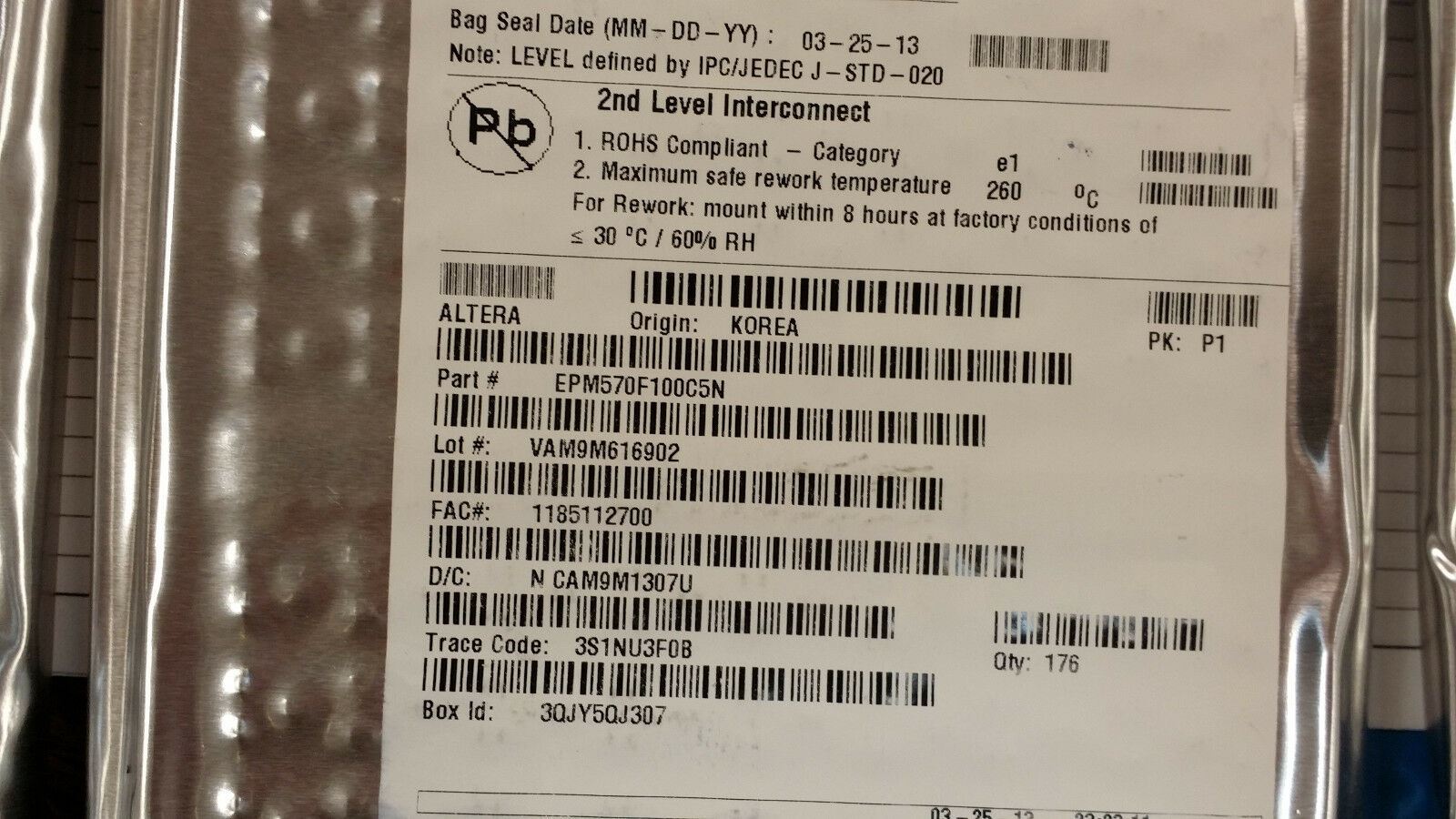

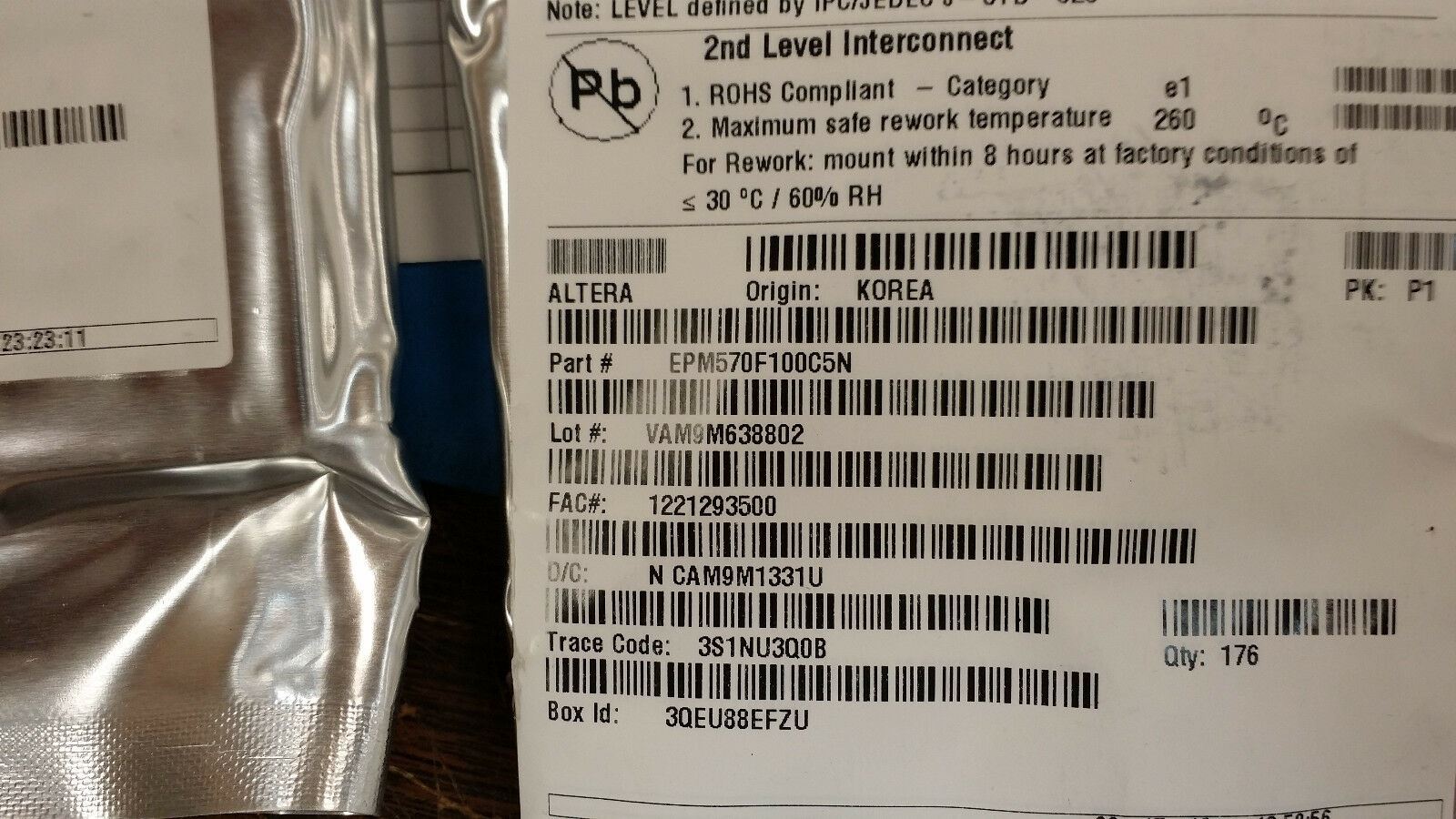

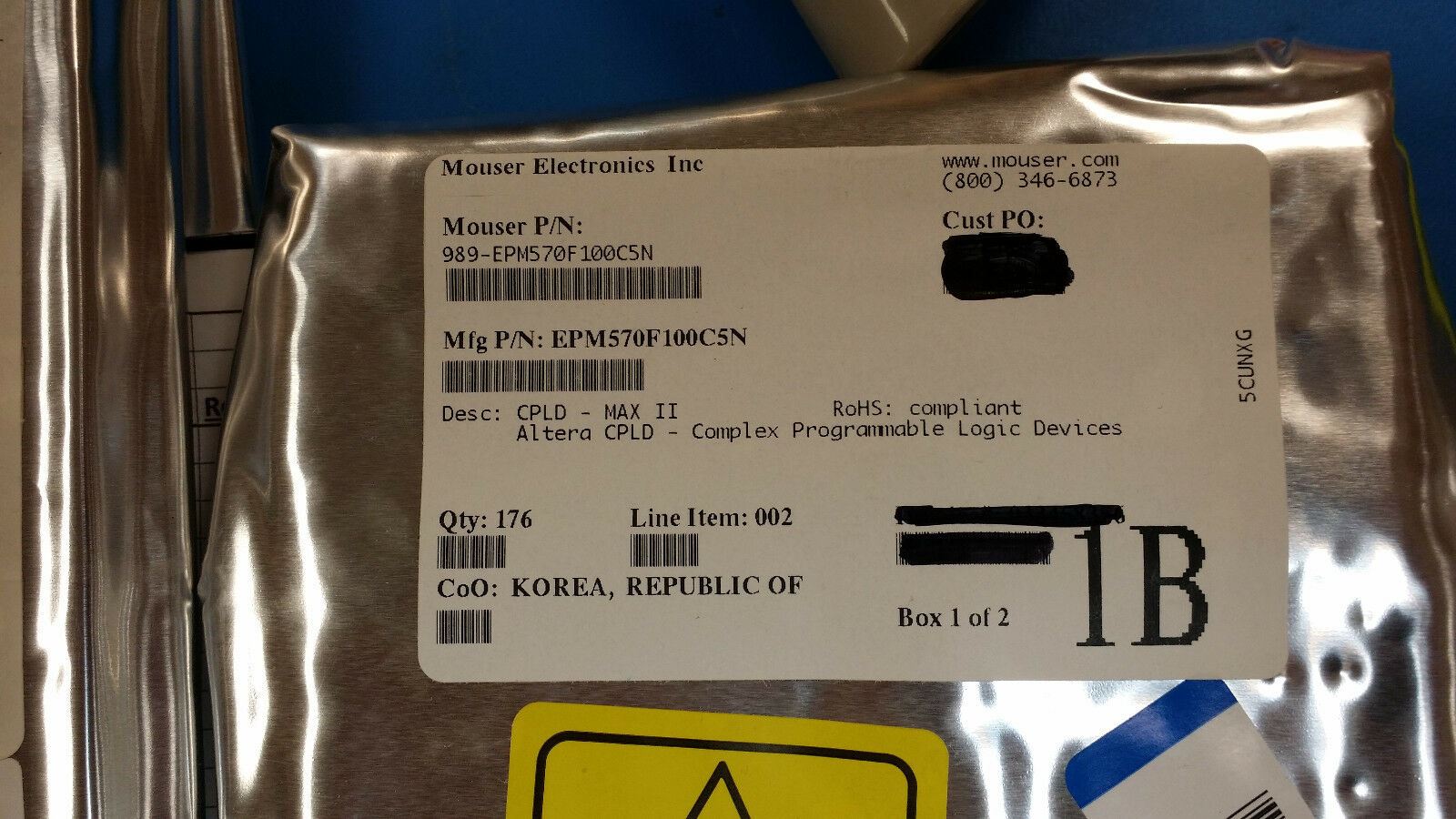

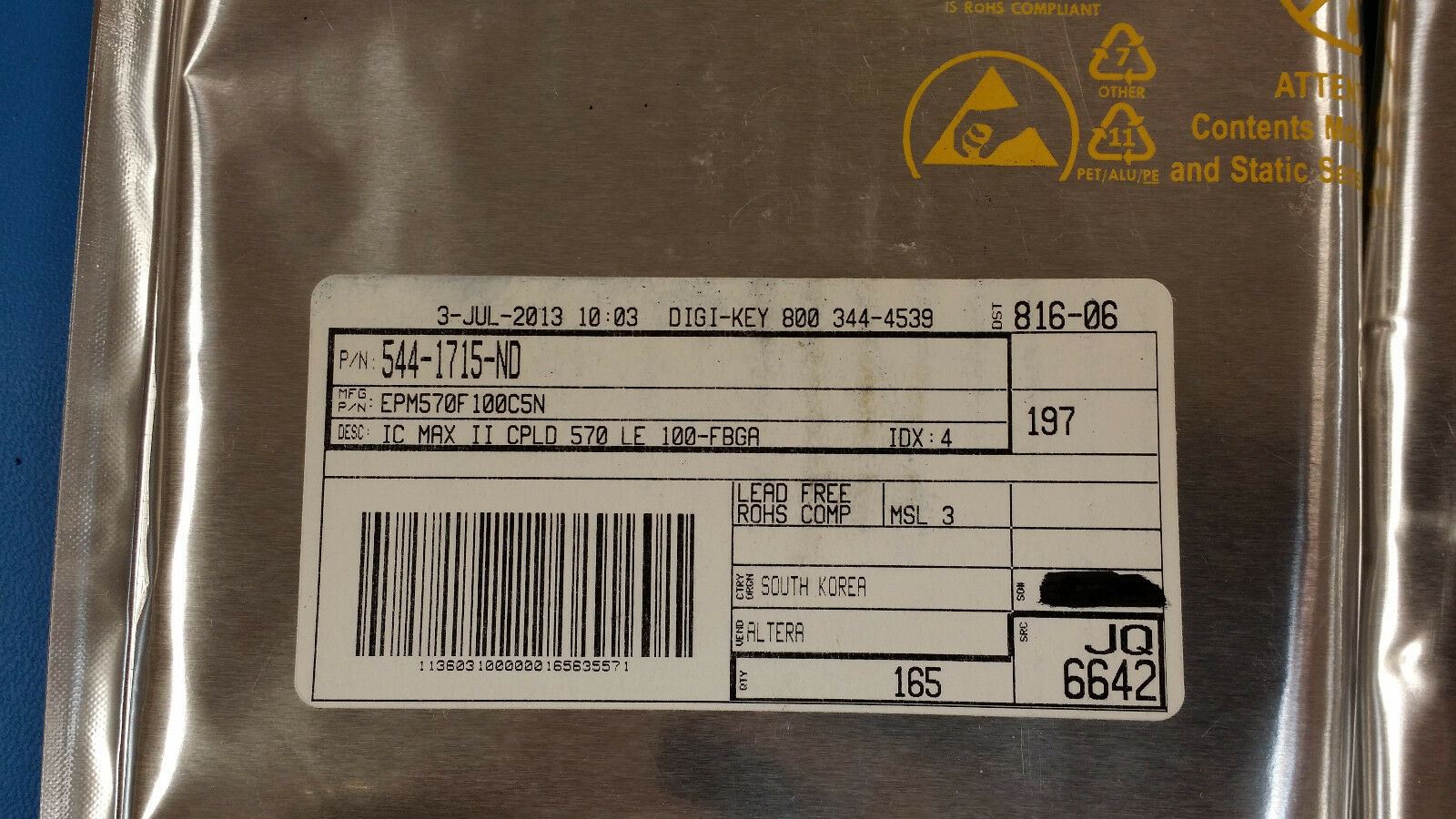

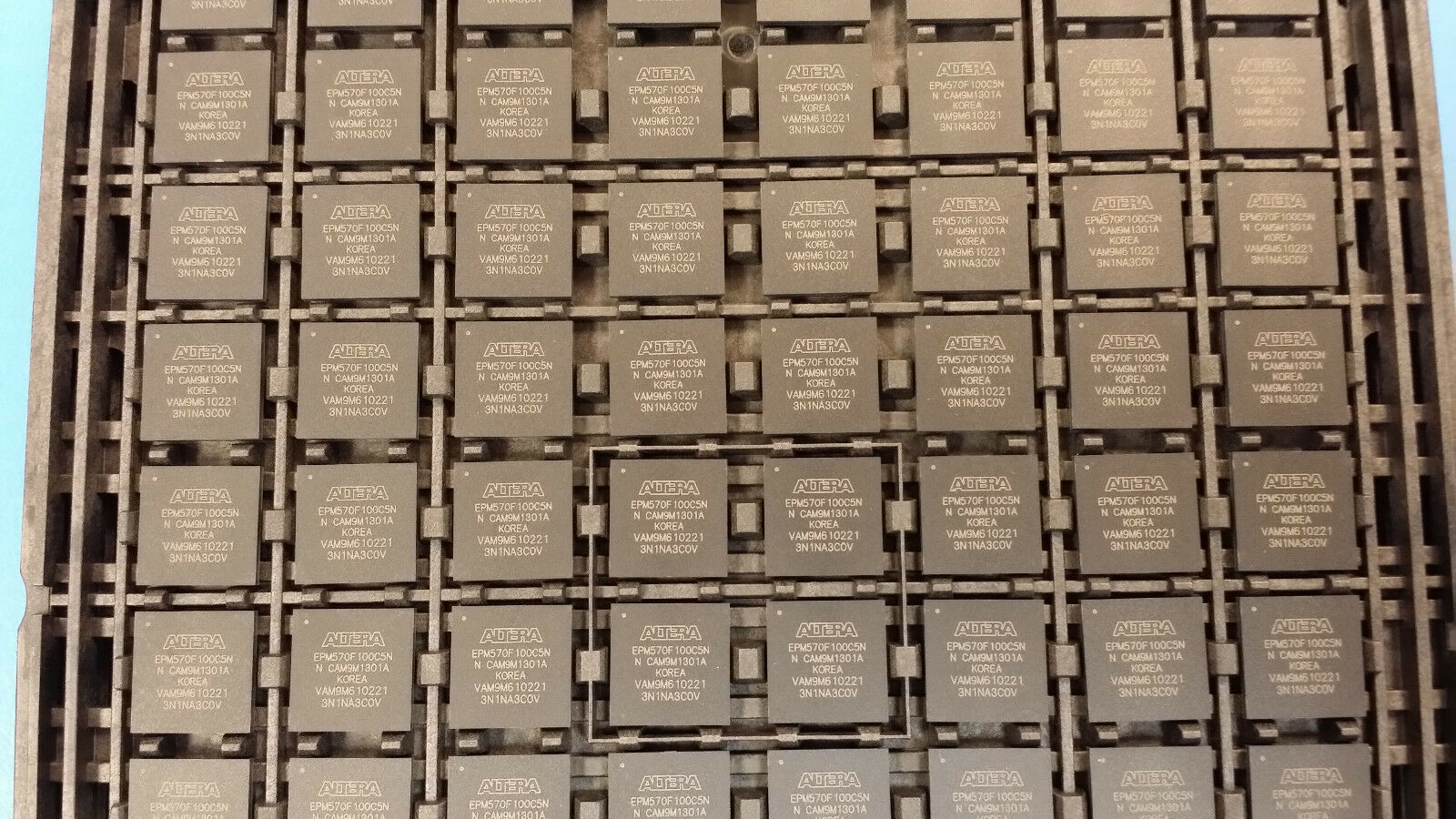

THIS LISTING IS FOR (5 PCS) OF EPM570F100C5N BY ALTERA CORPORATION
FLASH PLD, PBGA100
CPLD MAX II Family 440 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 100-Pin TFBGA
Manufacturer: Altera Corporation
FLASH PLD, PBGA100
CPLD MAX II Family 440 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 100-Pin TFBGA
Part #: EPM570F100C5N
Part Category: Programmable Logic ICsManufacturer: Altera Corporation
| Mfr Package Description | 11 X 11 MM, 1 MM PITCH, LEAD FREE, FBGA-100 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Programmable Logic Type | FLASH PLD |
| In-System Programmable | YES |
| JESD-30 Code | S-PBGA-B100 |
| JESD-609 Code | e1 |
| JTAG BST | YES |
| Moisture Sensitivity Level | 3 |
| Number of Dedicated Inputs | 0.0 |
| Number of I/O Lines | 76 |
| Number of Macro Cells | 440 |
| Number of Terminals | 100 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 85 Cel |
| Organization | 0 DEDICATED INPUTS, 76 I/O |
| Output Function | MACROCELL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LBGA |
| Package Equivalence Code | BGA100,10X10,40 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY, LOW PROFILE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 1.5/3.3,2.5/3.3 |
| Propagation Delay | 8.7 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.7 mm |
| Sub Category | Programmable Logic Devices |
| Supply Voltage-Nom | 2.5 V |
| Supply Voltage-Min | 2.38 V |
| Supply Voltage-Max | 2.62 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | OTHER |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Terminal Form | BALL |
| Terminal Pitch | 1 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 11 mm |
| Width | 11 mm |
| Additional Feature | IT CAN ALSO OPERATE AT 3.3V |
