(5 PCS) EMVY101ARA101MKE CAP ALUM 100UF 20% 100V SMD
Tax included.
THIS LISTING IS FOR (5 PCS) OF EMVY101ARA101MKE BY NIPPON

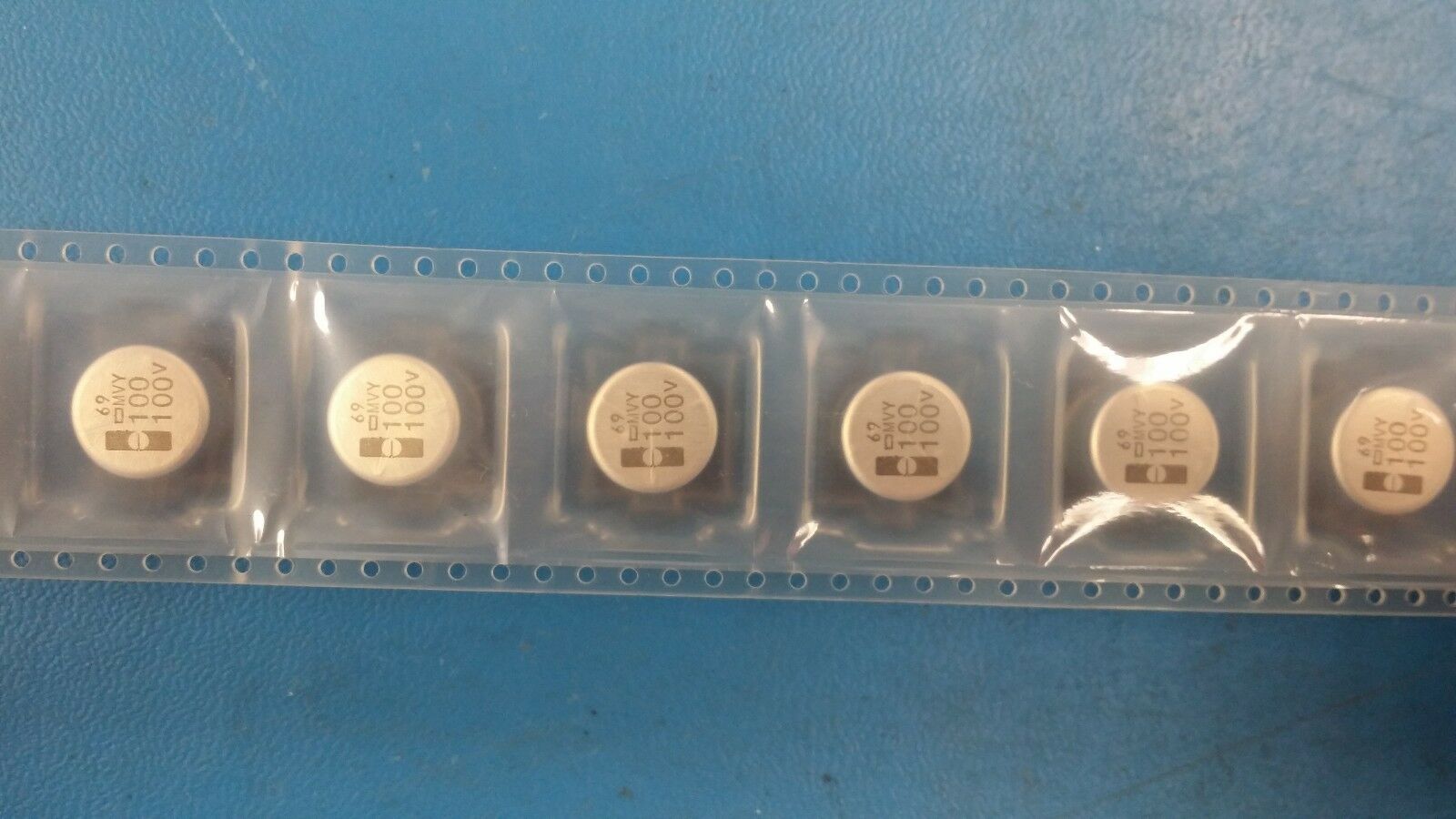

CAP ALUM 100UF 20% 100V SMD
| Manufacturer | United Chemi-Con | |
|---|---|---|
| Part Status | Active | |
| Capacitance | 100µF | |
| Tolerance | ±20% | |
| Voltage - Rated | 100V | |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | |
| Operating Temperature | -40°C ~ 105°C | |
| Polarization | Polar | |
| Applications | General Purpose | |
| Ripple Current @ Low Frequency | 180mA @ 120Hz | |
| Ripple Current @ High Frequency | 450mA @ 100kHz | |
| Impedance | 330 mOhms | |
| Size / Dimension | 0.492" Dia (12.50mm) | |
| Height - Seated (Max) | 0.532" (13.50mm) | |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) | |
| Mounting Type | Surface Mount | |
| Package / Case | Radial, Can - SMD |
