(5 PCS) EEU-FC2A681 CAP ALUM 680UF 20% 100V RADIAL 5000 Hrs @ 105°C
(5 PCS) EEU-FC2A681 CAP ALUM 680UF 20% 100V RADIAL 5000 Hrs @ 105°C
(5 PCS) EEU-FC2A681 CAP ALUM 680UF 20% 100V RADIAL 5000 Hrs @ 105°C
(5 PCS) EEU-FC2A681 CAP ALUM 680UF 20% 100V RADIAL 5000 Hrs @ 105°C
(5 PCS) EEU-FC2A681 CAP ALUM 680UF 20% 100V RADIAL 5000 Hrs @ 105°C

(5 PCS) EEU-FC2A681 CAP ALUM 680UF 20% 100V RADIAL 5000 Hrs @ 105°C

Tax included.
Only 0 left!
Will be in stock after

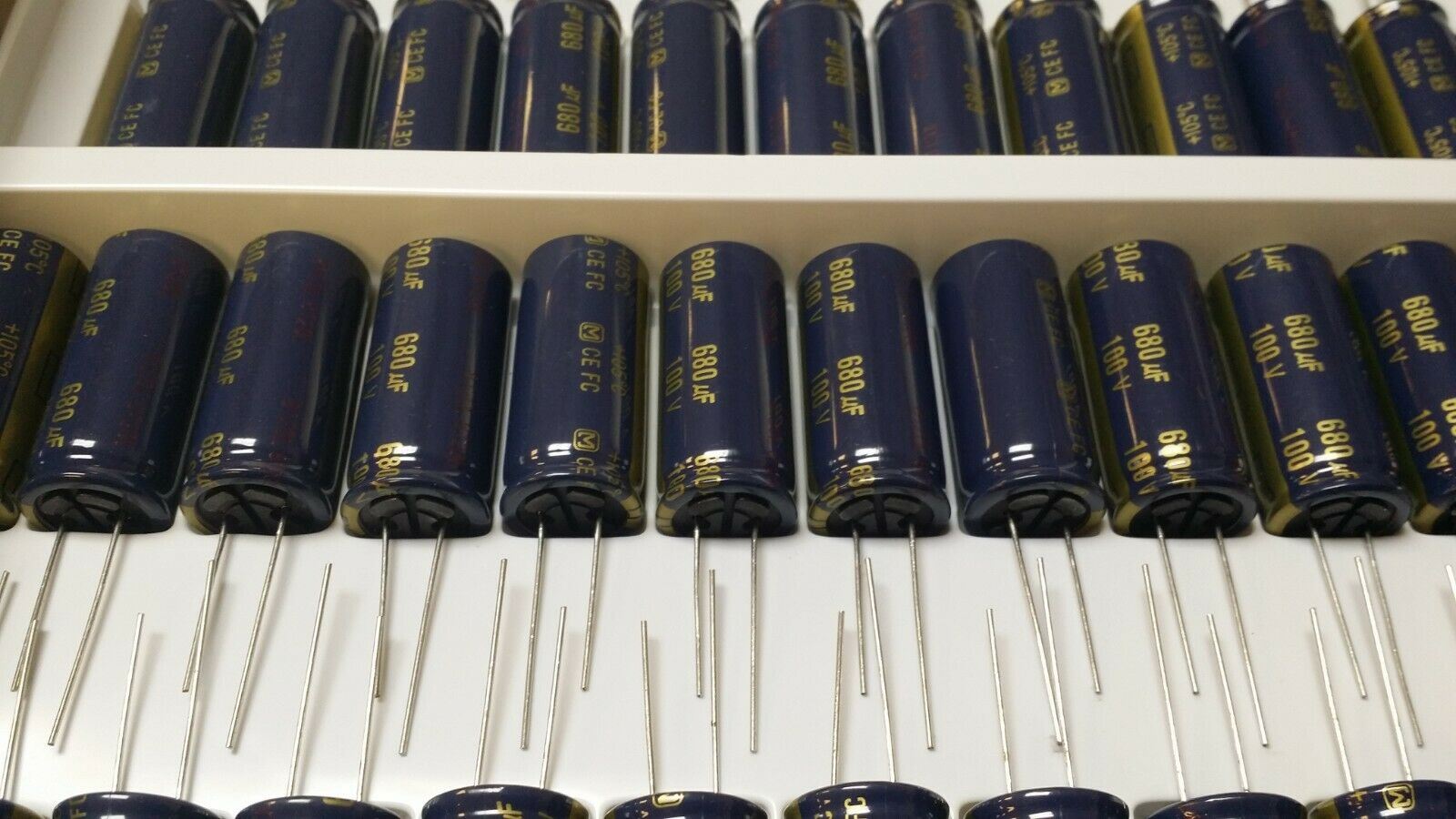

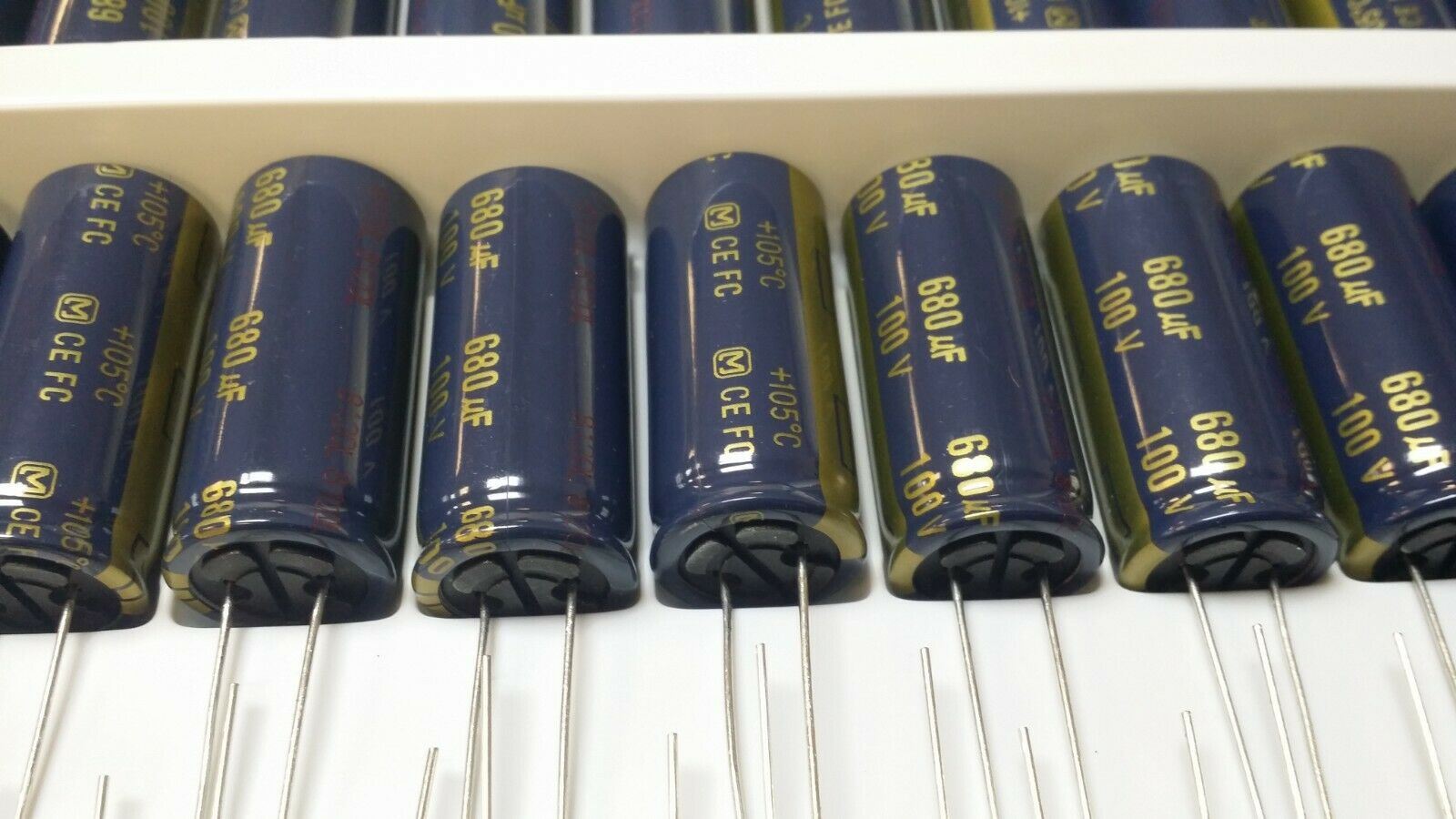

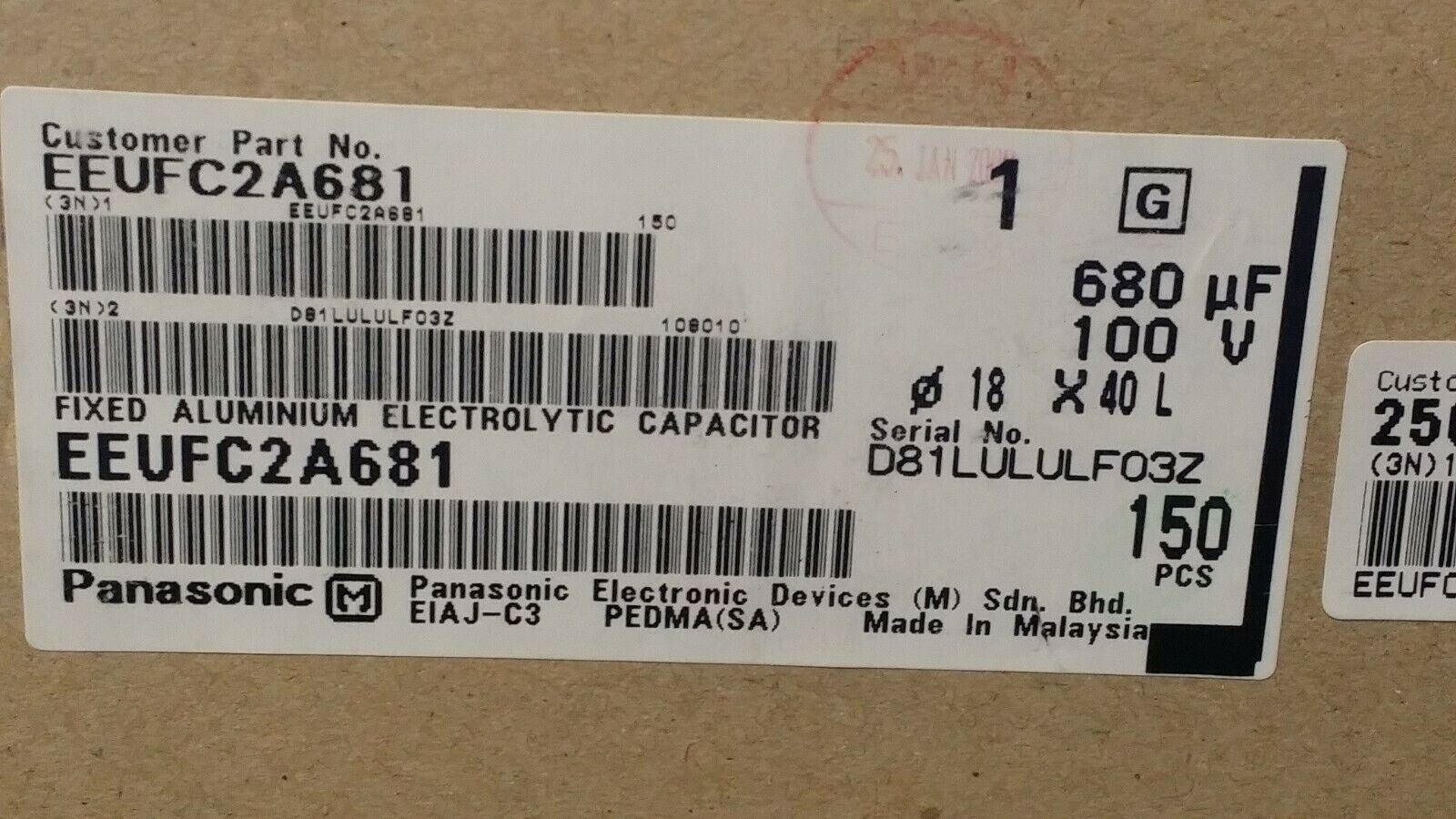

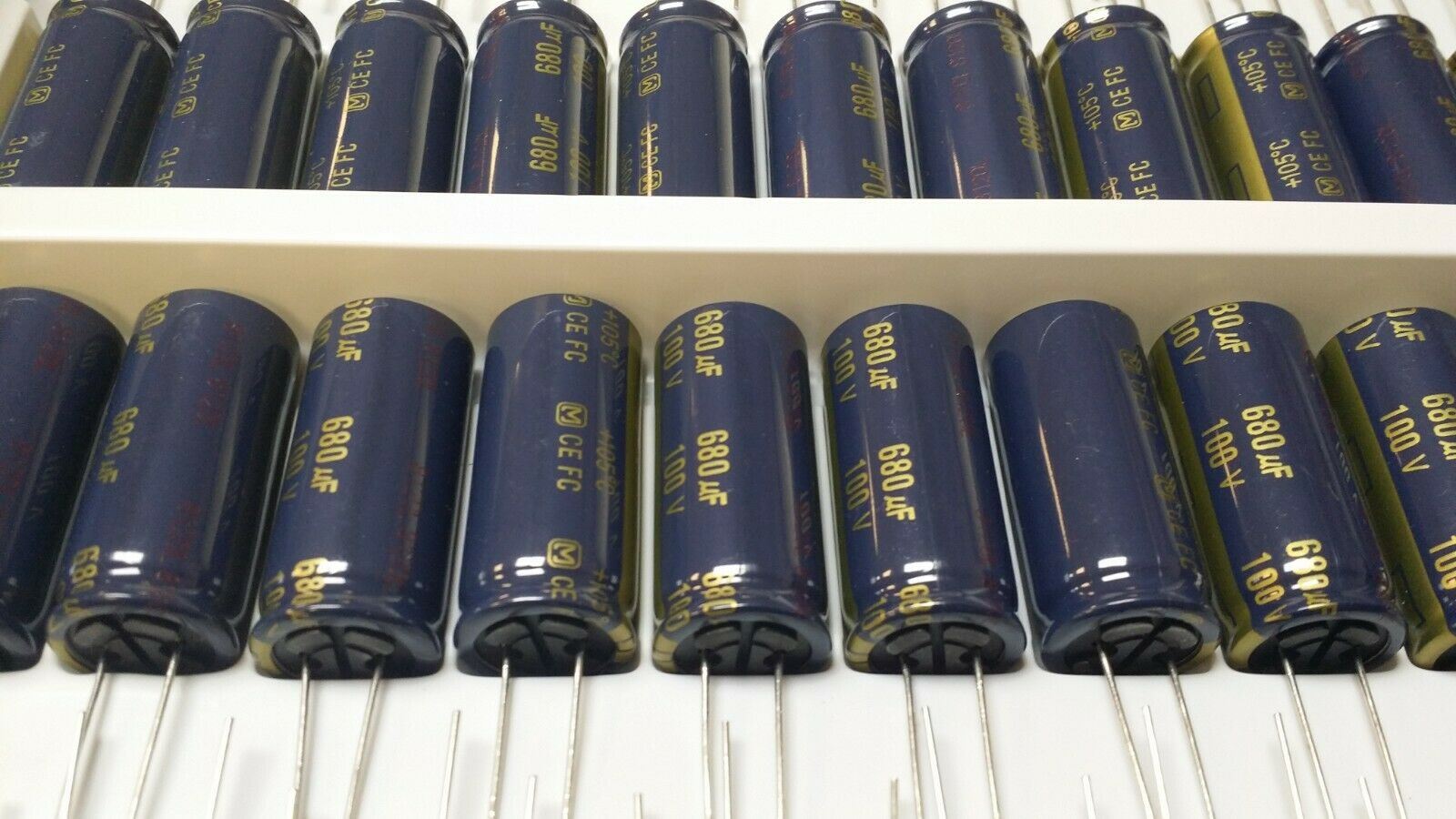

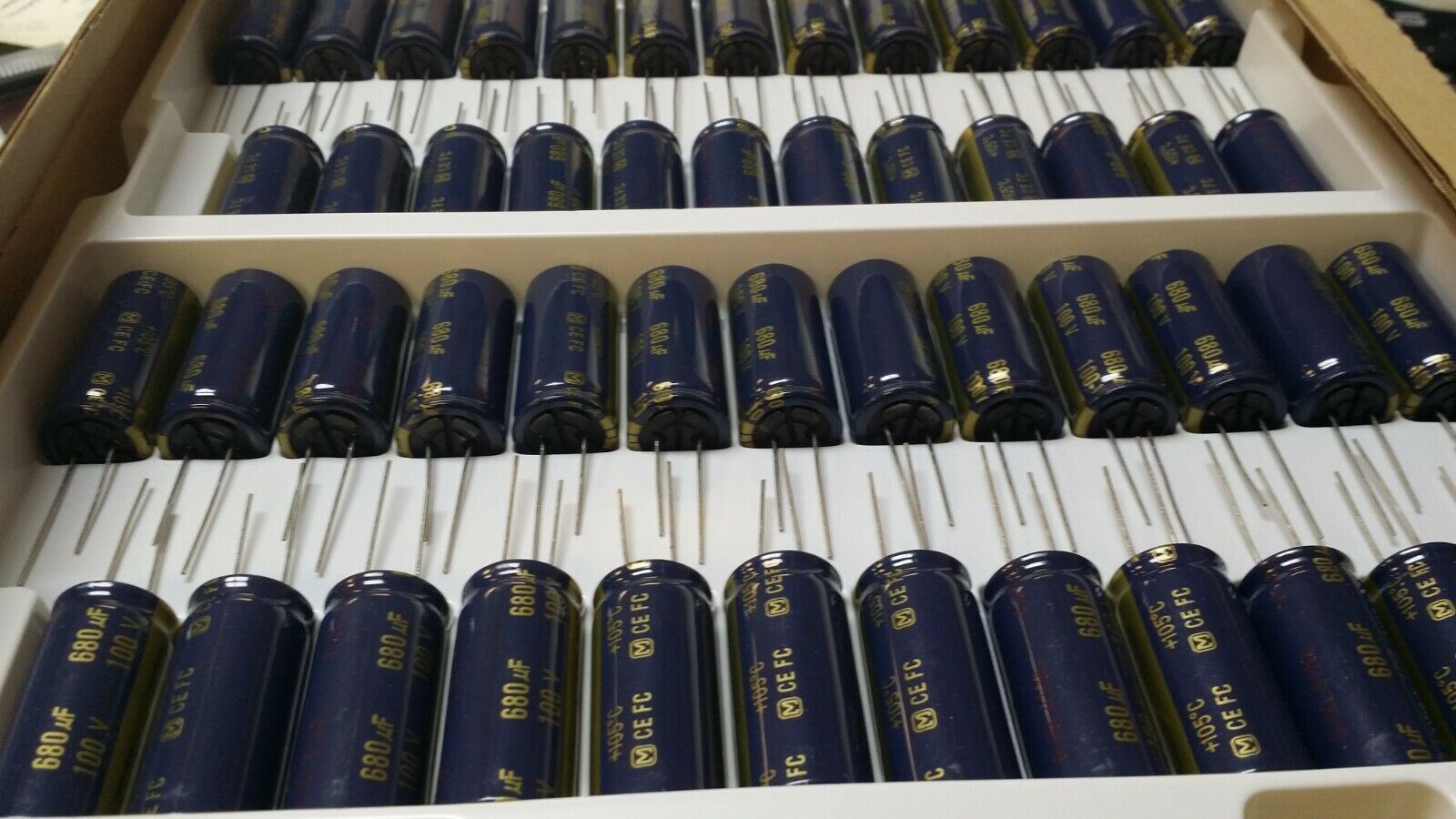

THIS IS FOR (5 PCS) OF EEU-FC2A681 BY PANASONIC
CAP ALUM 680UF 20% 100V RADIAL 5000 Hrs @ 105°C

Capacitors Aluminum Electrolytic Capacitors
Mfr  Panasonic Electronic Components
Series  FC
Package  Bulk
Part Status  Active
Tolerance  ±20%
ESR (Equivalent Series Resistance)  -
Lifetime @ Temp.  5000 Hrs @ 105°C
Operating Temperature  -55°C ~ 105°C
Polarization  Polar
Ratings  AEC-Q200
Applications  Automotive
Lead Spacing  0.295" (7.50mm)
Size / Dimension  0.709" Dia (18.00mm)
Height - Seated (Max)  1.575" (40.00mm)
Surface Mount Land Size  -
Mounting Type  Through Hole
Package / Case  Radial, Can
Capacitance  680 µF
Voltage - Rated  100 V
Impedance  36 mOhms
Ripple Current @ Low Frequency  1.725 A @ 120 Hz
Ripple Current @ High Frequency  2.3 A @ 100 kHz
