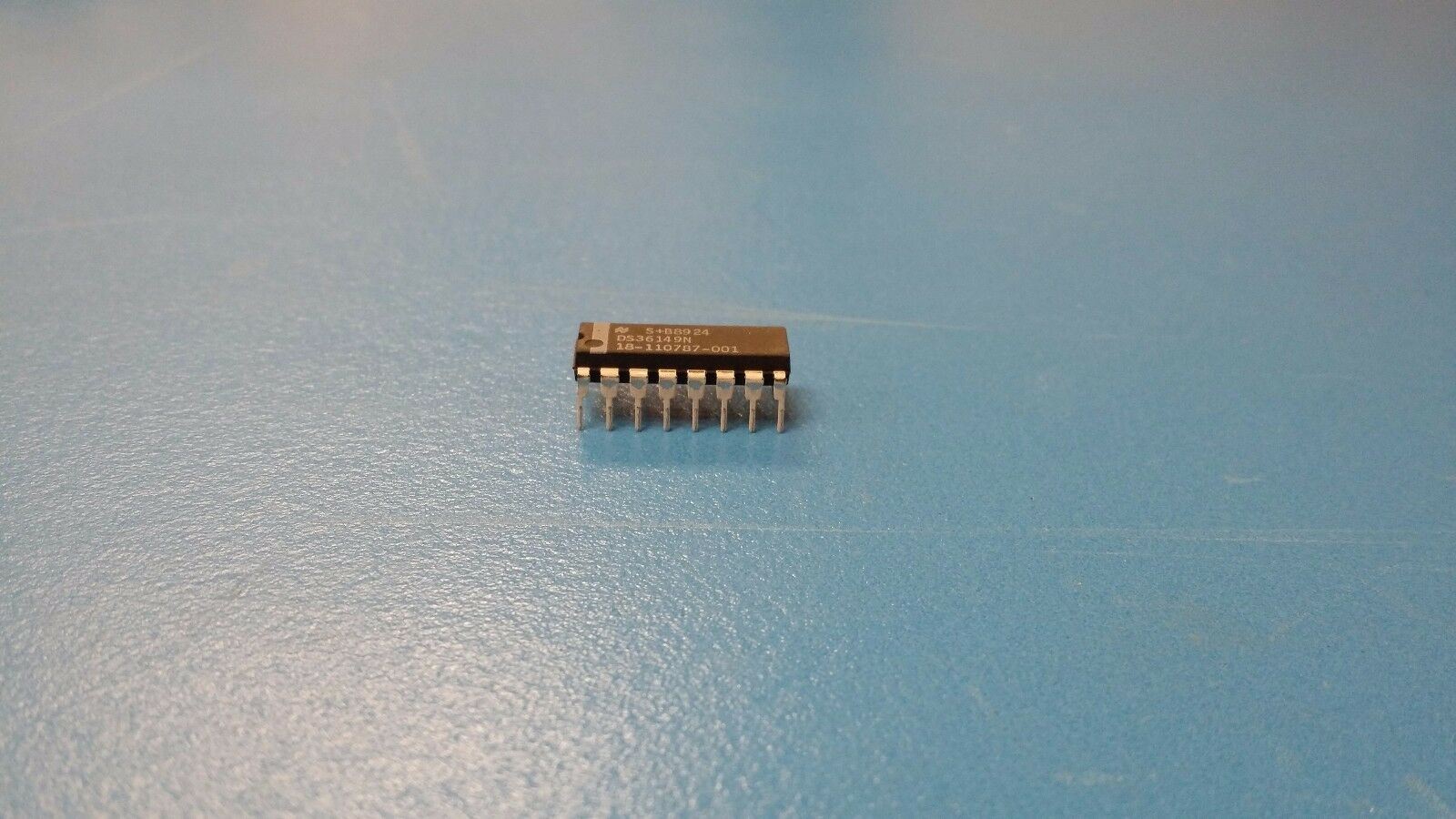

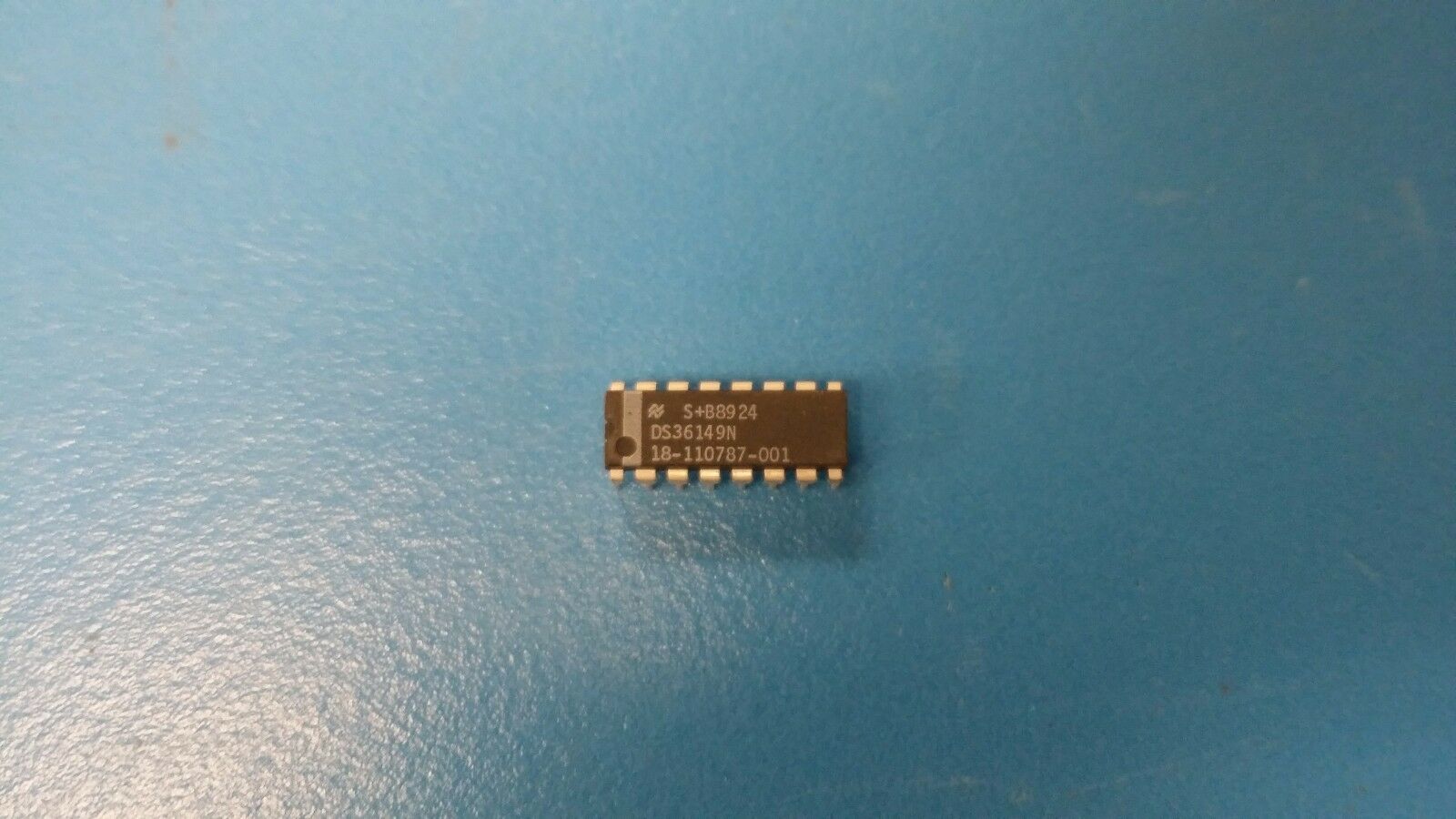

(5 PCS) DS36149N NSC 6-BIT DRIVER, INVERTED OUTPUT, PDIP16
Tax included.
THIS LISTING IS FOR (5 PCS) OF DS36149N BY NSC
6-BIT DRIVER, INVERTED OUTPUT, PDIP16
Part #: DS36149N
Part Category: Logic ICs
Manufacturer: National Semiconductor
Description: Bus Driver, DS36 Series, 1-Func, 6-Bit, Inverted Output, TTL, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Other Logic ICs
Family DS36
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Number of Bits 6
Number of Functions 1
Number of Ports 2
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 21.755 mm
Width 7.62 mm
Additional Feature WITH DUAL OUTPUT ENABLE
