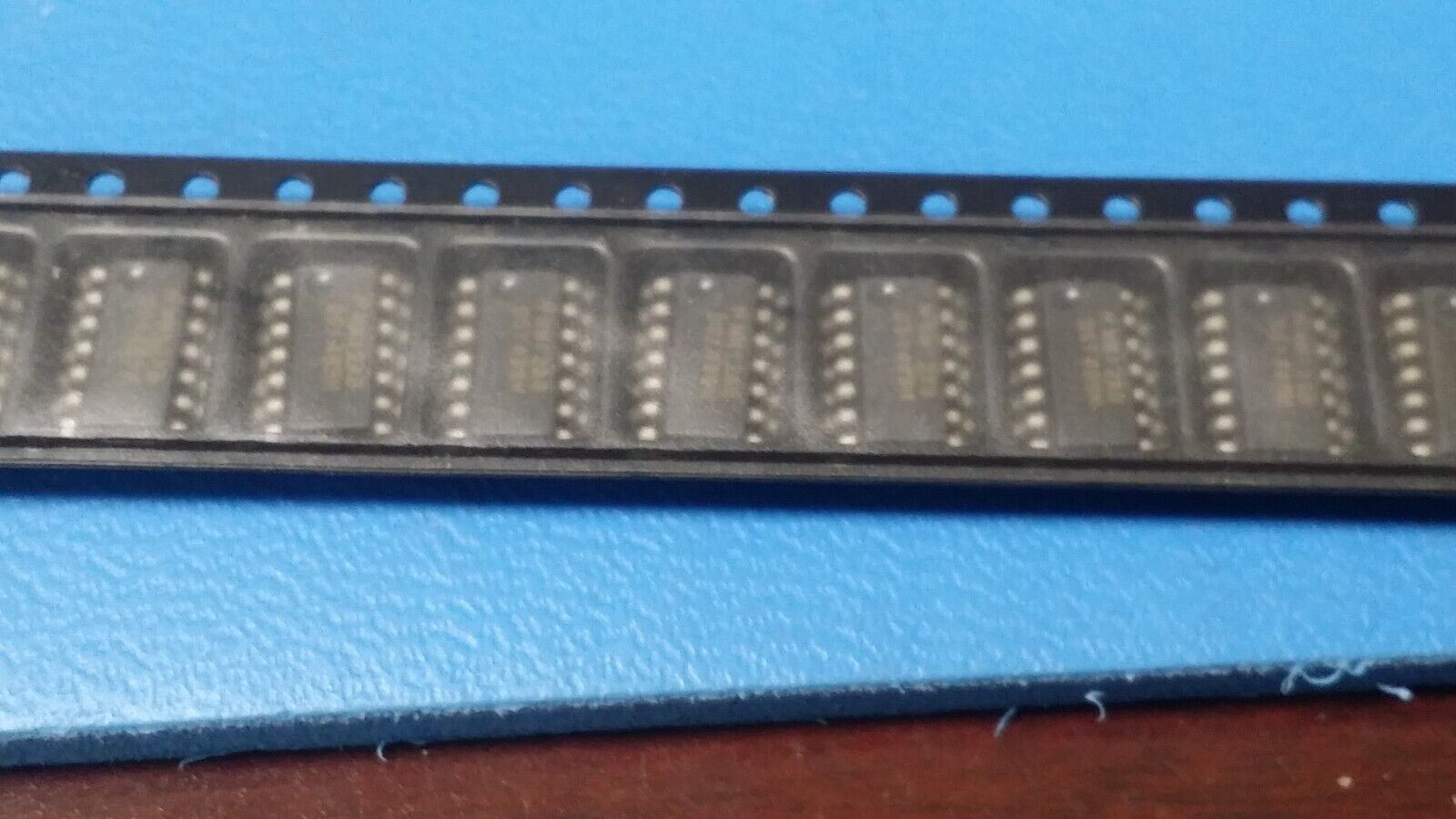

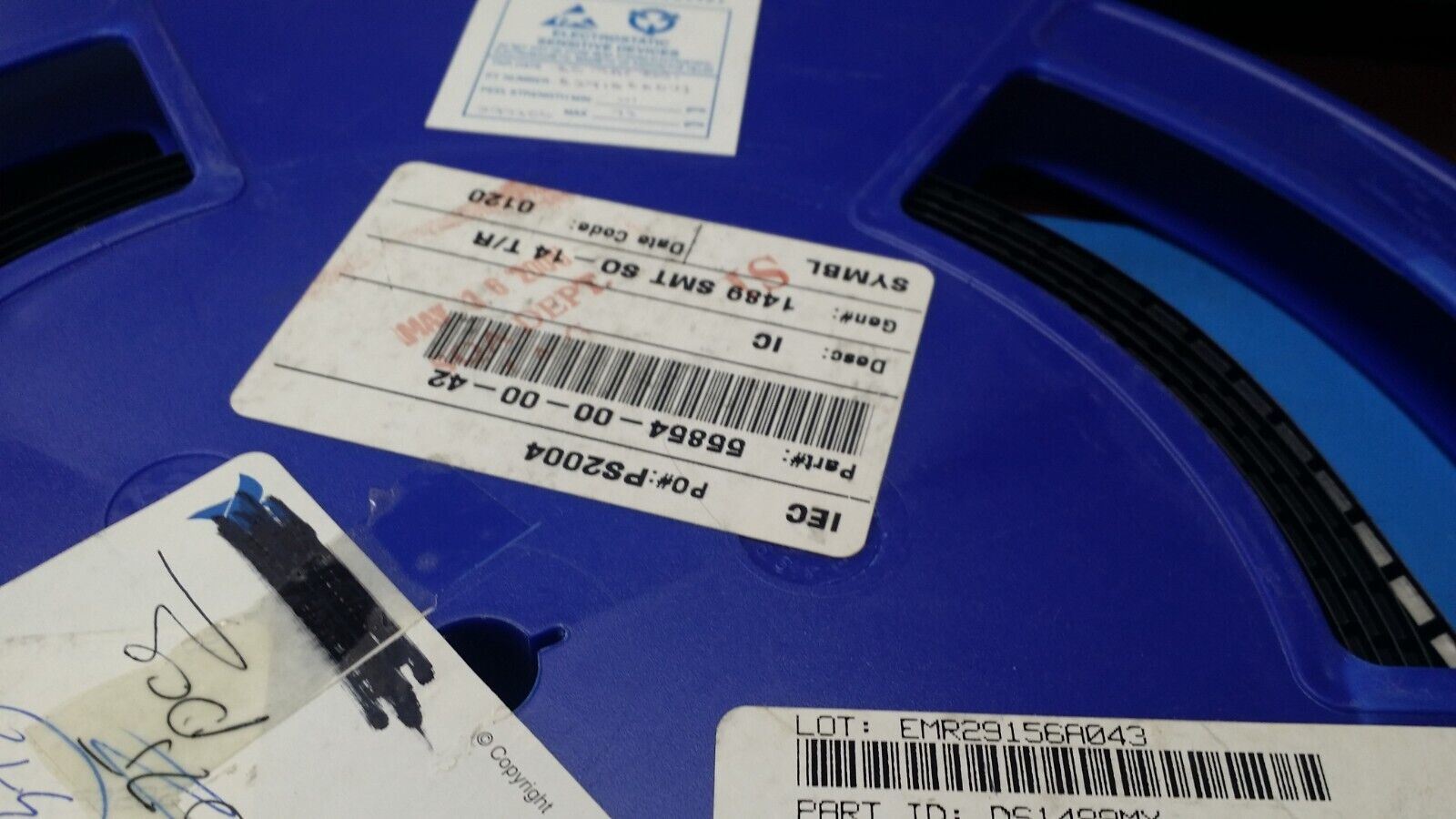

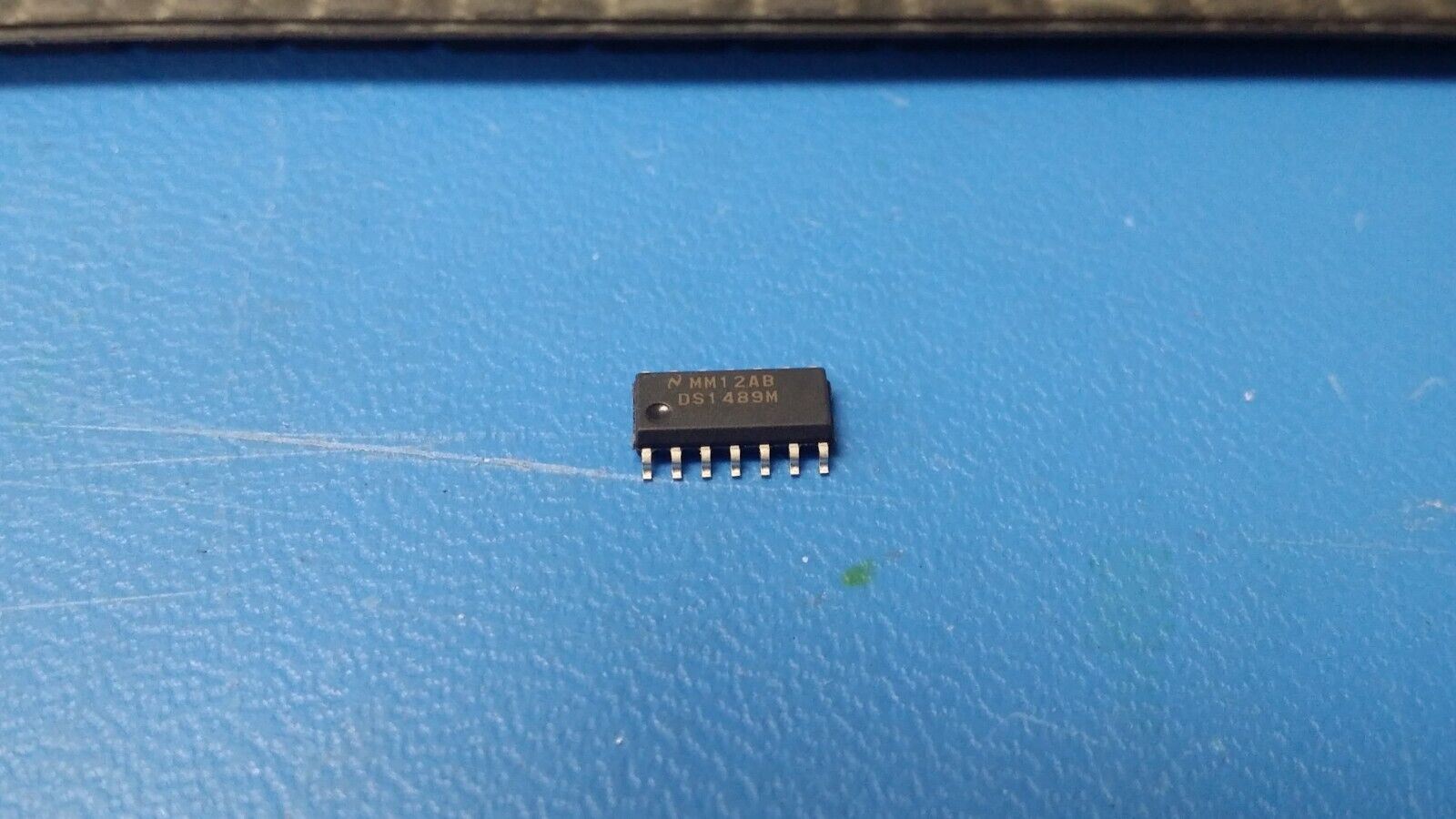

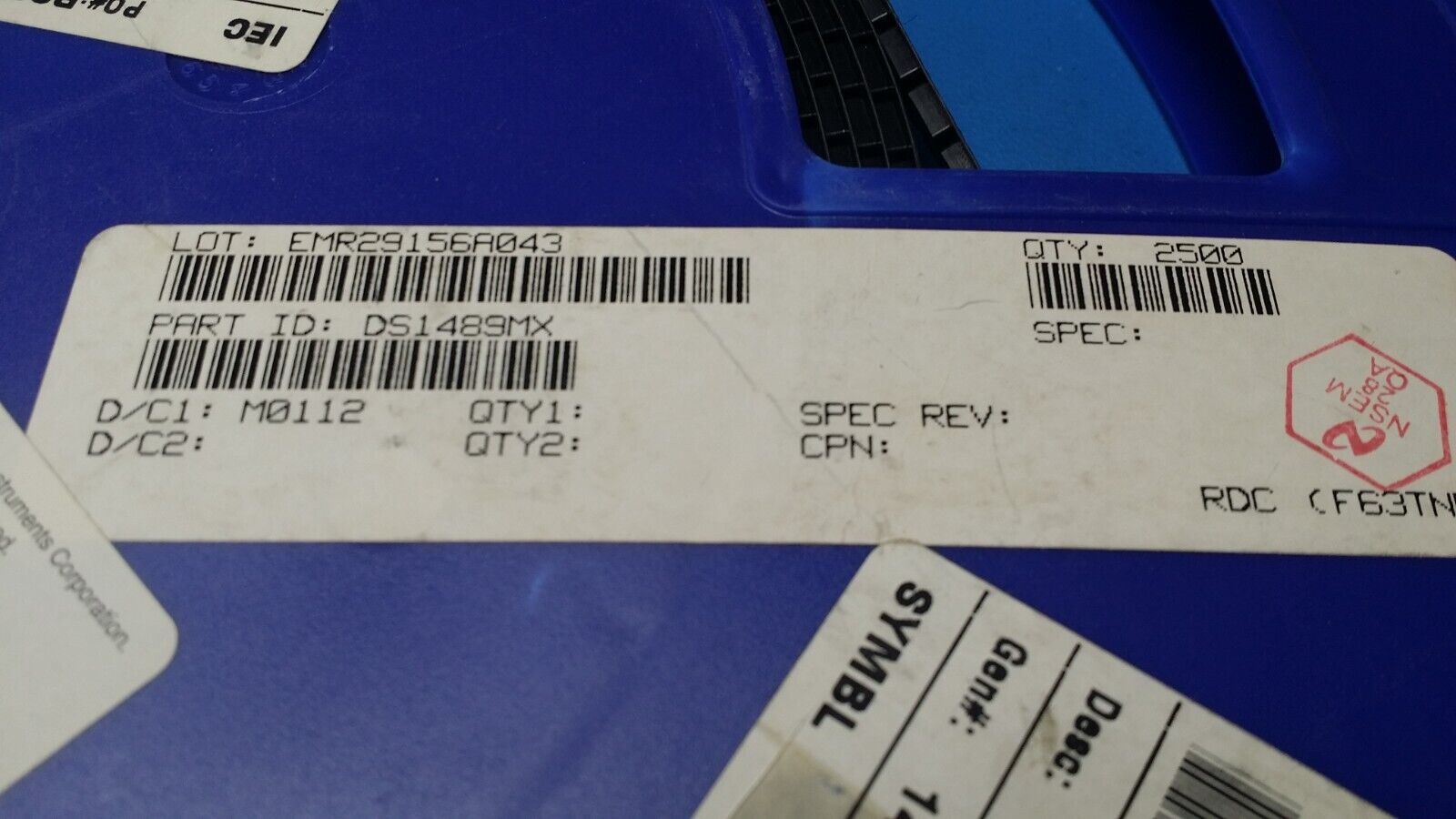

(5 PCS) DS1489M NSC Line Receiver, 4 Func, 4 Rcvr, BIPolar, SOIC14
(5 PCS) DS1489M NSC Line Receiver, 4 Func, 4 Rcvr, BIPolar, SOIC14
(5 PCS) DS1489M NSC Line Receiver, 4 Func, 4 Rcvr, BIPolar, SOIC14
(5 PCS) DS1489M NSC Line Receiver, 4 Func, 4 Rcvr, BIPolar, SOIC14

(5 PCS) DS1489M NSC Line Receiver, 4 Func, 4 Rcvr, BIPolar, SOIC14

Tax included.
Only 74 left!
THIS IS FOR (5 PCS) OF DS1489M BY NSC
Line Receiver, 4 Func, 4 Rcvr, BIPolar, SOIC14

Mfr Package Description SOP-14
Status Discontinued
Interface IC Type LINE RECEIVER
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232-D
JESD-30 Code R-PDSO-G14
JESD-609 Code e0
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 75.0  Cel
Output Characteristics TOTEM-POLE
Output Low Current-Max 0.01  Amp
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Receive Delay-Max 85.0  ns
Receiver Number of Bits 4.0
Seated Height-Max 1.75  mm
Sub Category Line Driver or Receivers
Supply Current-Max 26.0  mA
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.95  V
Supply Voltage-Max 5.05  V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Length 8.65  mm
Width 3.9  mm
Additional Feature RESPONSE CO
