(5 PCS) DO3316P-222HC COILCRAFT Ind Power Wirewound 2.2uH 20% 100KHz 7.4A
Tax included.

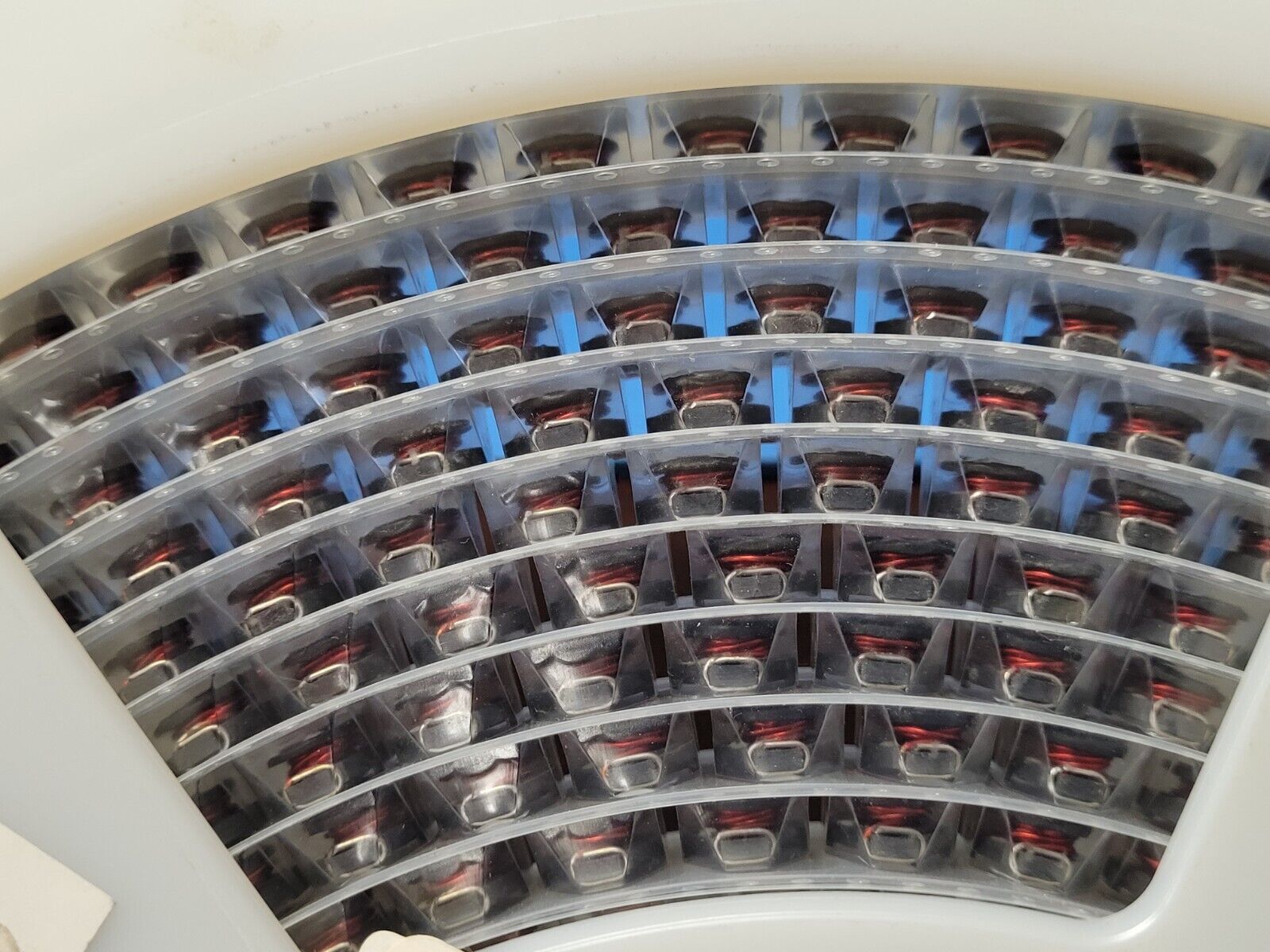

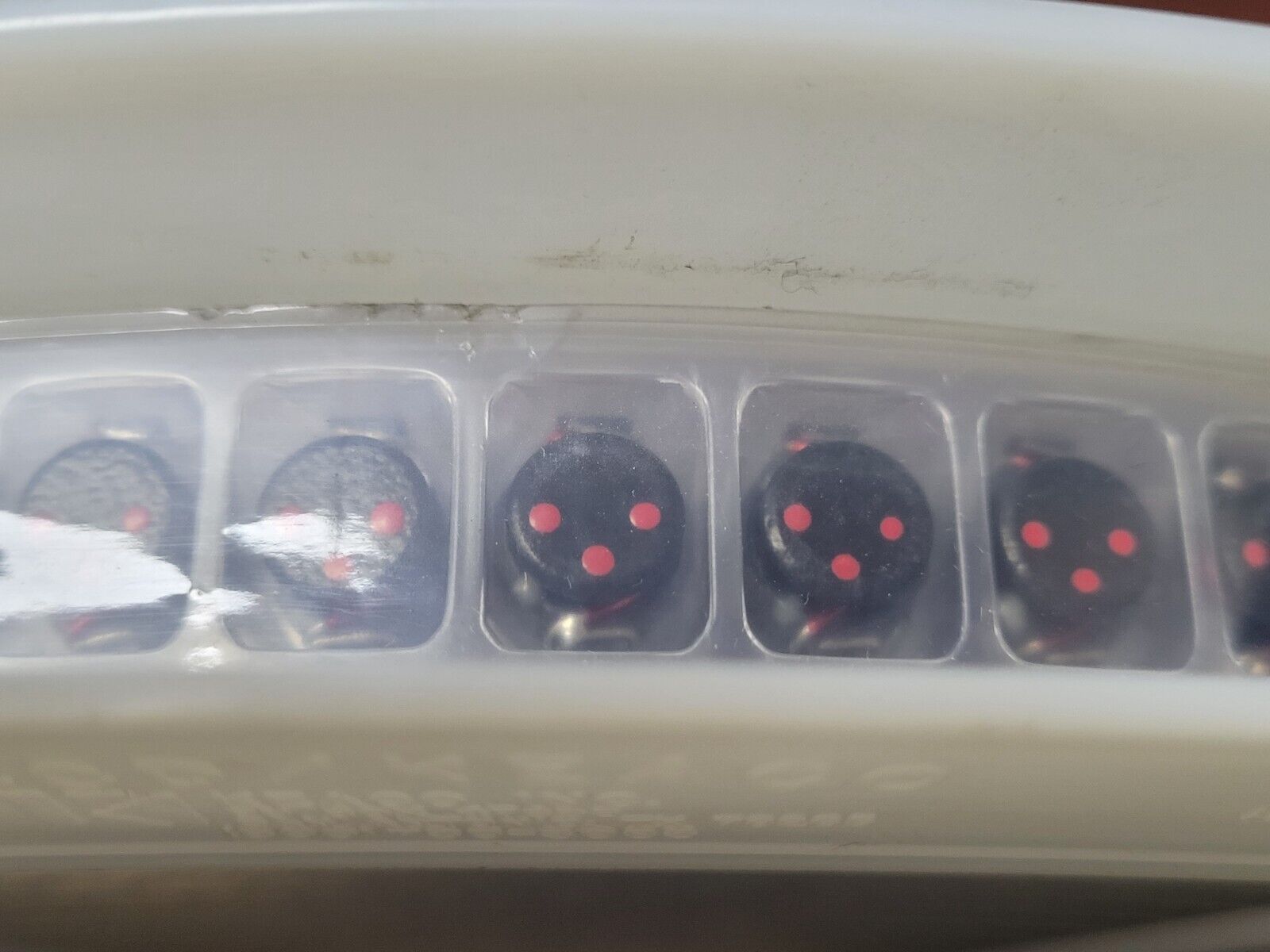

THIS IS FOR (5 PCS) OF DO3316P-222HC BY COILCRAFT
Ind Power Wirewound 2.2uH 20% 100KHz 7.4A
Part #: DO3316P-222HC
Part Category: Inductors
Manufacturer: Coilcraft, Inc.
Description: General Purpose Inductor, 2.2uH, 20%, 1 Element, Ferrite-Core, SMD, 5239
REACH Compliant Yes
Status Discontinued
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 5239
Construction Unshielded
Core Material FERRITE
DC Resistance 0.011 ohm
Inductance-Nom (L) 2.2 µH
Inductor Application POWER INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Height 6.35 mm
Package Length 13.21 mm
Package Width 9.91 mm
Packing Method TR, 13 Inch
Rated Current-Max 7.8 A
Self Resonance Frequency 80.0 MHz
Series DO3316P-HC
Shape/Size Description CYLINDRICAL PACKAGE
Shielded NO
Surface Mount YES
Terminal Finish Tin (Sn)
Terminal Placement DUAL ENDED
Terminal Shape ONE SURFACE
Test Frequency 0.1 MHz
Tolerance 20.0 %
