(5 PCS) DO1608C-682MLC COILCRAFT FIXED IND 6.8UH 1.6A 130MOHM SMD ROHS
Tax included.

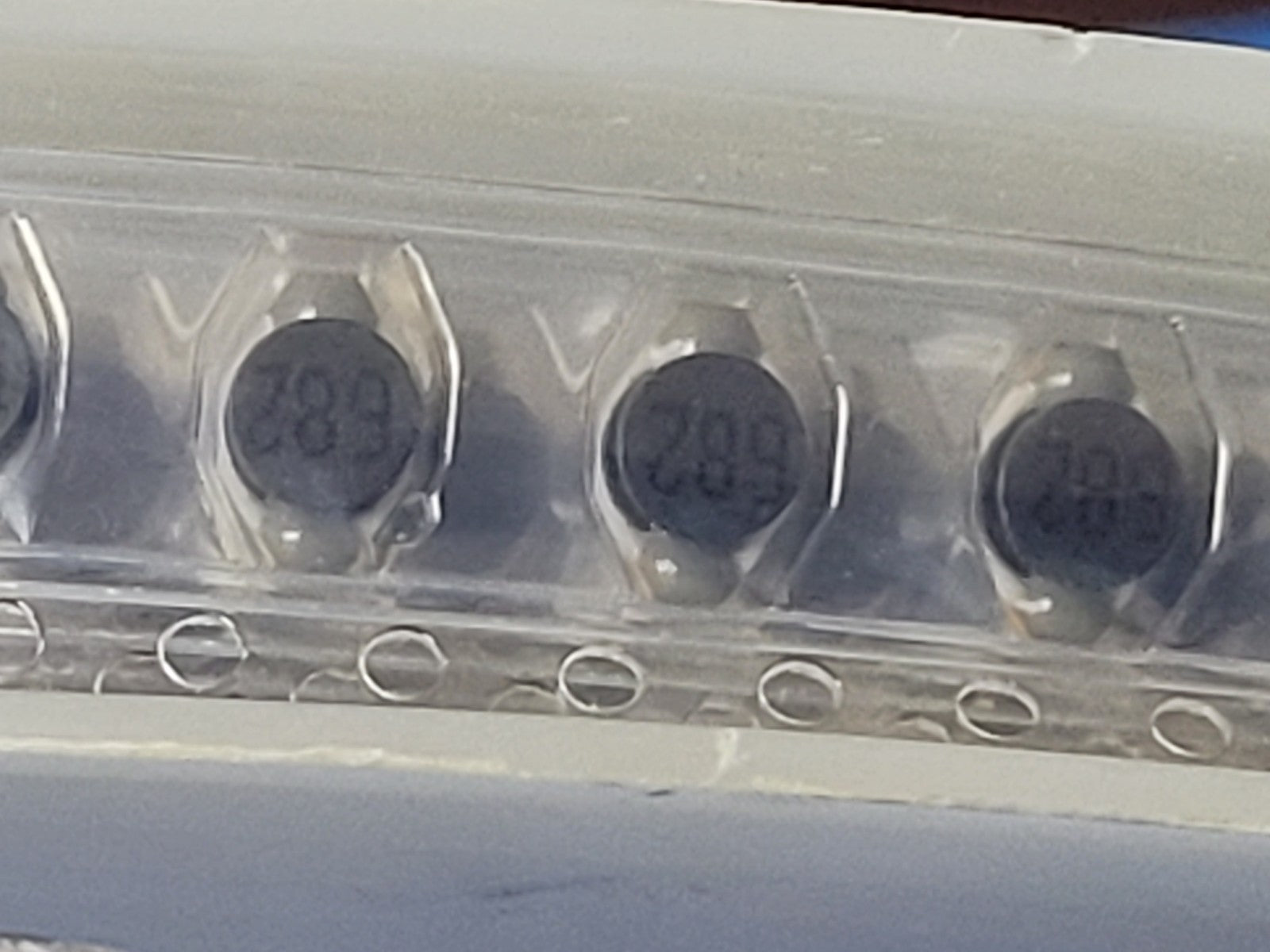

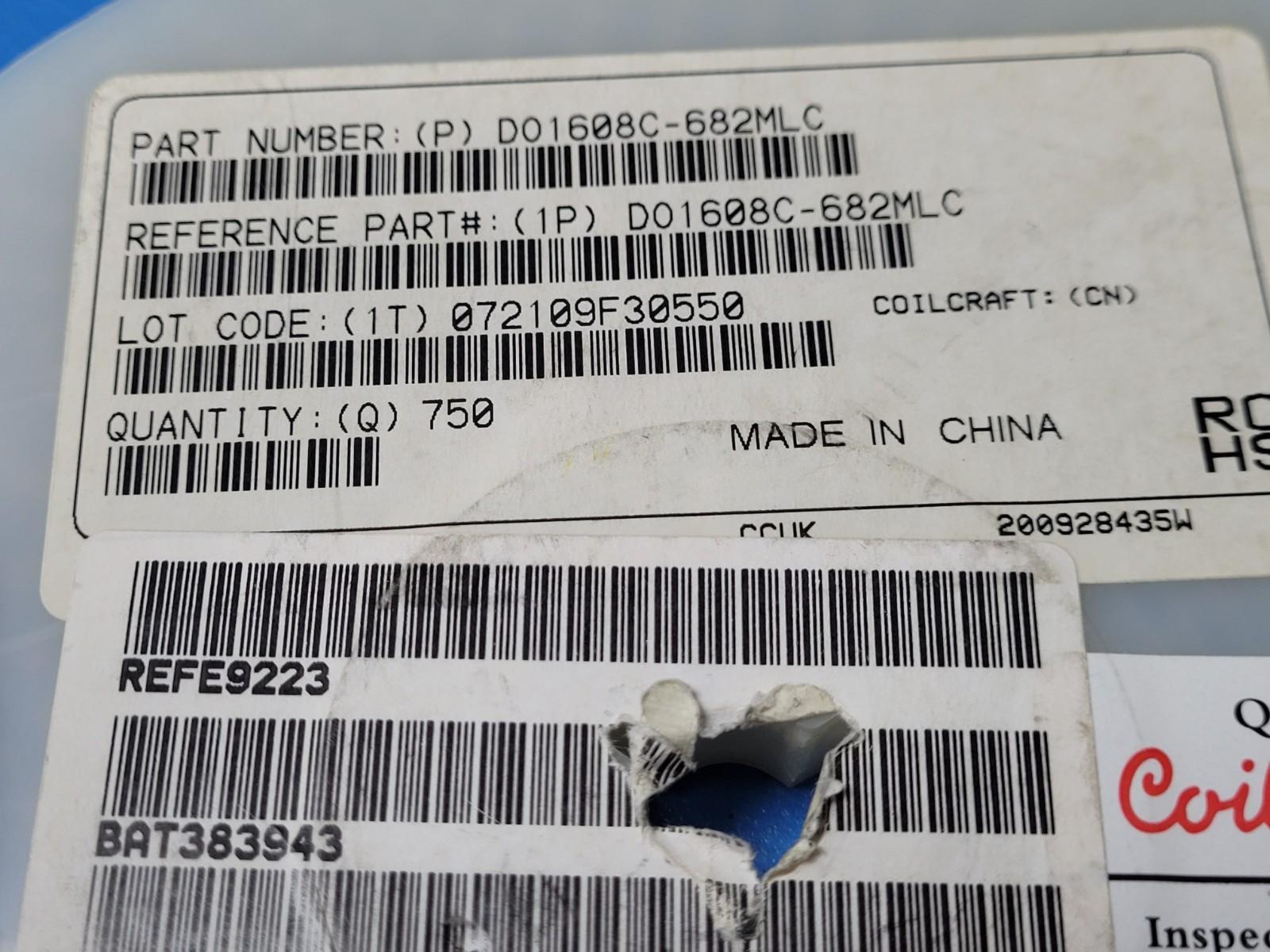

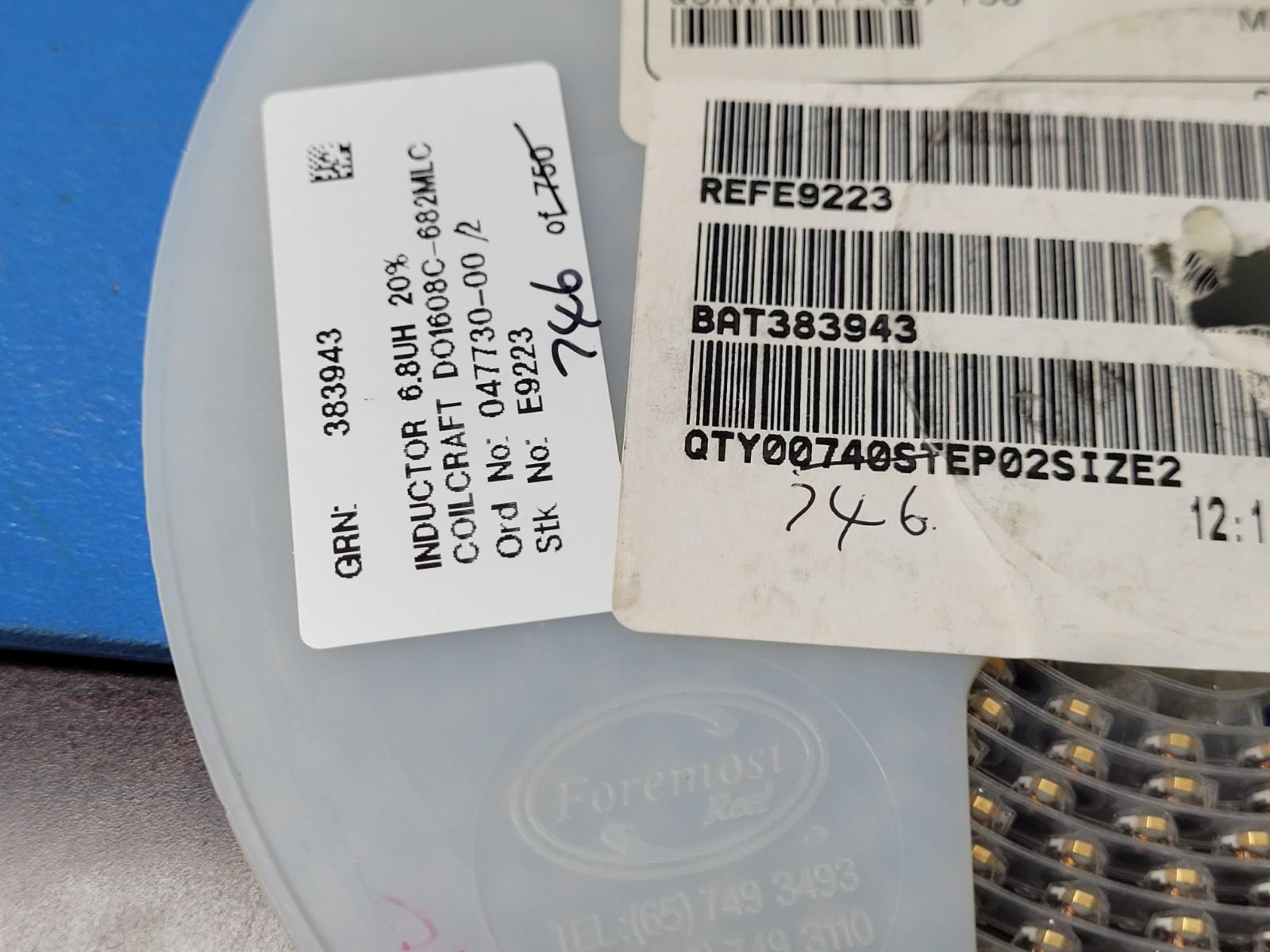

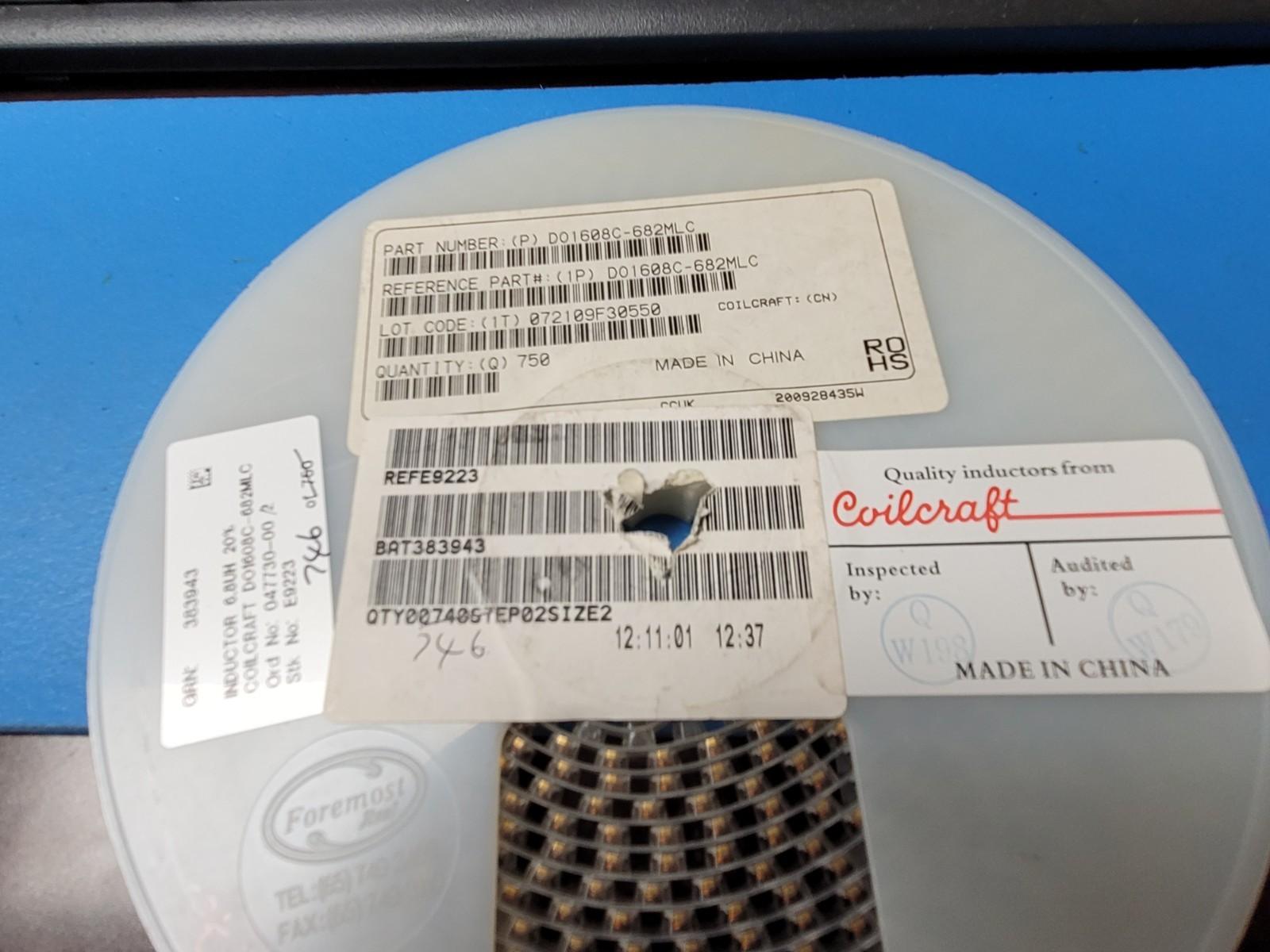

THIS IS FOR (5 PCS) OF DO1608C-682MLC BY COILCRAFT
FIXED IND 6.8UH 1.6A 130MOHM SMD ROHS
Manufacturer: Coilcraft
Product Category: Power Inductors - SMD
RoHS: YES
Type: Power Inductor
Package / Case: 4.45 mm x 2.92 mm x 6.6 mm
Shielding: Shielded
Inductance: 6.8 uH
Tolerance: 20 %
Maximum DC Current: 1.6 A
Maximum DC Resistance: 130 mOhms
Saturation Current: 1.2 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Self Resonant Frequency: 45 MHz
Termination: Standard
Length: 6.6 mm
Width: 4.45 mm
Height: 2.92 mm
Core Material: Ferrite
Qualification: AEC-Q200
Series: DO1608C
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Application: Automotive
Brand: Coilcraft
Core Type: Wirewound
Mounting Style: PCB Mount
Product: Power Inductors
Product Type: Power Inductors - SMD
750
Subcategory: Inductors, Chokes & Coils
Termination Style: SMD/SMT
Test Frequency: 100 kHz
Part # Aliases: DO1608C-682MLB
