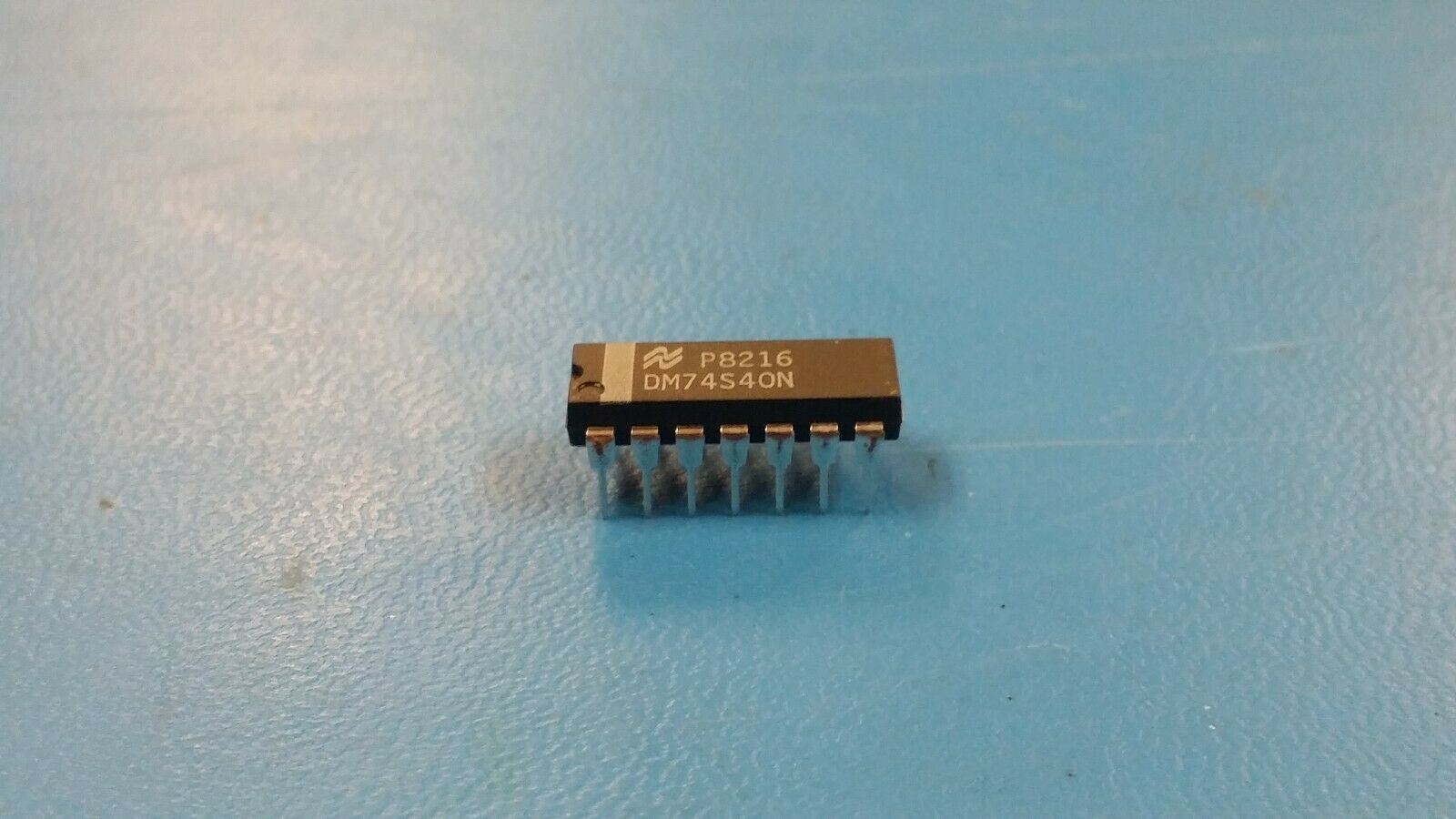

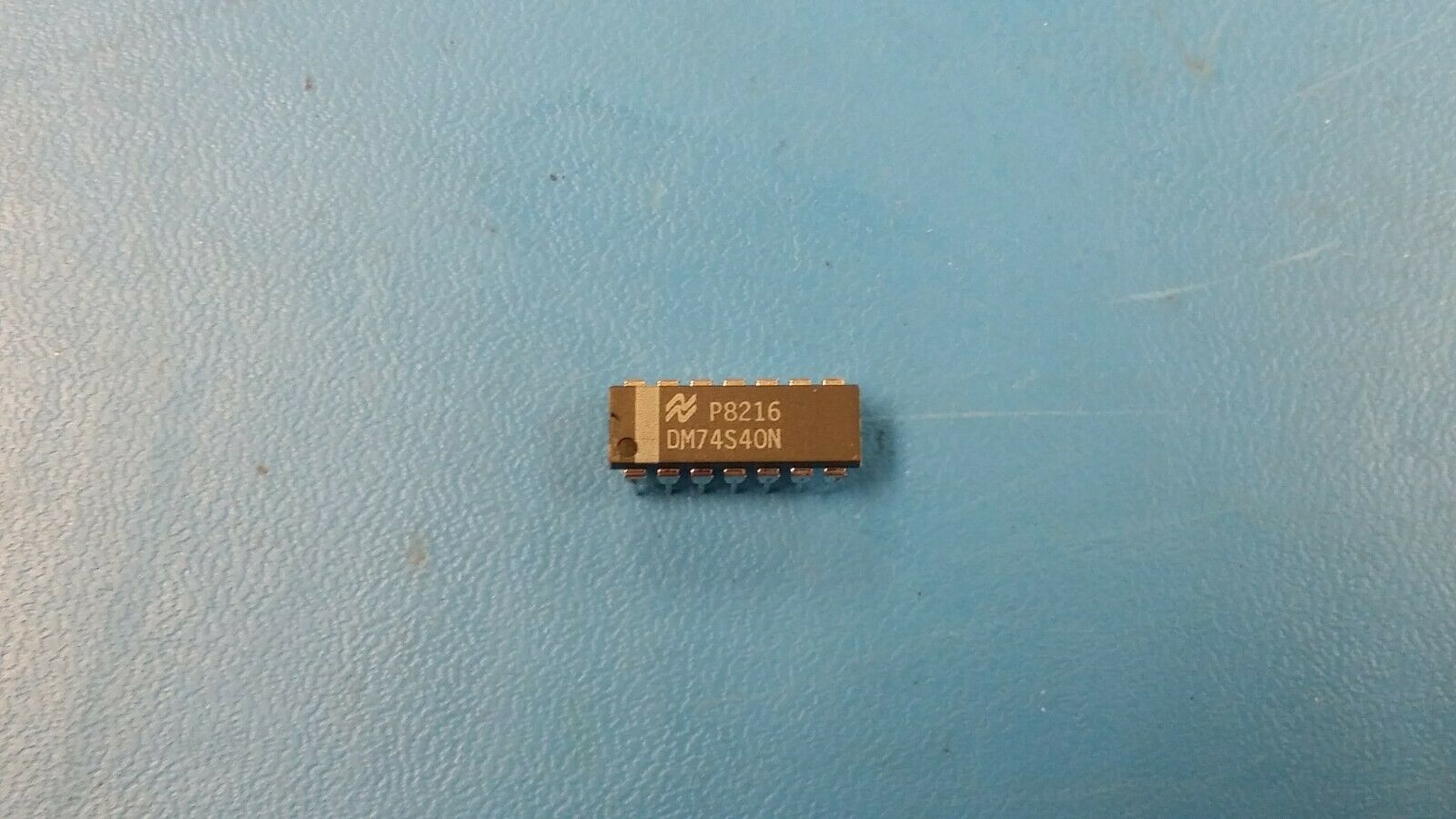

(2 PCS) DM74S40N NSC NAND Gate IC 2 Channel 14-PDIP
Tax included.
THIS LISTING IS FOR (5 PCS) OF DM74S40N BY NSC
NAND Gate IC 2 Channel 14-PDIP
Manufacturer National Semiconductor
Series 74S
Packaging Tube
Part Status Obsolete
Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 4
Features -
Voltage - Supply 4.75V ~ 5.25V
Current - Output High, Low 3mA, 60mA
Logic Level - Low 0.8V
Logic Level - High 2V
Max Propagation Delay @ V, Max CL 9ns @ 5V, 150pF
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Supplier Device Package 14-PDIP
Package / Case 14-DIP (0.300", 7.62mm)
Base Part Number 74S40
