(5 PCS) DM74LS279N NSC IC QUAD NOT-S/NOT-R LATCH 16-DIP

$4.95
Unit price per

Tax included.

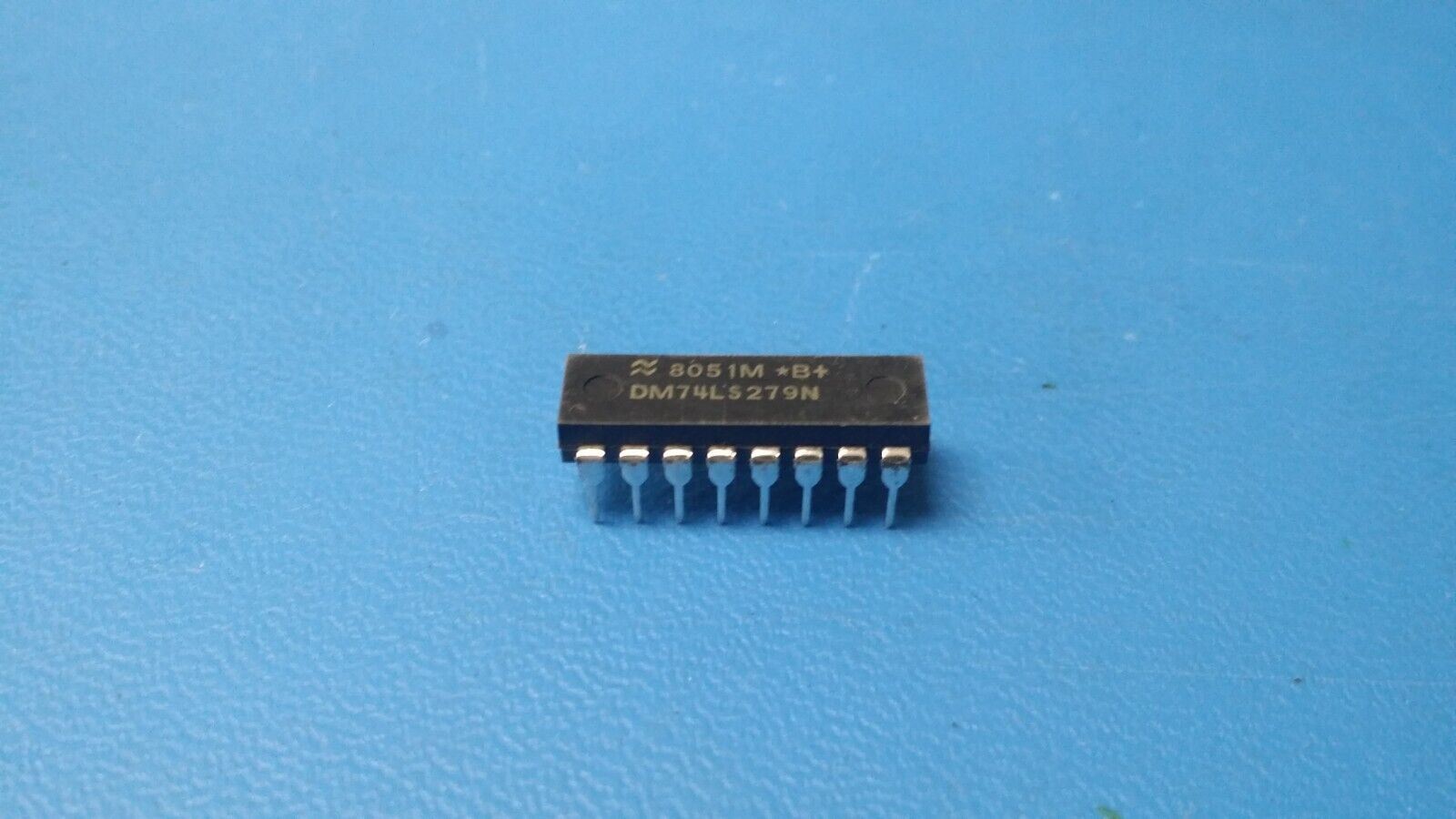

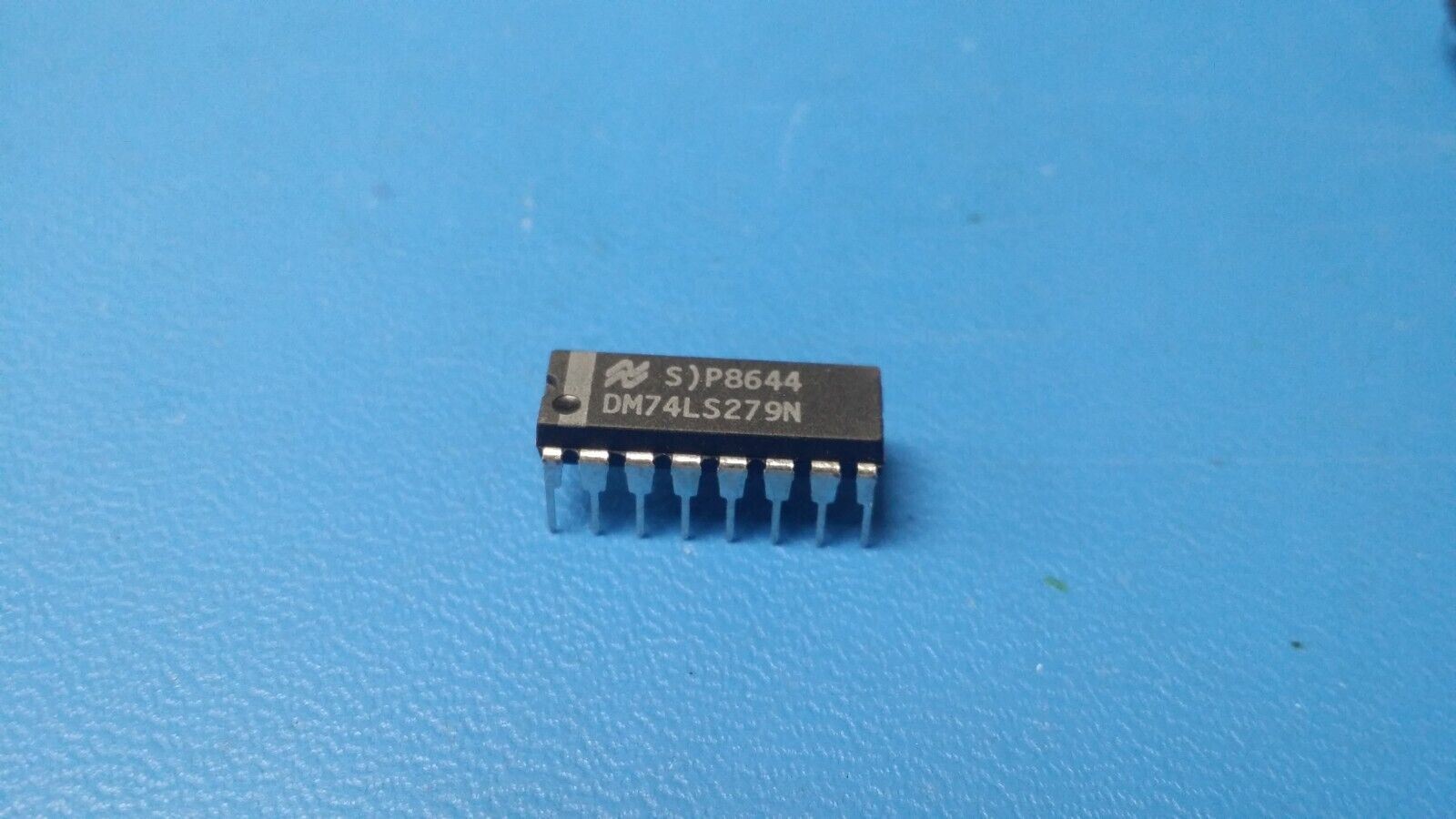

THIS IS FOR (5 PCS) OF DM74LS279N BY NSC

IC QUAD NOT-S/NOT-R LATCH 16-DIP

Part #: DM74LS279N

Part Category: Logic ICs

Manufacturer: National Semiconductor

Description: R-S Latch, LS Series, 4-Func, Low Level Triggered, 2-Bit, True Output, TTL, PDIP16

Mfr Package Description PLASTIC, DIP-16

Status Discontinued

Logic IC Type R-S LATCH

Sub Category FF/Latches

Family LS

JESD-30 Code R-PDIP-T16

JESD-609 Code e0

Load Capacitance (CL) 15.0 pF

Max I(ol) 0.008 Amp

Number of Bits 2

Number of Functions 4

Number of Terminals 16

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Power Supply Current-Max (ICC) 7.0 mA

Prop. Delay@Nom-Sup 27.0 ns

Propagation Delay (tpd) 27.0 ns

Qualification Status Not Qualified

Seated Height-Max 5.1 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount NO

Technology TTL

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Trigger Type LOW LEVEL

Width 7.62 mm

Additional Feature WITH DUAL S INPUT FOR TWO FUNCTIONS
