(5 PCS) DM74AS00N NSC NAND Gate IC 4 Channel 14-DIP
Tax included.

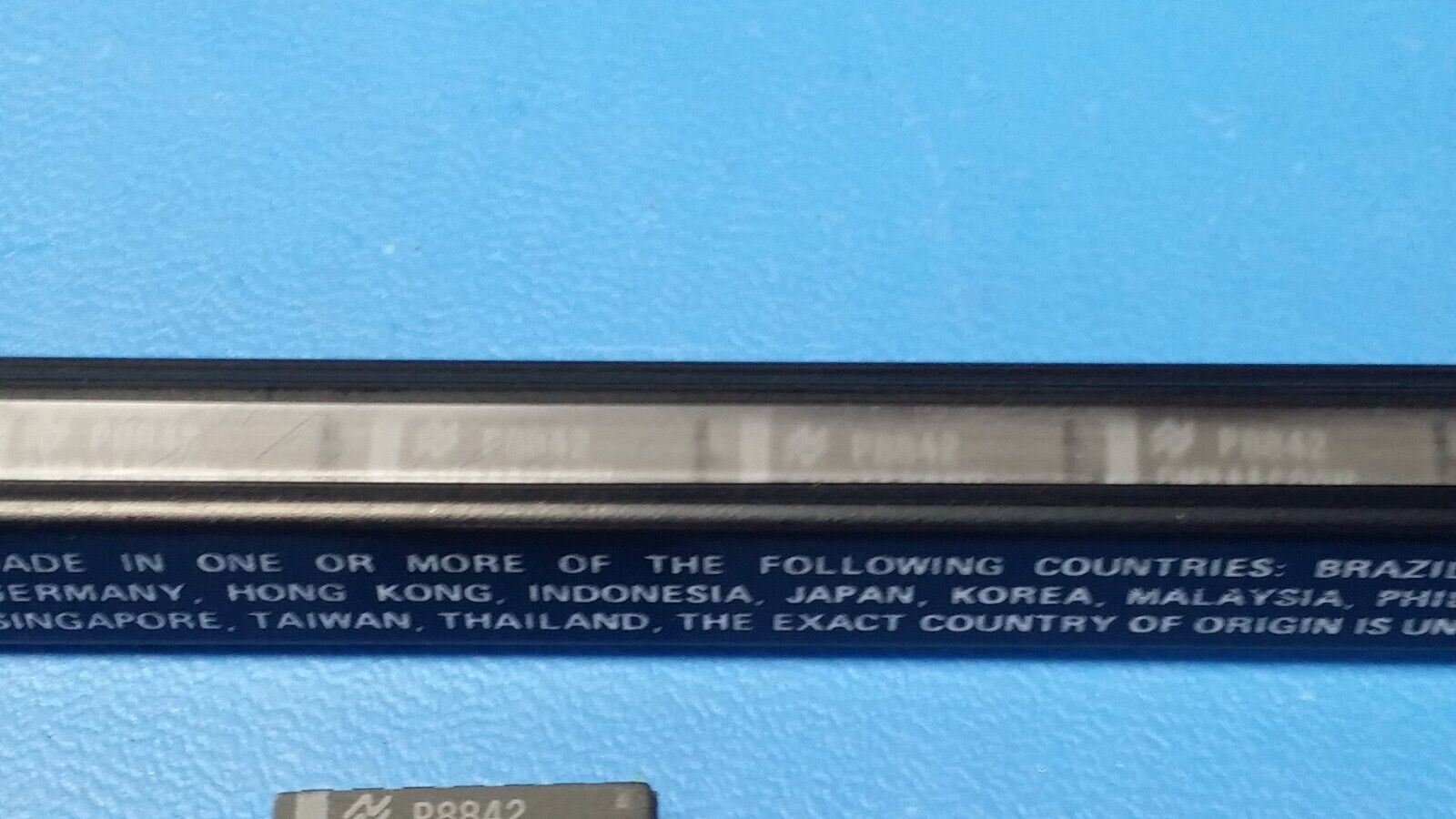

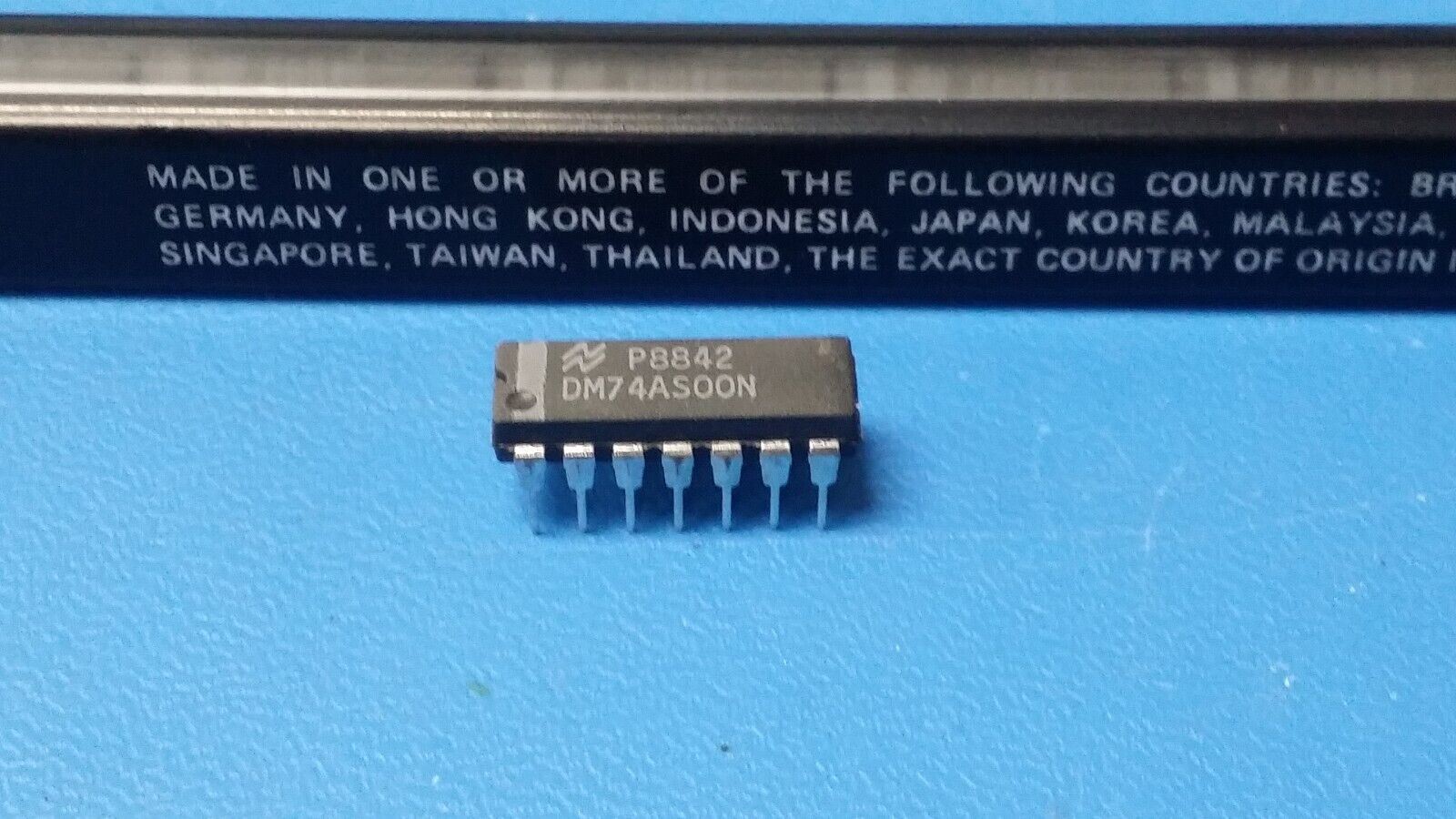

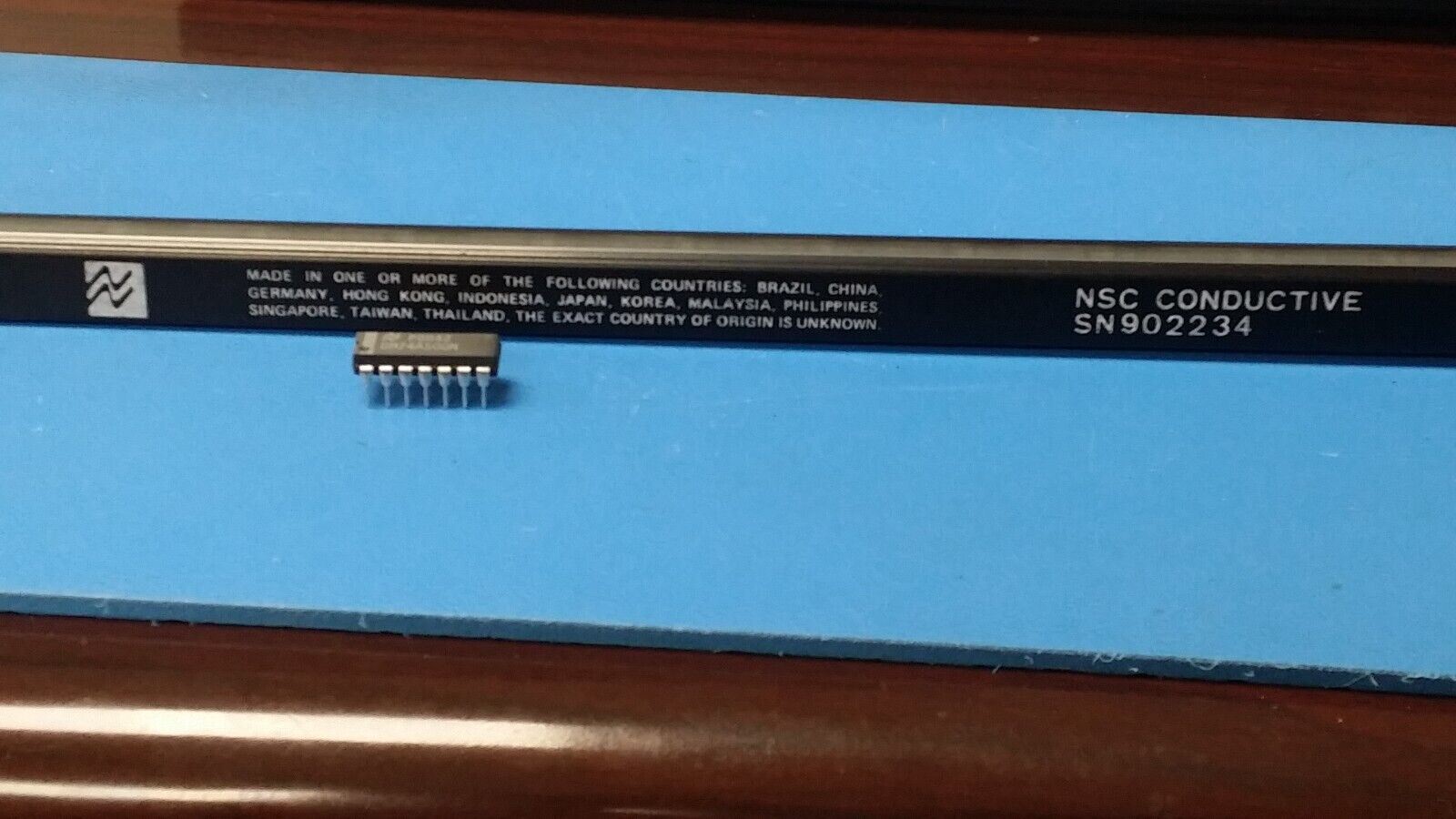

THIS IS FOR (5 PCS) OF DM74AS00N BY NSC
NAND Gate IC 4 Channel 14-DIP
Manufacturer: National Semiconductor
Product Category: Logic Gates
RoHS: N
Product: Single-Function Gate
Logic Function: NAND
Logic Family: 74AS
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 2 mA
Low Level Output Current: 20 mA
Propagation Delay Time: 4.5 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package / Case: PDIP W
Packaging: Tube
Function: Gate
Height: 3.56 mm
Length: 19.56 mm
Logic Type: 2-Input NAND
Operating Supply Voltage: 5 V
Product Type: Logic Gates
25
Subcategory: Logic ICs
Width: 6.6 mm
Unit Weight: 0.057144 oz
