(5 PCS) DM7406N, 7406N, IC INVERTER HEX 1INPUT 14DIP
Tax included.
THIS LISTING IS FOR (5 PCS) OF SN7406N OR DM7406N BY TI OR NSC
(NTE7406 EQUAL) IC INVERTER HEX 1INPUT 14DIP

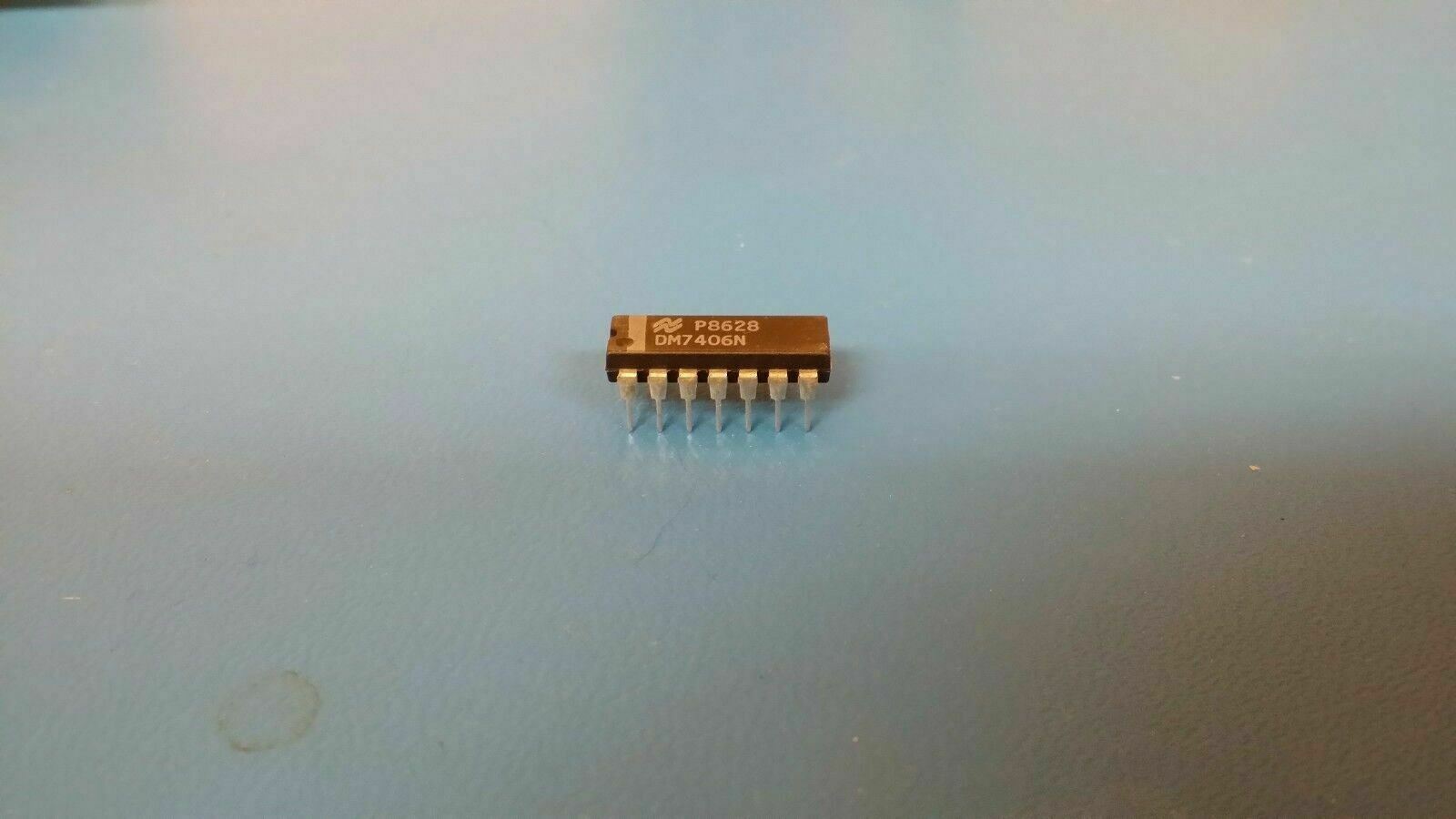

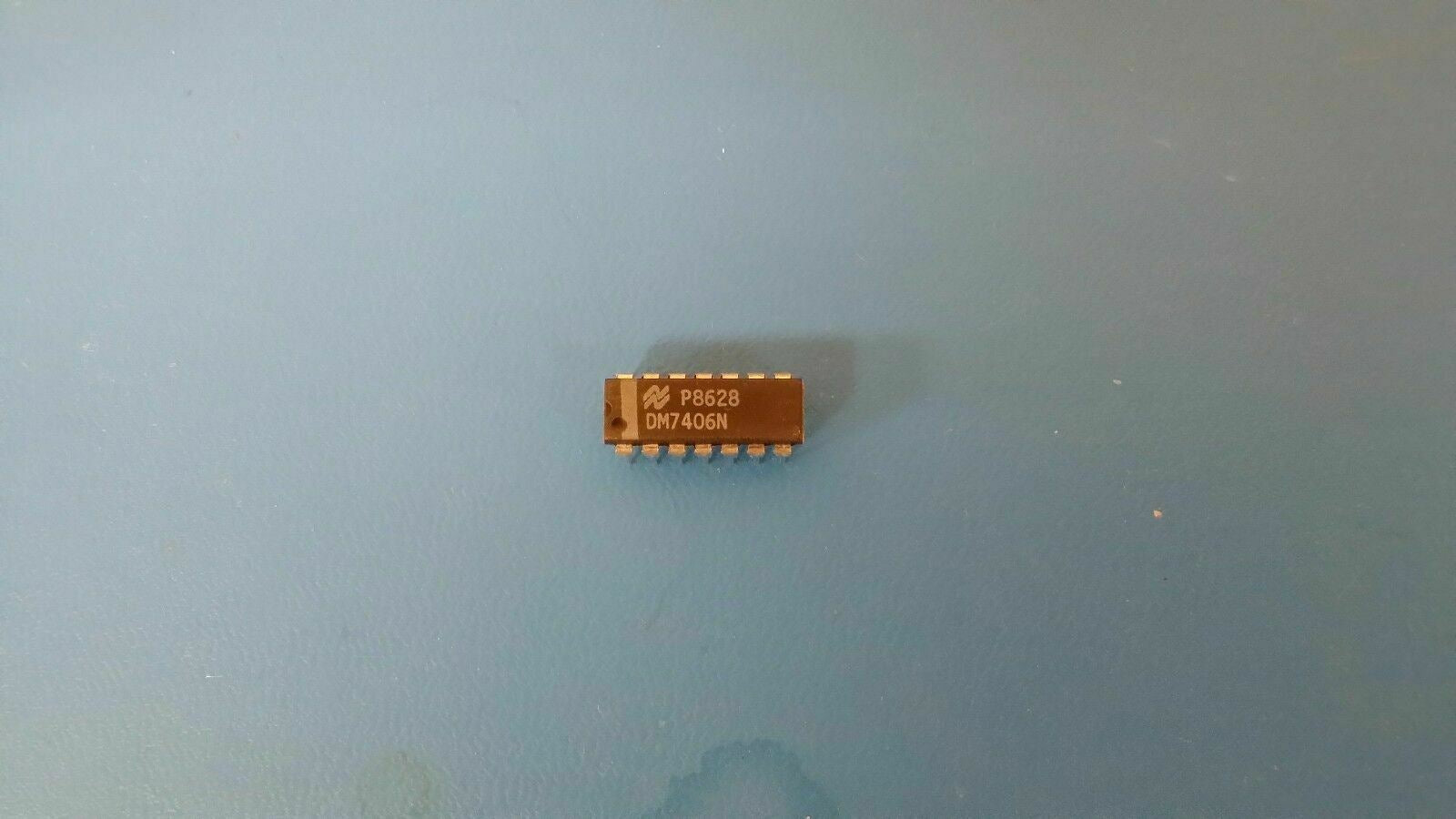

***ONLY NATIONAL SEMI PICTURED. TEXAS INSTRUMENT MARKING WILL LOOK DIFFERENT.
| Number of Input Lines: | 6 Input | |
| Number of Output Lines: | 6 Output | |
| Polarity: | Inverting | |
| Supply Voltage - Max: | 5.25 V | |
| Supply Voltage - Min: | 4.75 V | |
| Maximum Operating Temperature: | + 70 C | |
| Mounting Style: | Through Hole | |
| Package / Case: | PDIP-14 | |
| Packaging: | Tube | |
| Function: | Buffer/Driver | |
| Height: | 3.3 mm | |
| High Level Output Current: | - 0.25 mA | |
| Input Signal Type: | Single-Ended | |
| Length: | 19.05 mm | |
| Logic Family: | TTL | |
| Logic Type: | Bipolar | |
| Low Level Output Current: | 40 mA | |
| Minimum Operating Temperature: | 0 C | |
| Number of Channels: | 5 | |
| Operating Supply Current: | 51 uA | |
| Operating Supply Voltage: | 4.75 V to 5.25 V | |
| Operating Temperature Range: | 0 C to + 70 C | |
| Output Type: | Open Collector | |
| Propagation Delay Time: | 23 ns at 5 V |
