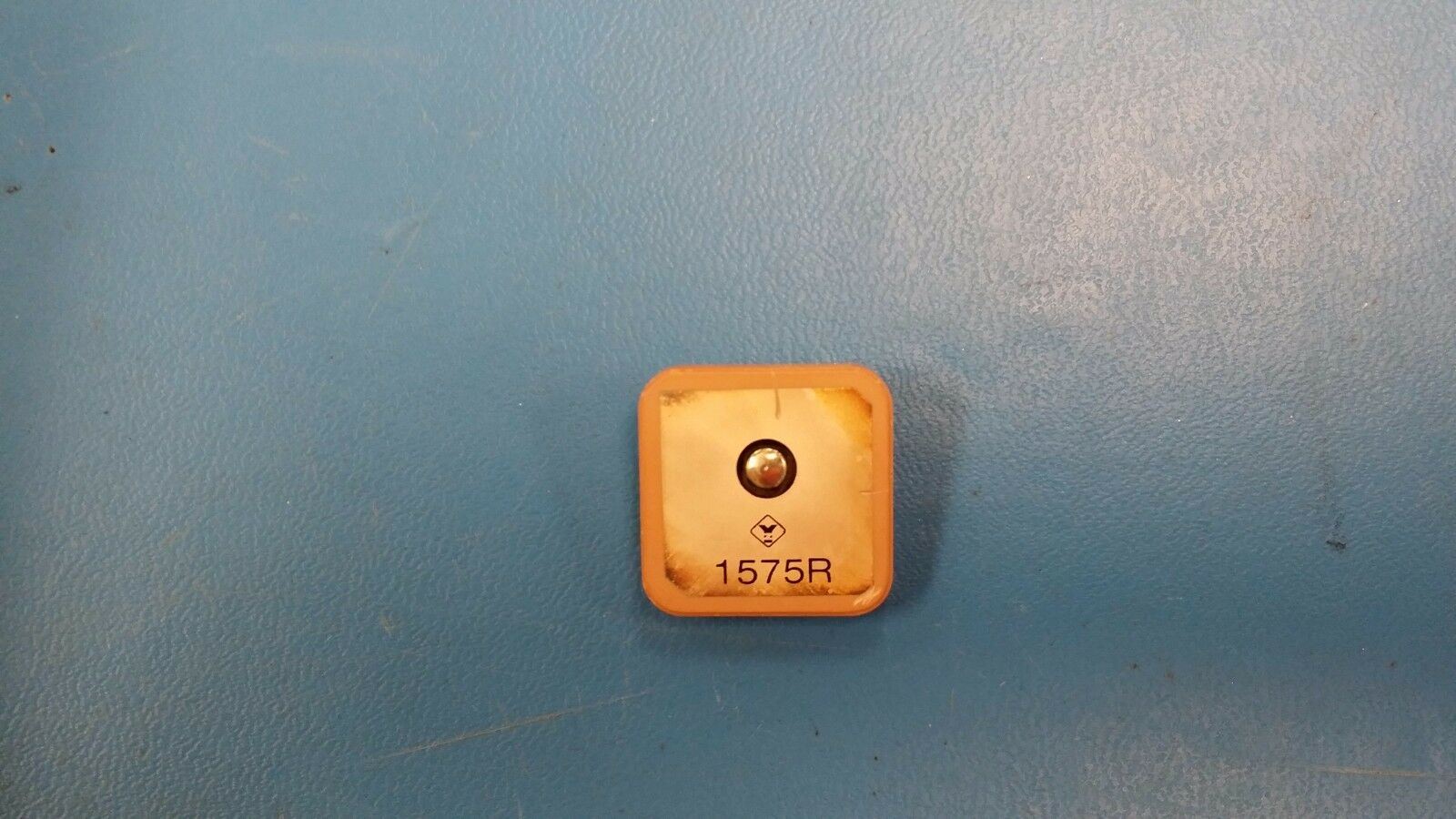

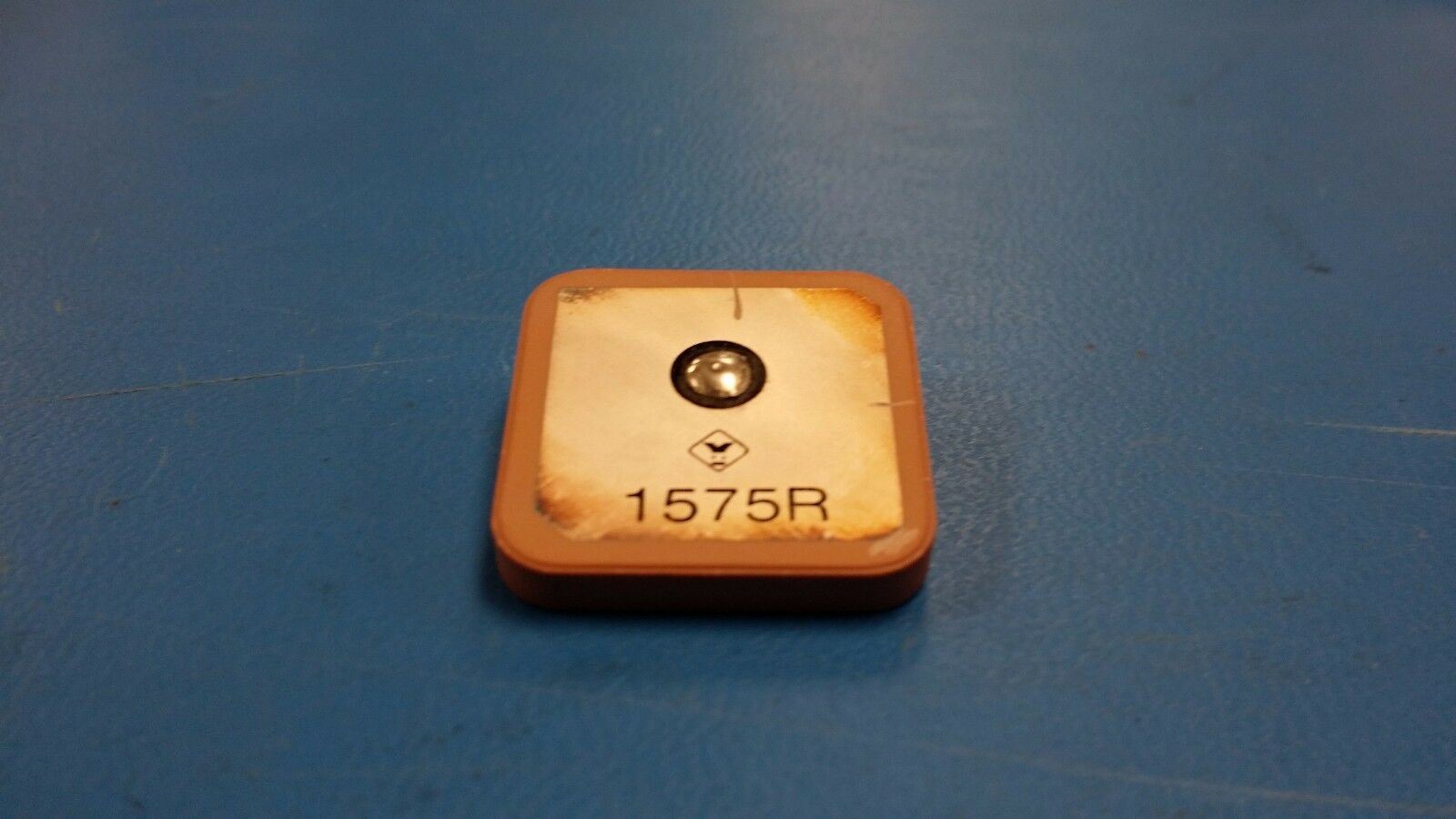

(5 PCS) DAS1575R25 Gps Antenna Size: 25x25x2mm Gain: 3.5dBi Band Width: ≥8MHz
Tax included.

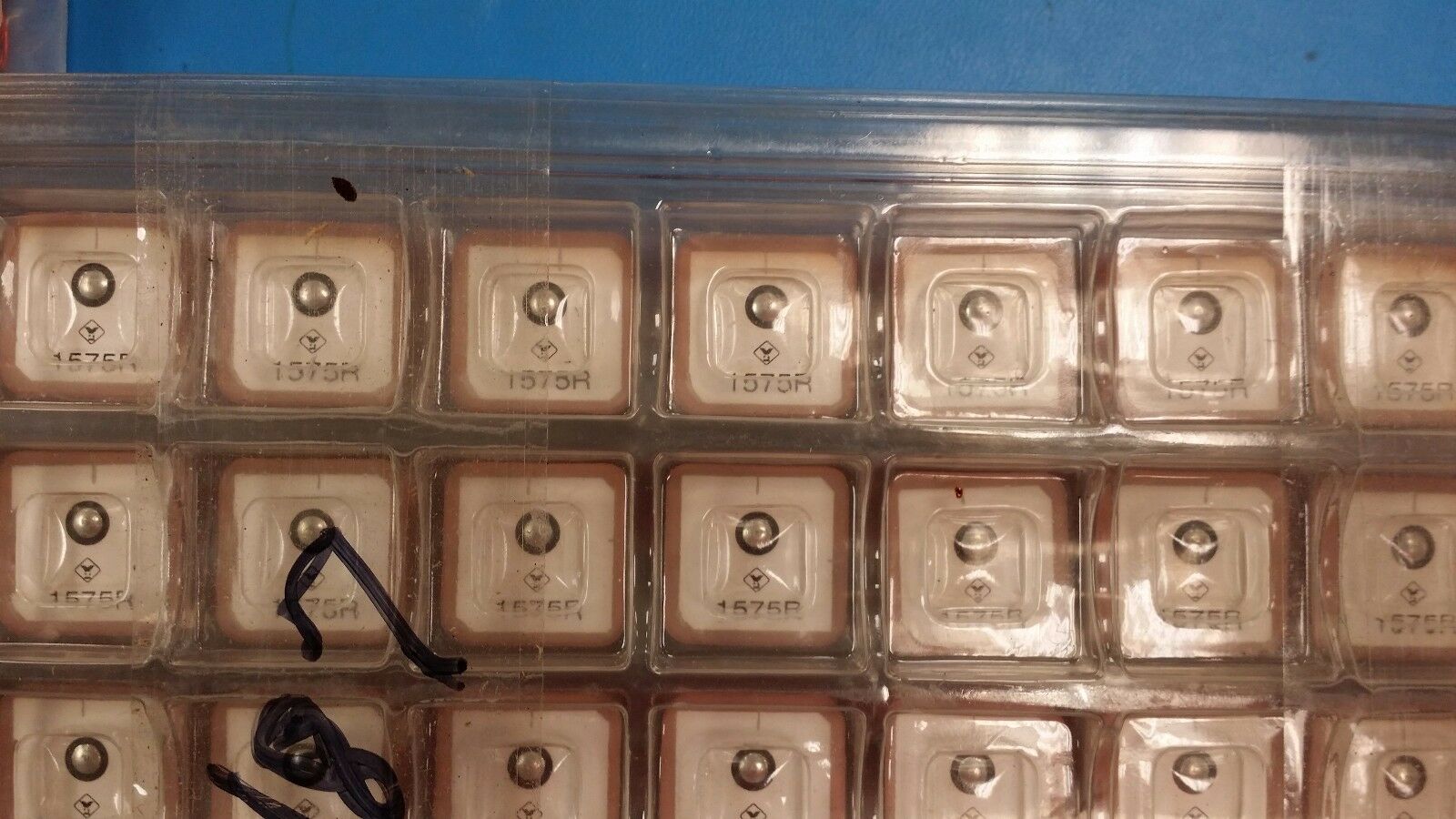

THIS LISTING IS FOR (5 PCS) OF DAS1575R25 Gps Antenna Size: 25x25x2mm Gain: 3.5dBi Band Width: ≥8MHz
Electrical Characteristics
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
Range of Receiving Frequency(MHz) |
GPS:1575.42±1.023 |
±2.5 |
2 |
Center Frequency (Mhz) (with GND Plane) |
1575.42 |
±2.0 |
3 |
Band With (Mhz) (Return loss ≤-10dB) |
≥8 |
±0.5 |
4 |
V.S.W.R(in Center Frequency) |
≤1.5 |
±0.5 |
5 |
Gain(Zenith) (dBi typ) |
3.5B typical |
___ |
6 |
Axial Ratio |
5dB max |
___ |
7 |
Polarization |
Right-Handed Circular |
___ |
8 |
Impedance(Ω) |
50 |
___ |
9 |
Frequency Temperature Coefficient (ppm/°C)
|
0±10 |
___ |
No. |
Description |
Structure and Material |
1 |
Antenna Substrate |
Dielectric Ceramics
|
2 |
Pin |
Copper and tinplated |
3 |
Electrode |
Ag Plated |
4 |
Ground Base |
Ag Plated |
5 |

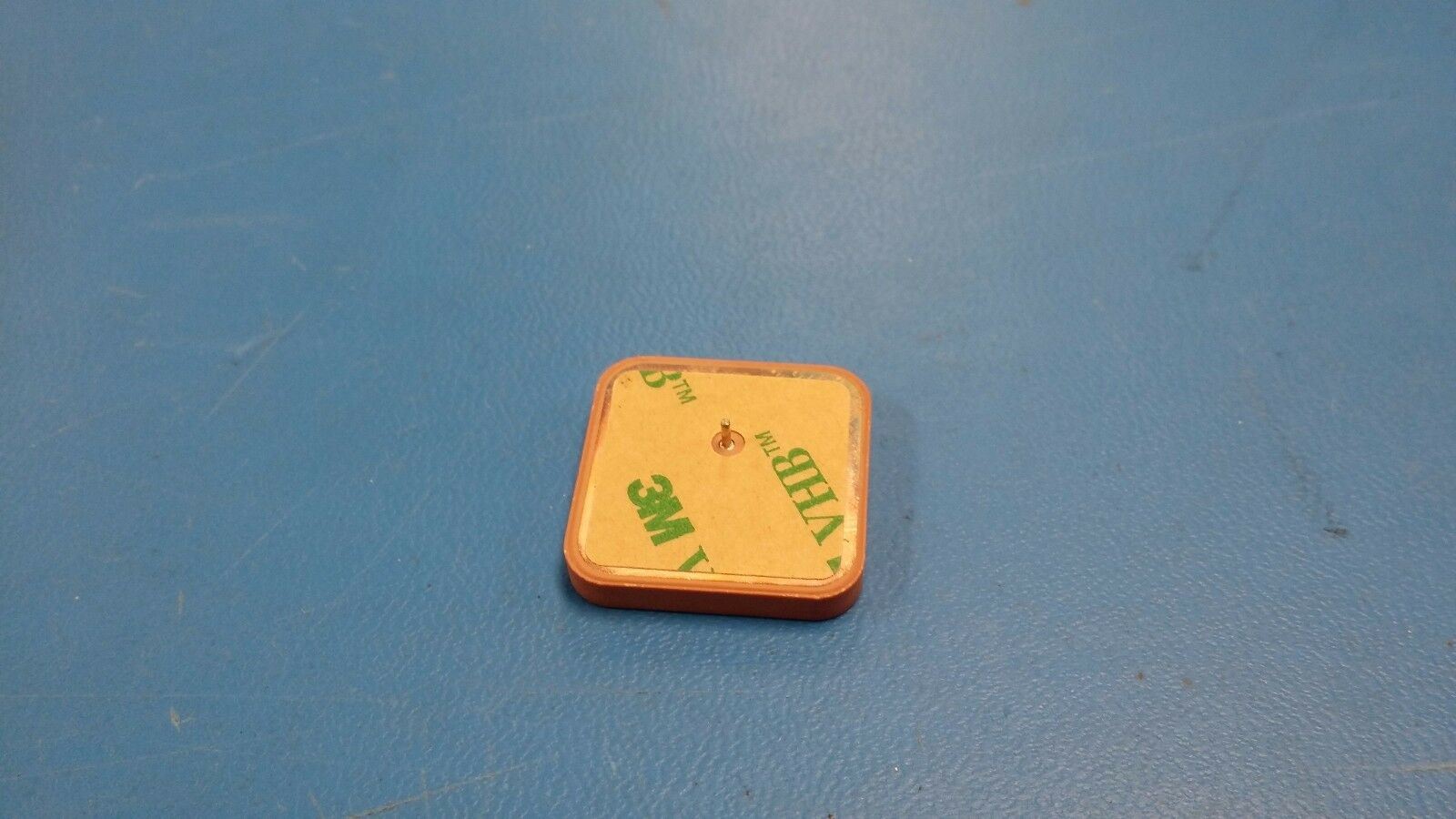

Adhesive type |
NITTO 5000NS |
