(5 PCS) CNX72A Transistor Output Optocoupler 1-Element 5300V Isolation PDIP-6
Tax included.

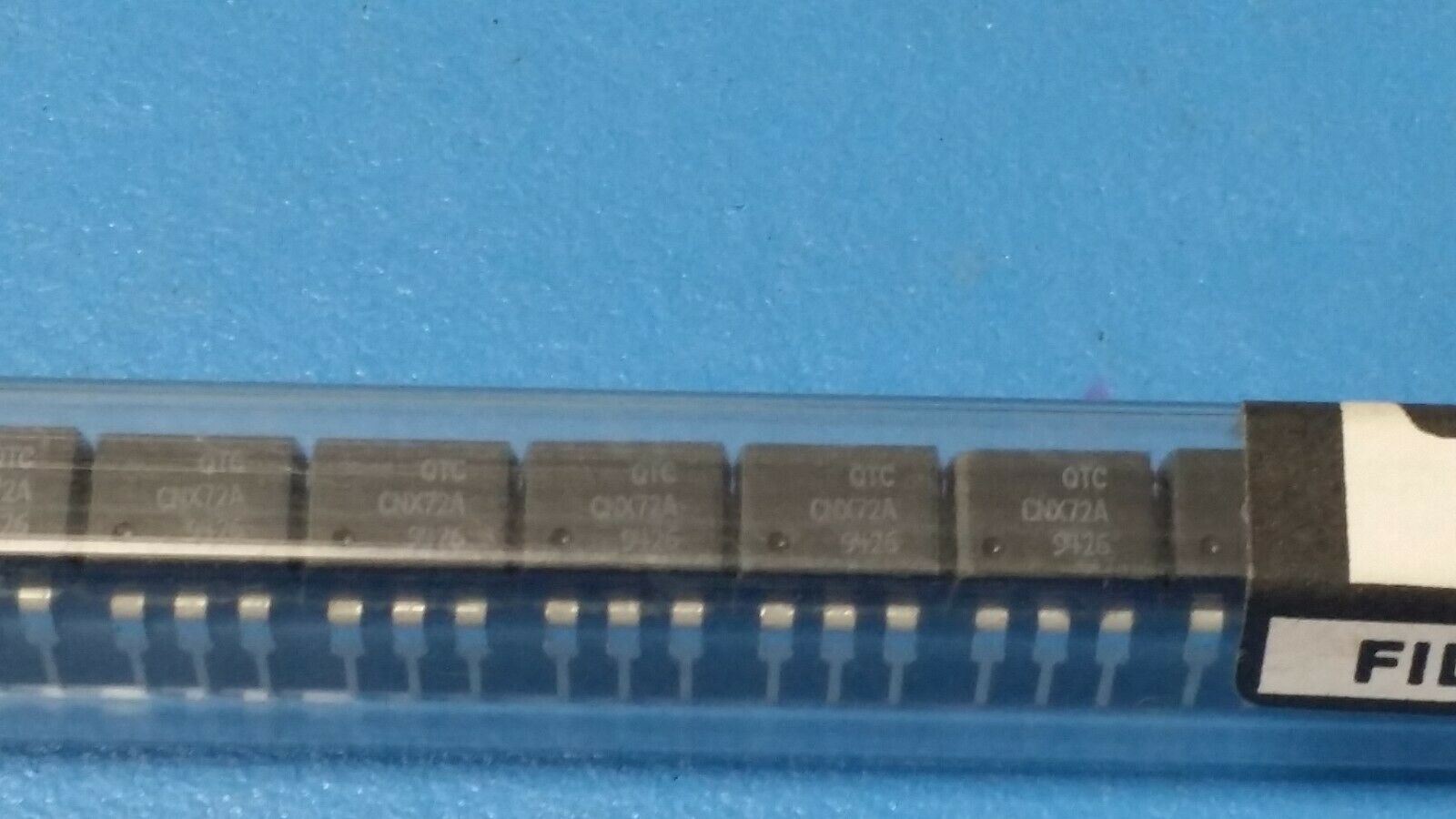

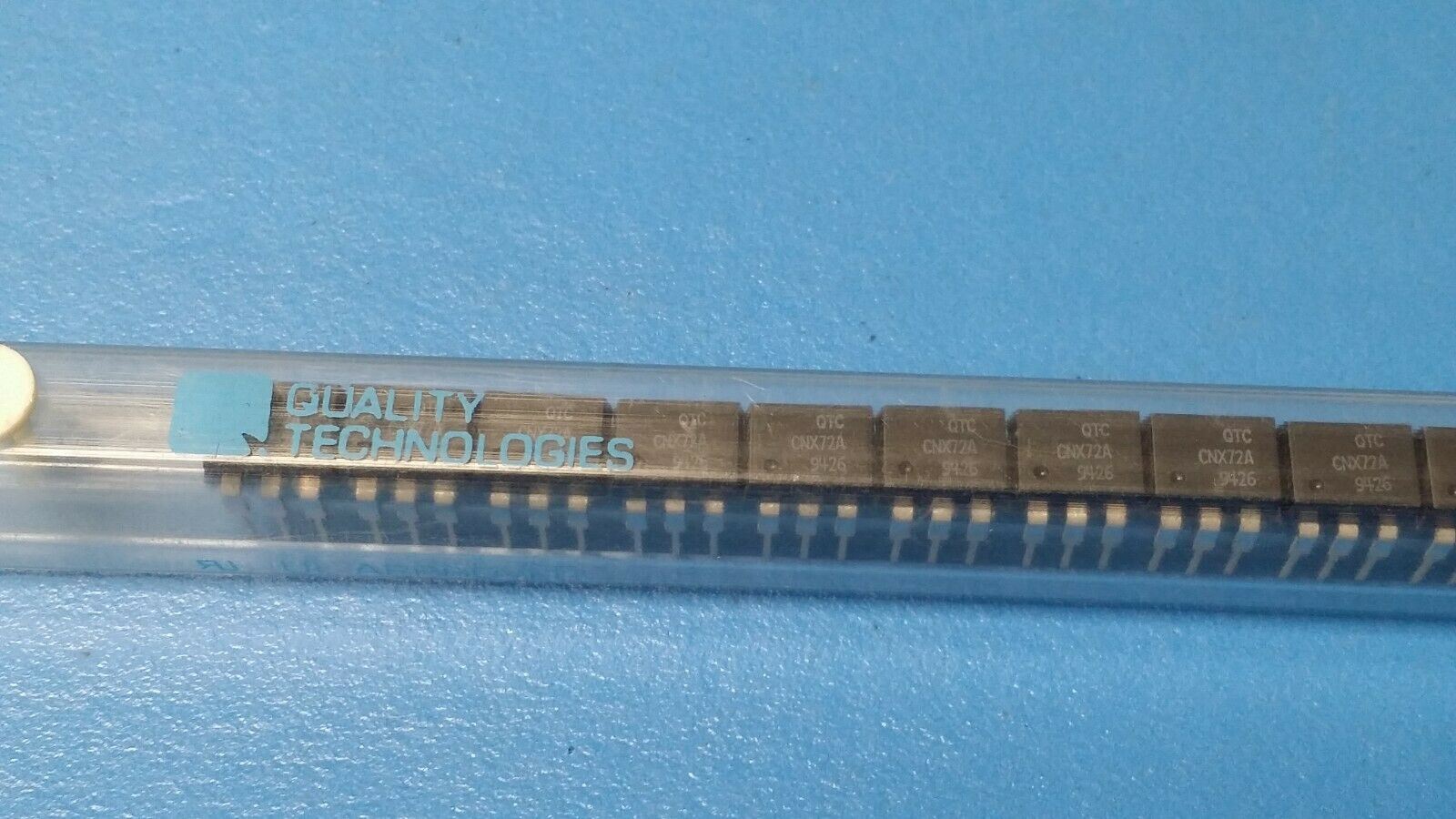

THIS IS FOR (5 PCS) OF CNX72A BY QTC
Transistor Output Optocoupler 1-Element 5300V Isolation PDIP-6
Status Discontinued
Current Transfer Ratio-Min 40.0 %
Forward Current-Max 0.1 A
Forward Voltage-Max 1.5 V
Isolation Voltage-Max 5300.0 V
JESD-609 Code e0
Mounting Feature THROUGH HOLE MOUNT
Number of Elements 1.0
On-State Current-Max 0.1 A
Operating Temperature-Max 125.0 Cel
Power Dissipation-Max 0.2 W
Response Time-Max 2.6E-5 s
Sub Category Optocoupler - Transistor Outputs
Terminal Finish Tin/Lead (Sn/Pb)
