(5 PCS) CD74HC688M HARRIS Identity Comparator 8-Bit Inverted Output CMOS SOIC20

$4.95
Unit price per

Tax included.

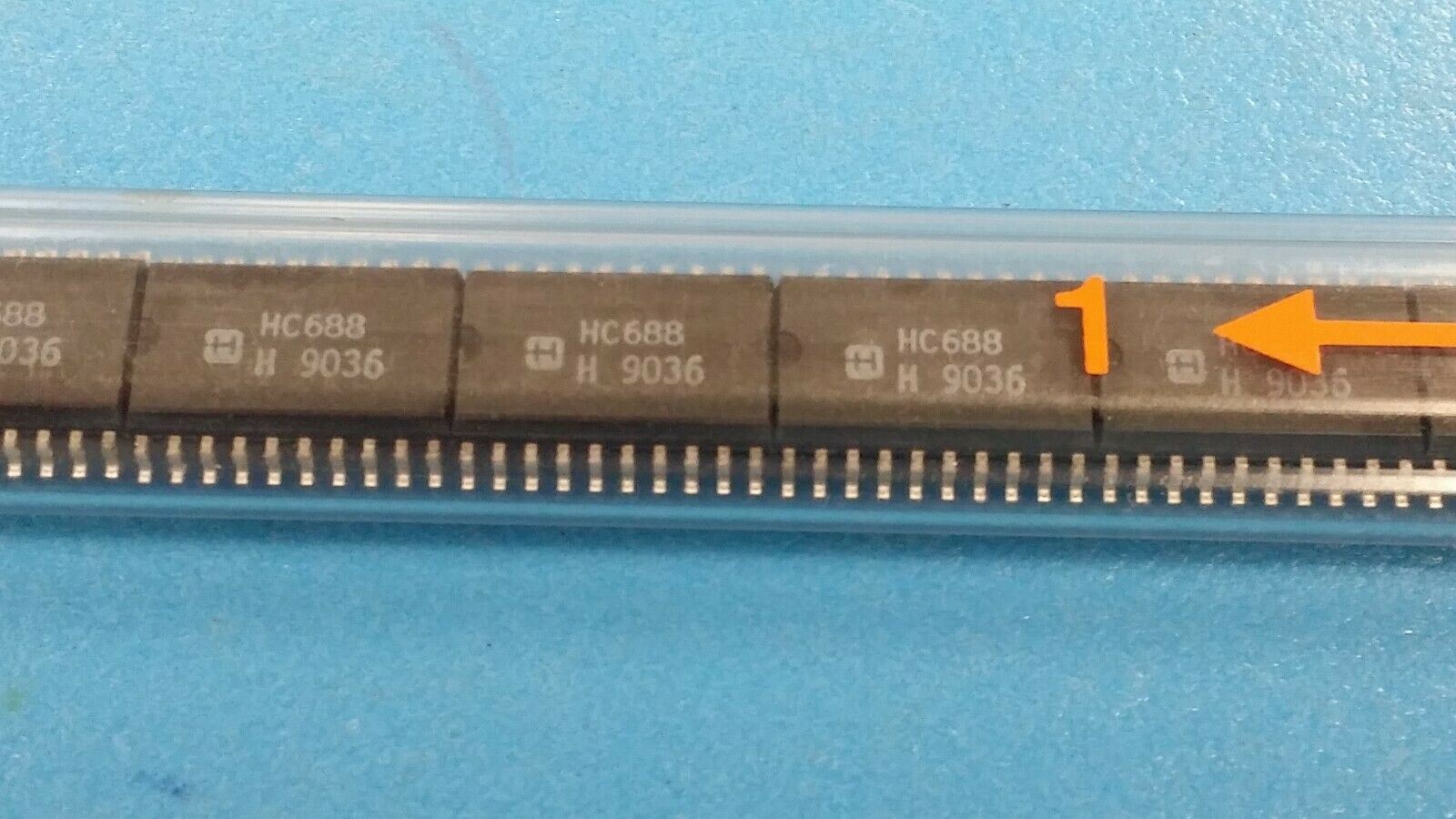

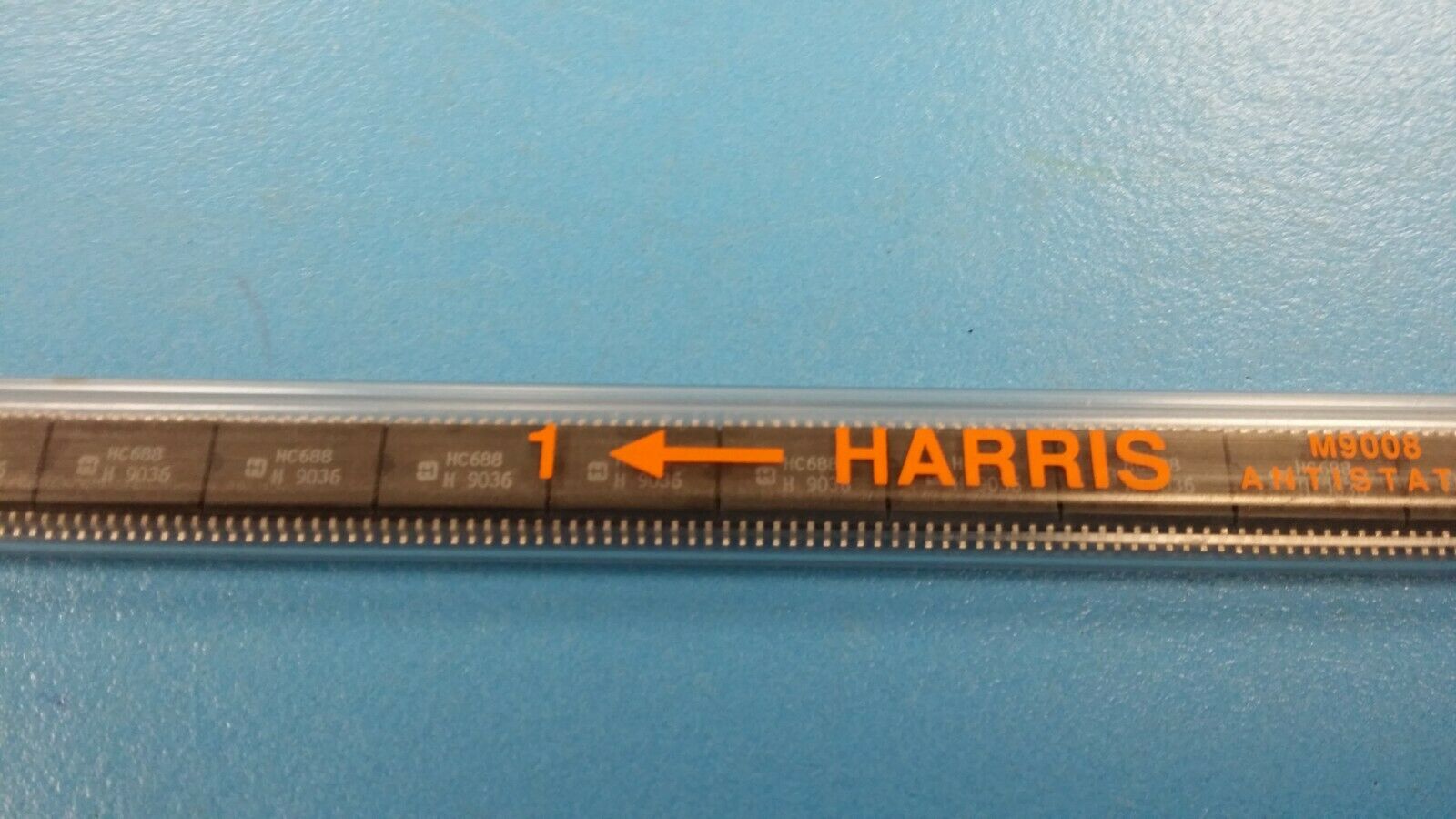

THIS LISTING IS FOR (5 PCS) OF CD74HC688M BY HARRIS

Identity Comparator 8-Bit, Inverted Output, CMOS, SOIC20

Part #: CD74HC688M

Part Category: Logic ICs

Manufacturer: Harris Corporation

Description: Magnitude Comparator, HC/UH Series, 8-Bit, Inverted Output, CMOS, PDSO20

Status Transferred

Logic IC Type MAGNITUDE COMPARATOR

Sub Category Arithmetic Circuits

Family HC/UH

JESD-30 Code R-PDSO-G20

JESD-609 Code e0

Number of Bits 8

Number of Functions 1

Number of Terminals 20

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Output Polarity INVERTED

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP20,.4

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Propagation Delay (tpd) 255.0 ns

Qualification Status Not Qualified

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 2.0 V

Supply Voltage-Max (Vsup) 6.0 V

Surface Mount YES

Technology CMOS

Temperature Grade MILITARY

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Additional Feature CASCADABLE
