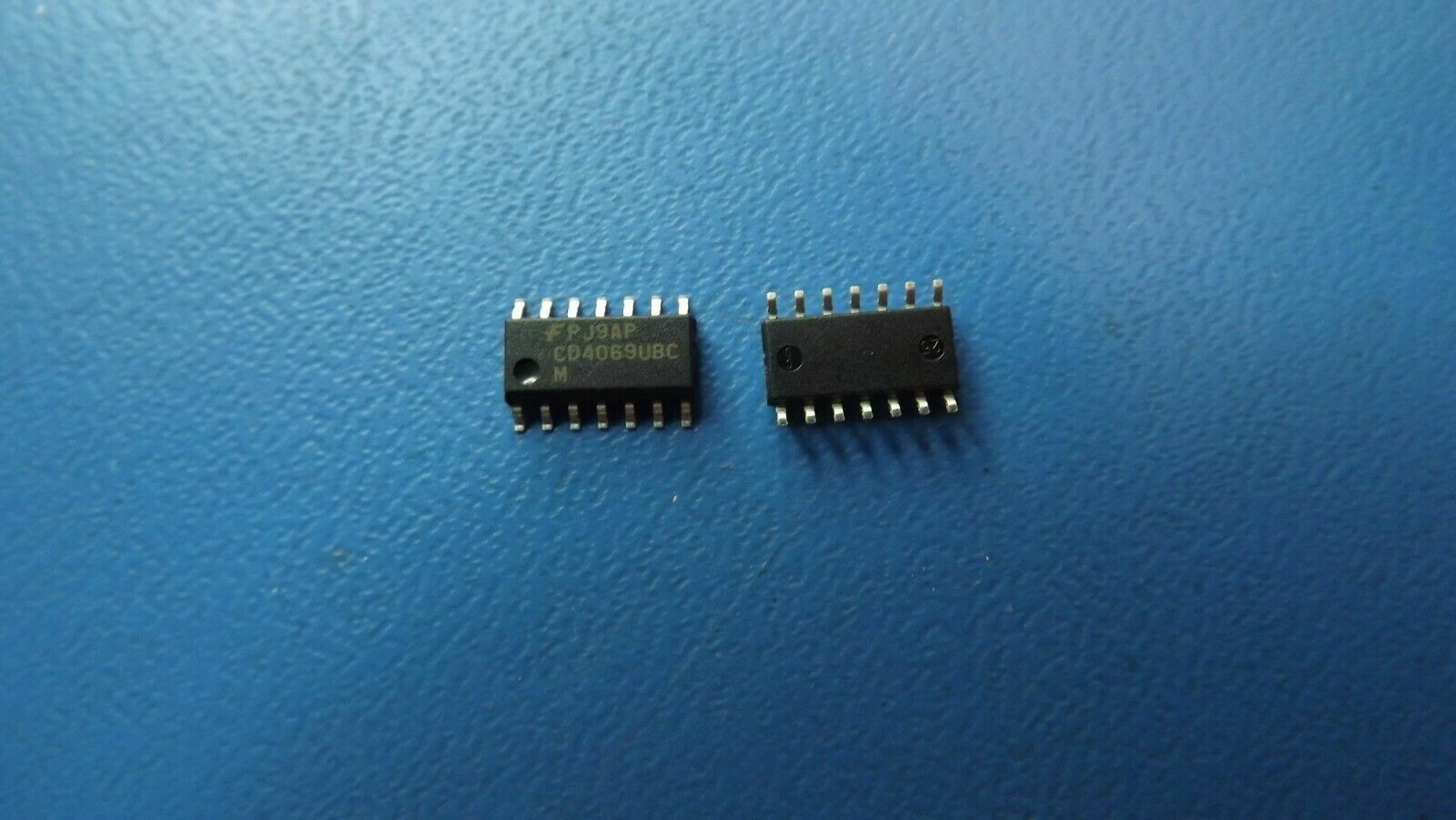

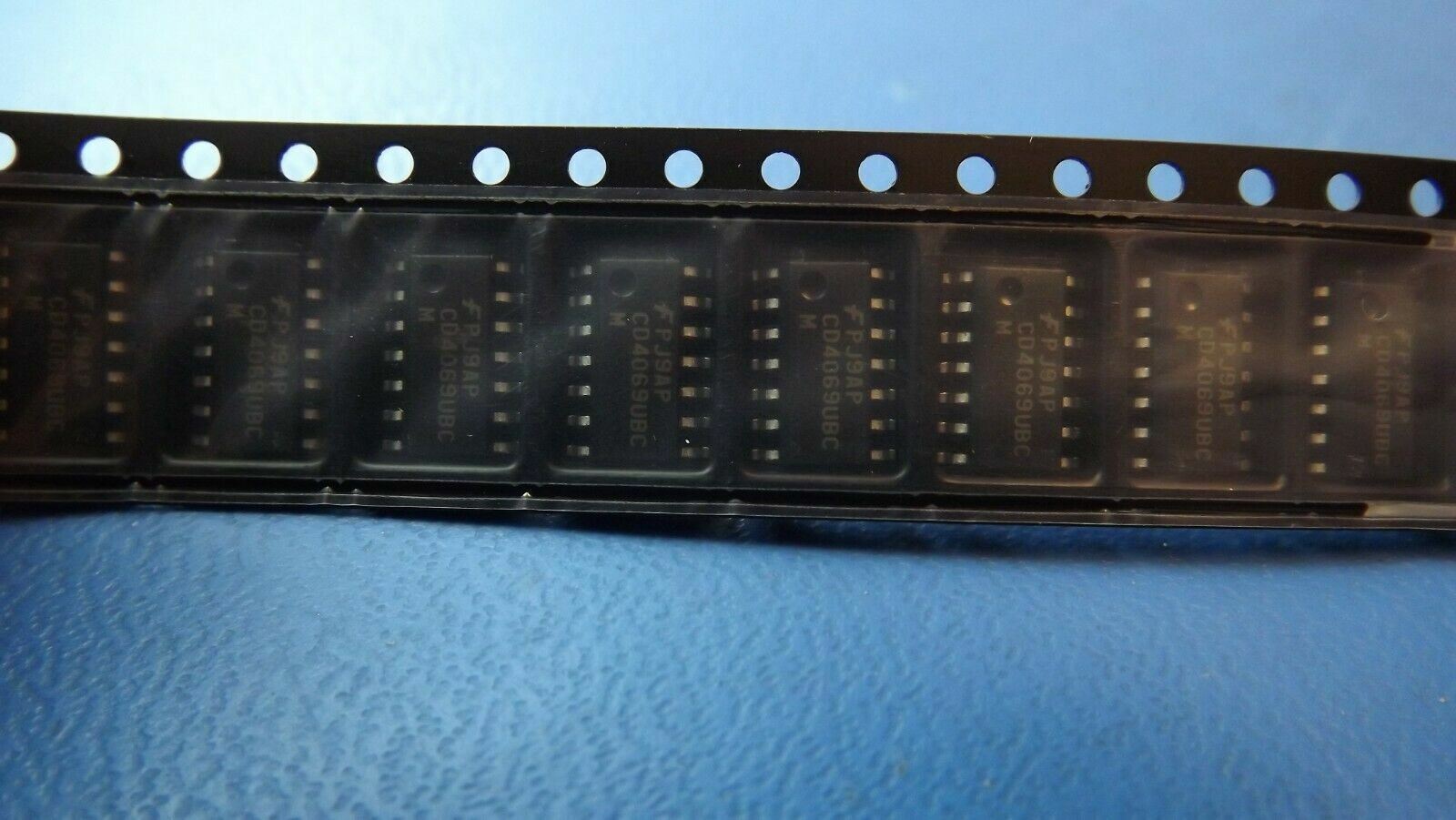

(5 PCS) CD4069UBCMX FSC IC INVERTER 6CH 6-INP 14SOIC
Tax included.
THIS LISTING IS FOR (5 PCS) OF CD4069UBCMX BY FSC
IC INVERTER 6CH 6-INP 14SOIC
SPECIFICATIONS
| Mfr Package Description | PLASTIC, SO-14 |
| Status | Transferred |
| Logic IC Type | INVERTER |
| Family | 4000/14000/40000 |
| JESD-30 Code | R-PDSO-G14 |
| Load Capacitance (CL) | 50.0 pF |
| Number of Functions | 6 |
| Number of Inputs | 1.0 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Propagation Delay (tpd) | 90.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 3.0 V |
| Supply Voltage-Max (Vsup) | 15.0 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Length | 8.65 mm |
| Width | 3.9 mm |
