(5 PCS) CAT24WC16J CATALYST EEPROM, 2KX8, Serial, CMOS, SOIC8
Tax included.

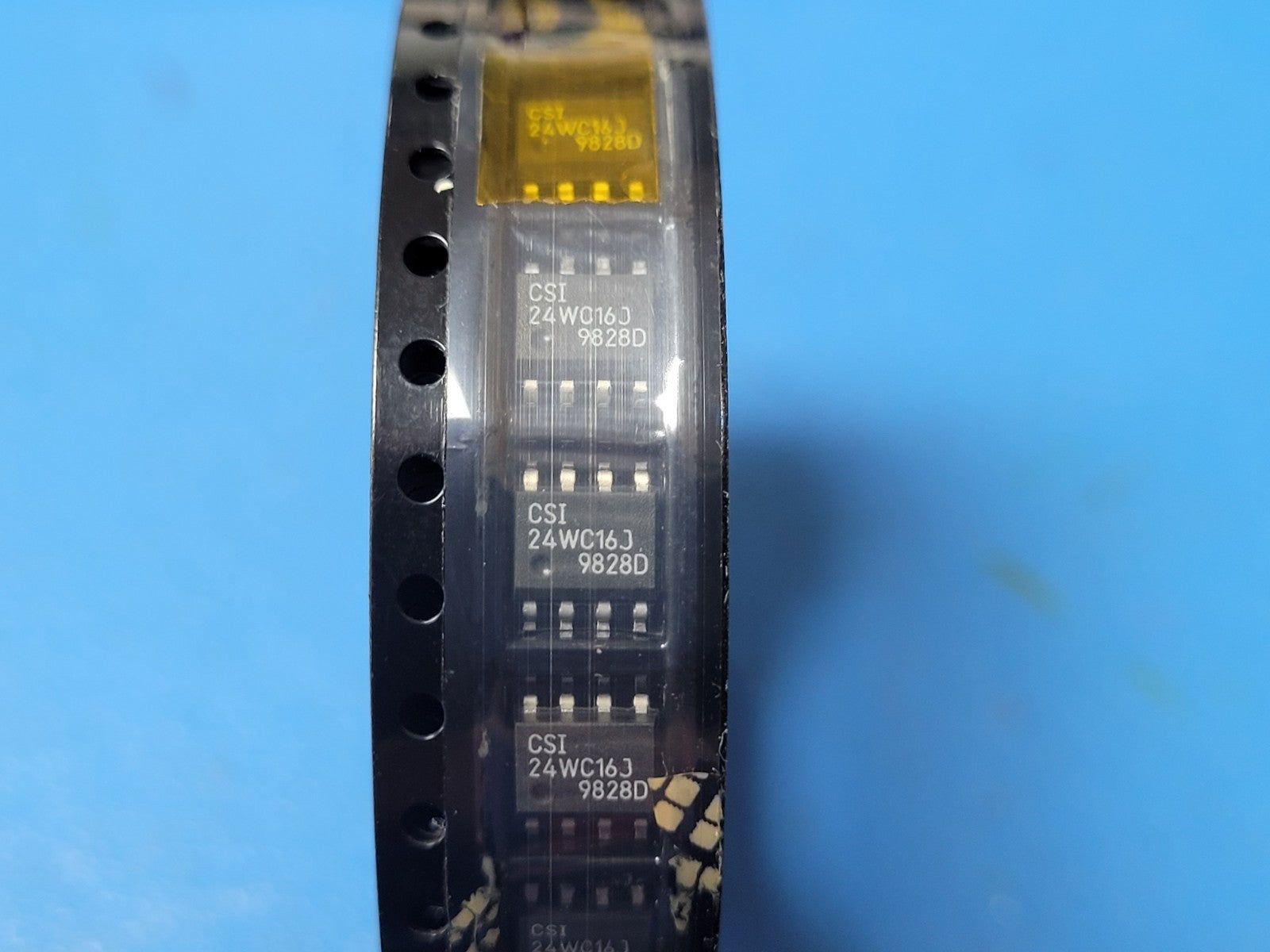

THIS IS FOR (5 PCS) OF CAT24WC16J BY CATALYST
EEPROM, 2KX8, Serial, CMOS, SOIC8
Status Discontinued
Sub Category EEPROMs
Data Retention Time-Min 100
Endurance 1000000.0 Write/Erase Cycles
I2C Control Byte 1010MMMR
JESD-30 Code R-PDSO-G8
Memory Density 16384.0 bit
Memory IC Type EEPROM
Memory Width 8
Number of Terminals 8
Number of Words 2048.0 words
Number of Words Code 2K
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 2KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Qualification Status Not Qualified
Serial Bus Type I2C
Standby Current-Max 1.0E-6 Amp
Supply Current-Max 0.003 Amp
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Write Protection HARDWARE
