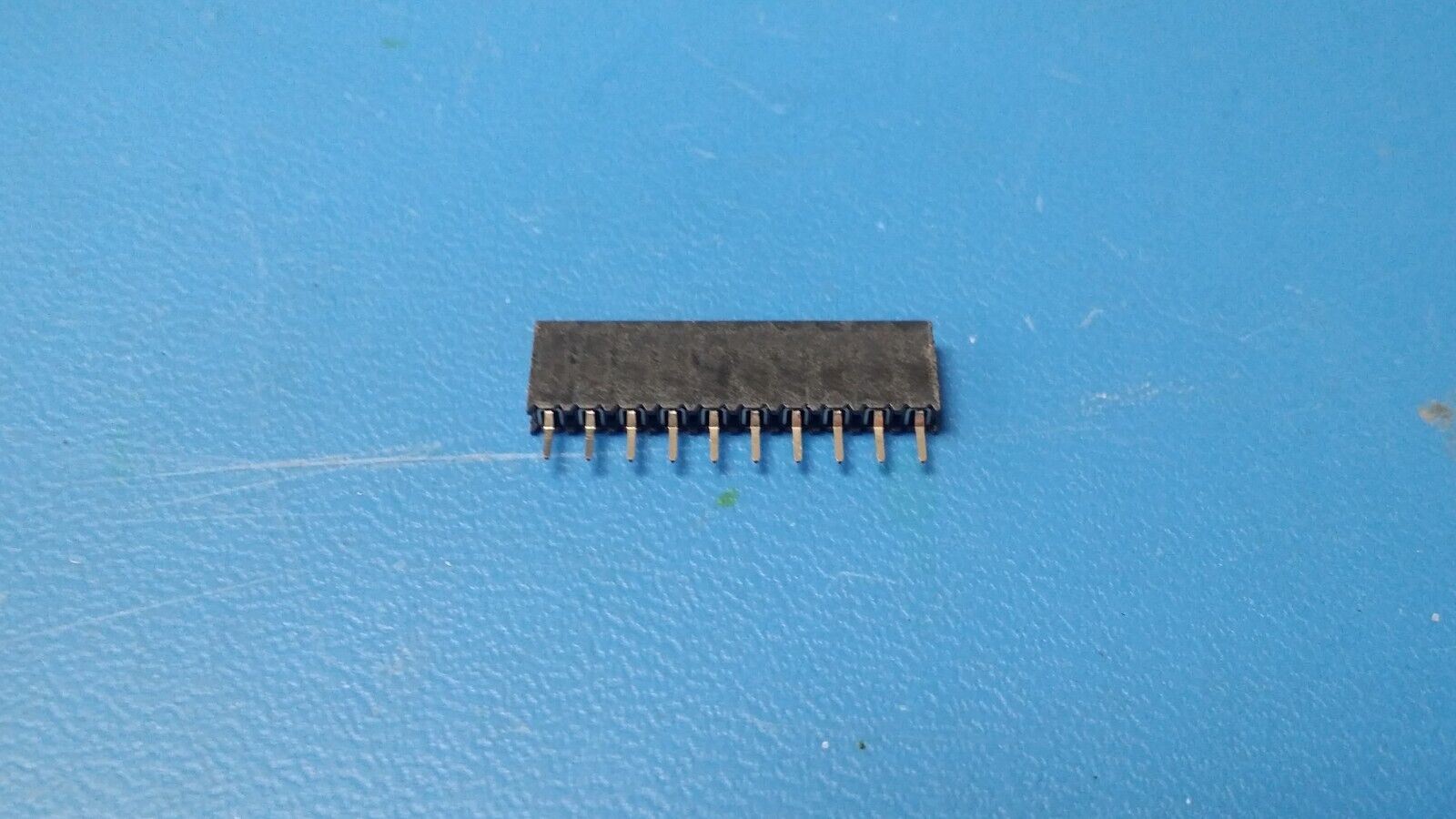

(5 PCS) BCS-110-L-S-TE SAMTEC Conn Socket Strip SKT 10 POS 2.54mm Solder ST
Tax included.
THIS IS FOR (5 PCS) OF BCS-110-L-S-TE BY SAMTEC
Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole
Manufacturer: Samtec
Product Category: Board to Board & Mezzanine Connectors
Product: Sockets
Number of Positions: 10 Position
Pitch: 2.54 mm
Number of Rows: 1 Row
Termination Style: Solder Pin
Mounting Angle: Vertical
Current Rating: 4.6 A
Voltage Rating: 475 VAC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Series: BCS
Brand: Samtec
Flammability Rating: UL 94 V-0
Mounting Style: Straight Pin
Product Type: Board to Board & Mezzanine Connectors
21
Subcategory: Board to Board & Mezzanine Connectors
Tradename: Tiger Claw
Unit Weight: 0.015820 oz
