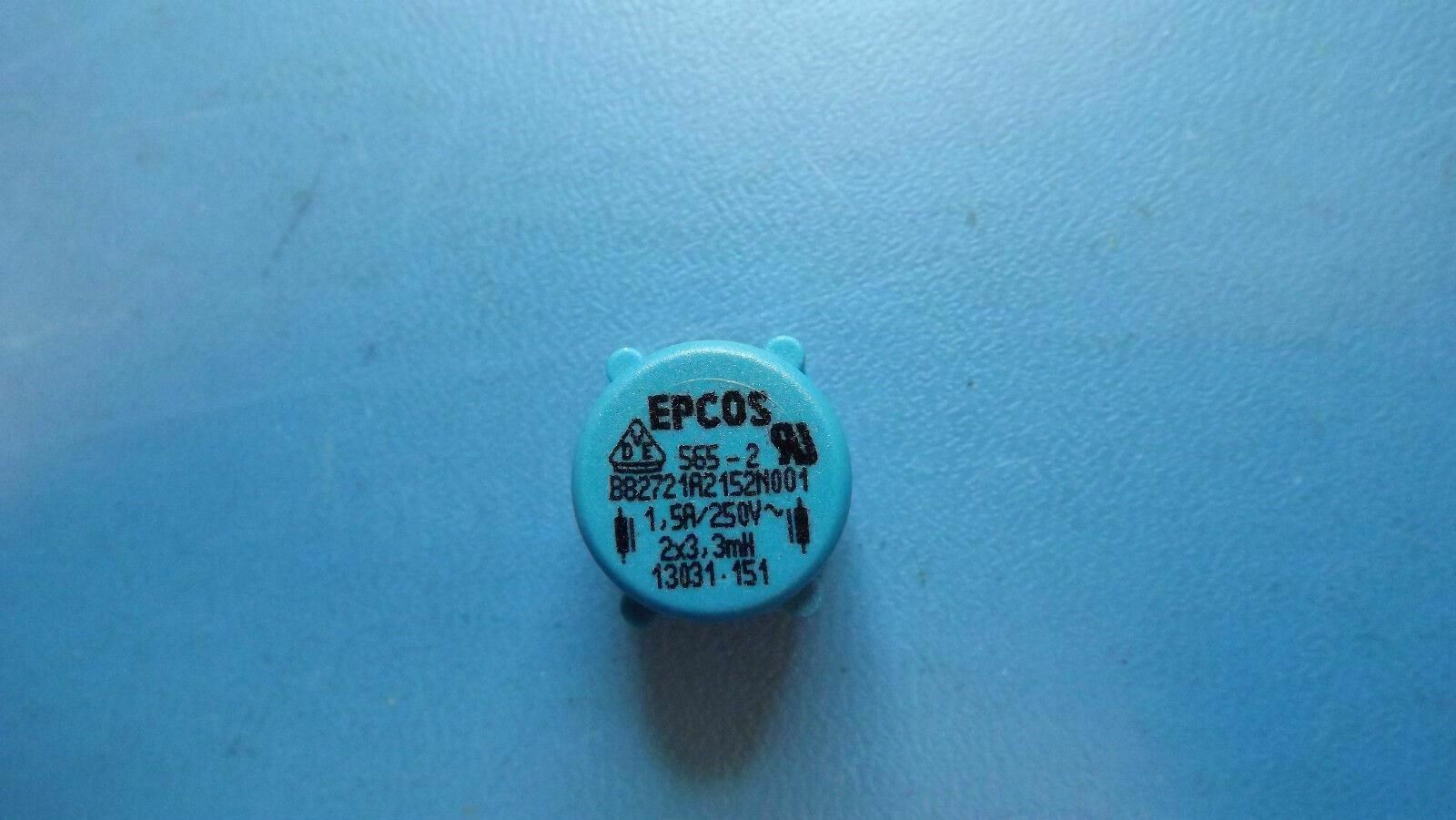

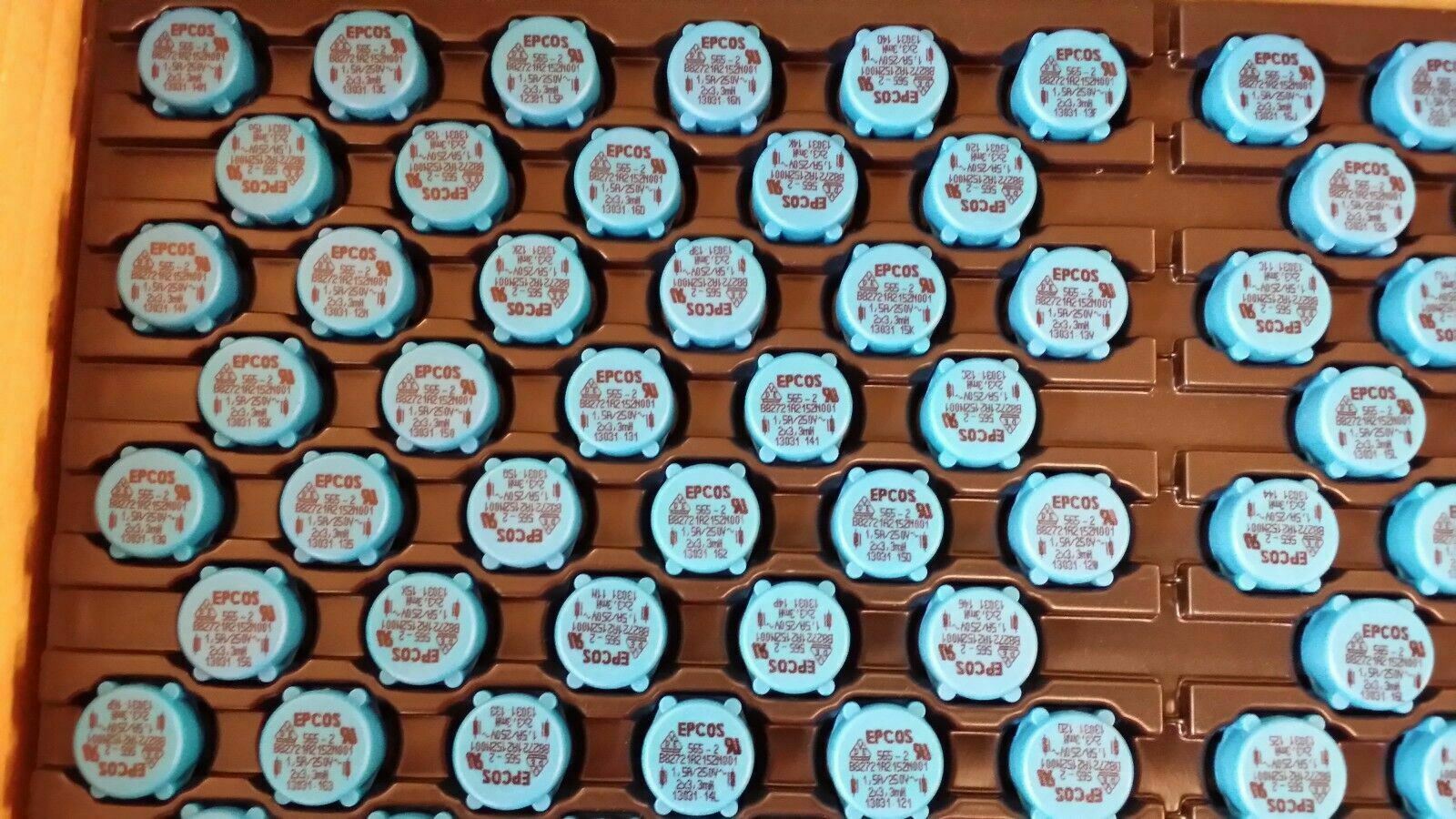

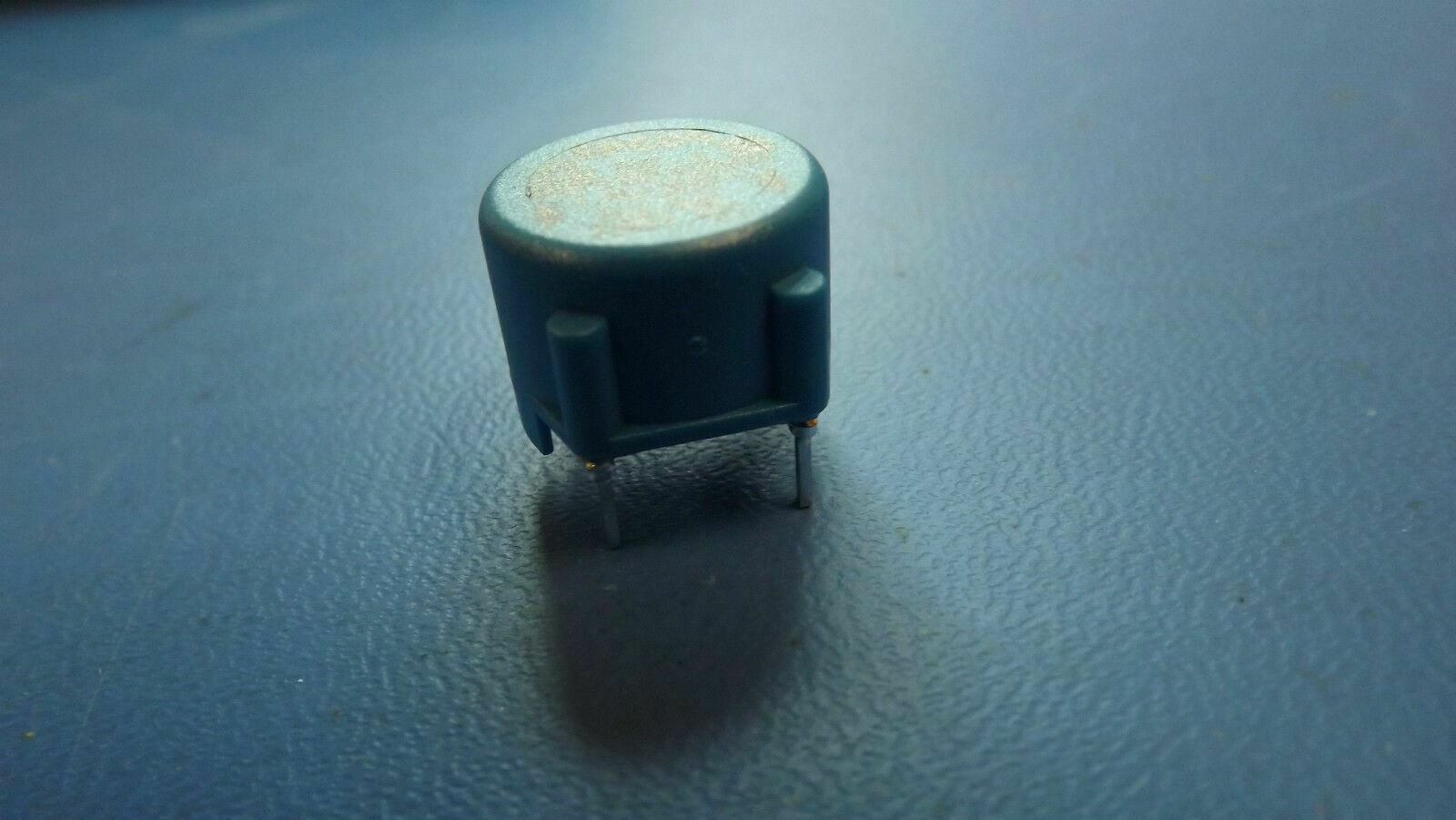

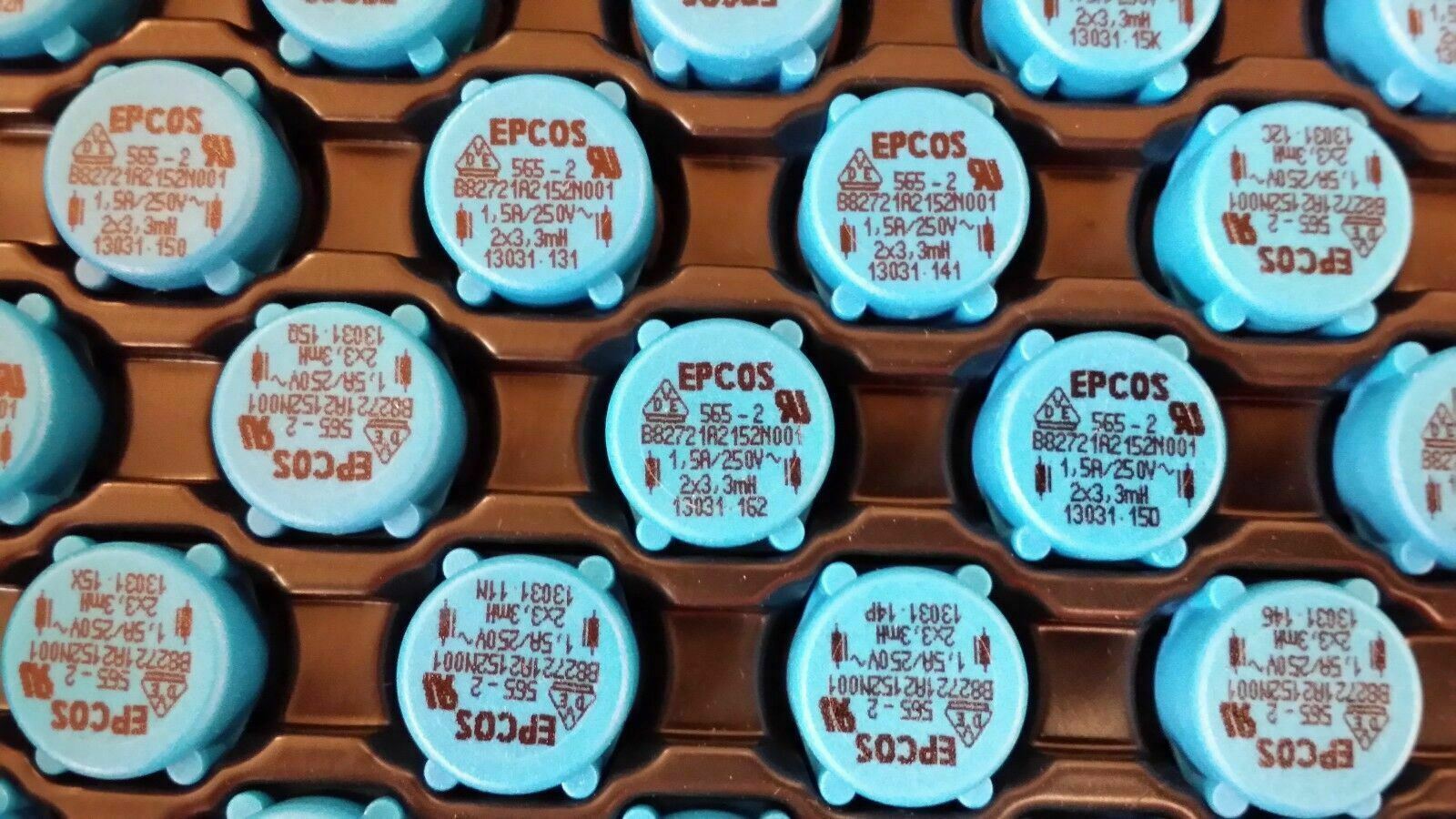

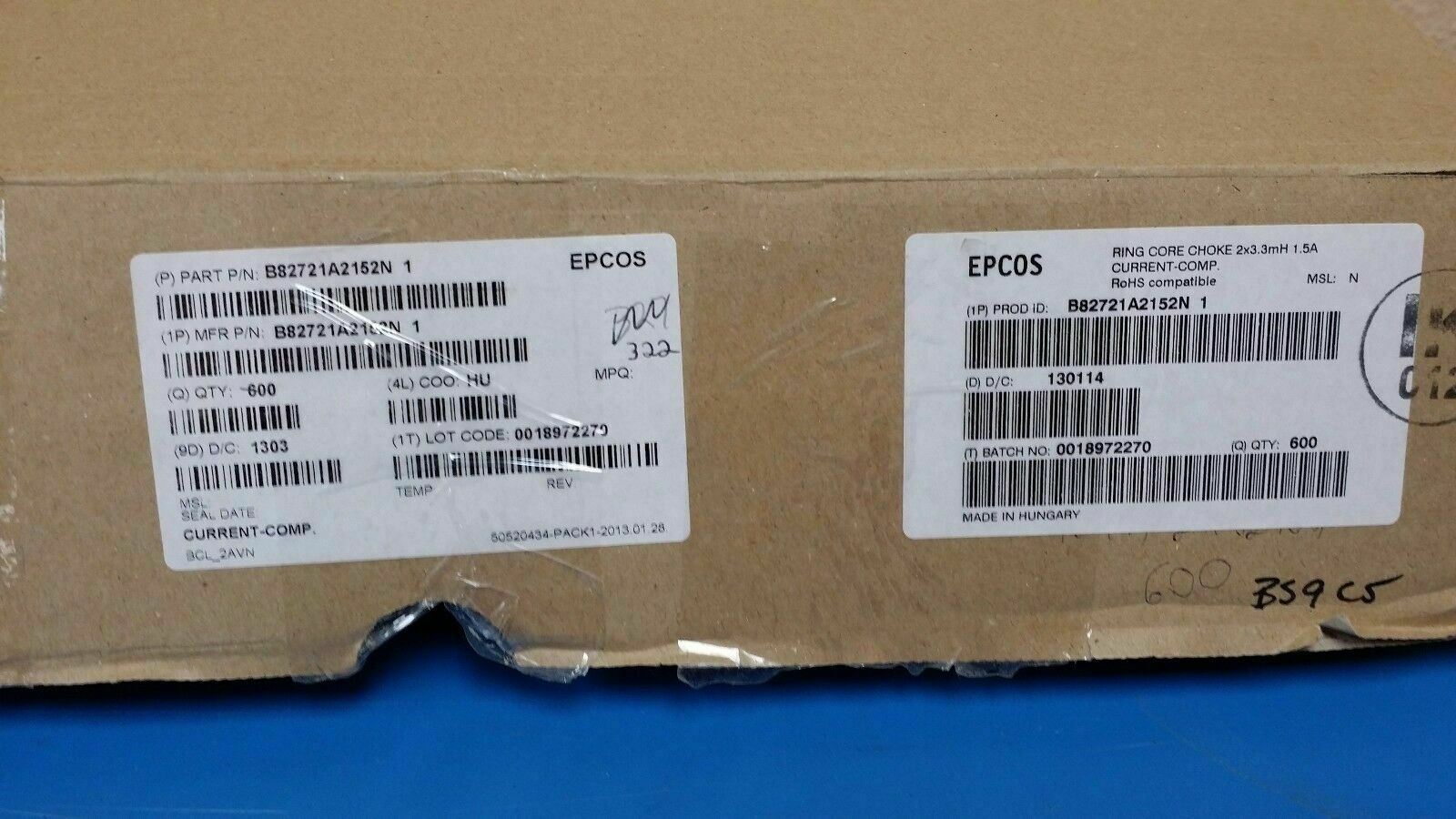

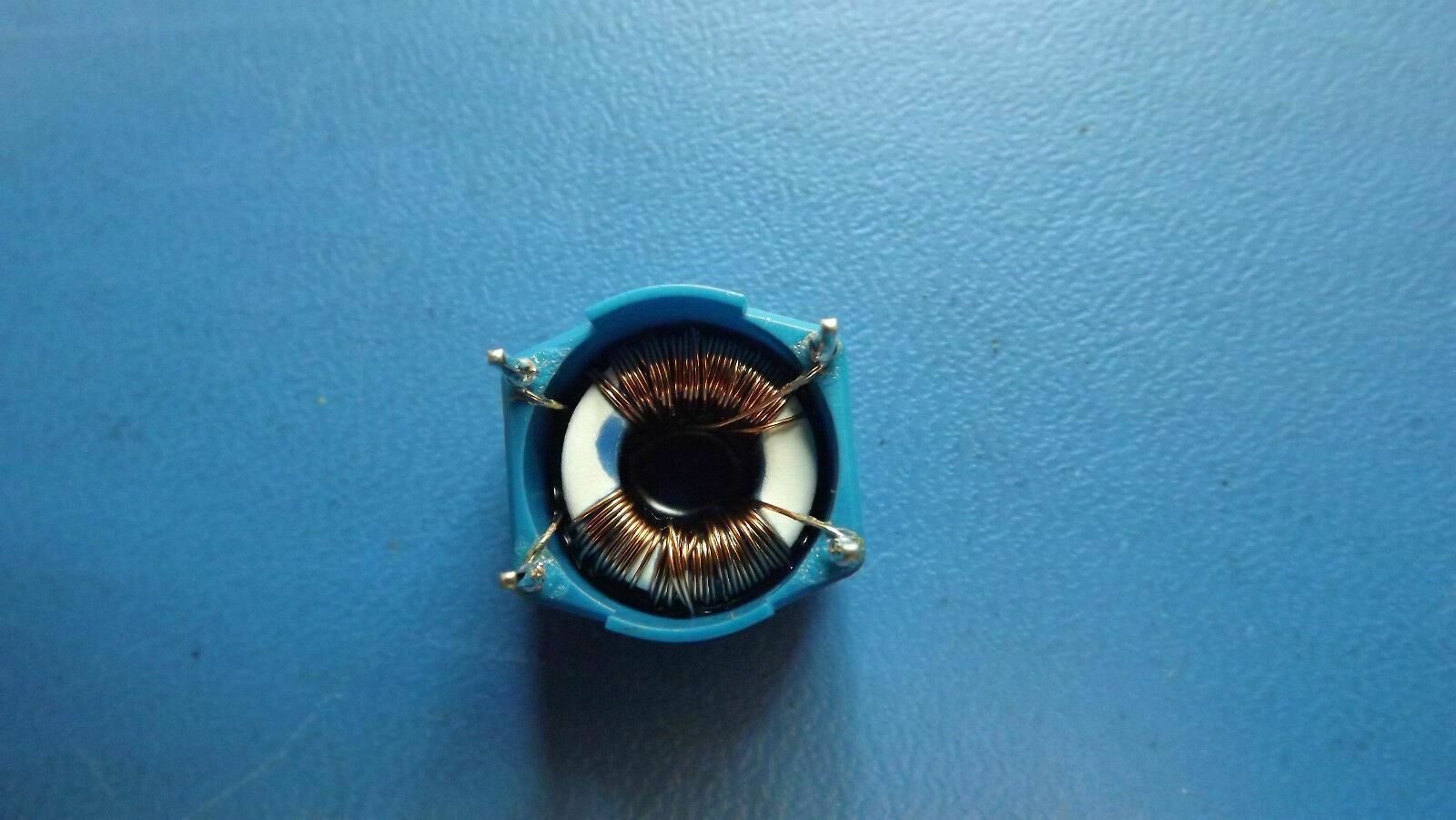

(5 PCS) B82721A2152N1 EPCOS COIL CHOKE 3.3MH 1.5A HORZ
Tax included.

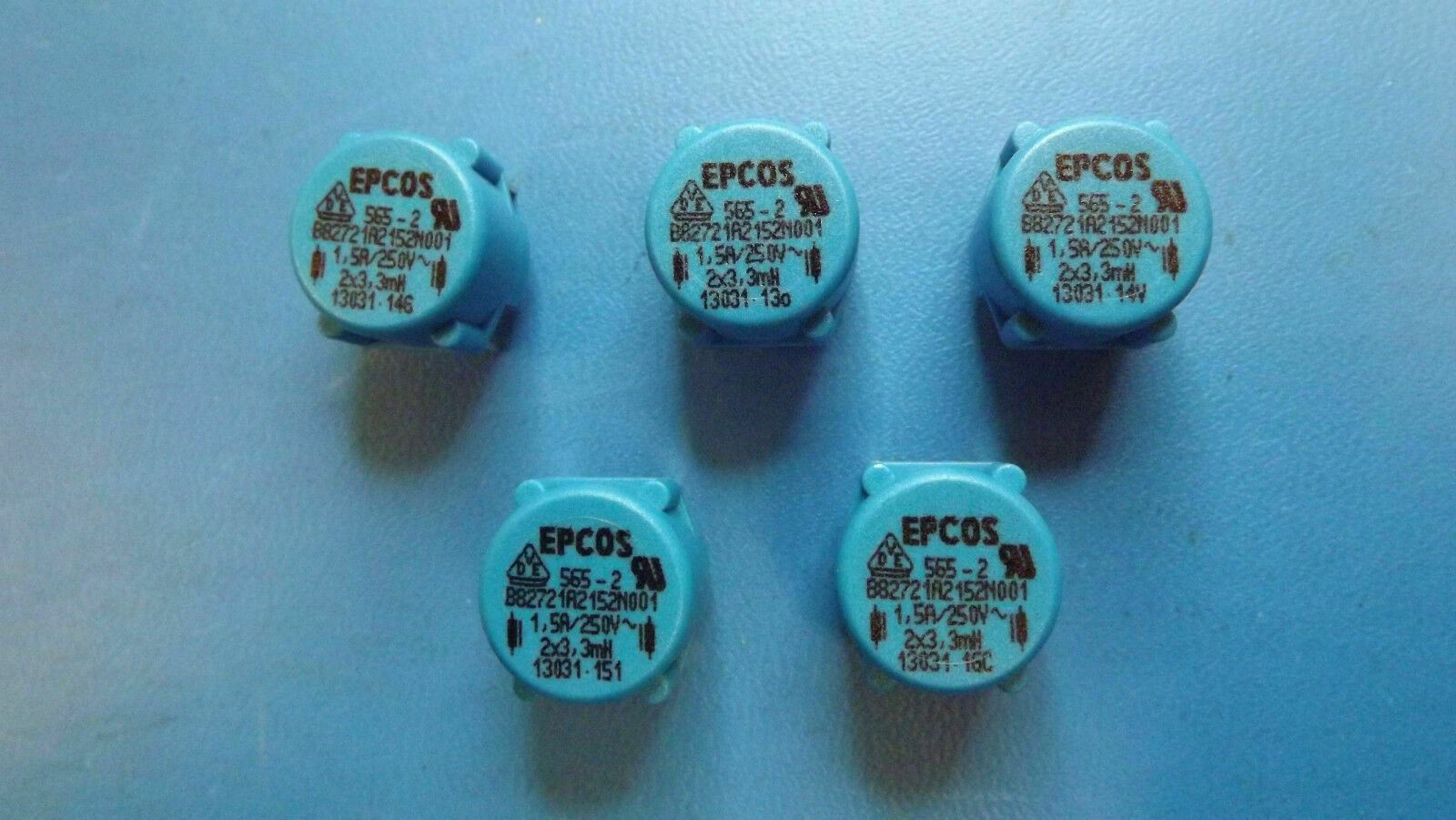

THIS LISTING IS FOR (5 PCS) OF B82721A2152N1 BY EPCOS
COIL CHOKE 3.3MH 1.5A HORZ
B82721A2152N1 Part Details & Parametric
| EU RoHS |
Compliant
|
| Type | Power Line |
| Number of Lines | 2 |
| Configuration | Dual |
| Mounting | Through Hole |
| Inductance | 3.3m |
| Leakage Inductance | 37u |
| Test Frequency (Hz) | 10k |
| Maximum DC Current (A) | 1.5 |
| Maximum DC Resistance (Ohm) | 180m(Typ) |
| Voltage Rating | 250VAC |
| Withstand Voltage | 1.5kVAC |
| Product Length (mm) | 17.9 |
| Product Depth (mm) | 17.3 |
| Product Height (mm) | 12.6 |
| Packaging | Box |
