(5 PCS) AT49LV8011-90TC ATMEL Flash, 512KX16, 90ns, TSOP-48
Tax included.

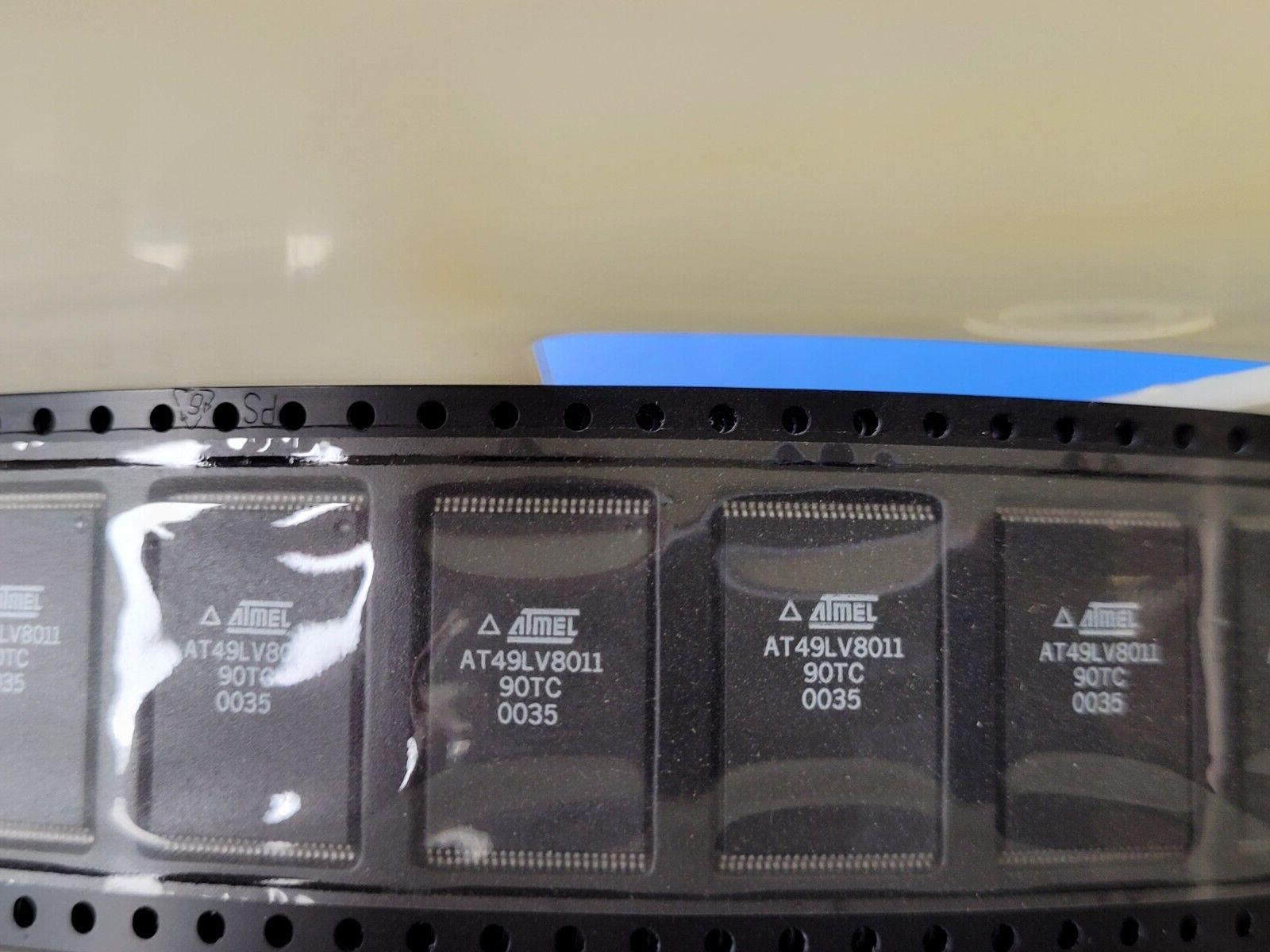

THIS IS FOR (5 PCS) OF AT49LV8011-90TC BY ATMEL
Flash, 512KX16, 90ns, TSOP-48
Part #: AT49LV8011-90TC
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: Flash, 512KX16, 90ns, PDSO48
Mfr Package Description PLASTIC, MO-142DD, TSOP-48
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 90.0 ns
Boot Block BOTTOM
Command User Interface YES
Data Polling YES
JESD-30 Code R-PDSO-G48
JESD-609 Code e0
Memory Density 8388608.0 bit
Memory IC Type FLASH
Memory Width 16
Alternate Memory Width 8.0
Number of Functions 1
Number of Sectors/Size 2,4,2,14
Number of Terminals 48
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.2 mm
Standby Current-Max 1.0E-5 Amp
Supply Current-Max 0.05 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit YES
Length 18.4 mm
Width 12.0 mm
