(5 PCS) AT49LV001N-12TC ATMEL 128KX8 FLASH 3V PROM, 120ns, PDSO32
Tax included.

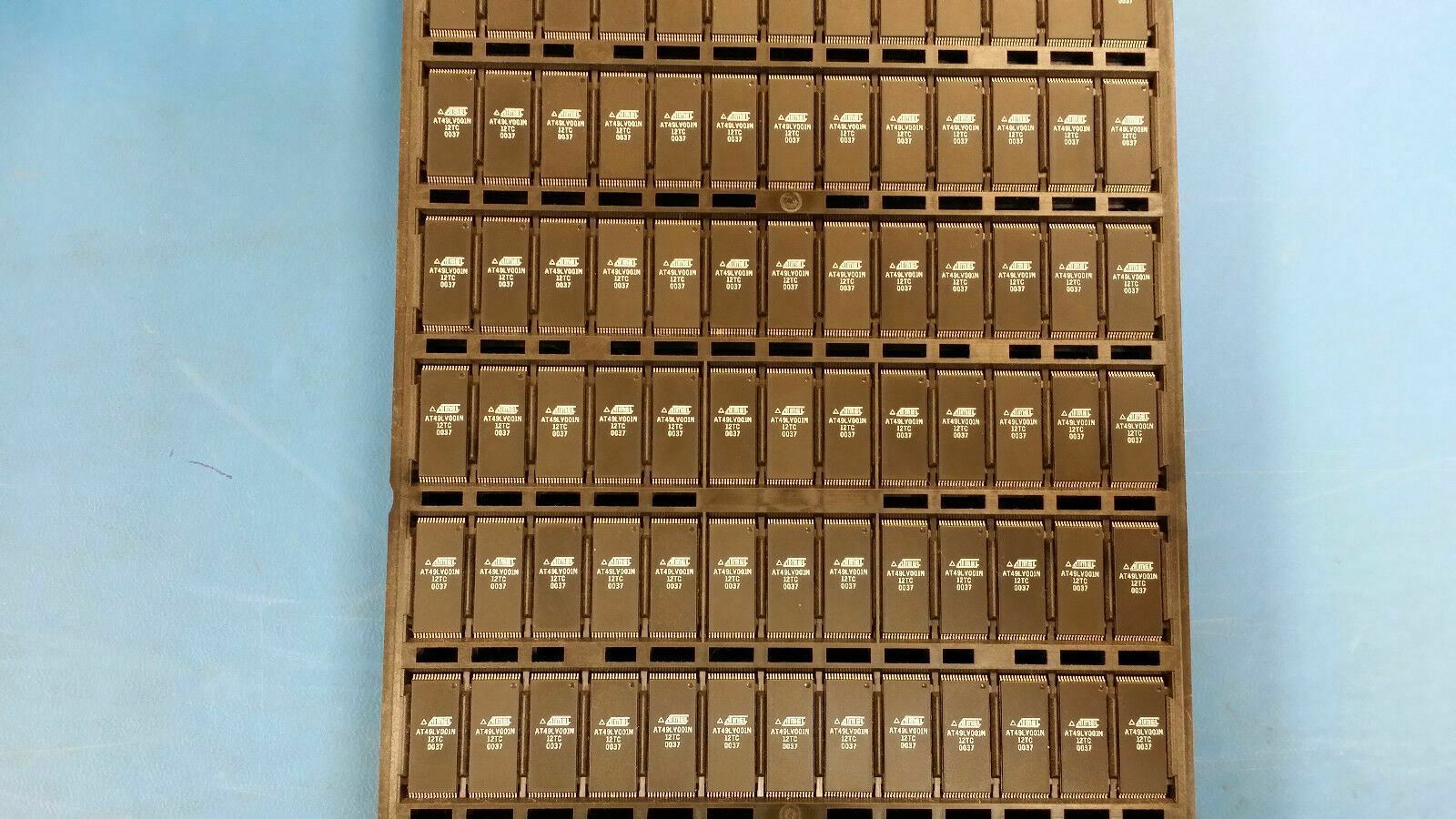

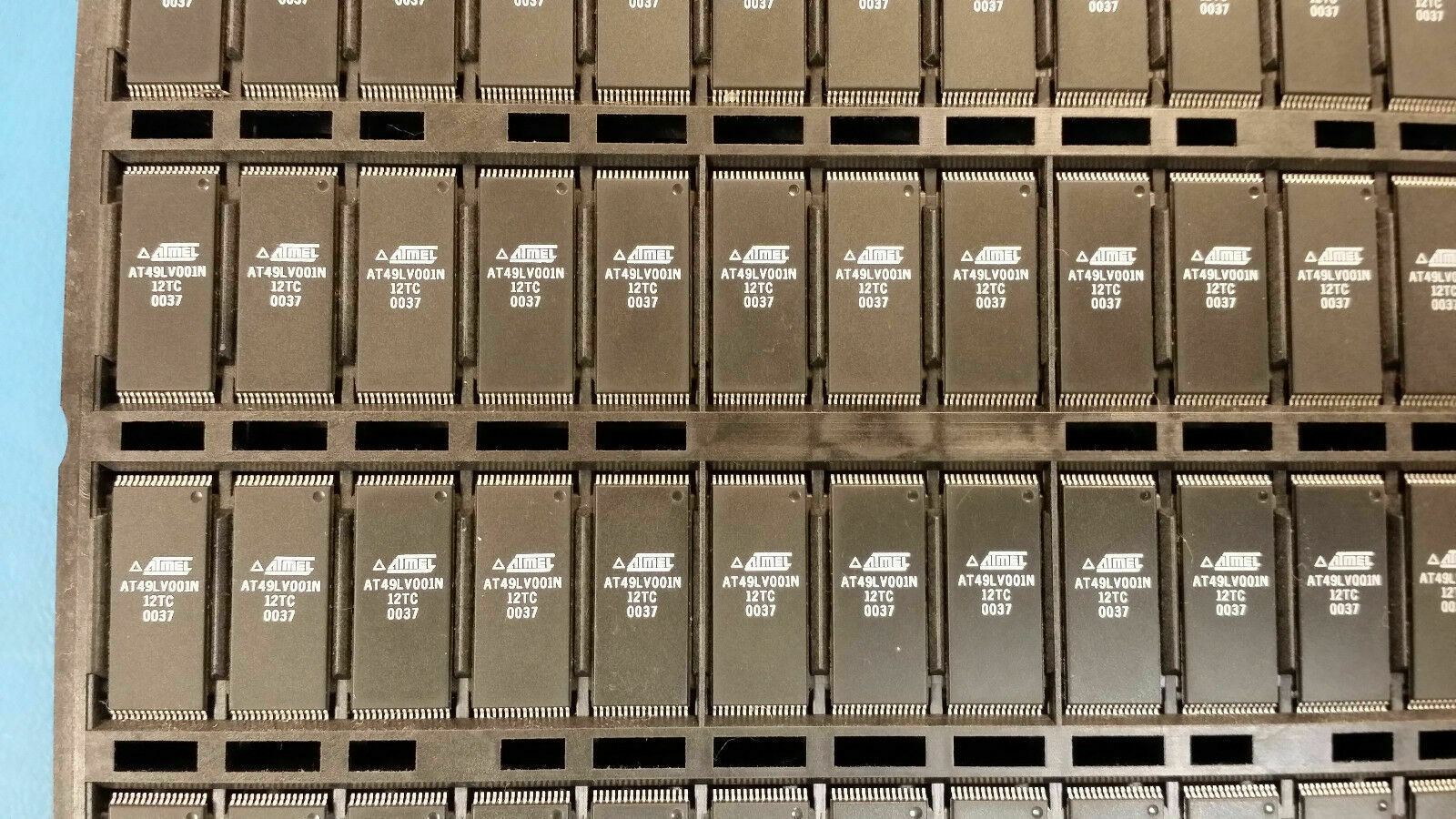

THIS LISTING IS FOR (5 PCS) OF AT49LV001N-12TC BY ATMEL
128KX8 FLASH 3V PROM, 120ns, PDSO32
Manufacturer: Atmel Corporation
Description: 128KX8 FLASH 3V PROM, 120ns, PDSO32
128KX8 FLASH 3V PROM, 120ns, PDSO32
Part #: AT49LV001N-12TC
Part Category: Memory ICsManufacturer: Atmel Corporation
Description: 128KX8 FLASH 3V PROM, 120ns, PDSO32
| Mfr Package Description | 8 X 20 MM, PLASTIC, MO-142BD, TSOP1-32 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Type | NOR TYPE |
| Sub Category | Flash Memories |
| Access Time-Max | 120 ns |
| Boot Block | BOTTOM |
| Command User Interface | YES |
| Data Polling | YES |
| JESD-30 Code | R-PDSO-G32 |
| JESD-609 Code | e0 |
| Memory Density | 1.05E6 bit |
| Memory IC Type | FLASH |
| Memory Width | 8 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Sectors/Size | 1,2,1,1 |
| Number of Terminals | 32 |
| Number of Words | 131072 words |
| Number of Words Code | 128K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Organization | 128KX8 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSOP1 |
| Package Equivalence Code | TSSOP32,.8,20 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 240 |
| Power Supplies (V) | 3.3 |
| Programming Voltage (V) | 3 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.2 mm |
| Sector Size (Words) | 16K,8K,32K,64K |
| Standby Current-Max | 5.00E-5 Amp |
| Supply Current-Max | 0.0500 Amp |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Supply Voltage-Min (Vsup) | 3 V |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5000 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Toggle Bit | YES |
| Length | 18.4 mm |
| Width | 8 mm |
|
|
|
