(5 PCS) AS7C31025-12JC ALLIANCE Standard SRAM, 128KX8, 12ns, CMOS, SOJ32
(5 PCS) AS7C31025-12JC ALLIANCE Standard SRAM, 128KX8, 12ns, CMOS, SOJ32

(5 PCS) AS7C31025-12JC ALLIANCE Standard SRAM, 128KX8, 12ns, CMOS, SOJ32

Tax included.
Only 61 left!

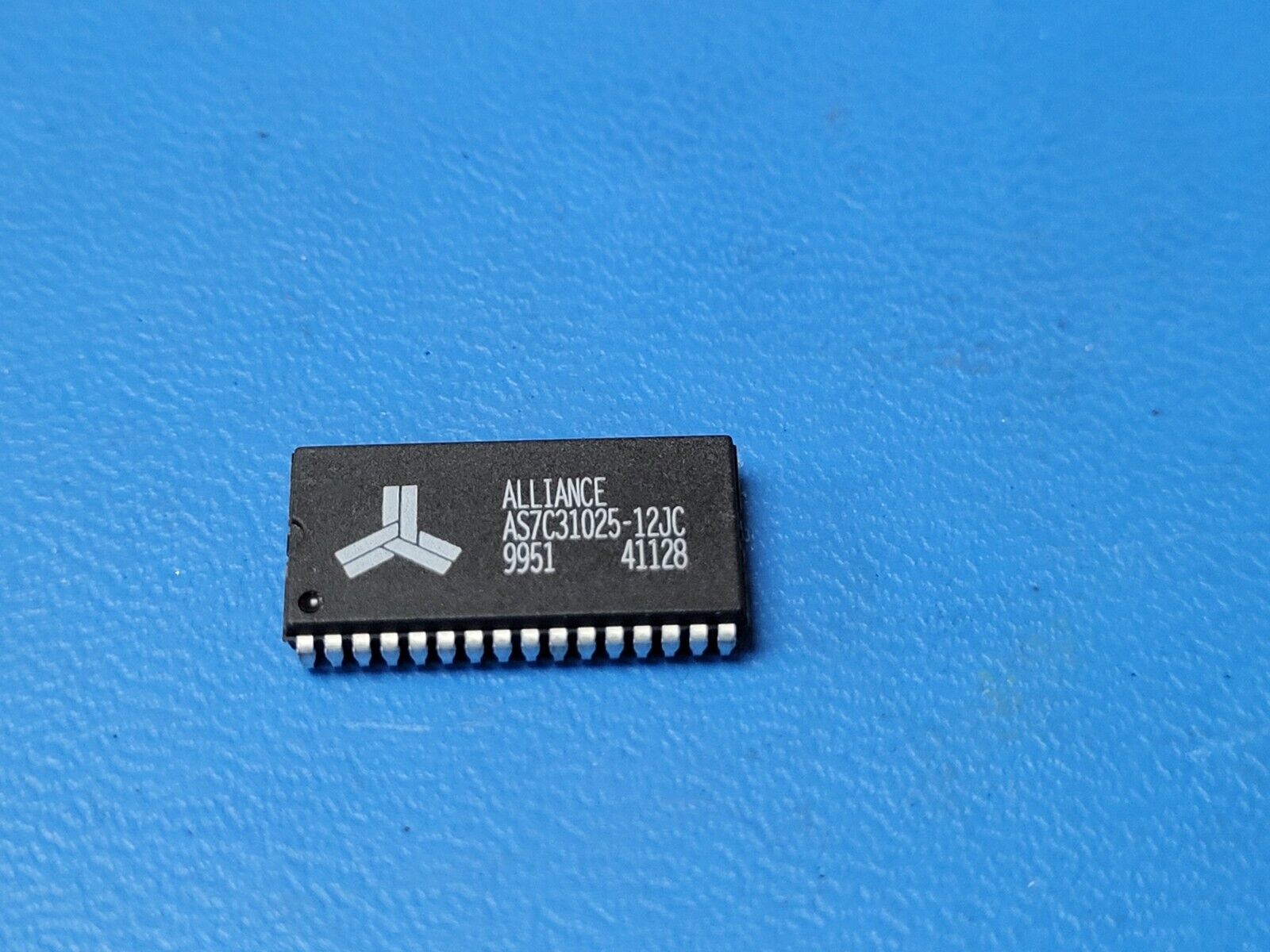

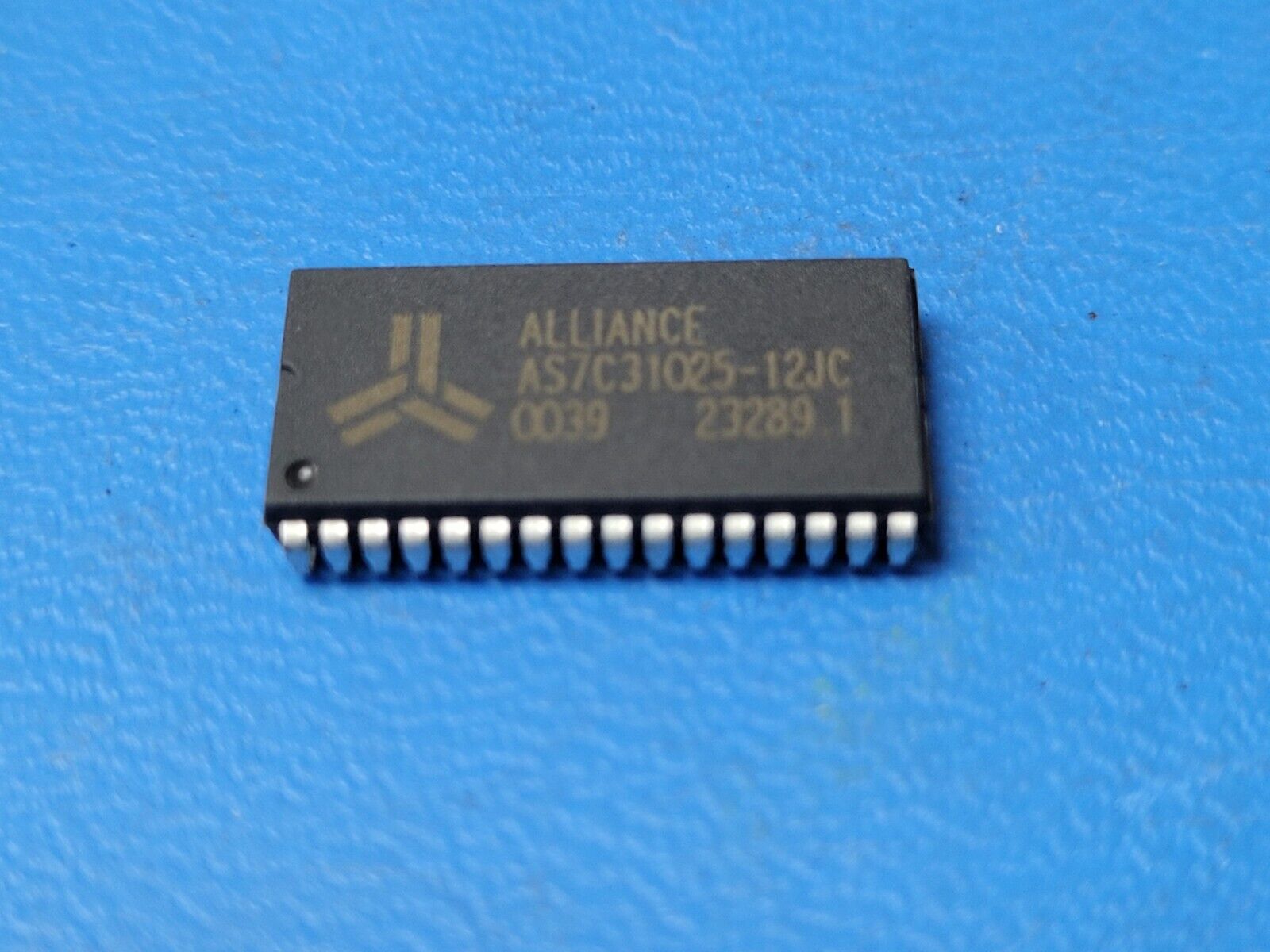

THIS IS FOR (5 PCS) OF AS7C31025-12JC BY ALLIANCE
Standard SRAM, 128KX8, 12ns, CMOS, SOJ32

Part #: AS7C31025-12JC
Part Category: Memory ICs
Manufacturer: Alliance Memory, Inc.
Description: Standard SRAM, 128KX8, 12ns, CMOS, PDSO32

Mfr Package Description 0.400 INCH, SOJ-32
Status Transferred
Sub Category SRAMs
Access Time-Max 12.0  ns
I/O Type COMMON
JESD-30 Code R-PDSO-J32
JESD-609 Code e0
Memory Density 1048576.0  bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 32
Number of Words 131072.0  words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 128KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ32,.44
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 3.683  mm
Standby Current-Max 5.0E-4  Amp
Standby Voltage-Min 2.0  V
Supply Current-Max 0.1  Amp
Supply Voltage-Nom (Vsup) 3.3  V
Supply Voltage-Min (Vsup) 3.0  V
Supply Voltage-Max (Vsup) 3.6  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position DUAL
Length 20.955  mm
Width 10.16  mm
