(5 PCS) AM29F002BB-70JC AMD Flash, 256KX8, 70ns, PLCC32 ROHS
Tax included.

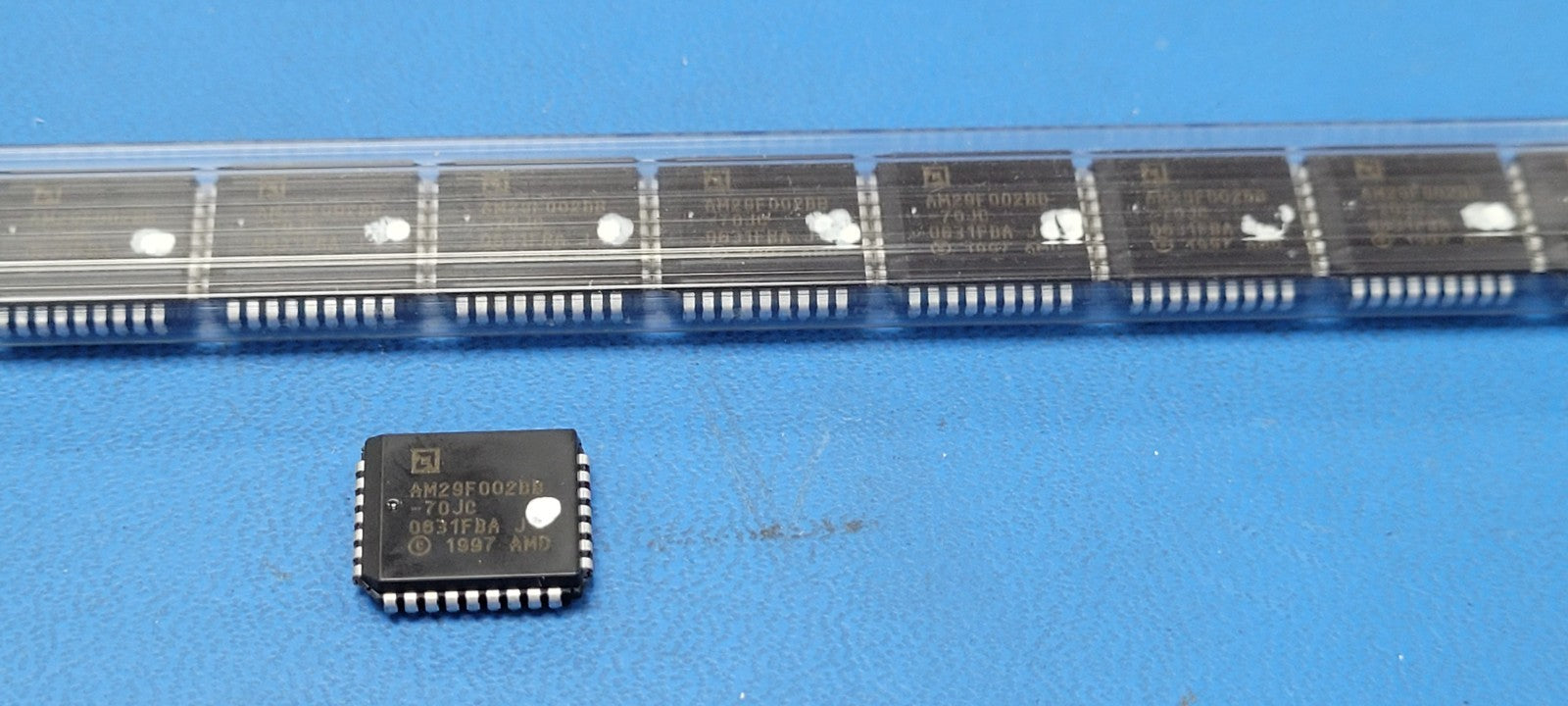

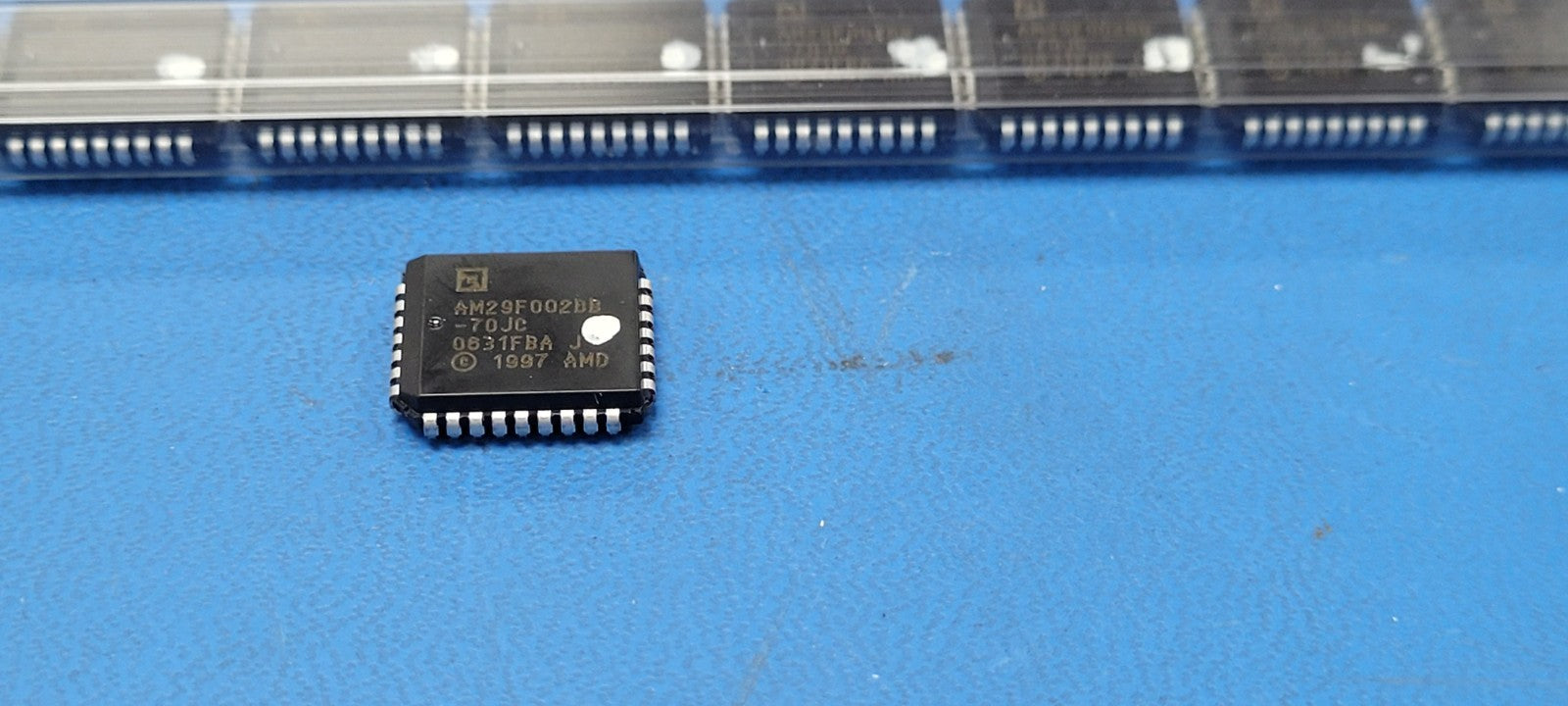

THIS IS FOR (5 PCS) OF AM29F002BB-70JC BY AMD
Flash, 256KX8, 70ns, PLCC32 ROHS
Status Discontinued
Access Time-Max (ns) 70.0000000000000000
Additional Feature BOTTOM BOOT BLOCK
Boot Block BOTTOM
Command User Interface YES
Data Polling YES
Endurance (Write/Erase Cycles) 1000000.000000000000000
JESD-30 Code R-PQCC-J32
J-STD-609 Code e0
Length (mm) 13.9700
Memory Density (bits) 2097152.0000000000000000
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 1,2,1,3
Number of Terminals 32
Number of Words (words) 262144.0000000000000000
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 256KX8
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Programming Voltage (V) 5
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.5560
Sector Size (words) 16K,8K,32K,64K
Standby Current-Max (A) 0.000005000000000
Supply Current-Max (mA) 40.000000000000000
Supply Voltage-Max (V) 5.25000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Toggle Bit YES
Type NOR TYPE
Width (mm) 11.4300
