(5 PCS) AH337-PL-B Digital Switch Unipolar Switch Open Drain Hall Effect 3-SIP
Tax included.

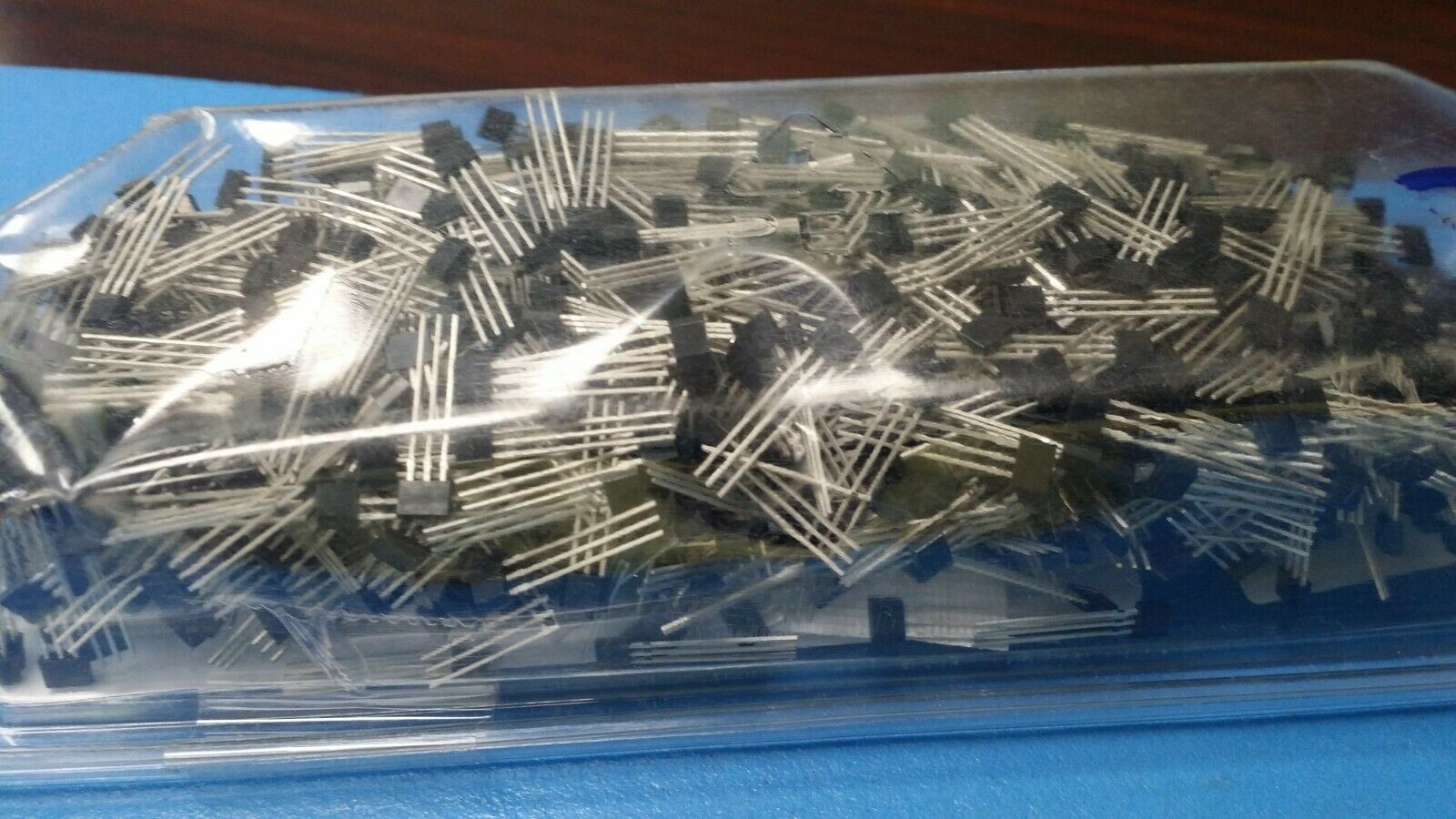

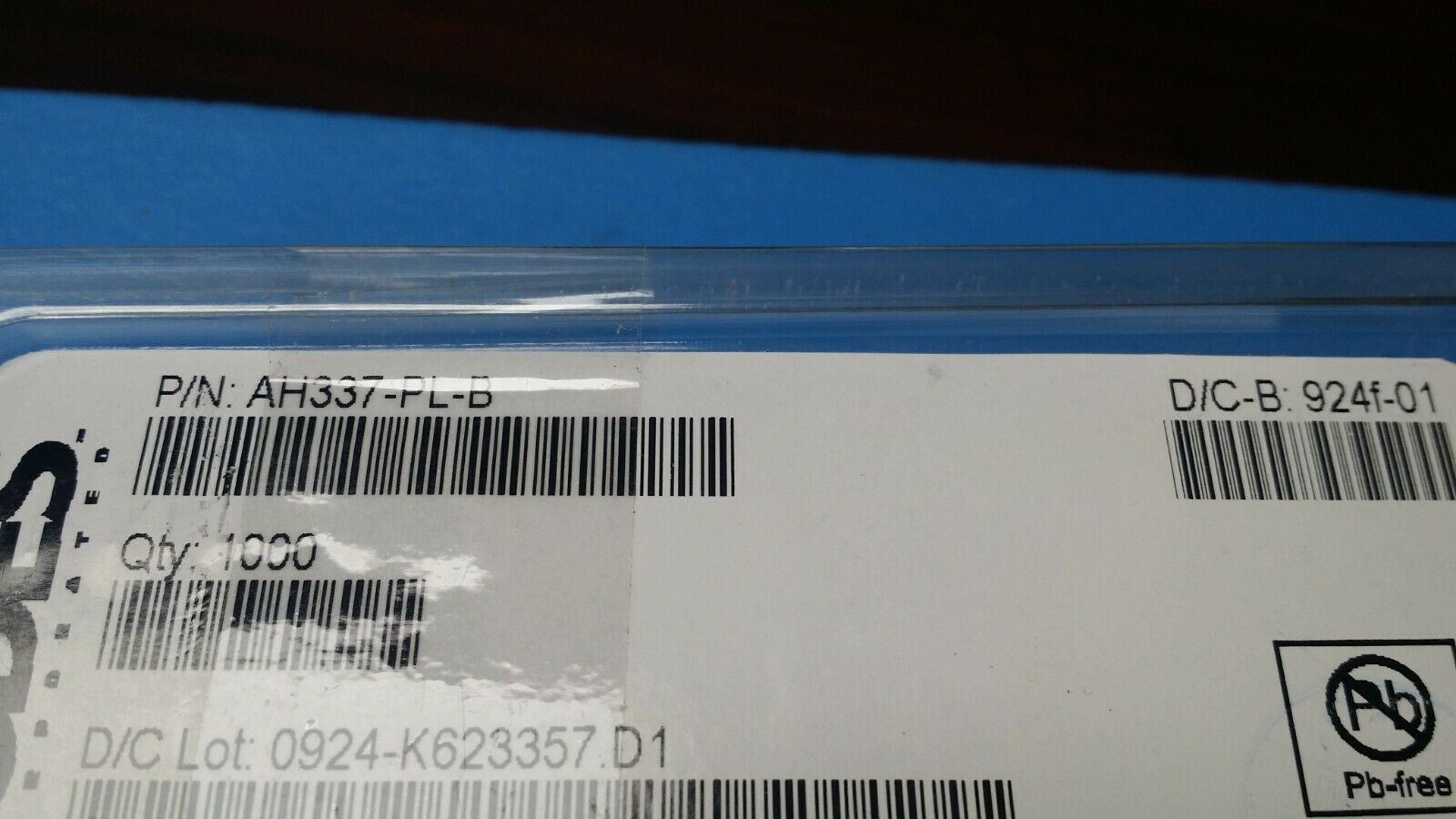

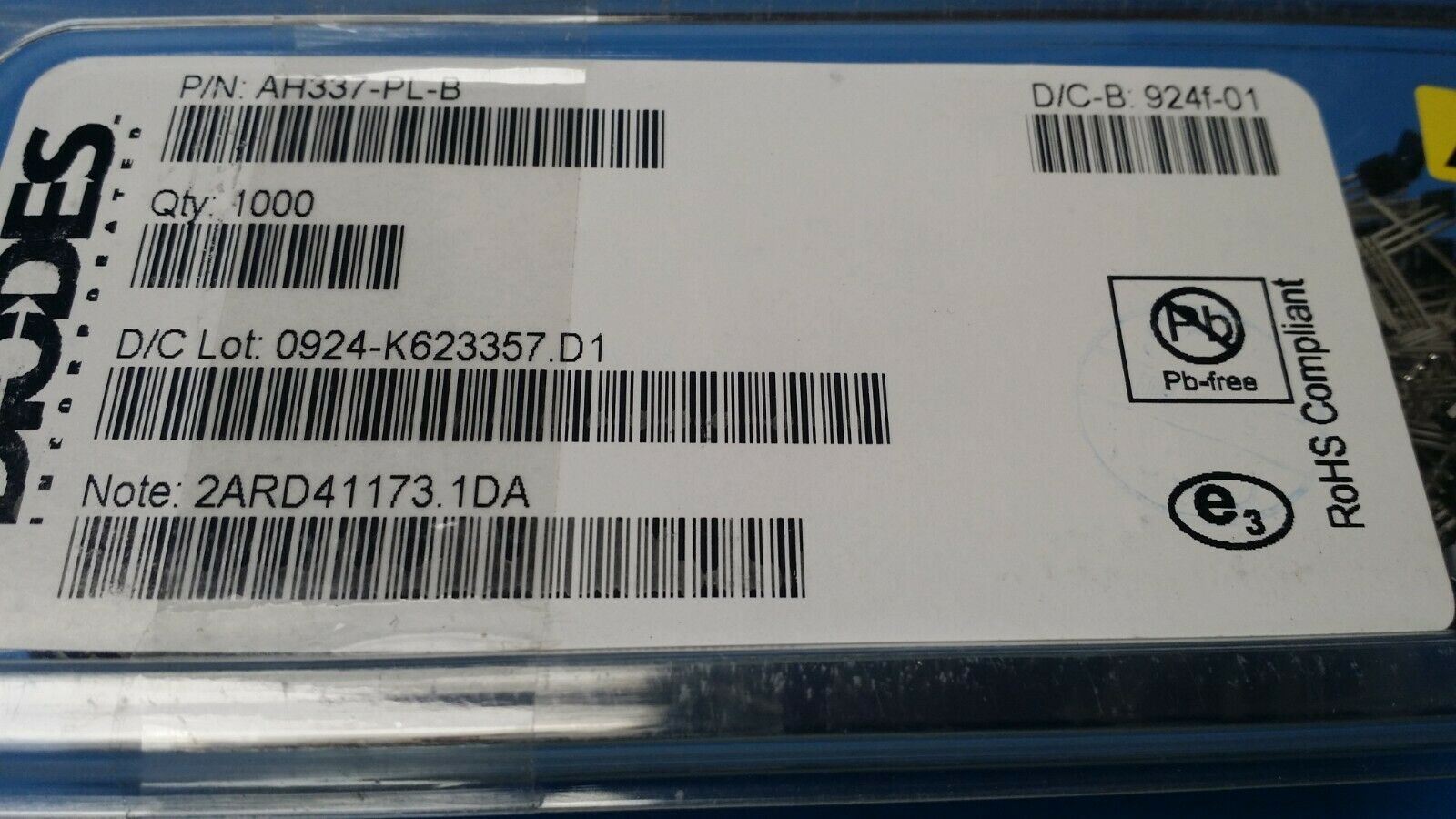

THIS LISTING IS FOR (5 PCS) OF AH337-PL-B BY DIODES INC.
Digital Switch Unipolar Switch Open Drain Hall Effect 3-SIP
Manufacturer: Diodes Incorporated
Product Category: Board Mount Hall Effect / Magnetic Sensors
RoHS: YES
Type: Hall Effect Switch
Operating Supply Current: 2 mA
Maximum Output Current: 25 mA
Operating Point Min/Max: 90 G to 150 G
Release Point Min/Max (Brp): 30 G to 90 G
Operating Supply Voltage: 28 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: SIP-3
Packaging: Cut Tape
Packaging: Reel
Output Voltage: 30 V
Series: AH337
Brand: Diodes Incorporated
Pd - Power Dissipation: 550 mW
Product Type: Hall Effect / Magnetic Sensors
Factory Pack Quantity: 1000
Subcategory: Sensors
Supply Voltage - Max: 28 V
Supply Voltage - Min: 4.2 V
