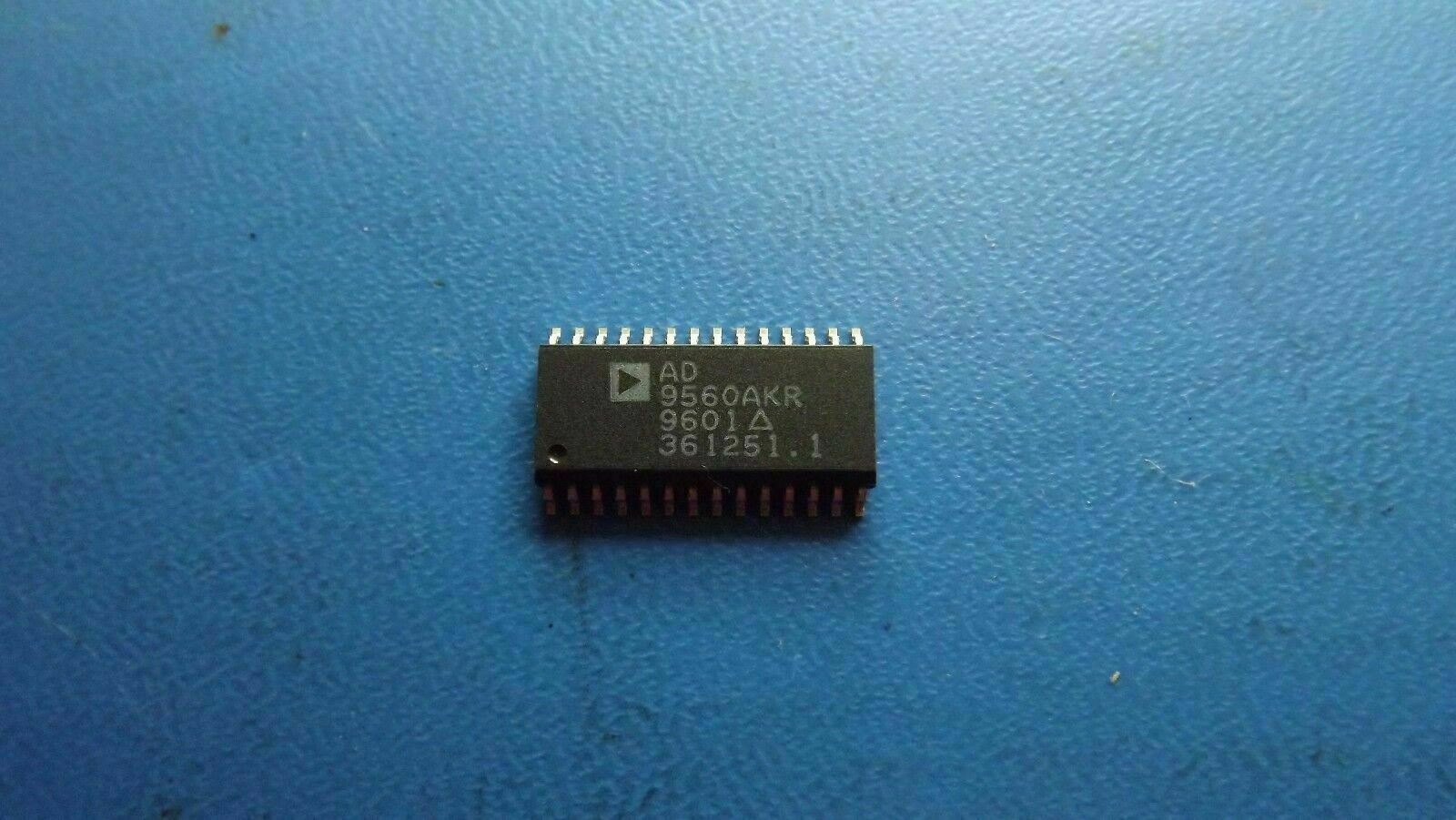

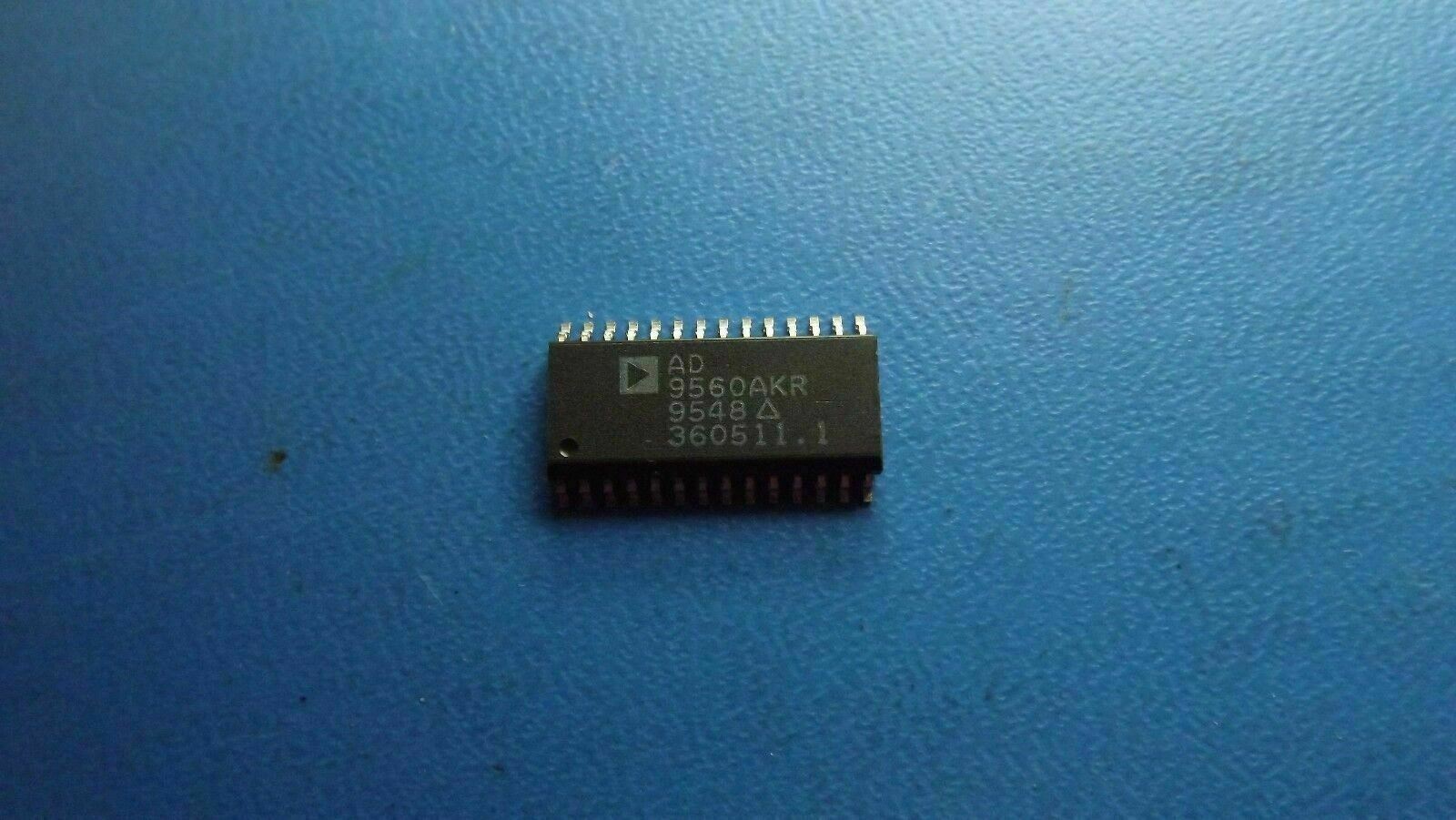

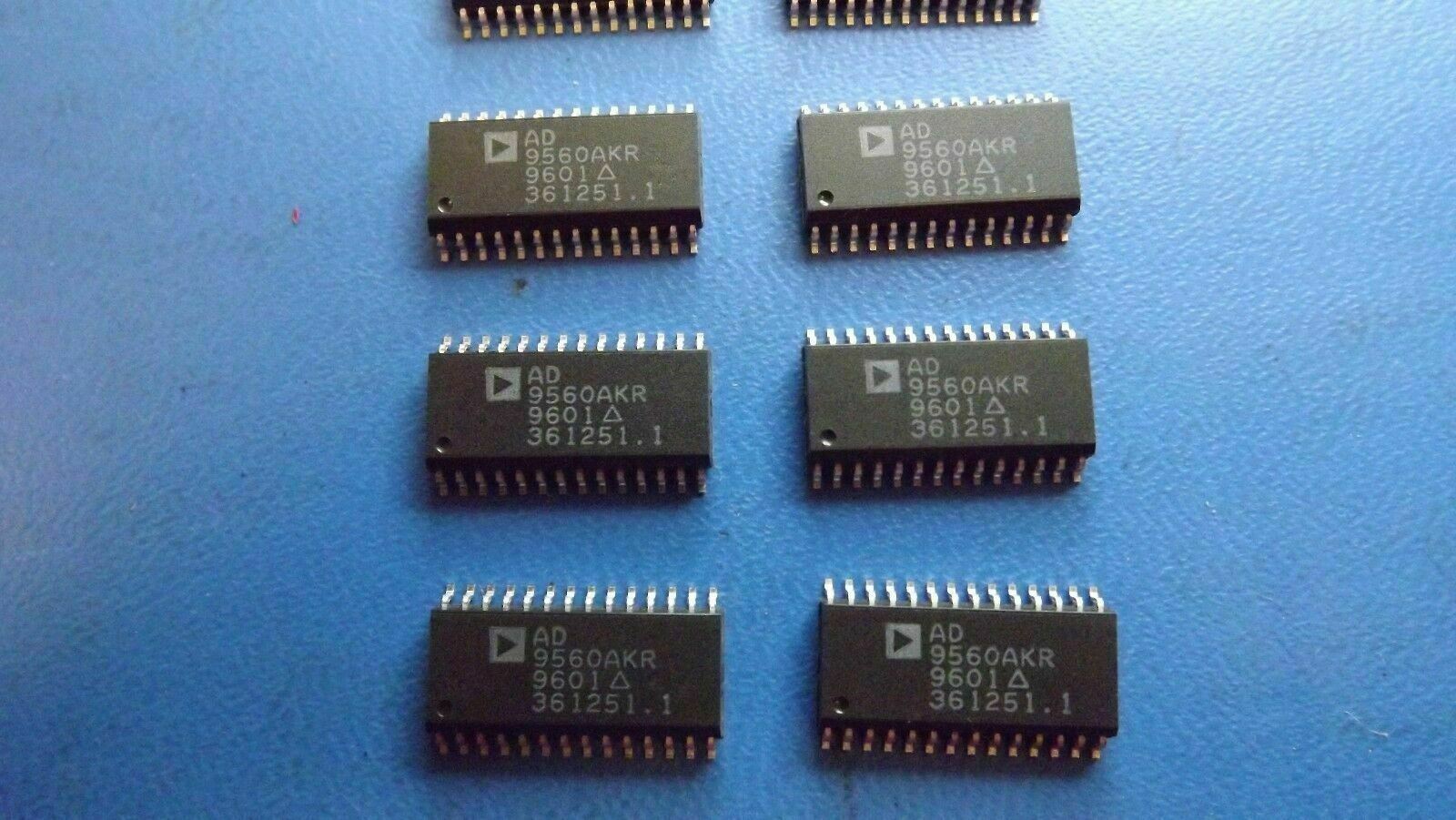

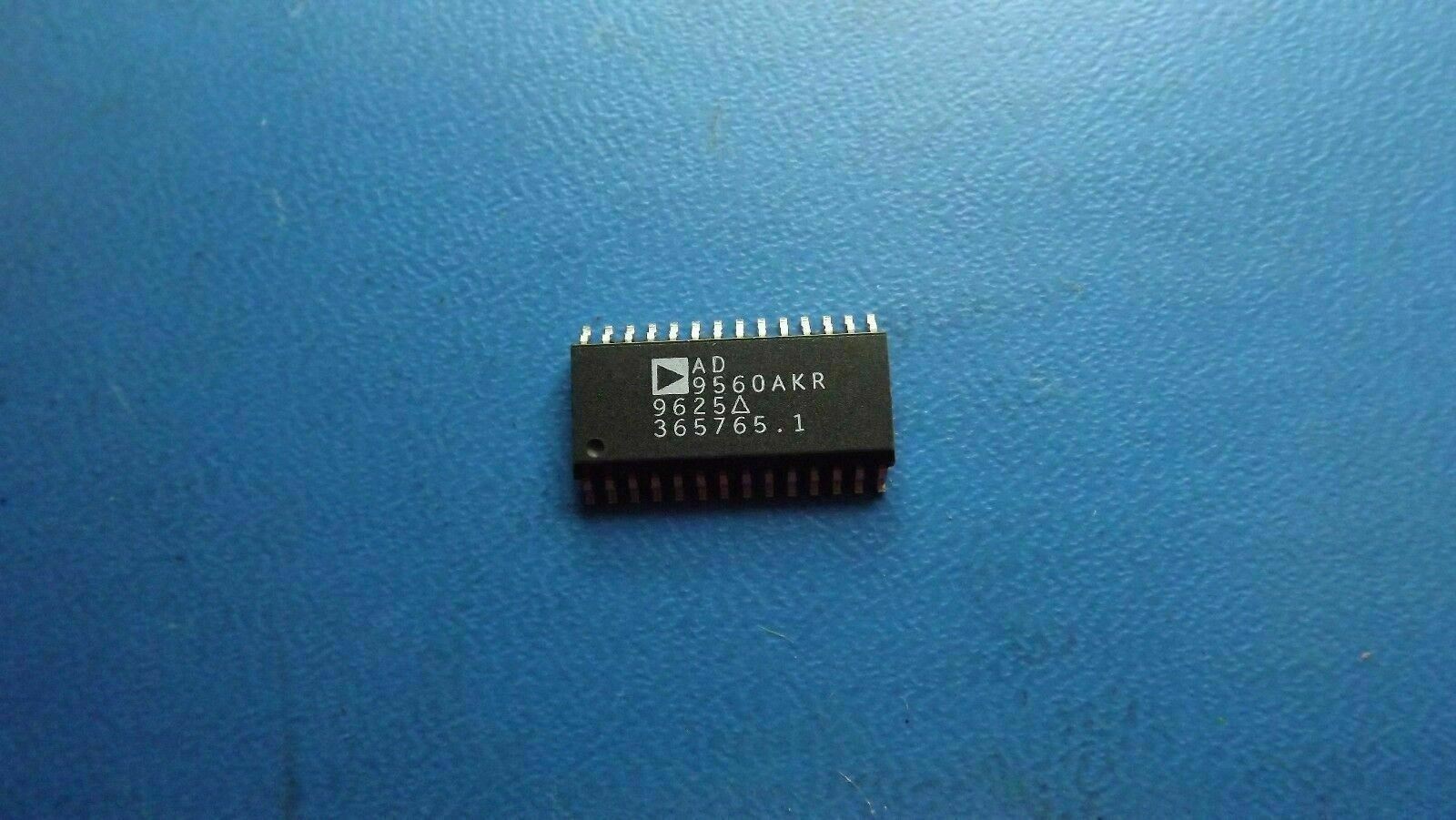

(5 PCS) AD9560AKR Pulse Width Modulator, High Speed Monolithic Pulse SOIC-28
Tax included.
THIS LISTING IS FOR (5 PCS) OF AD9560AKR BY ANALOG DEVICES
Part #: AD9560AKR
Part Category: Other Semiconductors
Manufacturer: Analog Devices, Inc.
Description: Analog Circuit, 1 Func, BICMOS, PDSO28
Mfr Package Description PLASTIC, SOIC-28
Status Discontinued
Analog IC - Other Type ANALOG CIRCUIT
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Number of Functions 1
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 17.9 mm
Width 7.5 mm
