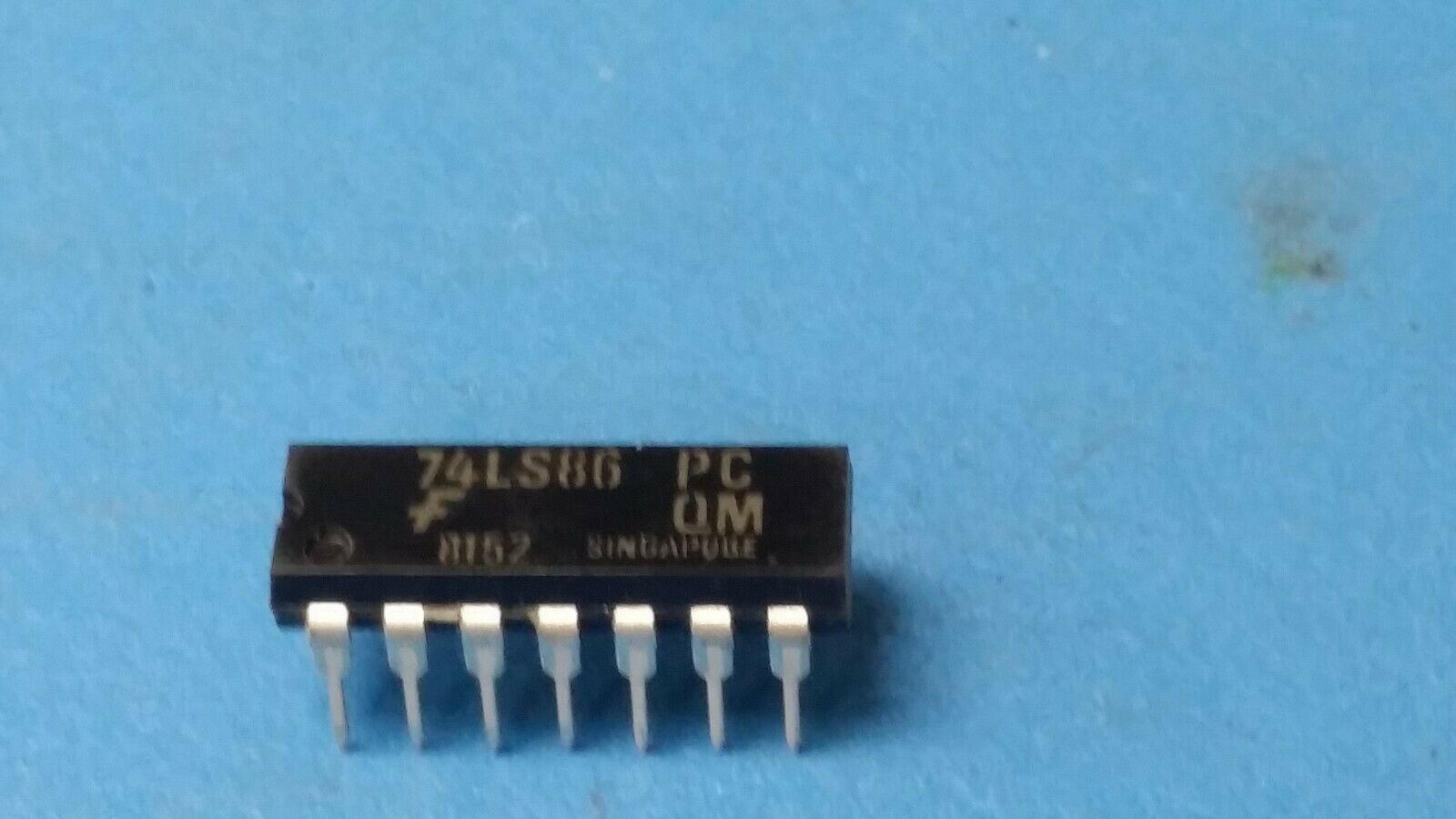

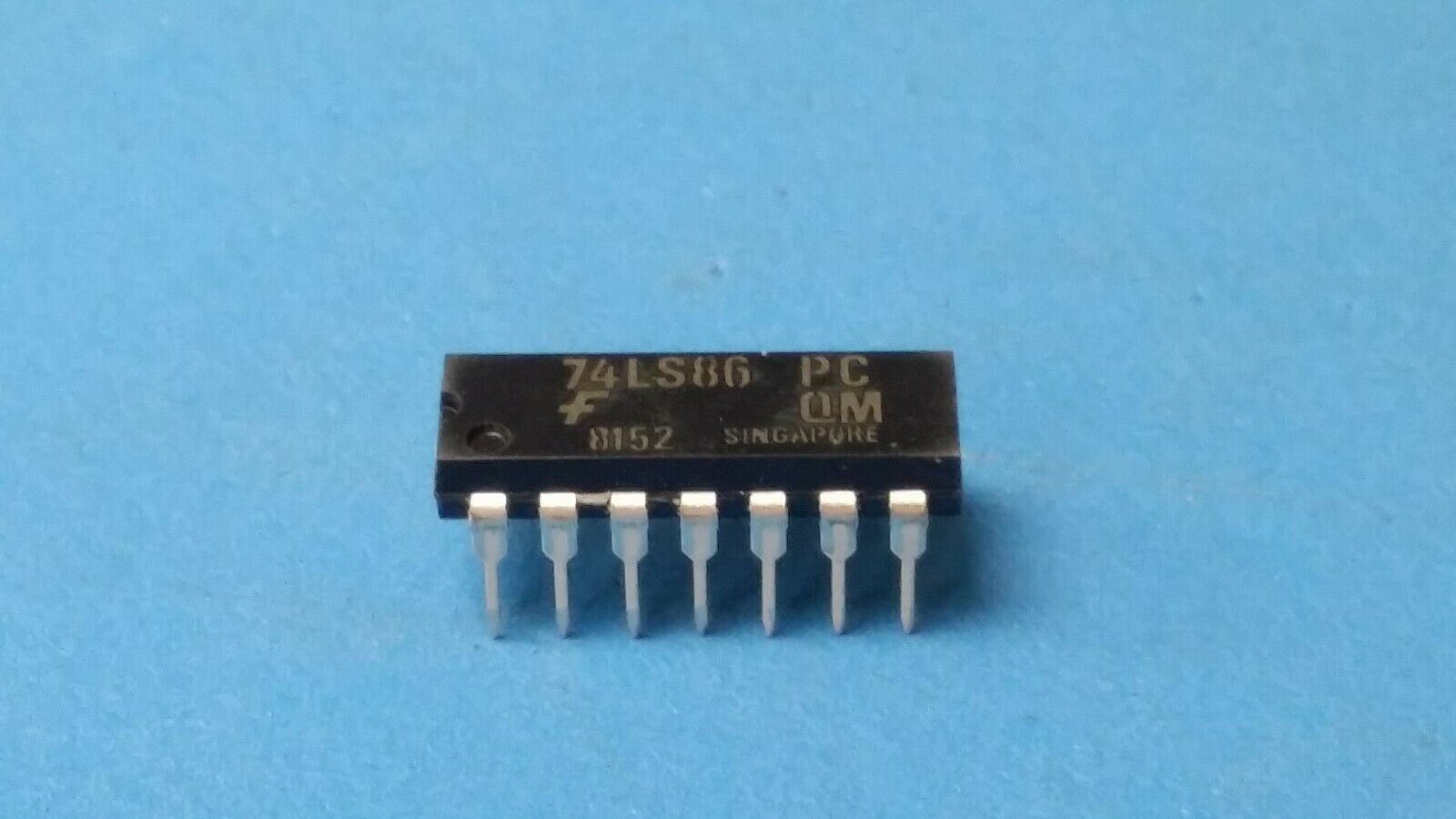

(5 PCS) 74LS86PCQM FSC XOR Gate, TTL, PDIP14
Tax included.
THIS IS FOR (5 PCS) OF 74LS86PCQM BY FSC
XOR Gate, TTL, PDIP14
Part #: 74LS86PCQM
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: XOR Gate, TTL, PDIP14
REACH Compliant Yes
Status Discontinued
Logic IC Type XOR GATE
Sub Category Gates
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Schmitt Trigger NO
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
