(5 PCS) 74LS368AN SIG Buffer/Line Driver 6-CH Inverting 3-ST Bipolar PDIP16
Tax included.

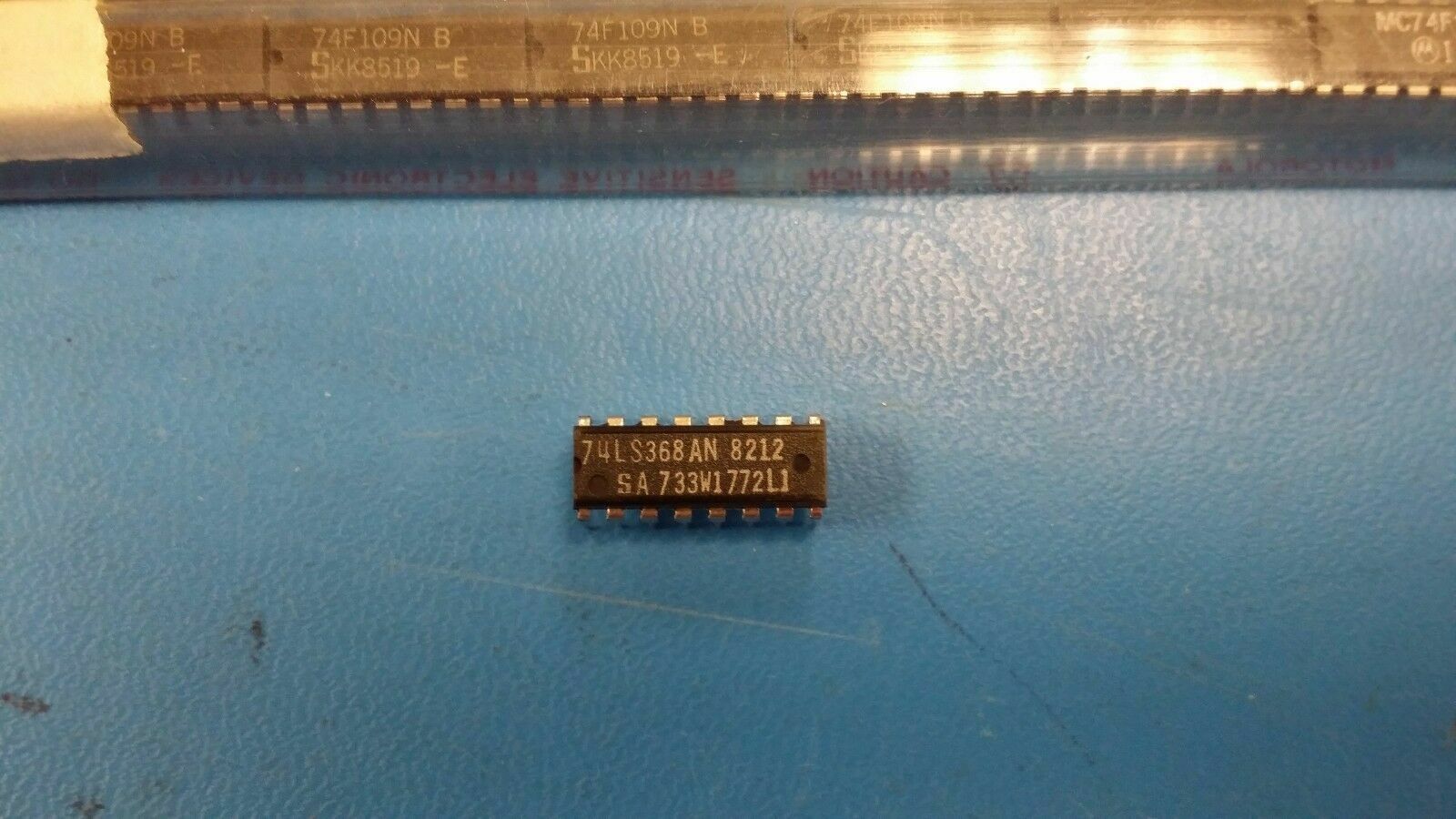

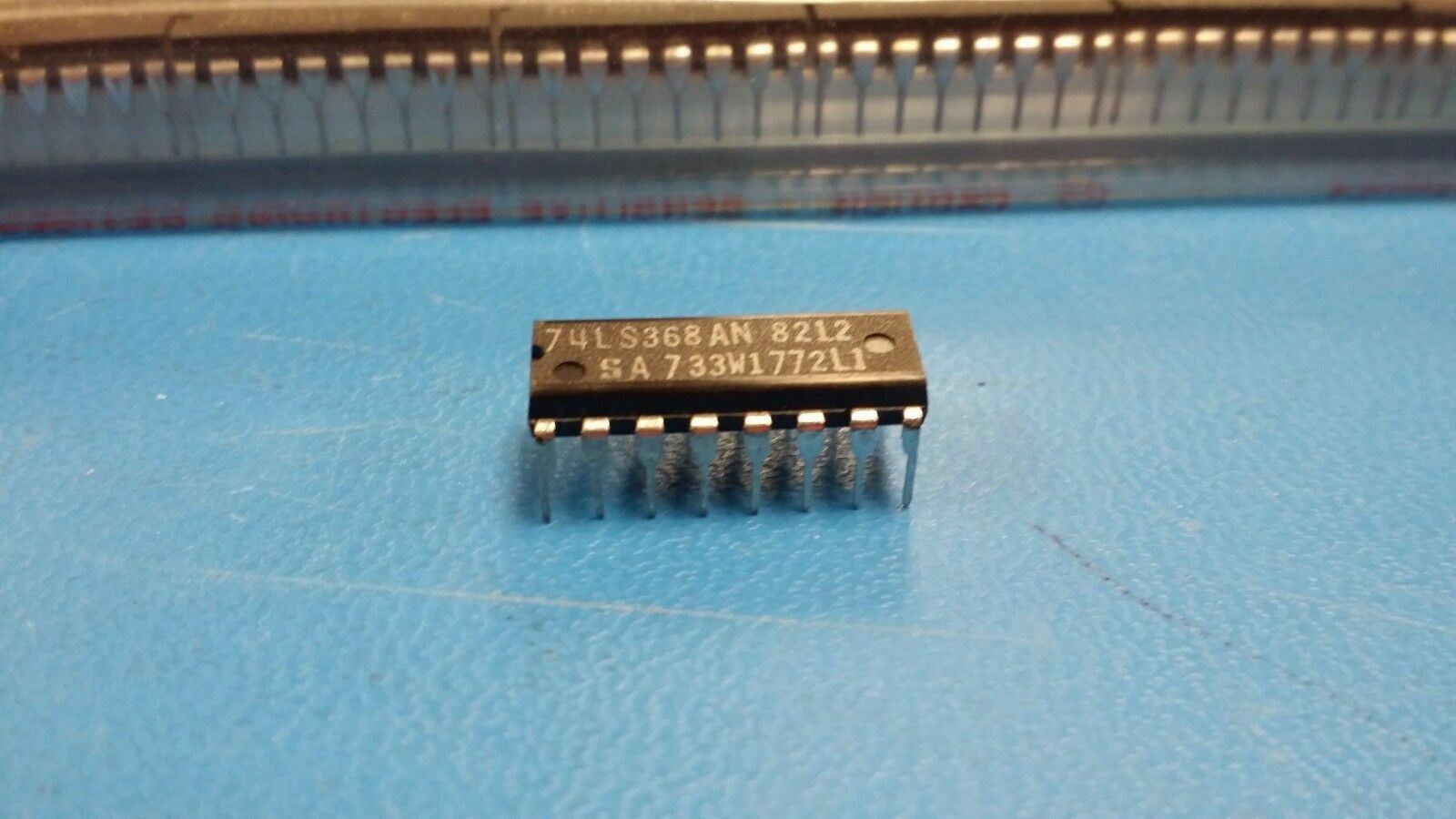

THIS LISTING IS FOR (5 PCS) OF 74LS368AN BY SIGNETICS
Buffer/Line Driver 6-CH Inverting 3-ST Bipolar 16-Pin PDIP
Manufacturer:
Buffer/Line Driver 6-CH Inverting 3-ST Bipolar 16-Pin PDIP
Manufacturer:
| Texas Instruments | ||
| Product Category: | Buffers & Line Drivers | |
| Number of Input Lines: | 6 Input | |
| Number of Output Lines: | 6 Output | |
| Polarity: | Inverting | |
| Supply Voltage - Max: | 5.25 V | |
| Supply Voltage - Min: | 4.75 V | |
| Maximum Operating Temperature: | + 70 C | |
| Mounting Style: | Through Hole | |
| Package / Case: | PDIP-16 | |
| Packaging: | Tube | |
| Brand: | Texas Instruments | |
| Function: | Buffer/Line Driver | |
| Height: | 4.57 mm | |
| High Level Output Current: | - 2.6 mA | |
| Input Signal Type: | Single-Ended | |
| Length: | 19.3 mm | |
| Logic Family: | LS | |
| Logic Type: | Bipolar | |
| Low Level Output Current: | 24 mA | |
| Minimum Operating Temperature: | 0 C | |
| Number of Channels: | 5 | |
| Operating Supply Current: | 85 uA | |
| Operating Supply Voltage: | 5 V | |
| Operating Temperature Range: | 0 C to + 70 C | |
| Output Type: | 3-State | |
| Propagation Delay Time: | 18 ns at 5 V | |
| | ||
