(5 PCS) 7404PC FSC Inverter IC 6 Channel 14-PDIP
Tax included.

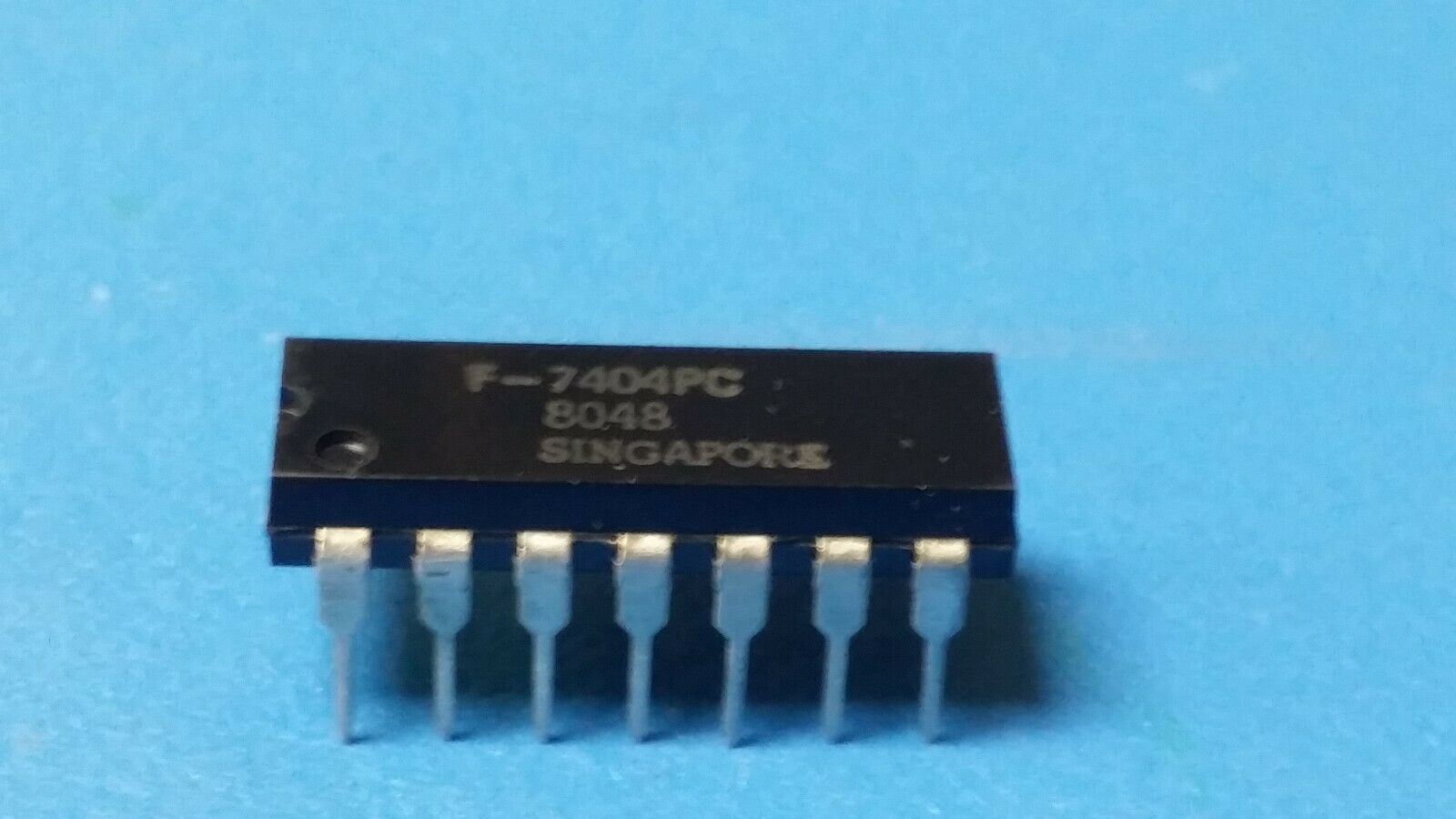

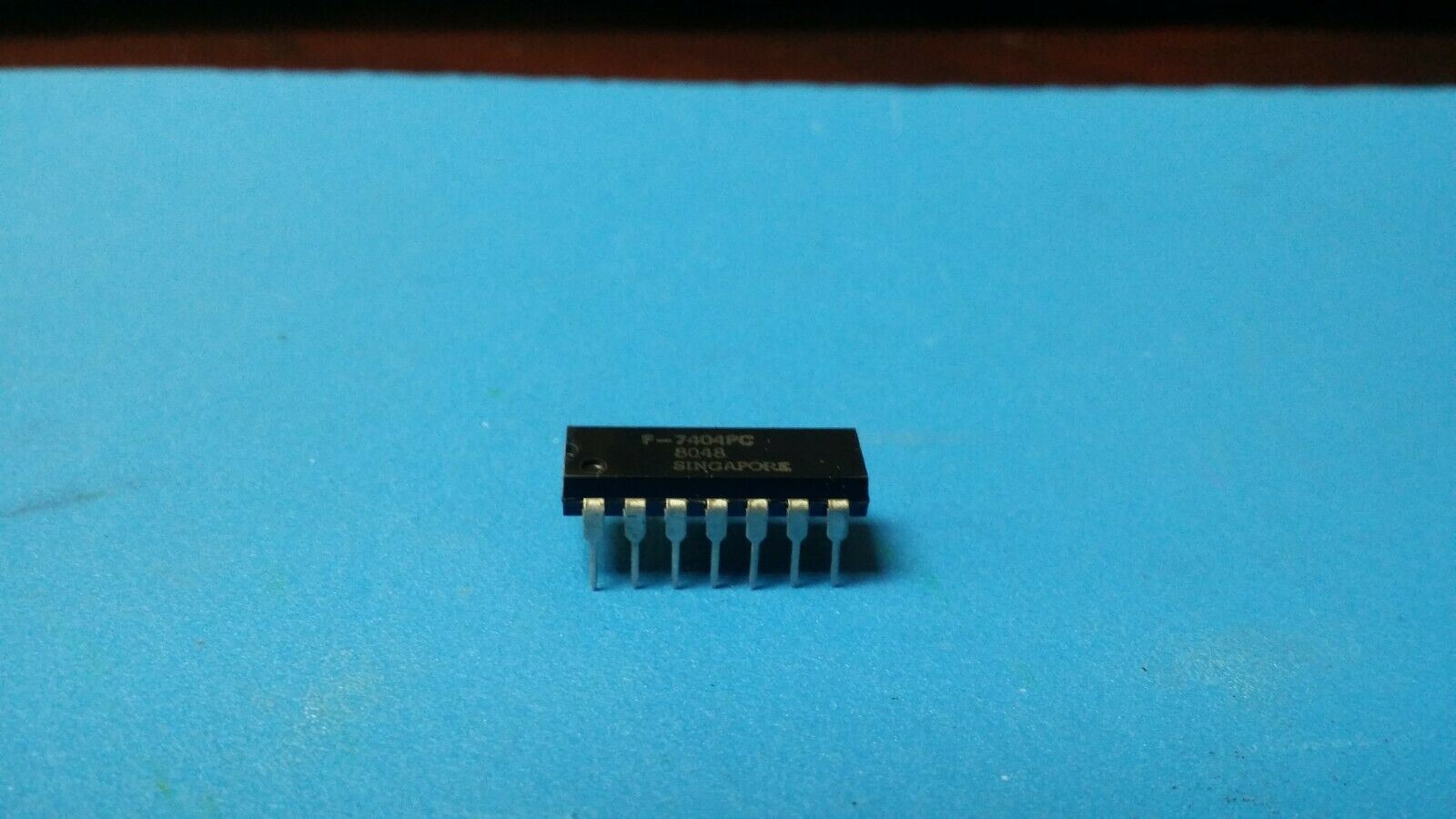

THIS LISTING IS FOR (5 PCS) OF 7404PC BY FSC
Inverter IC 6 Channel 14-PDIP
Part #: 7404PC
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, PDIP14
Mfr Package Description PLASTIC, DIP-14
Status Discontinued
Logic IC Type INVERTER
Sub Category Gates
Family TTL/H/L
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Max I(ol) 0.016 Amp
Number of Functions 6
Number of Inputs 1.0
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 33.0 mA
Prop. Delay@Nom-Sup 22.0 ns
Propagation Delay (tpd) 22.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
