(3 PCS) 70F501AF JW MILLER RF Fixed Inductors 500000 uH 30mA, Obsolete
Tax included.

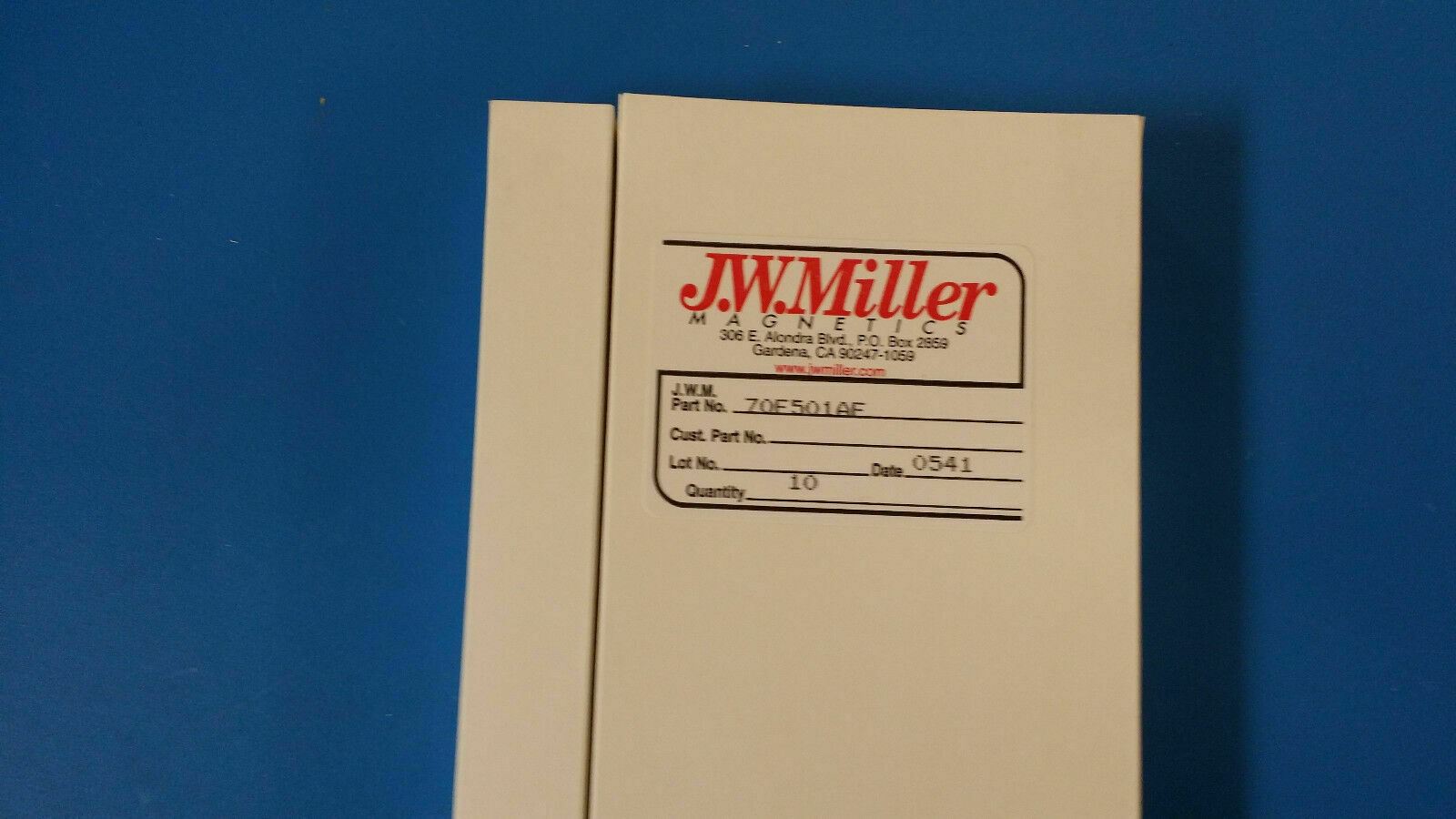

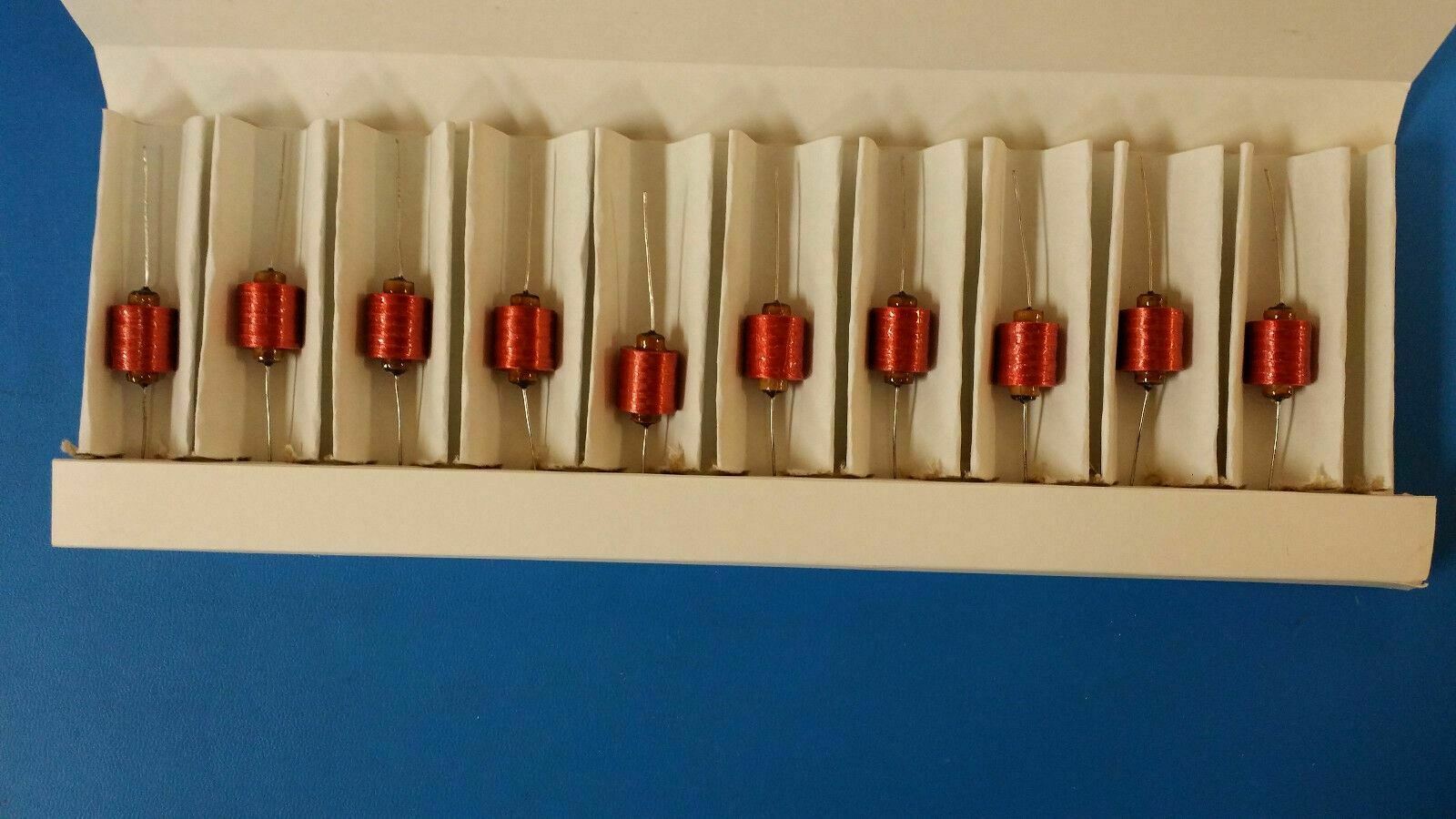

THIS LISTING IS FOR (3PCS) OF 70F501AF BY JW MILLER
RF Fixed Inductors 500000 uH 30mA, Obsolete
Manufacturer: Bourns, Inc.
Description: 1 ELEMENT, 500000uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
RF Fixed Inductors 500000 uH 30mA, Obsolete
Part #: 70F501AF
Part Category: InductorsManufacturer: Bourns, Inc.
Description: 1 ELEMENT, 500000uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
| Mfr Package Description | AXIAL LEADED |
| REACH Compliant | Yes |
| Status | Active |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Construction | Varnish Coating |
| Core Material | FERRITE |
| DC Resistance | 736 ohm |
| Inductance-Nom (L) | 500000 µH |
| Inductor Application | RF INDUCTOR |
| Lead Diameter | 0.8100 mm |
| Lead Length | 31.75 mm |
| Manufacturer Series | 70F |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 105 Cel |
| Package Diameter | 16 mm |
| Package Length | 22.35 mm |
| Package Style (Meter) | Axial |
| Quality Factor-Min (at L-nom) | 53 |
| Rated Current-Max | 0.0300 A |
| Self Resonance Frequency | 0.0520 MHz |
| Series | 70F ( FERRITE ) |
| Shape/Size Description | TUBULAR PACKAGE |
| Shielded | NO |
| Special Feature | Q MEASURED AT 0.0252 MHZ |
| Surface Mount | NO |
| Terminal Placement | AXIAL |
| Terminal Shape | WIRE |
| Test Frequency | 0.0250 MHz |
| Tolerance | 5 % |
