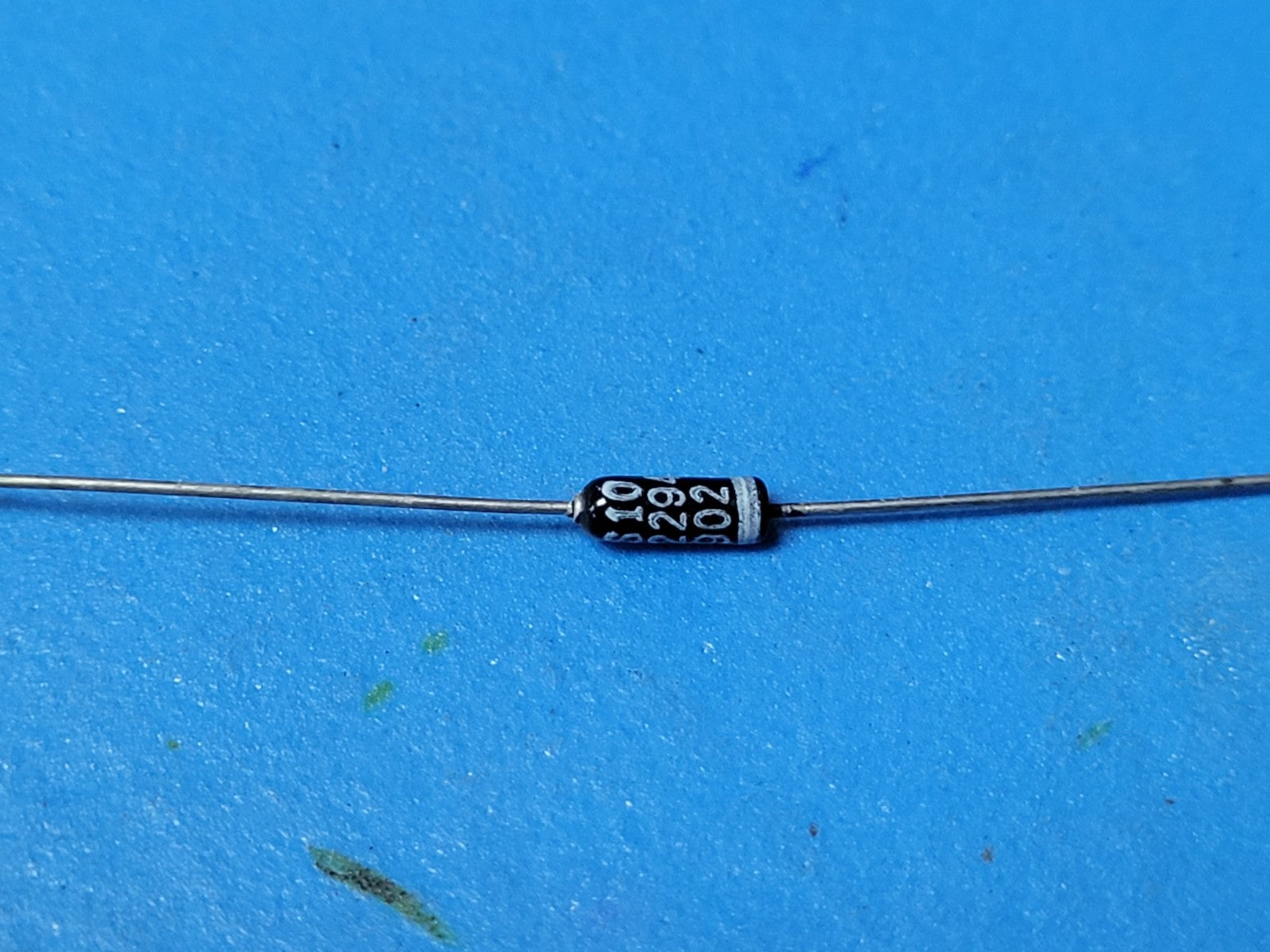

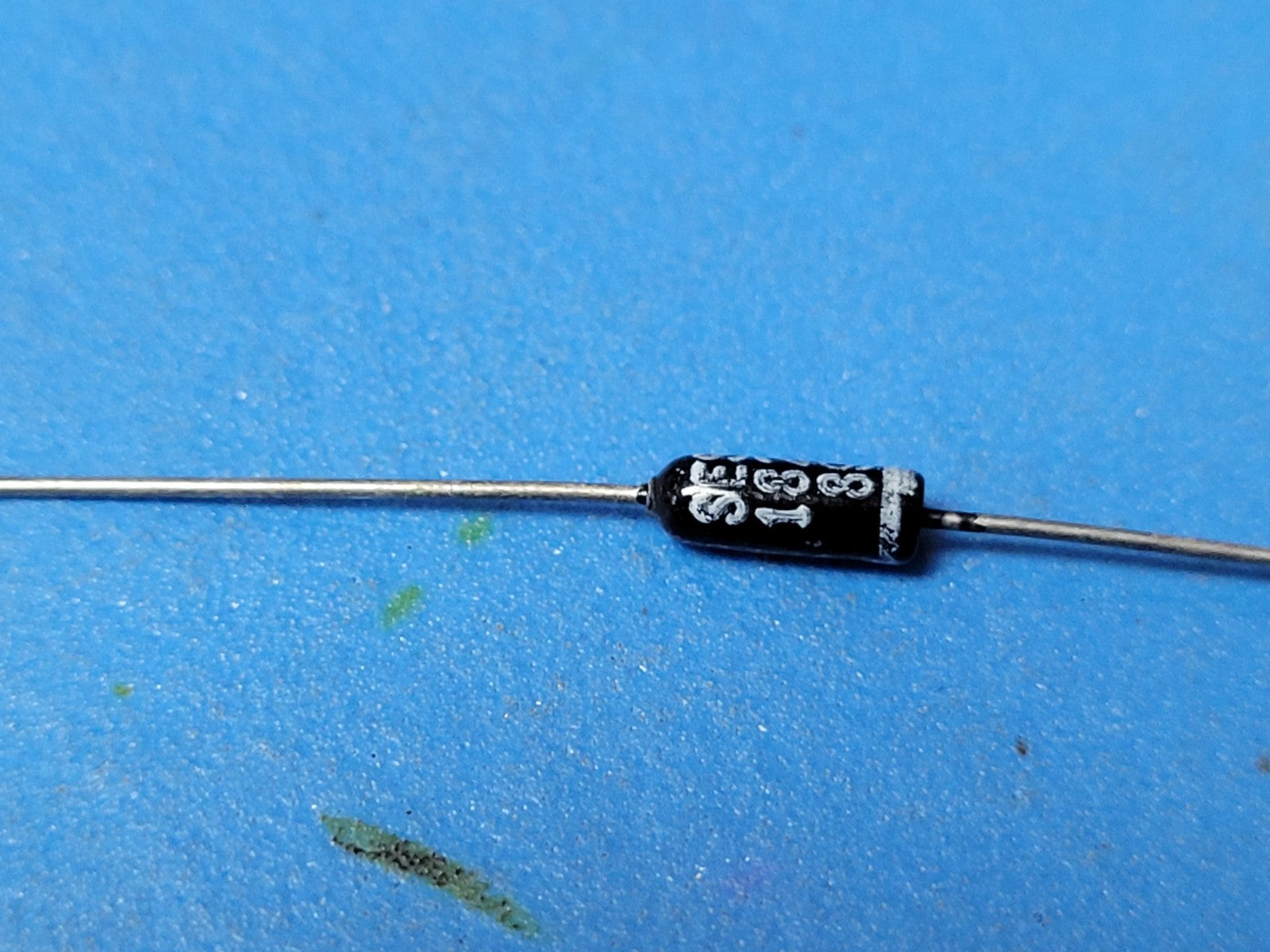

(5 PCS) 5961-01-043-3209 (10182294) Diodes 180V 500mW 200mA DO-35
Tax included.
THIS IS FOR (25 PC) OF 5961-01-043-3209 (10182294)
Diodes 180V 500mW 200mA DO-35
ABHP Overall Length 0.230 inches minimum and 0.300 inches maximum
ABJT Terminal Length 1.000 inches minimum
ADAV Overall Diameter 0.085 inches minimum and 0.125 inches maximum
AXGY Mounting Method Terminal
CBBL Features Provided Hermetically sealed case
CTQN Voltage Rating in Volts per Characteristic 180.0 maximum reverse voltage, peak
CTQX Current Rating per Characteristic 200.00 milliamperes maximum average forward current averaged over a full 60-HZ cycle
CTSG Maximum Operating Temp per Measurement Point 200.0 deg celsius ambient air
MATT Material Glass inclosure
MATT Material Silicon semiconductor
TTQY Terminal Type and Quantity 2 uninsulated wire lead
