(5 PCS) 5905-00-174-1633 PME55 27M OHM 1%
Tax included.
THIS IS FOR (5 PCS) OF 5905-00-174-1633

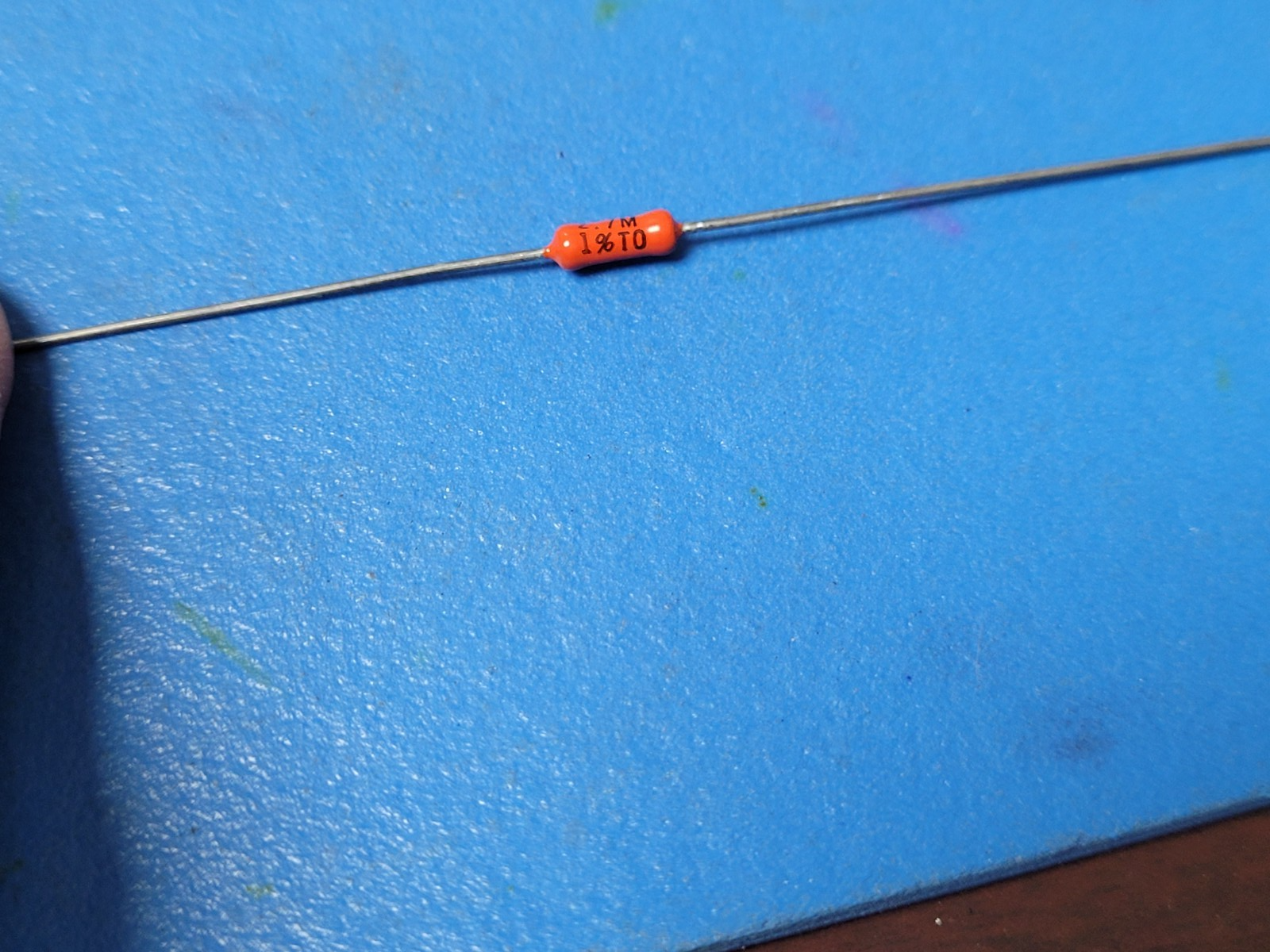

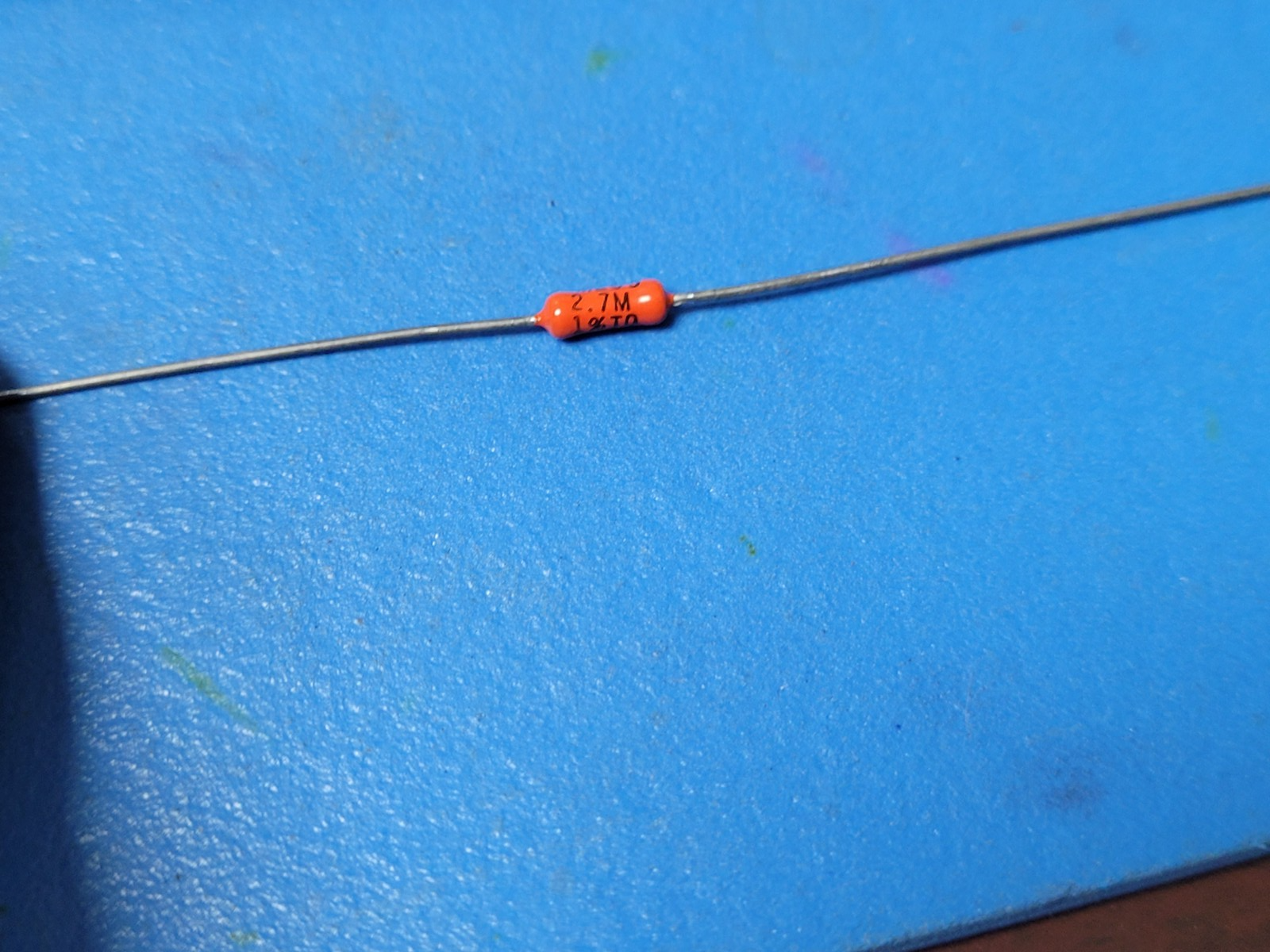

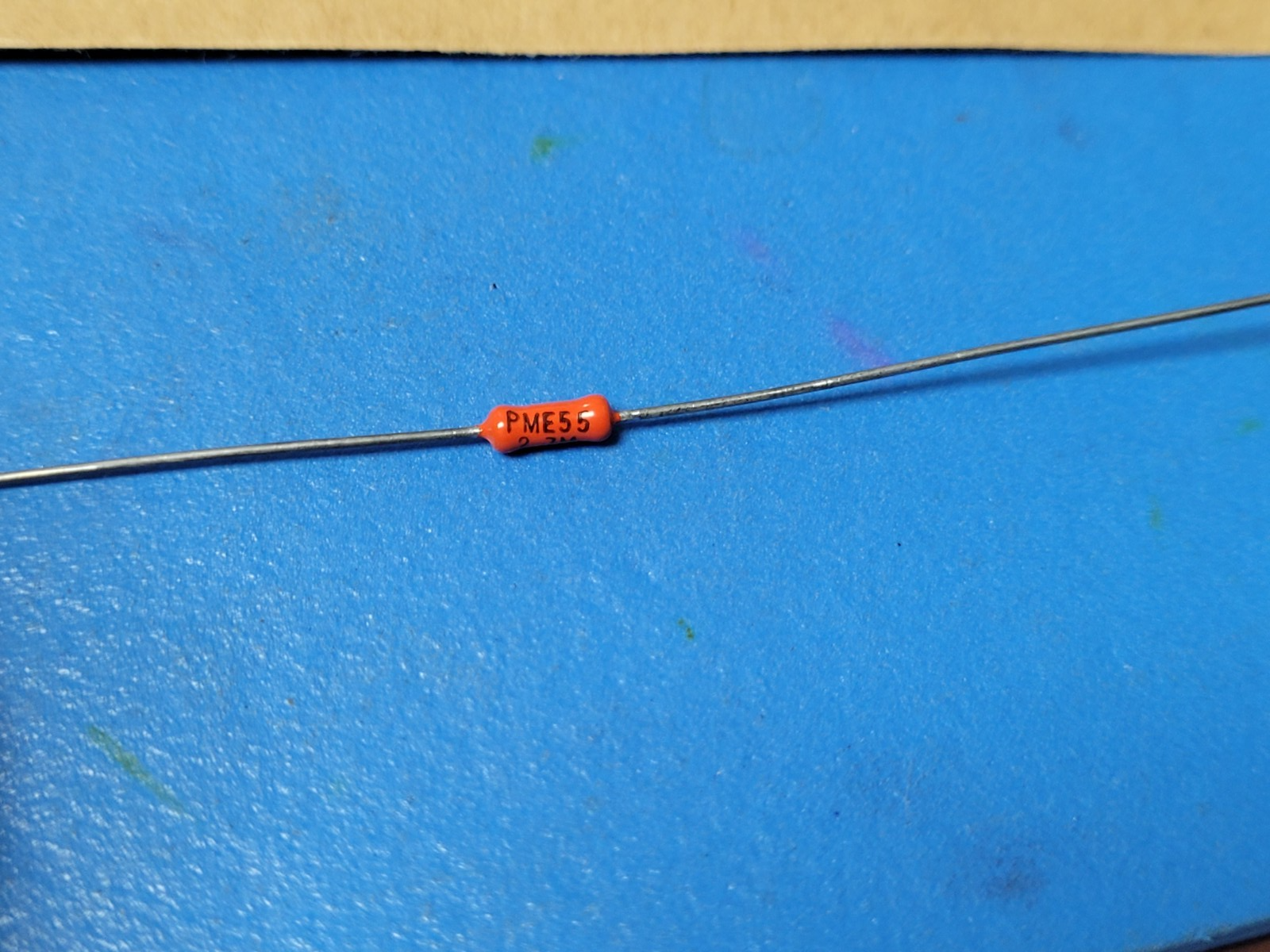

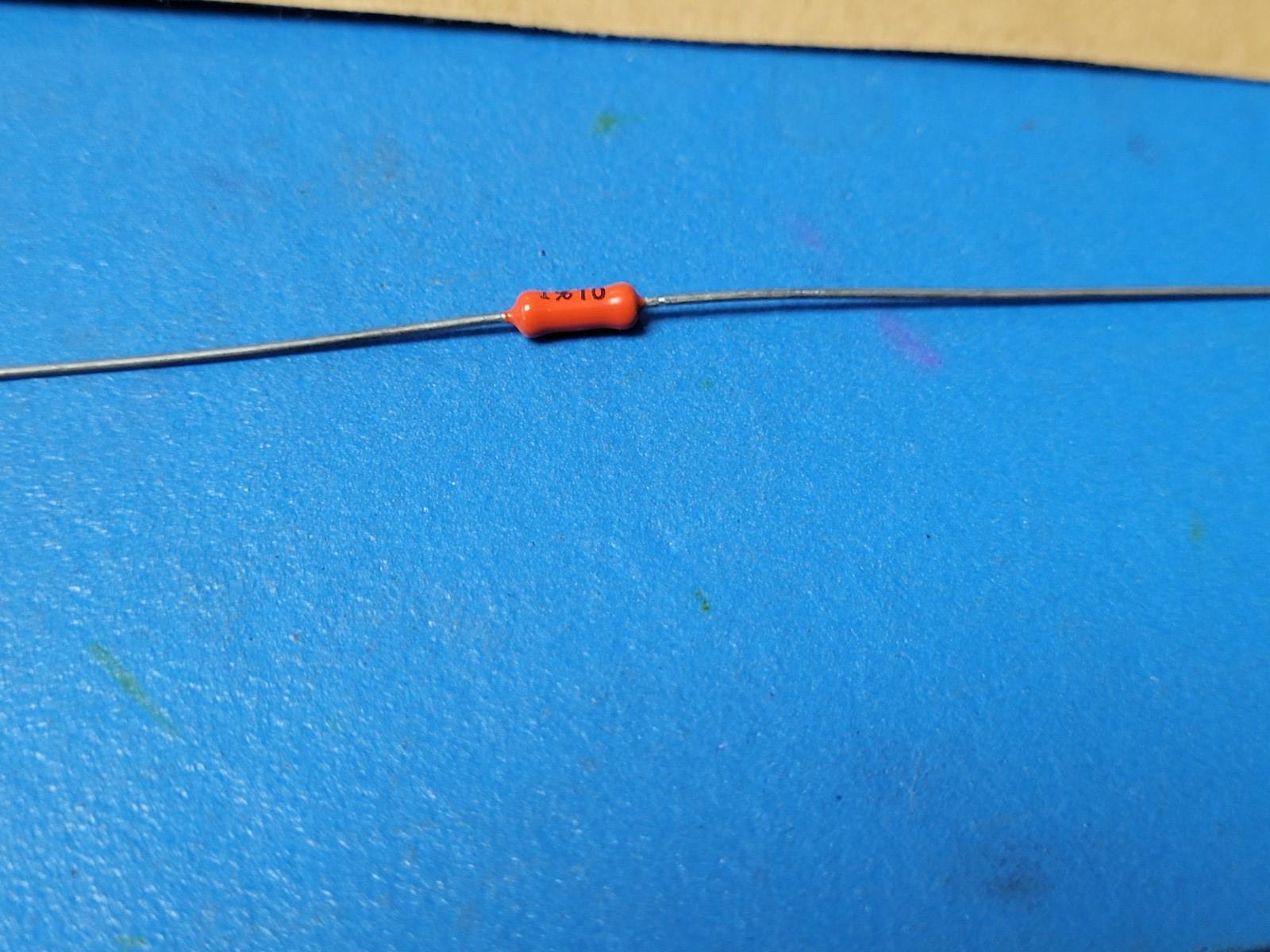

PME55 27M OHM 1% Film Fixed Resistor
Film Fixed Resistor
Model / MPN: 539729-1 | NSN: 5905-00-174-1633
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also attenuator, fixed and resistor, fixed, composition. Excludes carbon composition type resistors.
NATO Stock Number
5905-00-174-1633
DEMIL
NO
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius-100.0/+100.0
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius-100.0 to 100.0
Electrical Resistance
2.700 megohms
Resistance Tolerance In Percent
-1.000/+1.000
Resistance Tolerance In Percent
-1.000 to 1.000
Ambient Tempurature In Deg Celsius At Full Rated Power
125.0
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
170.0
Inclosure MethodEncapsulated
Terminal Type
Wire lead
Reliability Indicator
Not established
Body Diameter
0.095 inches
Body Length
0.250 inches
Power Dissipation Rating In Watts
0.125 free air
Style Designator
Axial terminal each end
