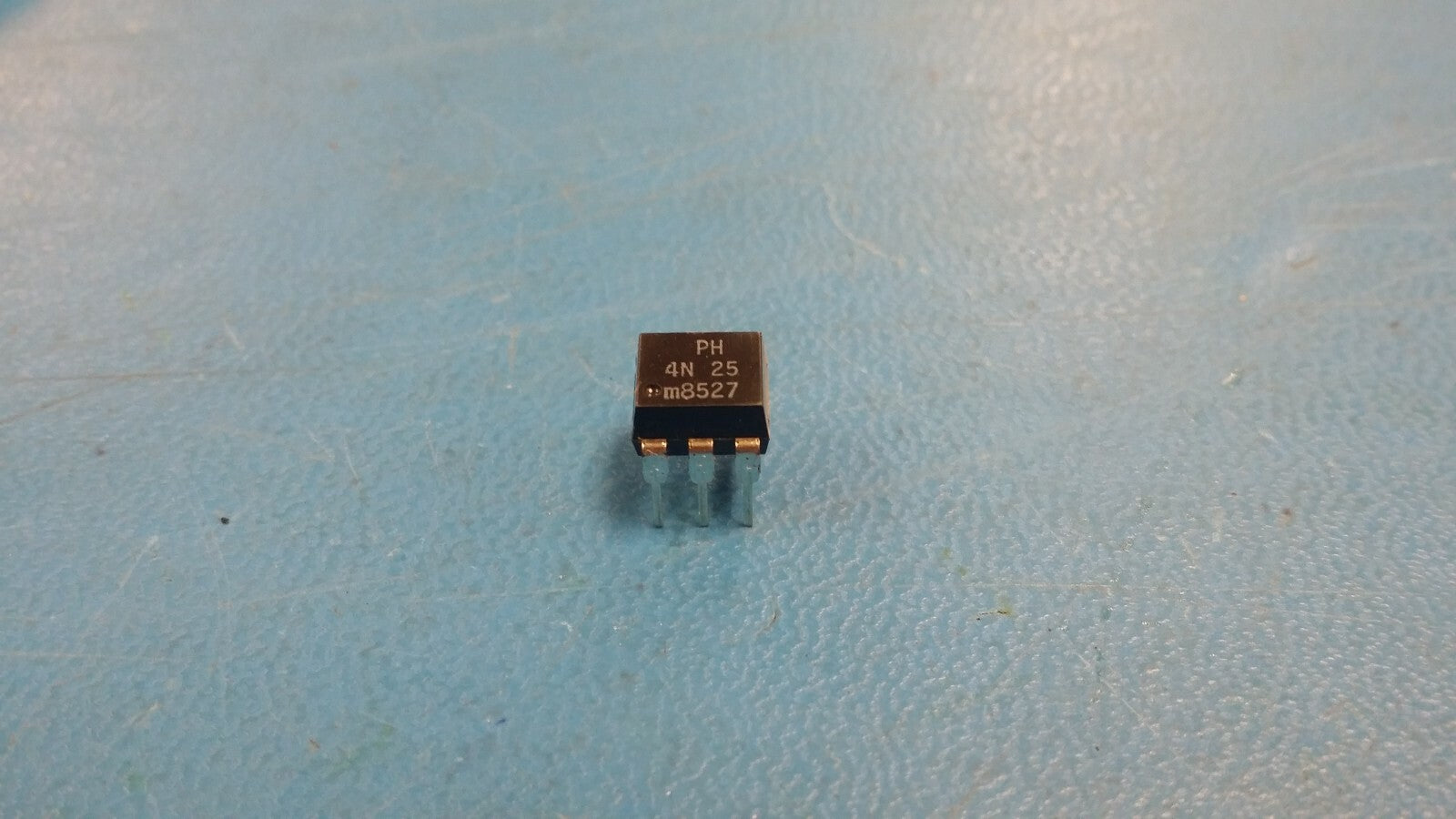

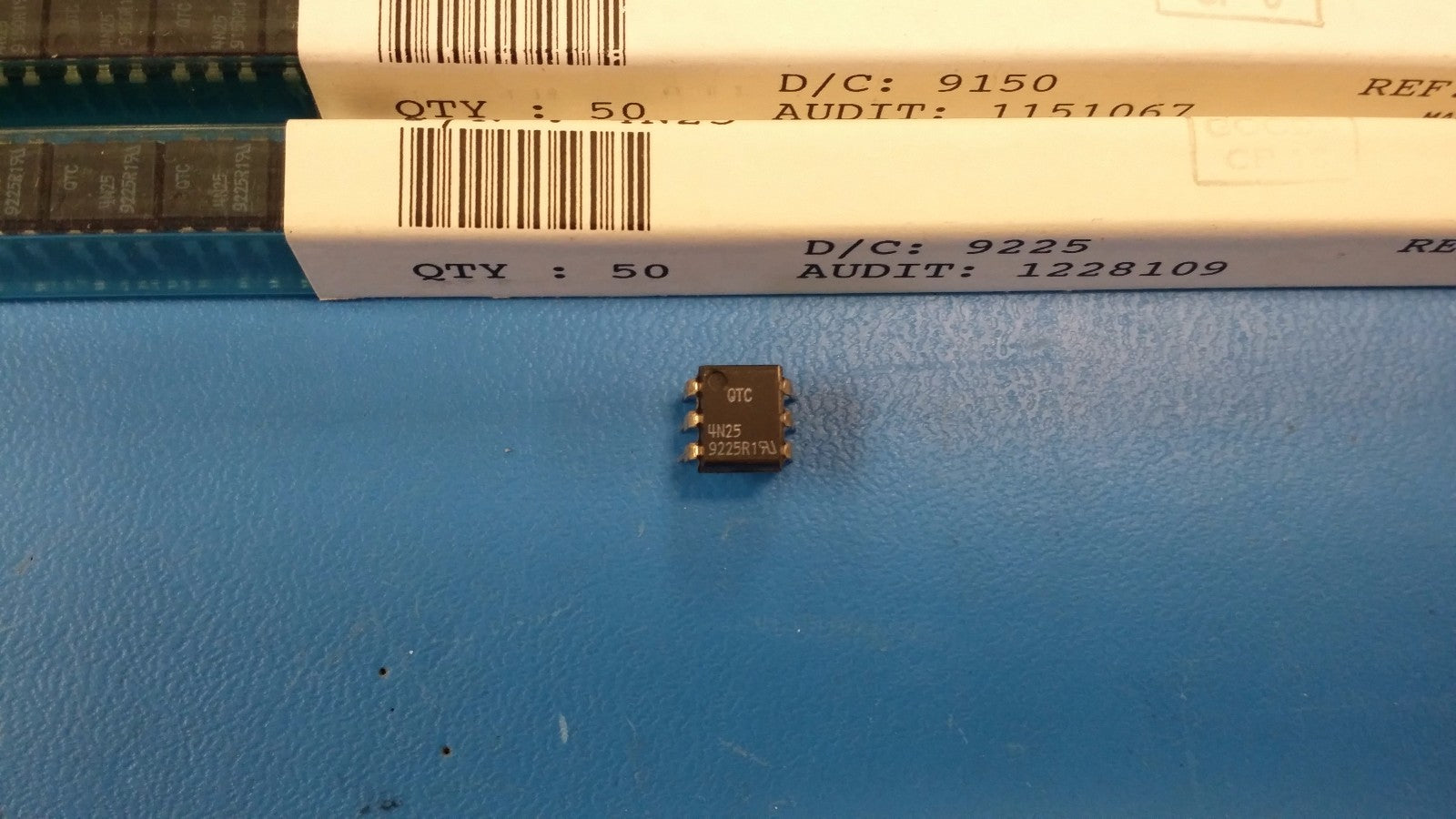

(5 PCS) 4N25 QTC, PHILIPS, 1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER 6PIN
Tax included.
THIS LISTING IS FOR (5 PCS) OF 4N25 BY QTC, PHILIPS
1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER 6PIN
Packaging Tube
Part Status Discontinued
Number of Channels 1
Voltage - Isolation 2500Vrms
Current Transfer Ratio (Min) 20% @ 10mA
Current Transfer Ratio (Max) -
Turn On / Turn Off Time (Typ) -
Rise / Fall Time (Typ) 3µs, 3µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 30V
Current - Output / Channel 100mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 80mA
Vce Saturation (Max) 500mV
Operating Temperature -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
