(5 pcs) 400-22-CC-D GARRY SOCKETS SCREW MACHINE TERMINALS 22 PIN DIP
Tax included.

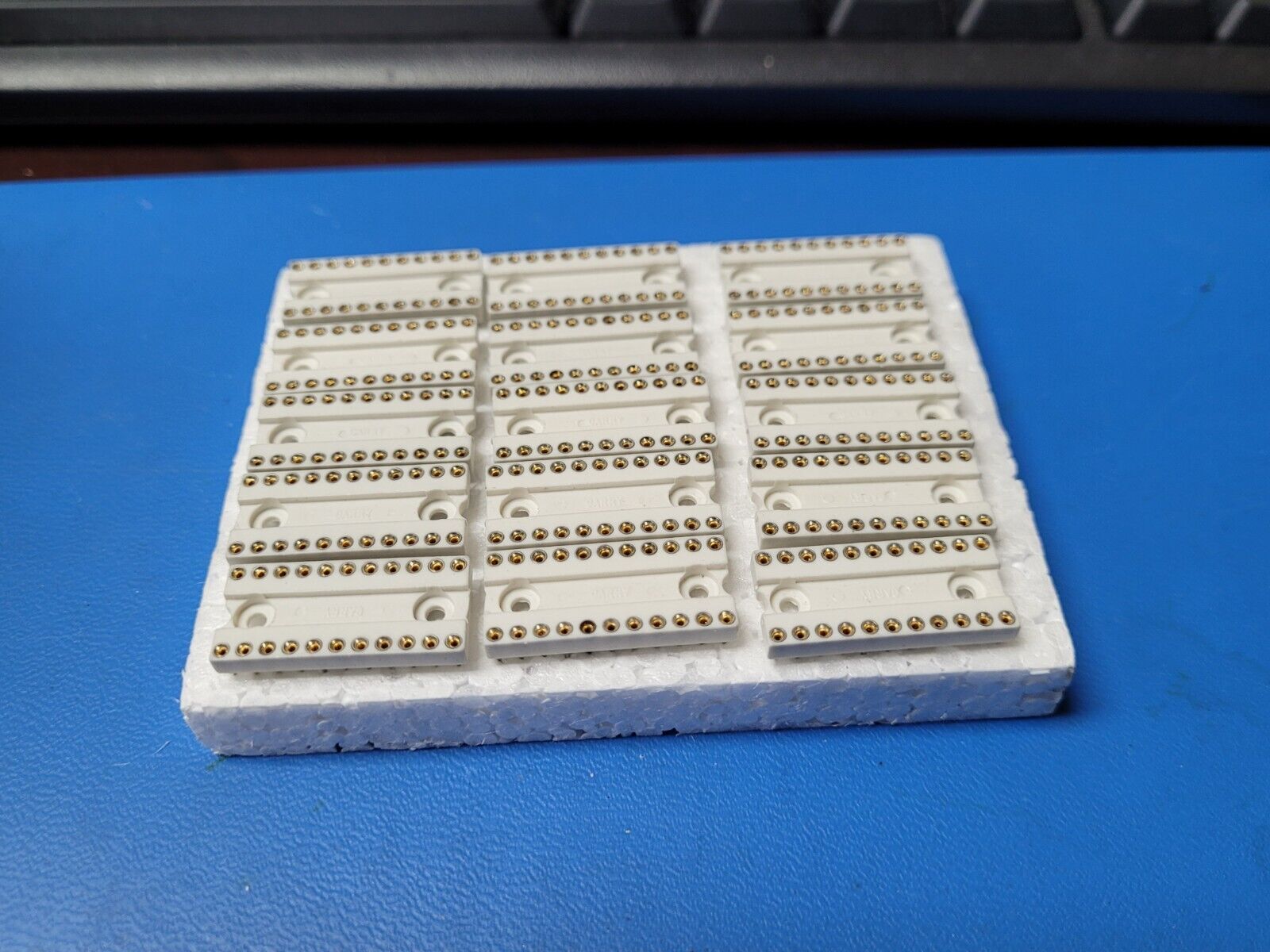

THIS IS FOR (5 pcs) OF 400-22-CC-D BY GARRY ELECTRONICS

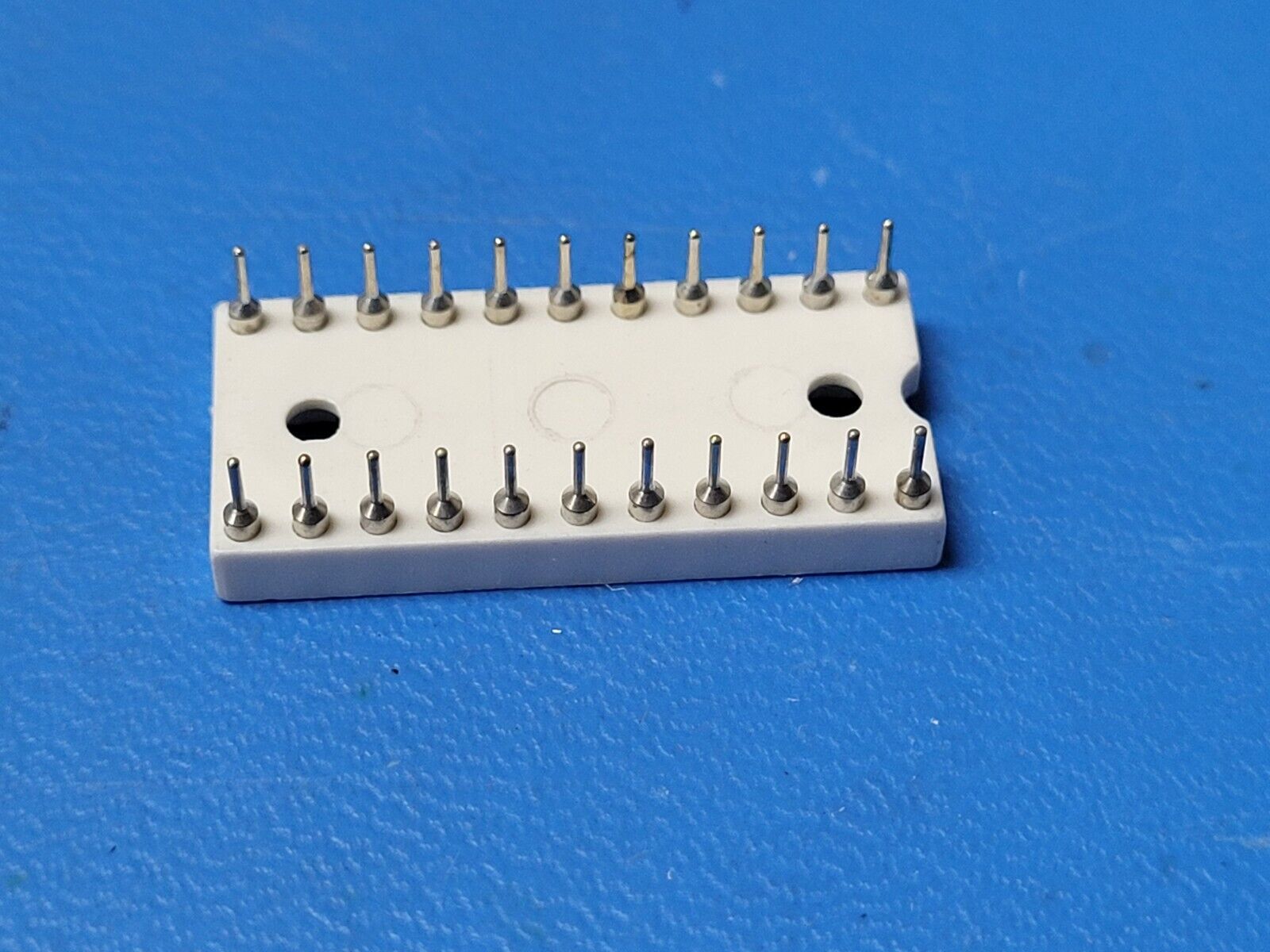

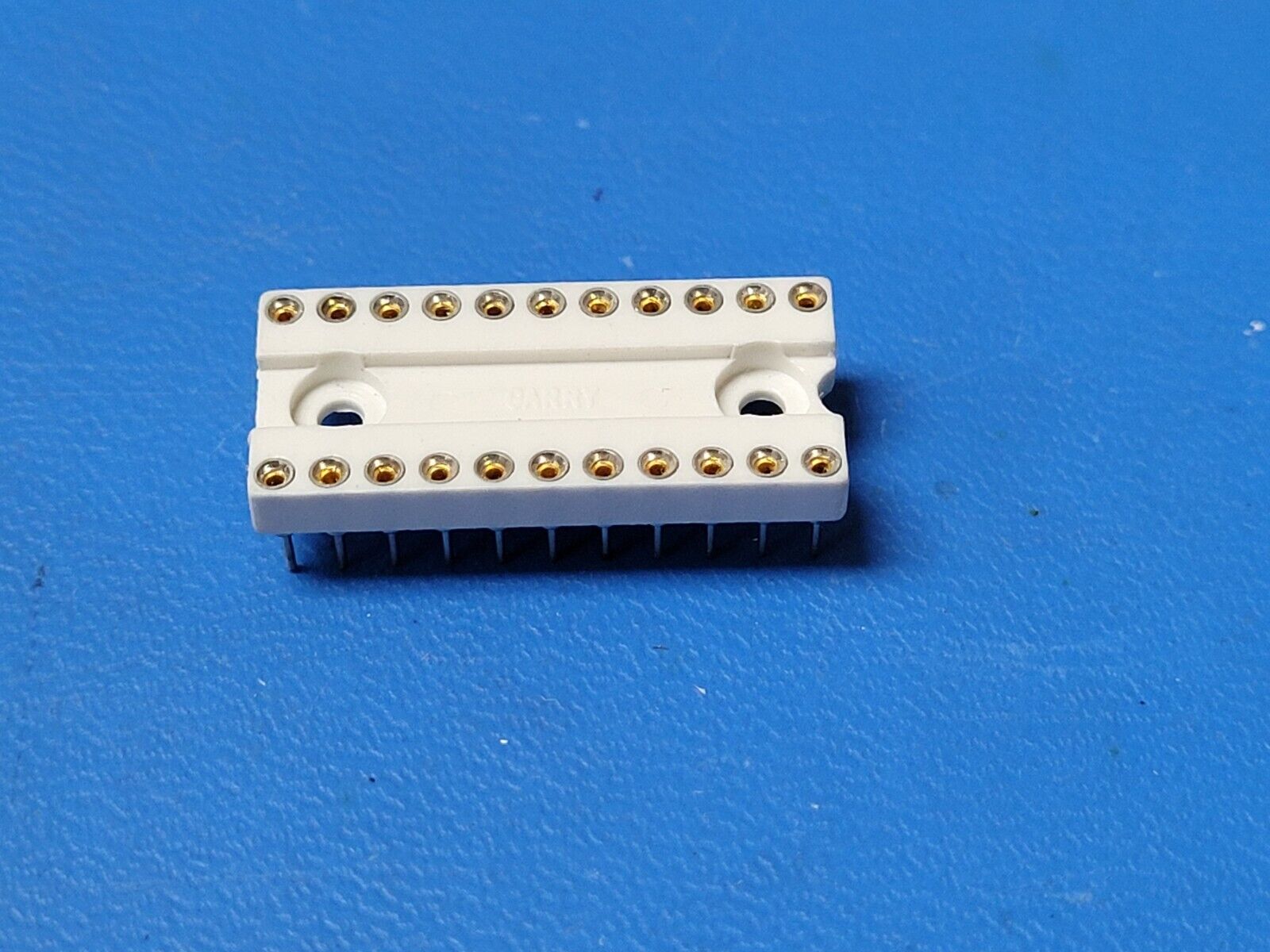

SOCKETS SCREW MACHINE TERMINALS 22 PIN DIP
REACH Compliant Yes
Status Active

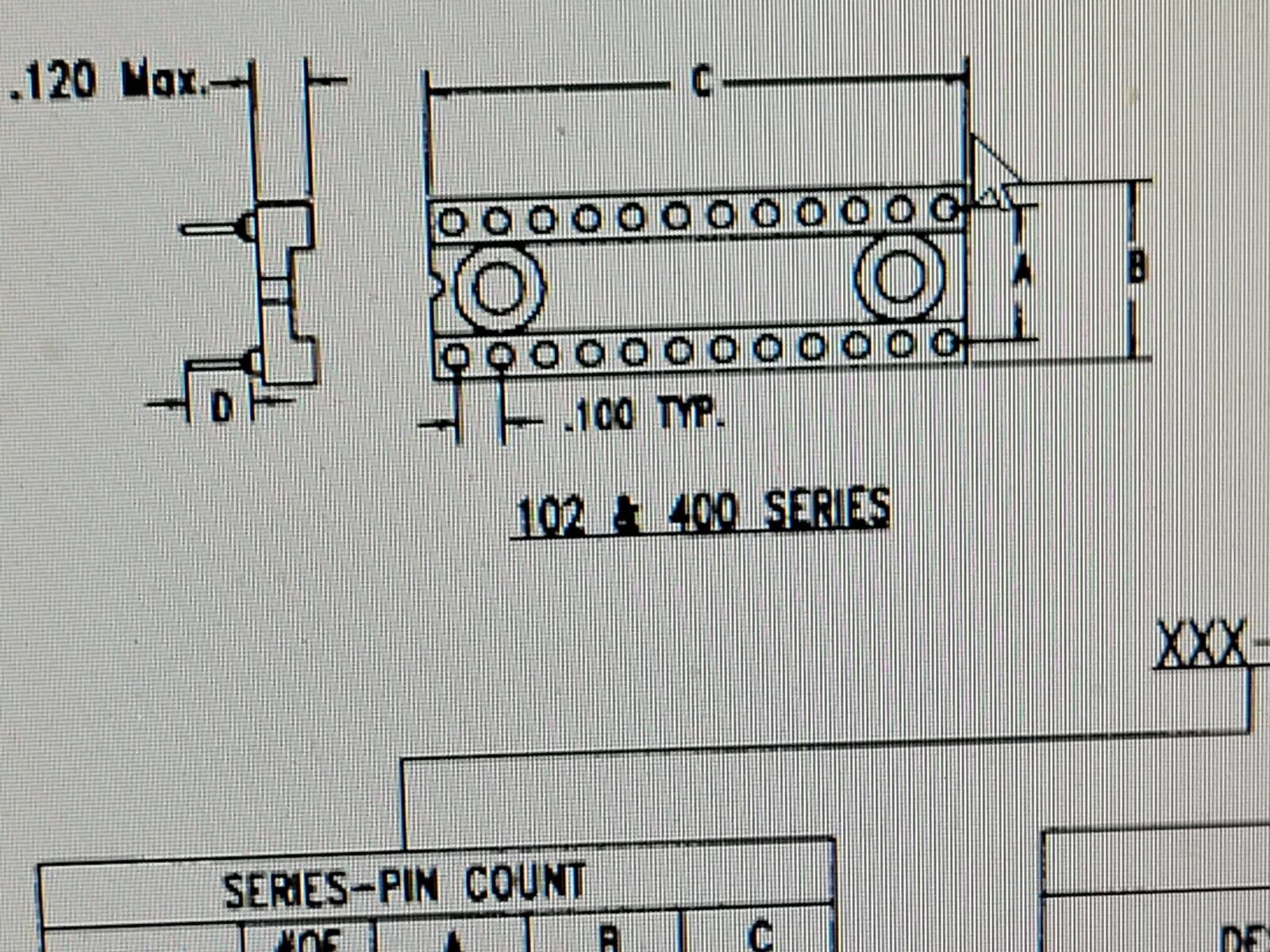

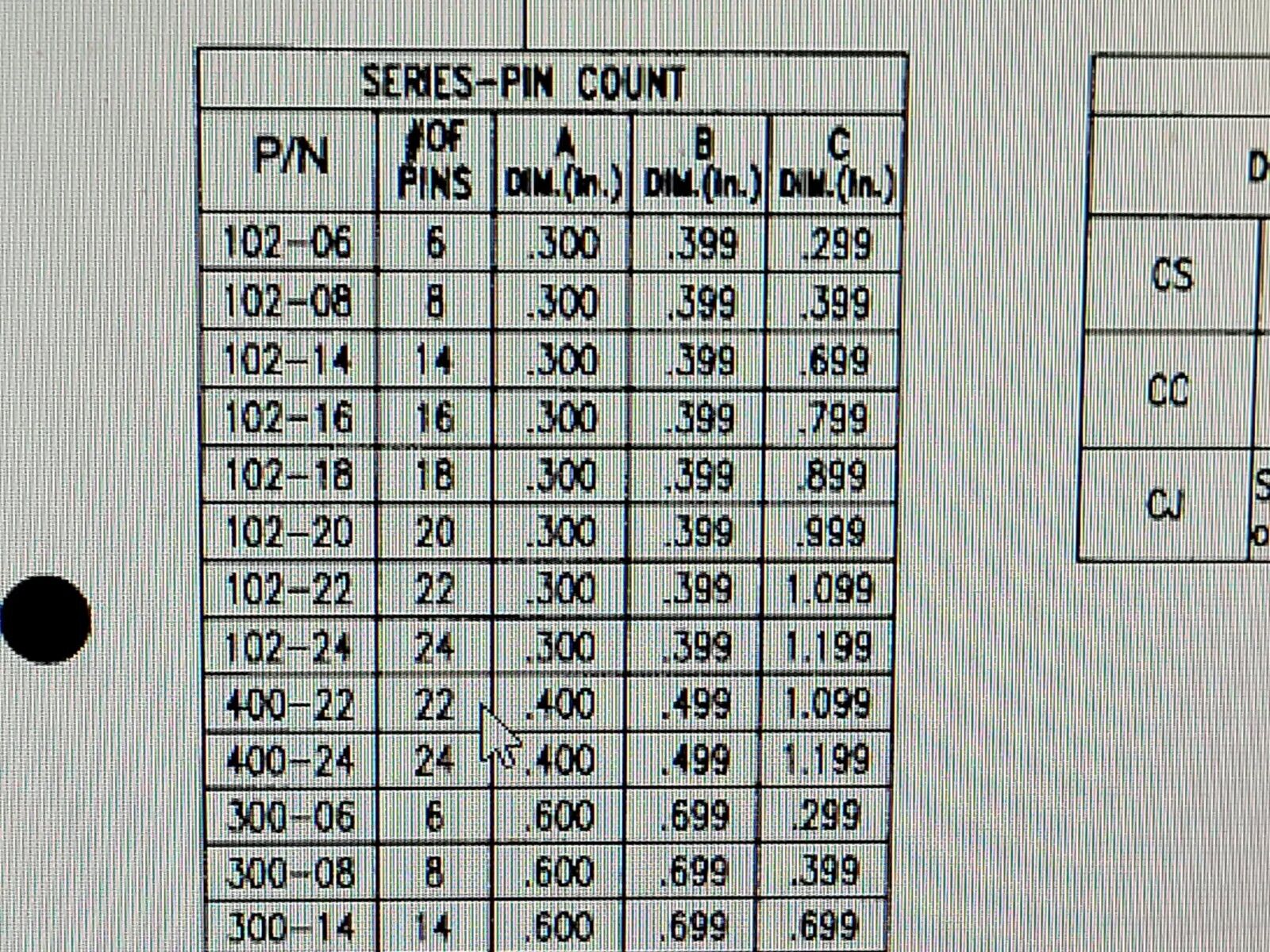

Body Breadth 0.499 inch
Body Depth 0.165 inch
Body Length 1.099 inch

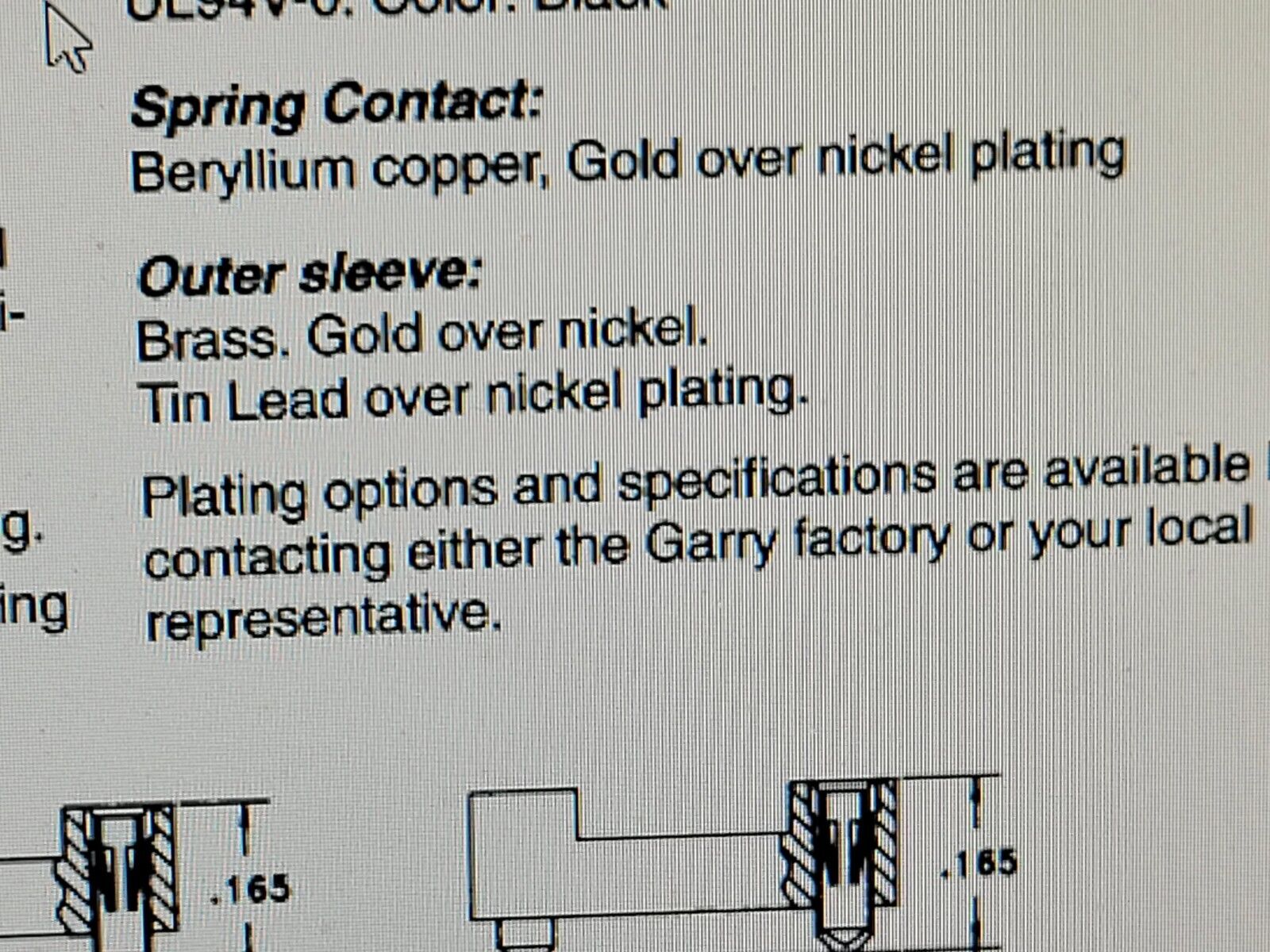

Contact Finish - Mating AU ON NI
Contact Finish - Termination GOLD
Contact Material BRASS
Contact Style RND PIN-SKT
Current Rating 3.0 A
Device Socket Type IC SOCKET
Device Type Used On DIP22
Dielectric Withstanding Voltage 1000VAC
Housing Material GLASS FILLED THERMOPLASTIC
Insulation Resistance 1.0E10 ohm
Manufacturer Series 400
Mounting Style STRAIGHT
Number of Contacts 22
PCB Contact Pattern RECTANGULAR
Terminal Pitch 2.54 mm

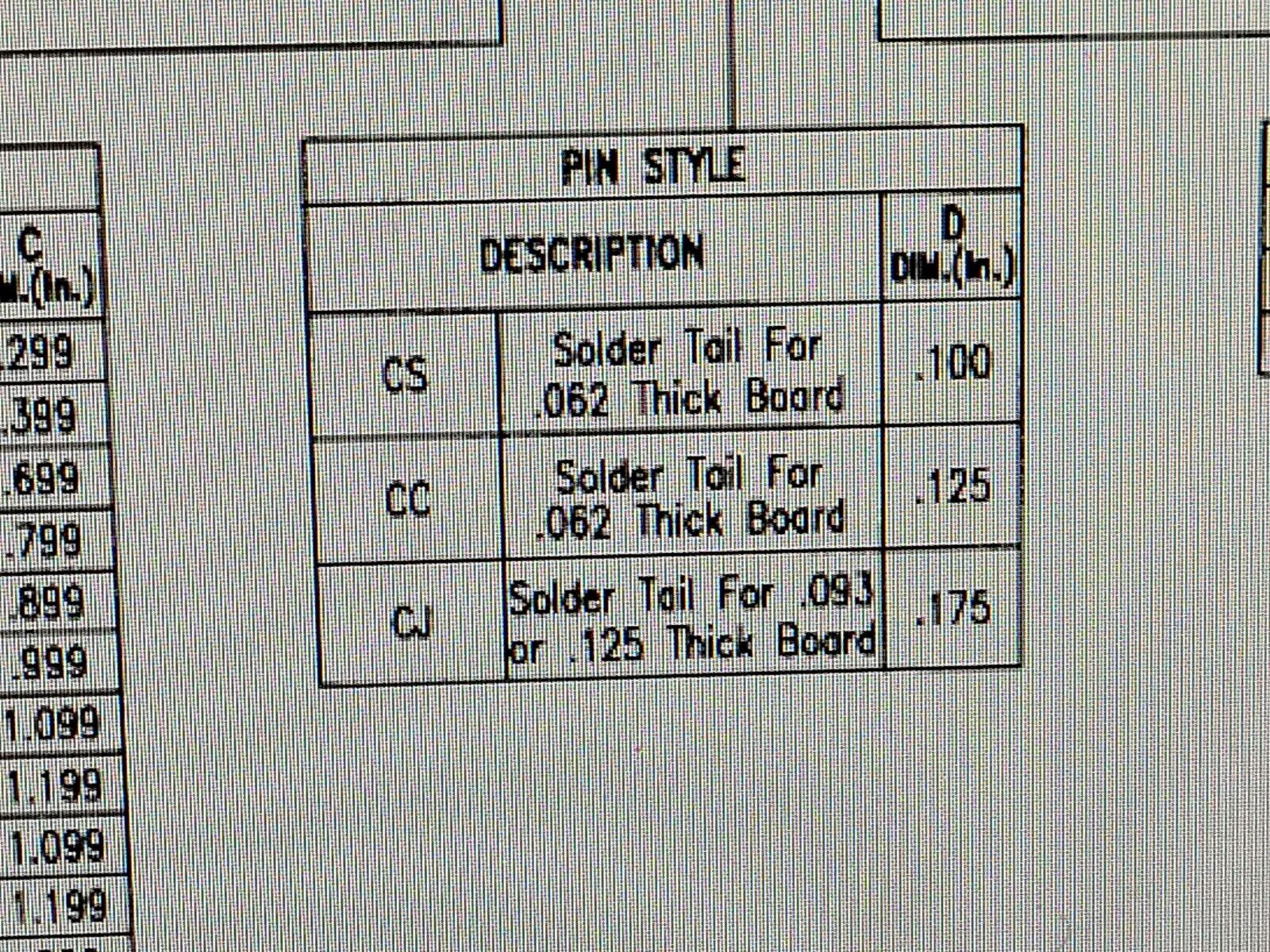

Termination Type SOLDER
