(5 PCS) 3296X-1-102 BOURNS TRIM RES Thru Hole 3/8" 1Kohms Horizontal Adjusts
Tax included.

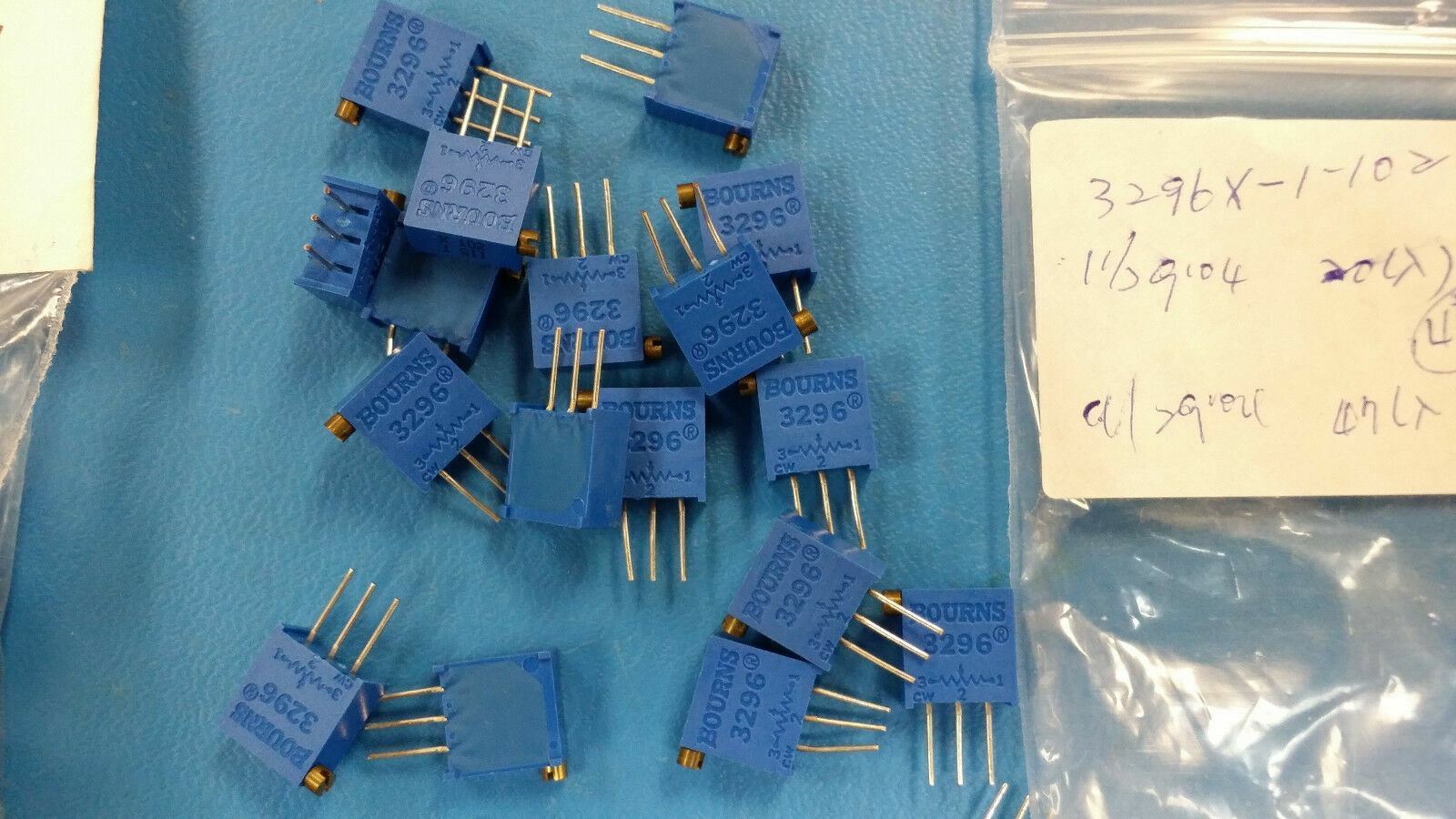

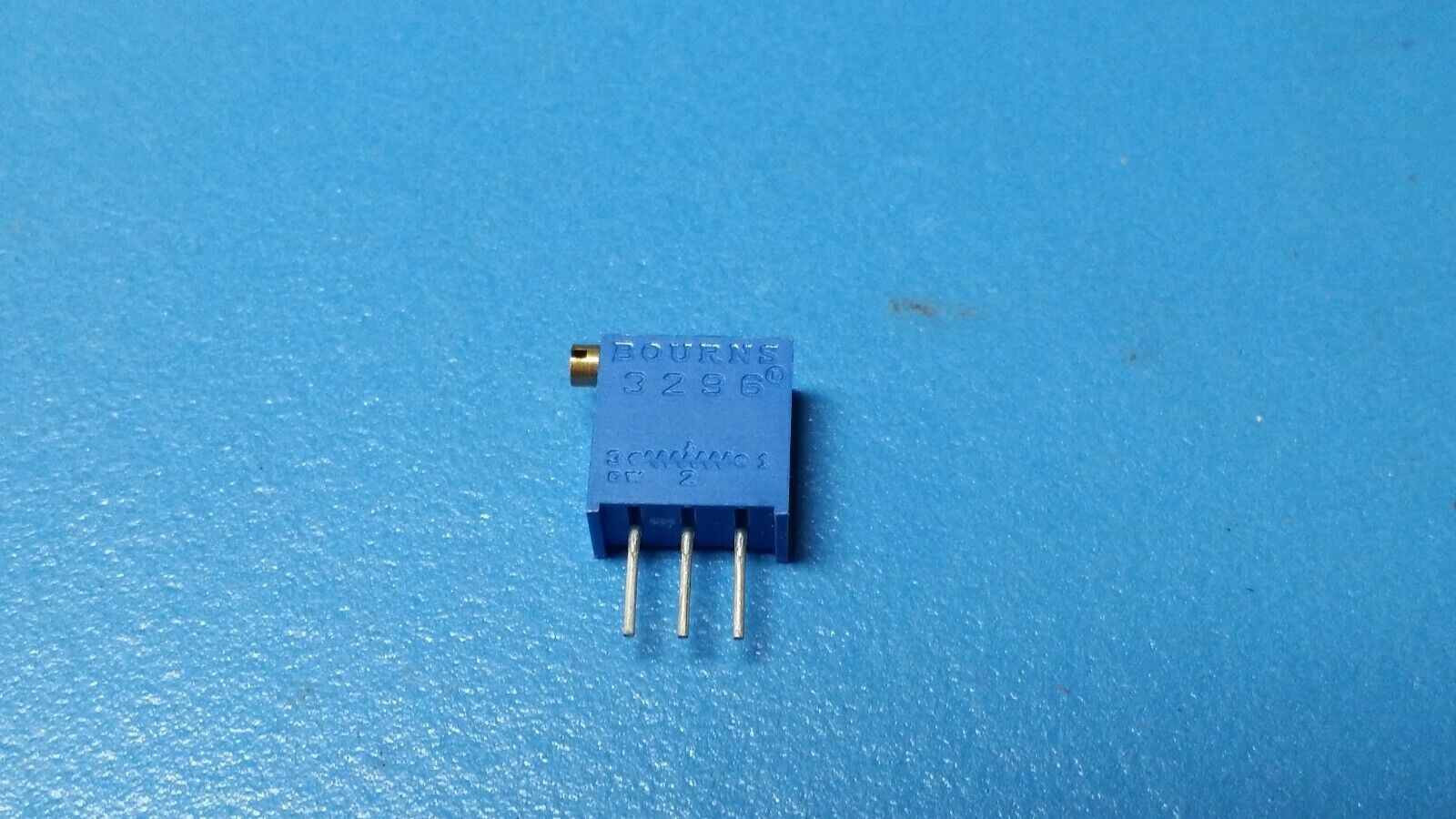

THIS LISTING IS FOR (5 PCS) OF 3296X-1-102 BY BOURNS
TRIMMER RESISTOR Thru Hole 3/8" 1Kohms Sealed Horizontal Adjusts
TRIMMER RESISTOR Thru Hole 3/8" 1Kohms Sealed Horizontal Adjusts
3296X-1-102 Part Details & Parametric
| EU RoHS |
Not Compliant
|
| Resistance Value (Ohm) | 1K |
| Power Rating (W) | 0.5 (1/2) |
| Tolerance | 10% |
| Temperature Coefficient (ppm/°C) | ±100 |
| Type | Trimmer |
| Technology | Cermet |
| Mounting | Through Hole |
| Termination Style | Pin |
| Shaft Diameter (mm) | 2.19 |
| Number of Turns (Turns) | 25(Elec) |
| Product Length (mm) | 11.05 |
| Product Depth (mm) | 4.83 |
