(5 PCS) 2N6349 MOT TRIAC 800V 12A TO220AB
Tax included.

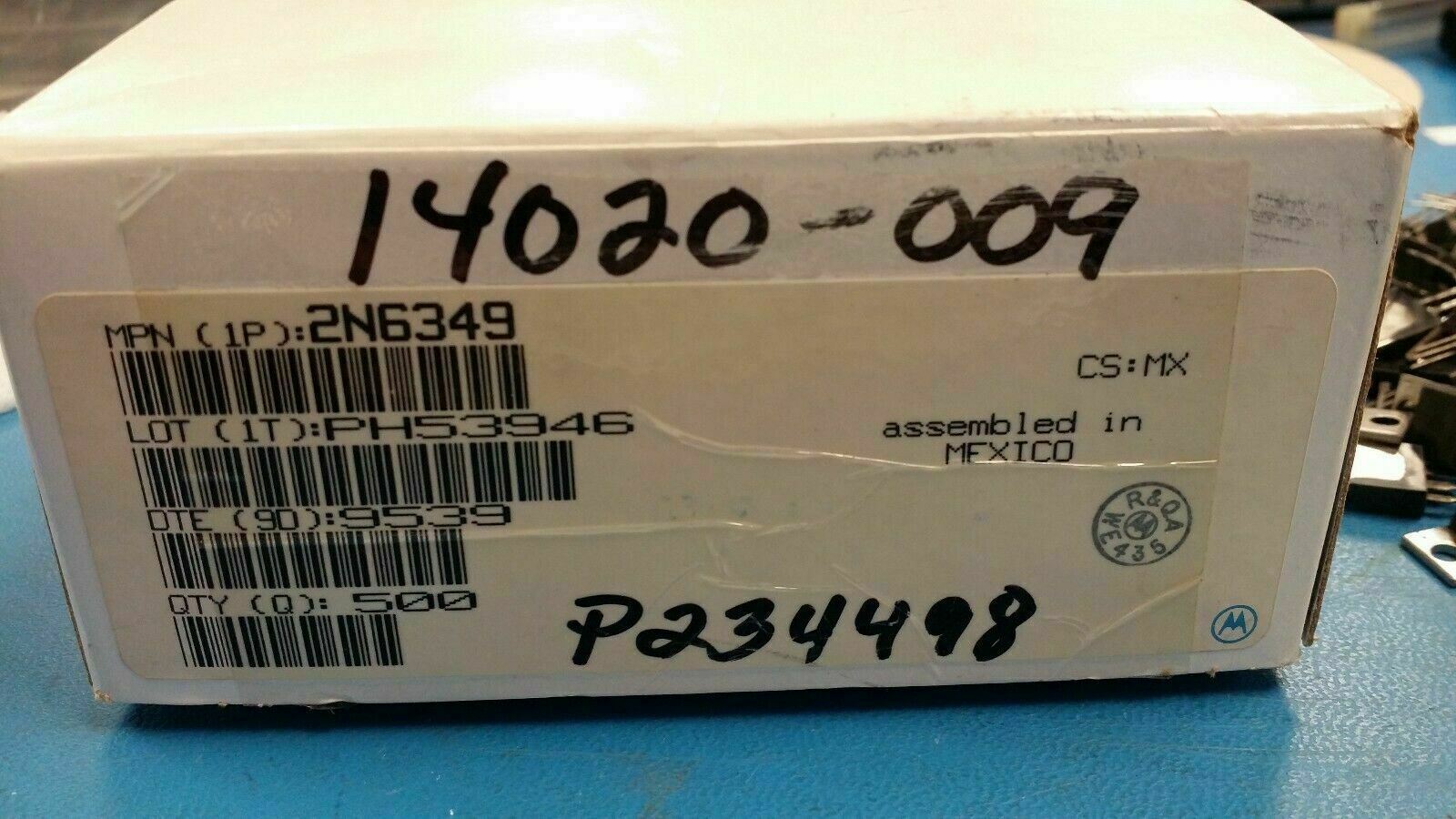

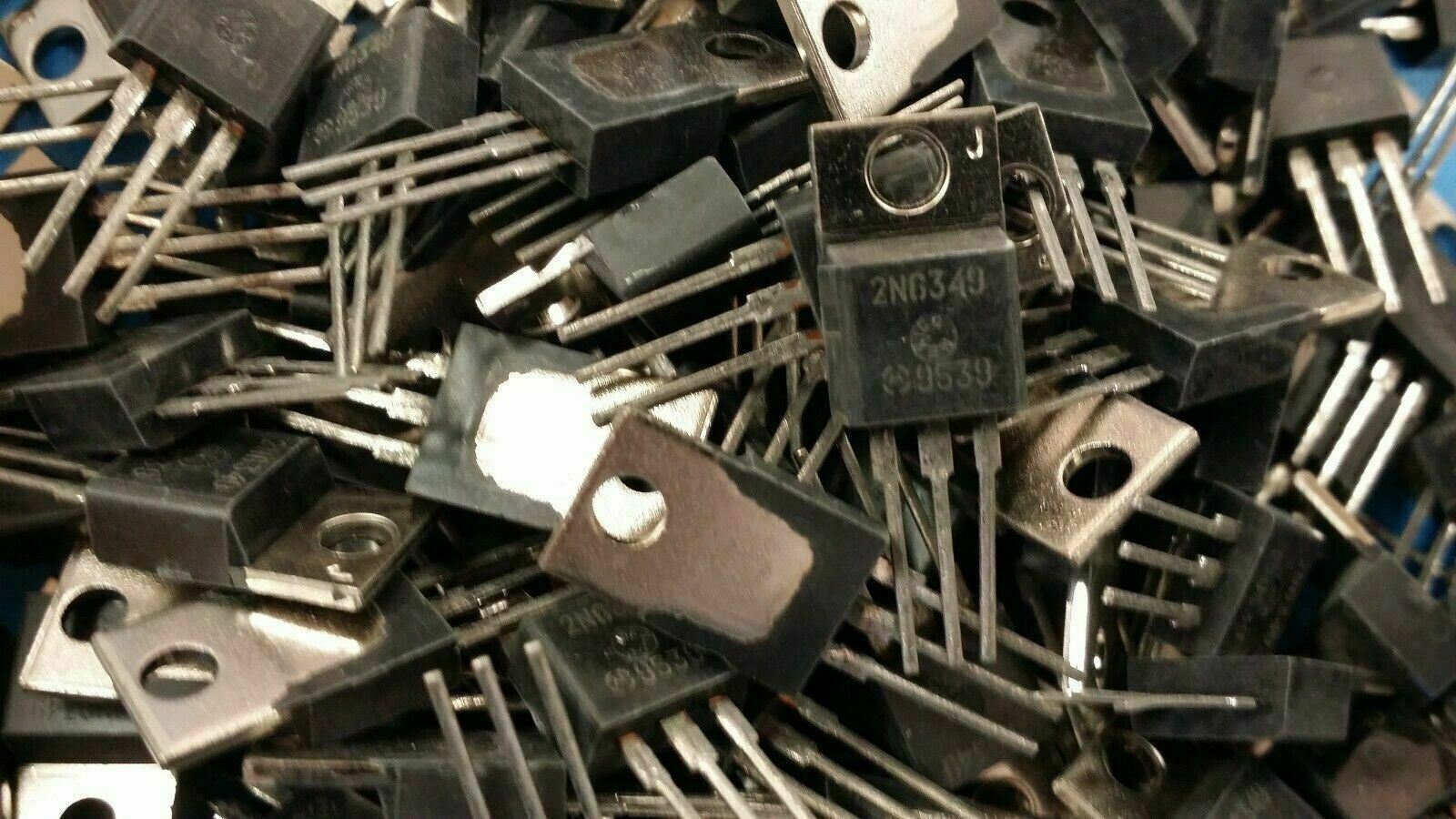

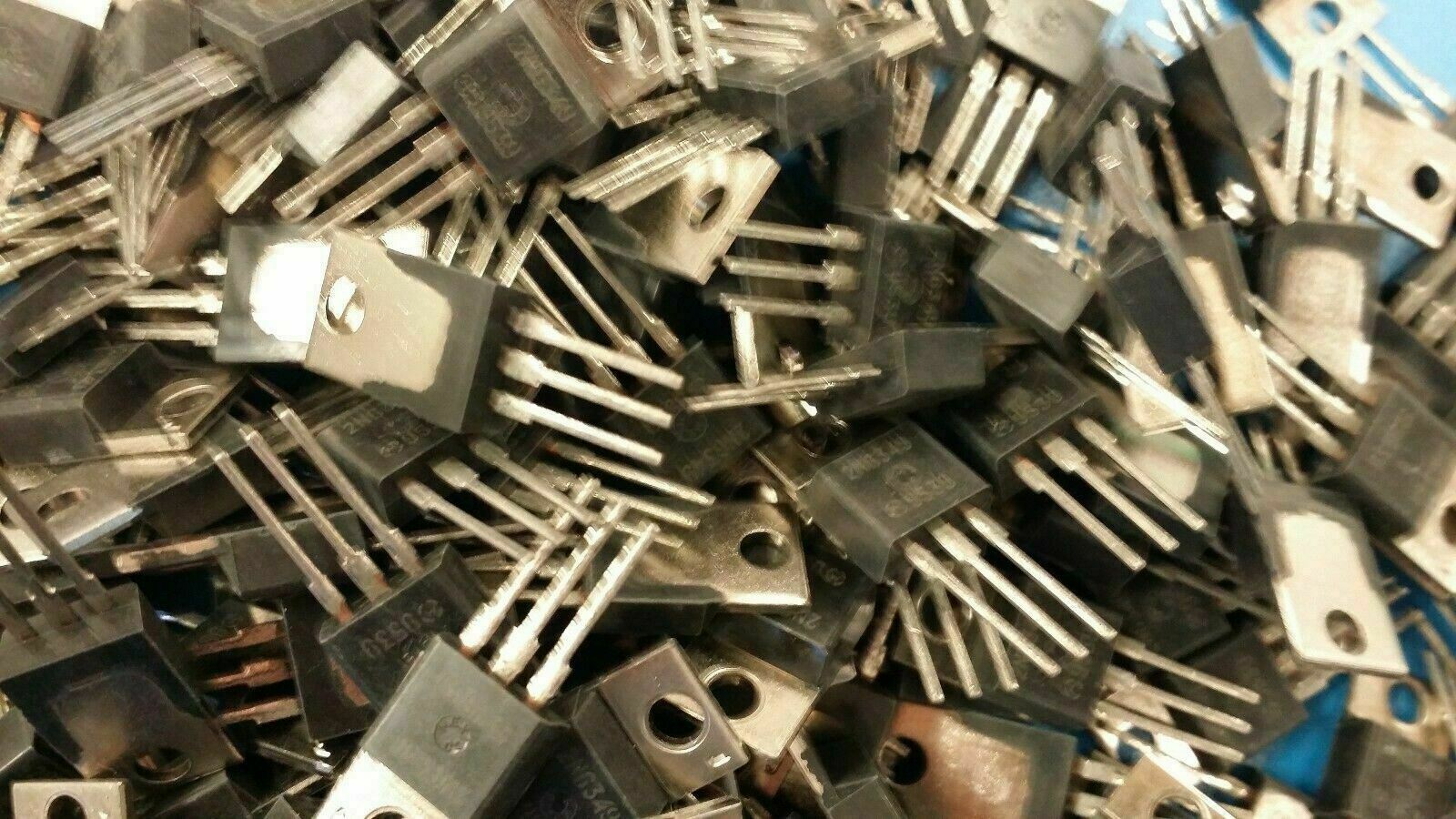

THIS LISTING IS FOR (5 PCS) OF 2N6349 BY MOT
TRIAC 800V 12A TO220AB
Part #: 2N6349
Part Category: Trigger Devices
Manufacturer: Motorola Solutions, Inc.
Description: 4 Quadrant Logic Level TRIAC, 800V V(DRM), 8A I(T)RMS, TO-220AB
Manufacturer: Motorola Solutions, Inc.
Description: 4 Quadrant Logic Level TRIAC, 800V V(DRM), 8A I(T)RMS, TO-220AB
| Mfr Package Description | CASE 221A-07, 3 PIN |
| Status | Transferred |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Case Connection | MAIN TERMINAL 2 |
| Configuration | SINGLE |
| DC Gate Trigger Current-Max | 50.0 mA |
| DC Gate Trigger Voltage-Max | 2.0 V |
| Holding Current-Max | 40.0 mA |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Leakage Current-Max | 2.0 mA |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| On-State Voltage-Max | 1.5 V |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 10.0 µA |
| Repetitive Peak Off-state Voltage | 800.0 V |
| RMS On-state Current-Max | 8.0 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
