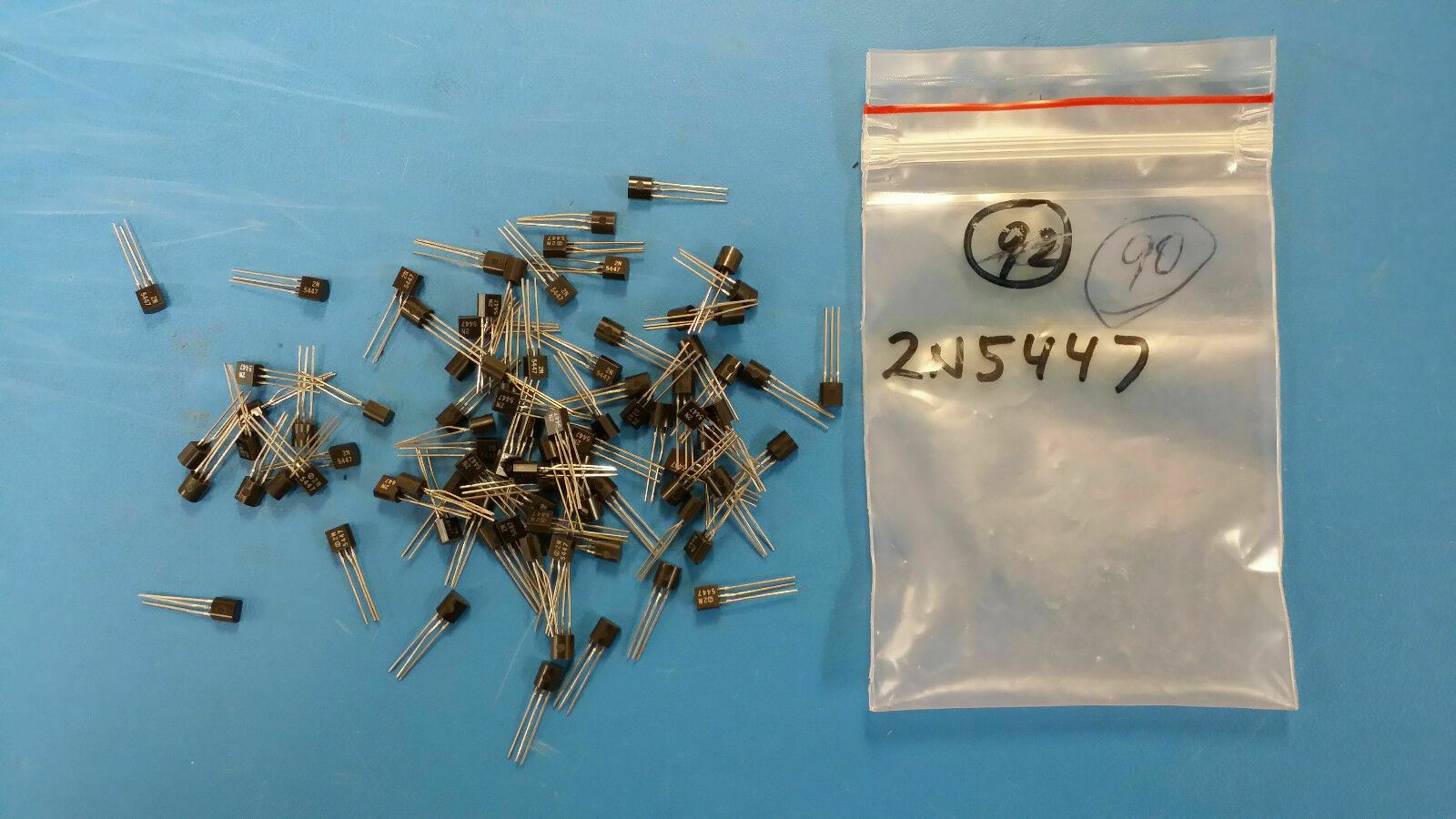

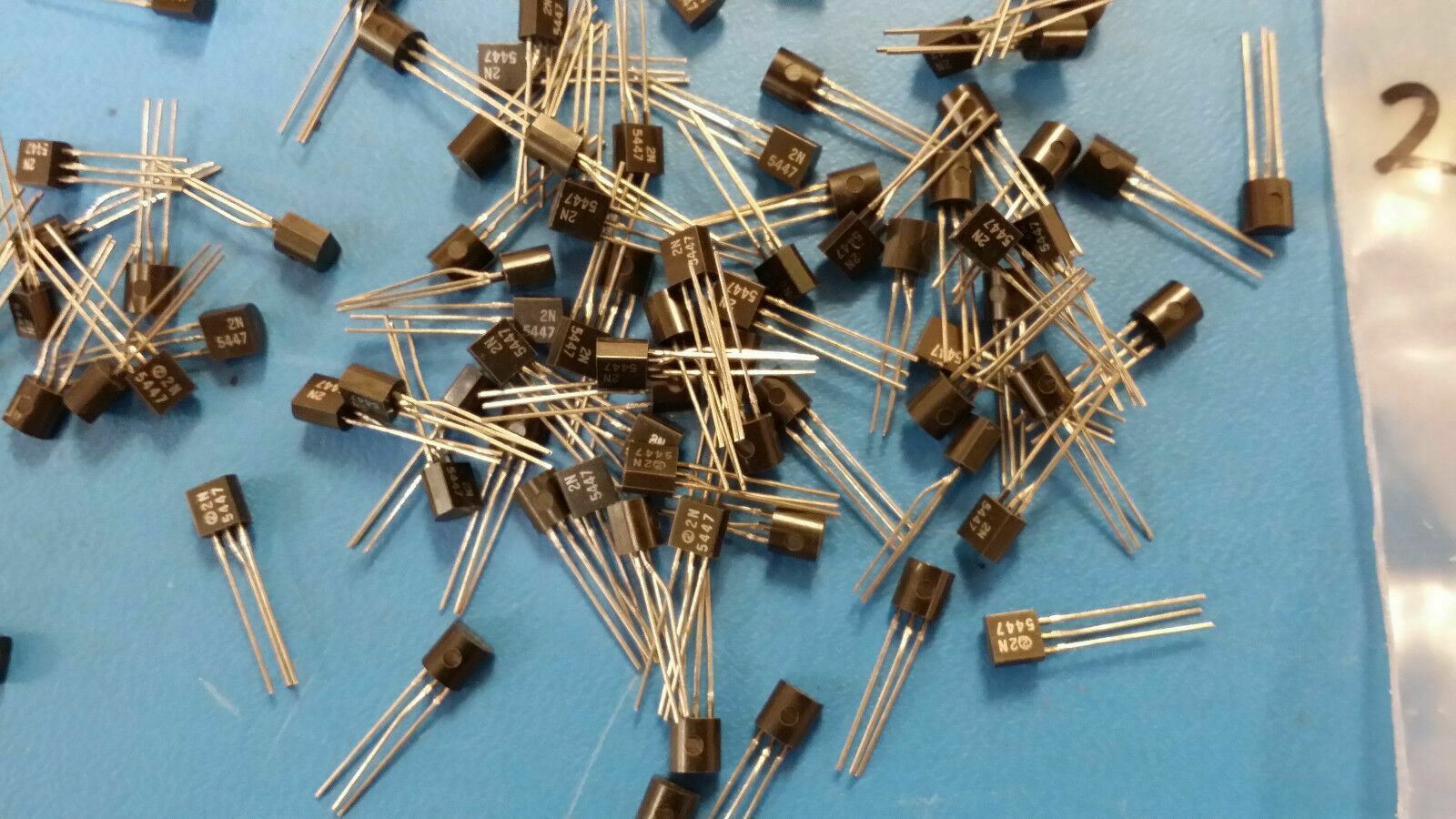

(5 PCS) 2N5447 200 mA, 25 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92

SPECIFICATIONS

Mfr Package Description TO-92-18R, 3 PIN

REACH Compliant Yes

Status Active

Collector Current-Max (IC) 0.2000 A

Collector-emitter Voltage-Max 25 V

Configuration SINGLE

DC Current Gain-Min (hFE) 60

JEDEC-95 Code TO-92

JESD-30 Code O-PBCY-T3

JESD-609 Code e0

Moisture Sensitivity Level NOT SPECIFIED

Number of Elements 1

Number of Terminals 3

Operating Temperature-Max 150 Cel

Package Body Material PLASTIC/EPOXY

Package Shape ROUND

Package Style CYLINDRICAL

Peak Reflow Temperature (Cel) NOT SPECIFIED

Polarity/Channel Type PNP

Power Dissipation-Max (Abs) 0.6200 W

Qualification Status COMMERCIAL

Sub Category Other Transistors

Surface Mount NO

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Position BOTTOM

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Transistor Application SWITCHING

Transistor Element Material SILICON

Transition Frequency-Nom (fT) 100 MHz
