(5 PCS) 1008CS-331XJBB COILCRAFT Inductor, 0.33uH, 5%, 1 Element, Ceramic-Core,
Tax included.

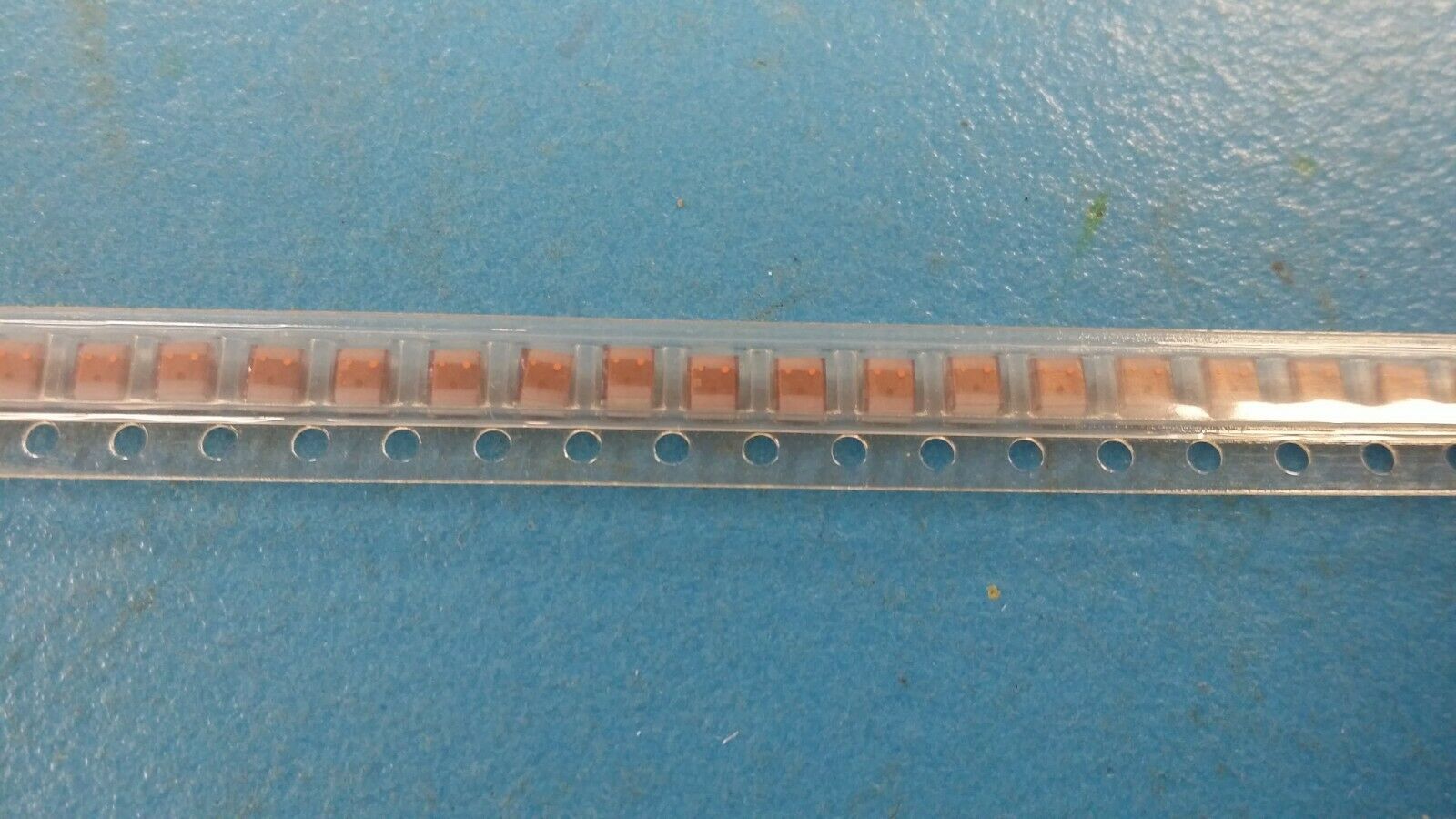

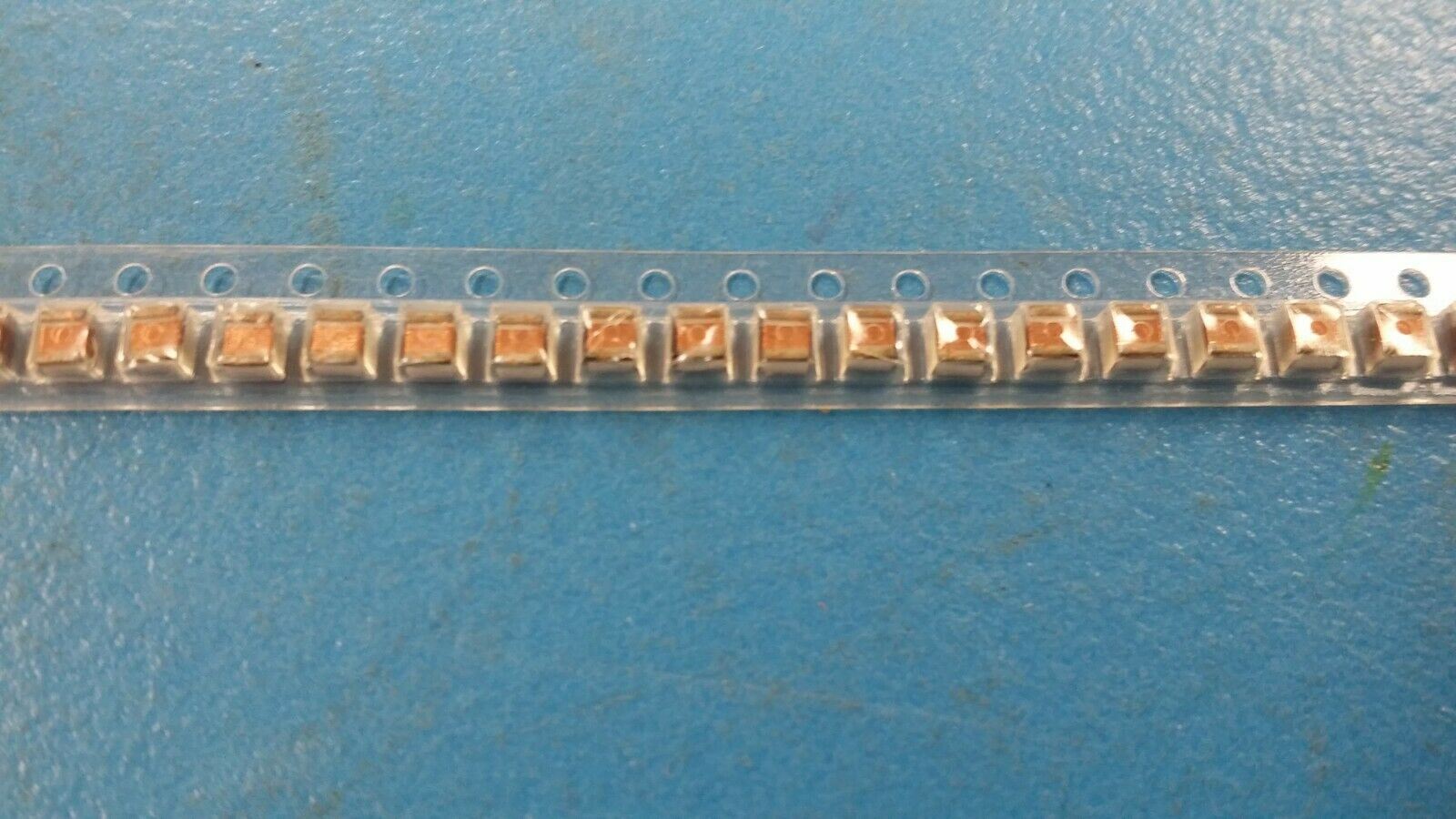

THIS LISTING IS FOR (5 PCS) OF 1008CS-331XJBB BY COILCRAFT
Inductor, 0.33uH, 5%, 1 Element, Ceramic-Core, SMD, 1111

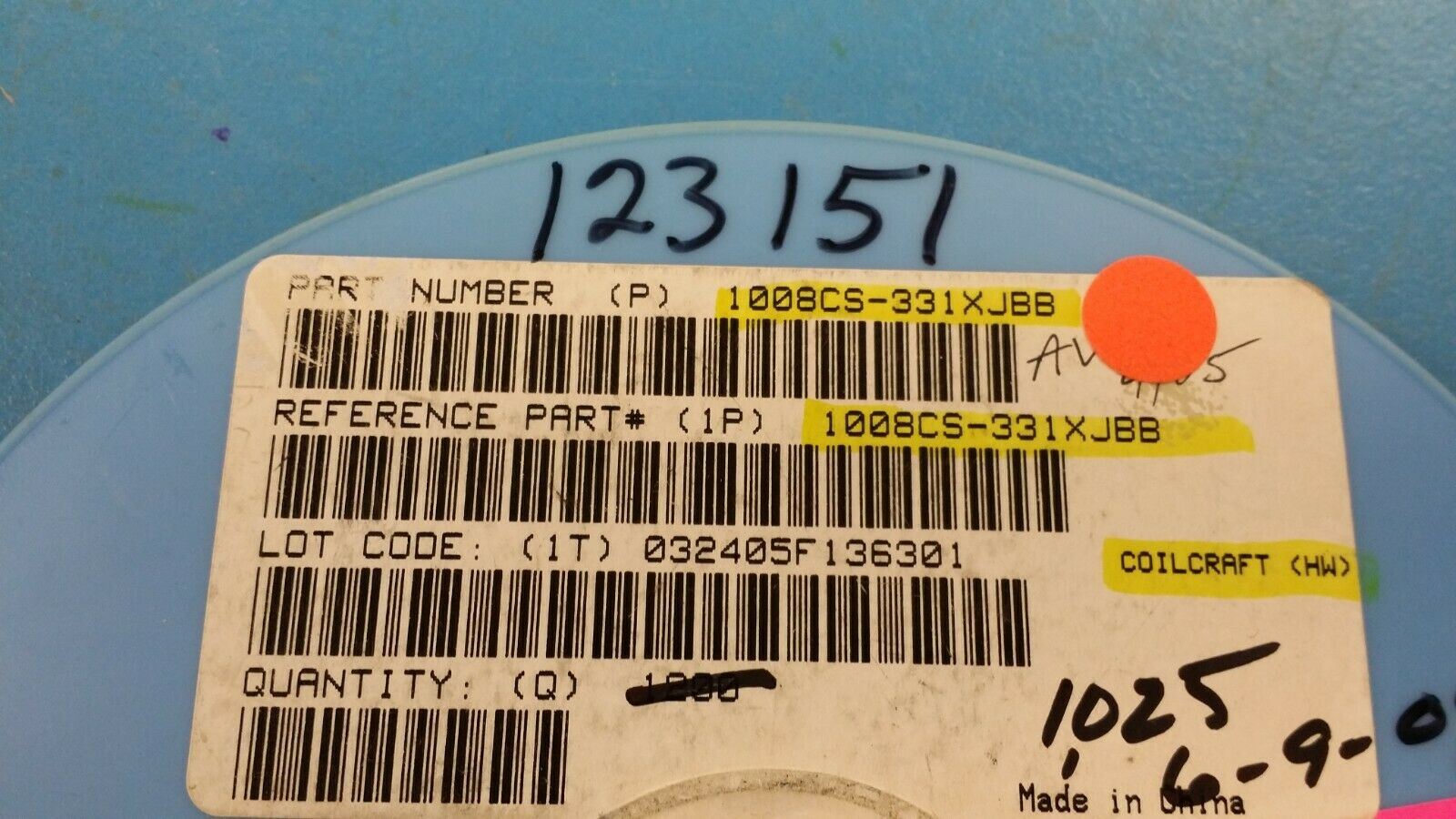

Part #: 1008CS-331XJBB
Part Category: Inductors
Manufacturer: Coilcraft, Inc.
Description: General Purpose Inductor, 0.33uH, 5%, 1 Element, Ceramic-Core, SMD, 1111
Mfr Package Description CHIP, 1010
Status Discontinued
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 1111
Construction Wirewound Chip
Core Material CERAMIC
DC Resistance 1.05 ohm
Inductance-Nom (L) 0.33 µH
Inductor Application RF INDUCTOR
JESD-609 Code e0
Number of Functions 1
Number of Terminals 2
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Height 2.03 mm
Package Length 2.92 mm
Package Width 2.79 mm
Packing Method TR
Quality Factor-Min (at L-nom) 45.0
Rated Current-Max 0.45 A
Self Resonance Frequency 570.0 MHz
Series 1008CS(5 TOL)
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Special Feature Q IS MEASURED AT 100MHZ
Surface Mount YES
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 25.0 MHz
Tolerance 5.0 %
