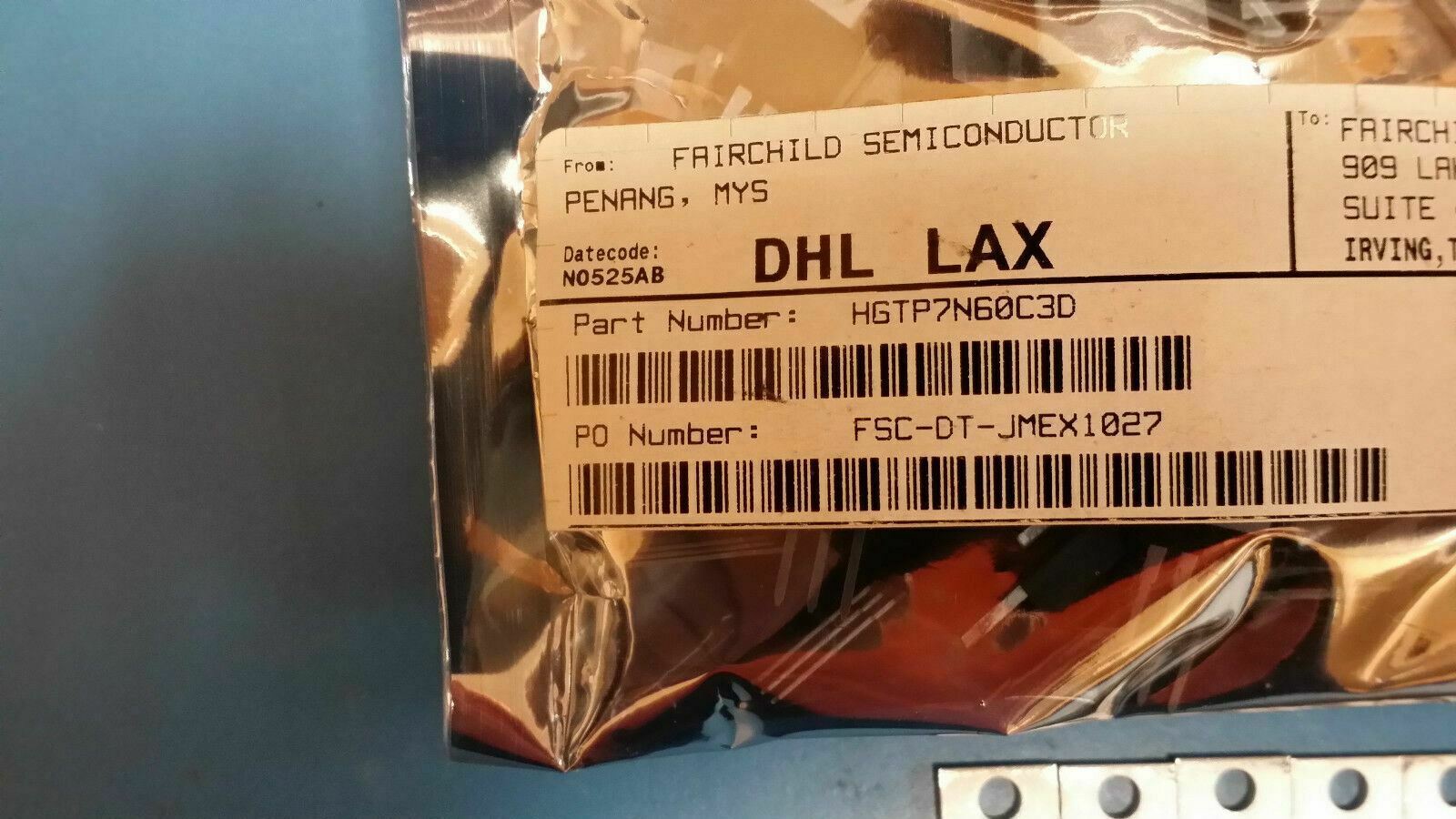

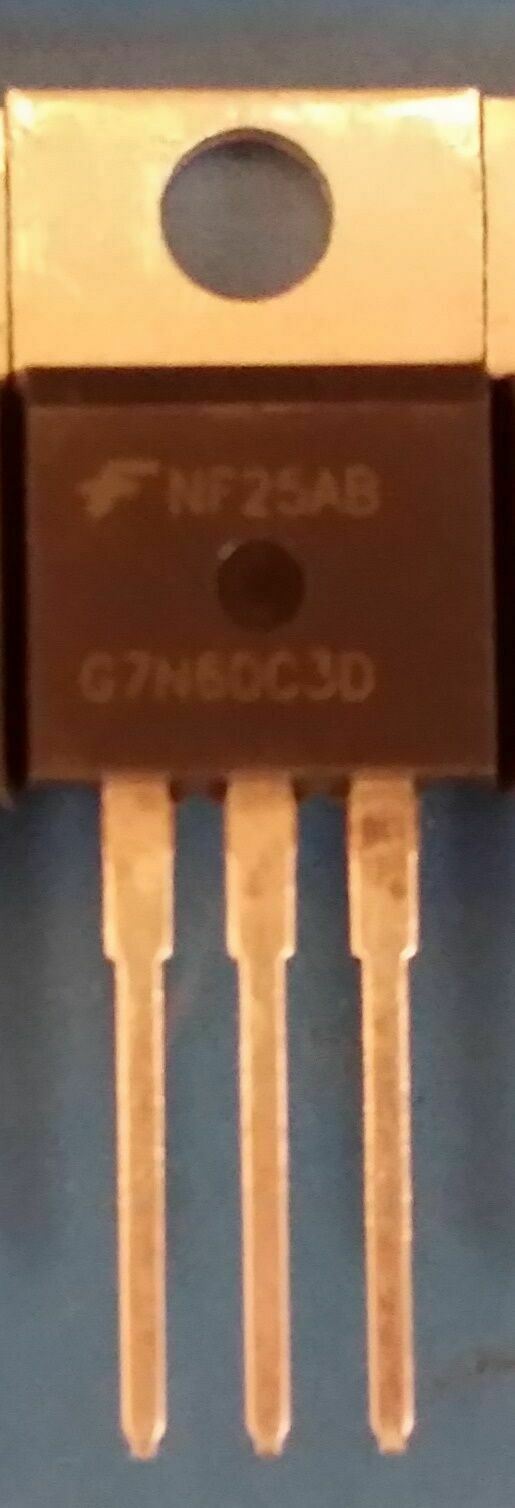

(5 PC ) HGTP7N60C3D Fairchild Semiconductor Single IGBT 600V 14A Transistor
Tax included.
This listing is for (5 PCS)transistor.
| IGBT Type | - |
|---|---|
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 14A |
| Current - Collector Pulsed (Icm) | 56A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 7A |
| Power - Max | 60W |
| Switching Energy | 165µJ (on), 600µJ (off) |
| Input Type | Standard |
| Gate Charge | 23nC |
| Td (on/off) @ 25°C | - |
| Test Condition | 480V, 7A, 50 Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
