(5 PC) HD74S10, MB74S10, HIT. FUJ. NAND Gate, TTL, CDIP14
Tax included.

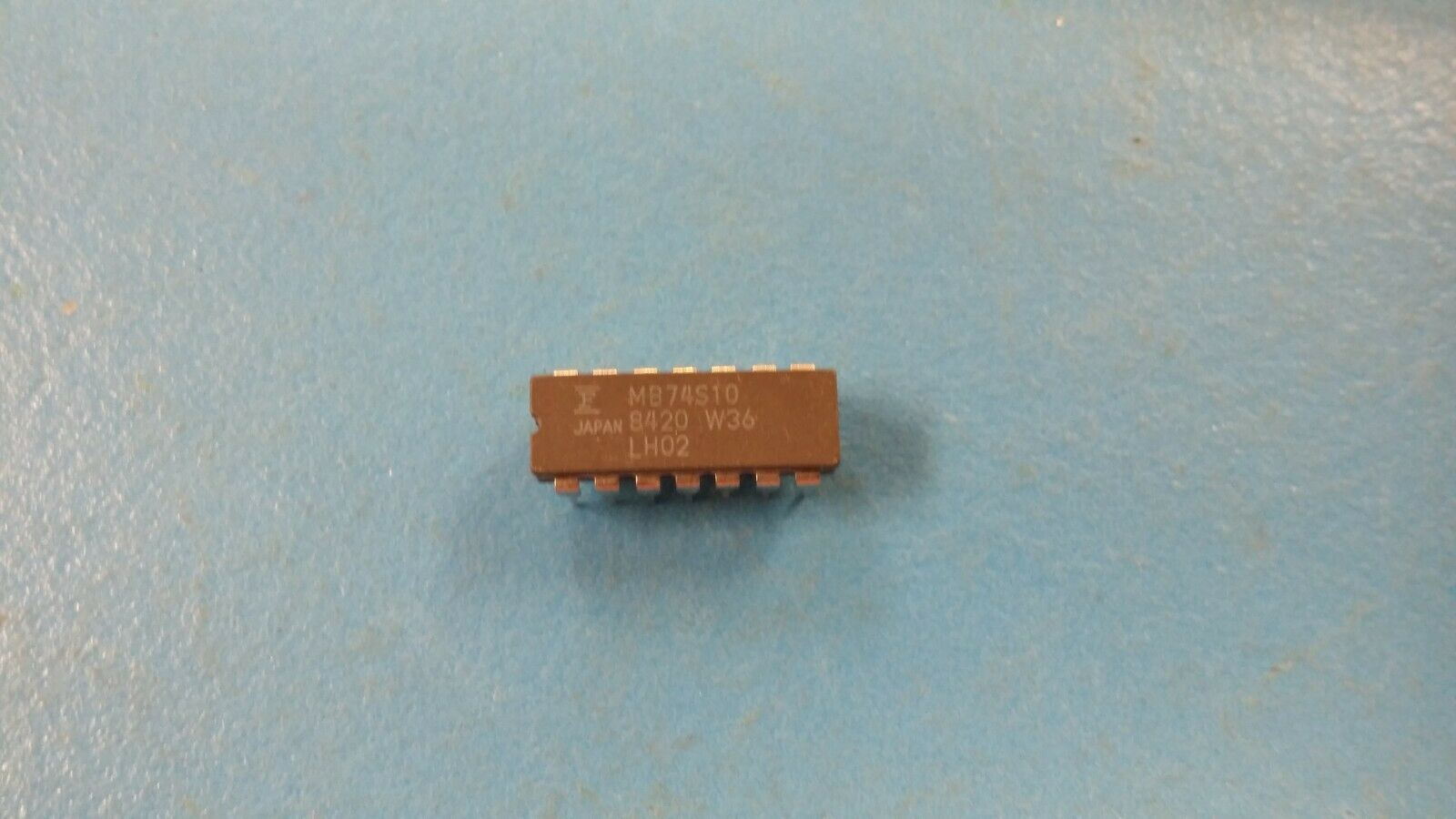

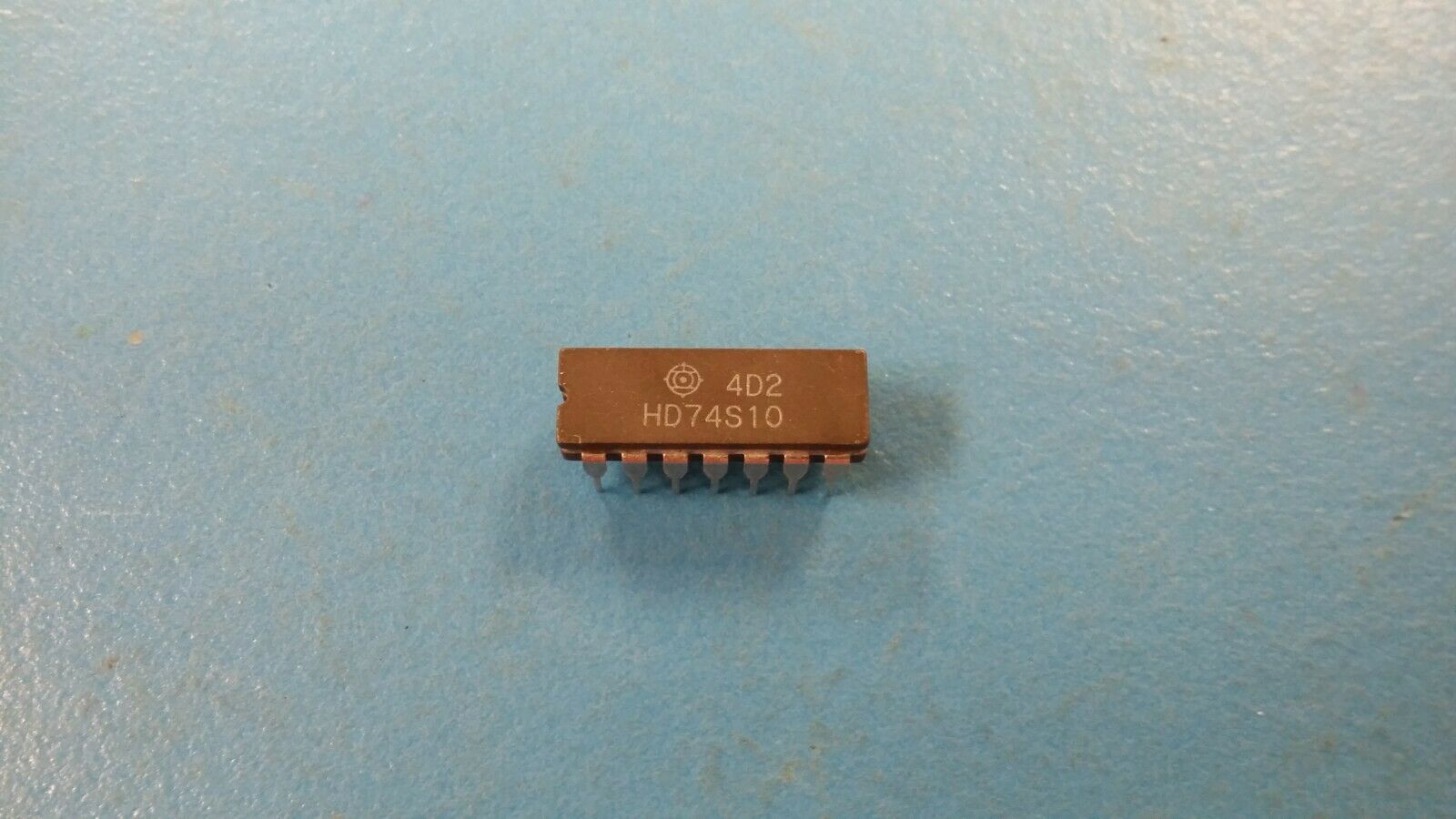

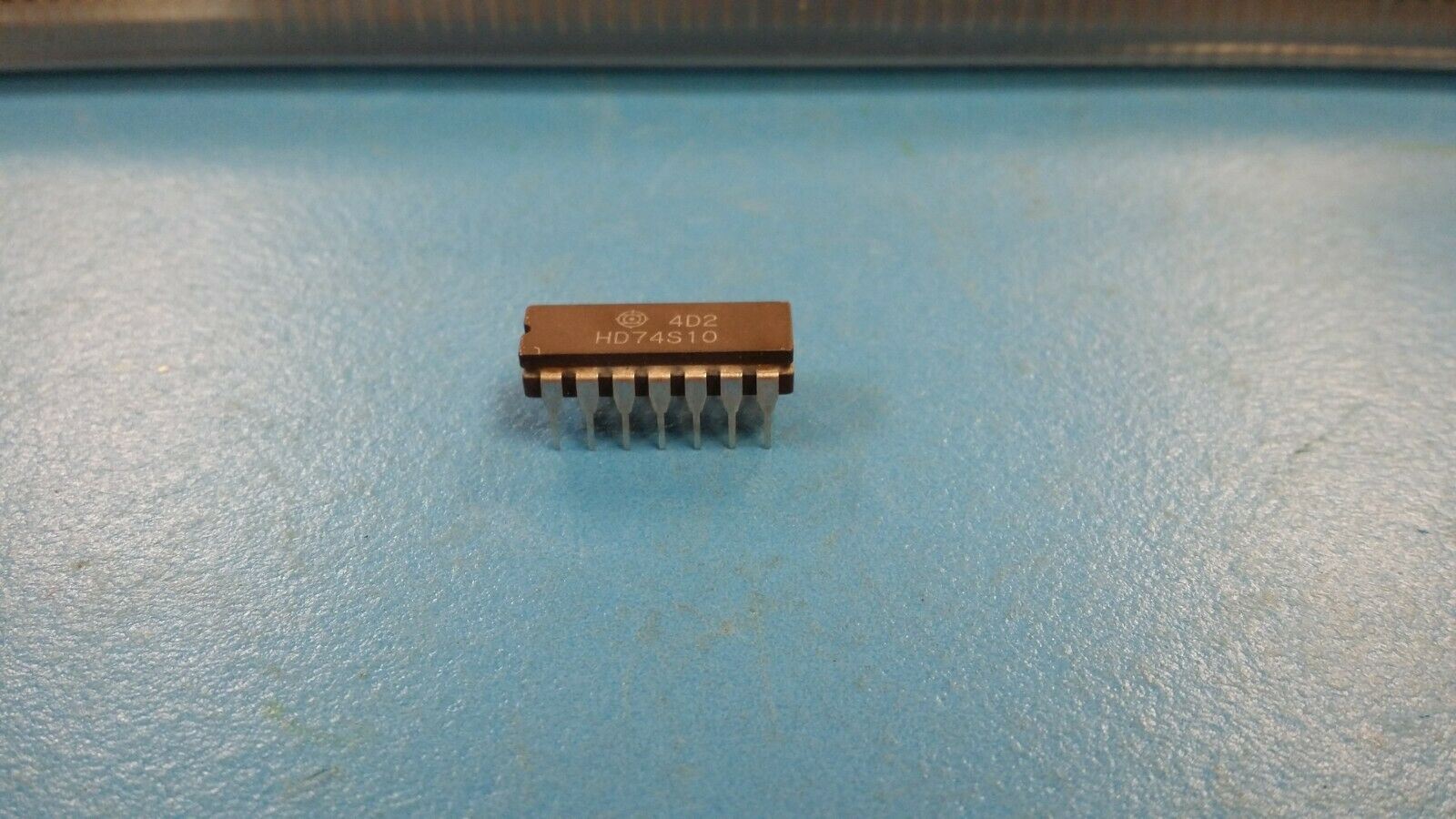

THIS LISTING IS FOR (5 PC) OF HD74S10, OR MB74S10, BY HIT. OR FUJ.
NAND Gate, TTL, CDIP14
6.95
Status Discontinued
Logic IC Type NAND GATE
Sub Category Gates
JESD-30 Code R-XDIP-T14
JESD-609 Code e0
Number of Terminals 14
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Schmitt Trigger NO
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
